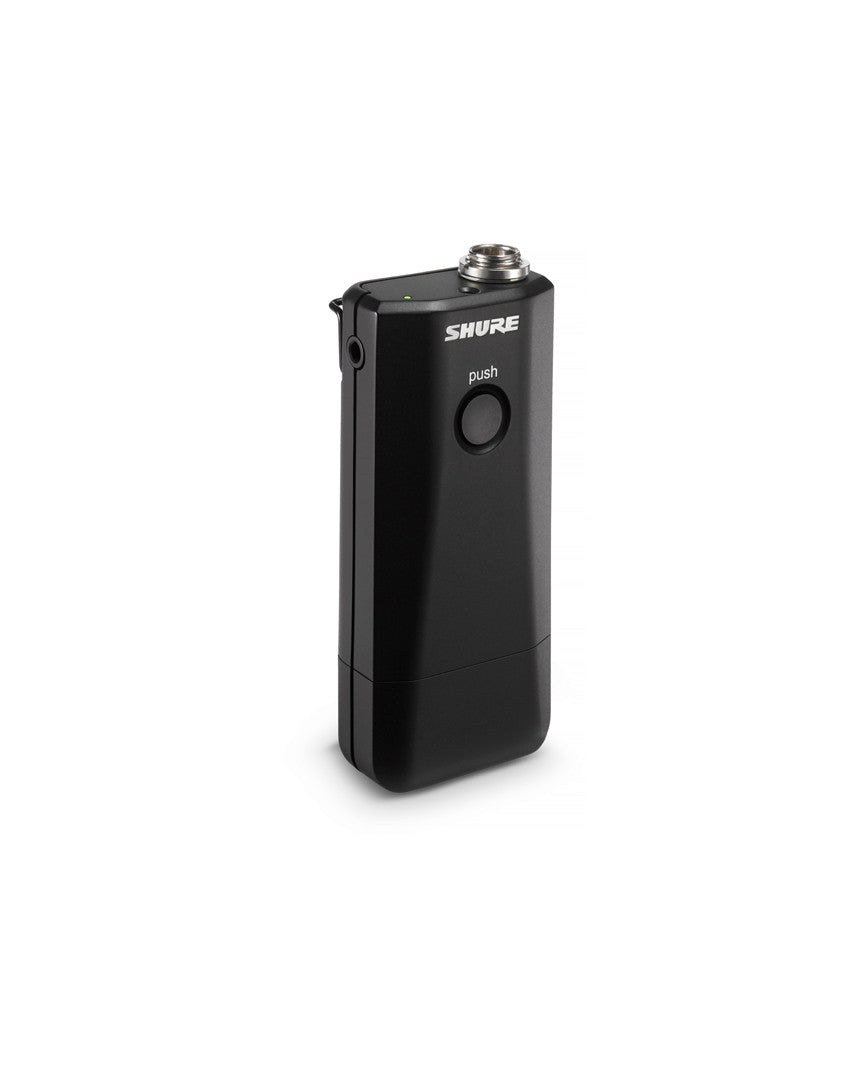

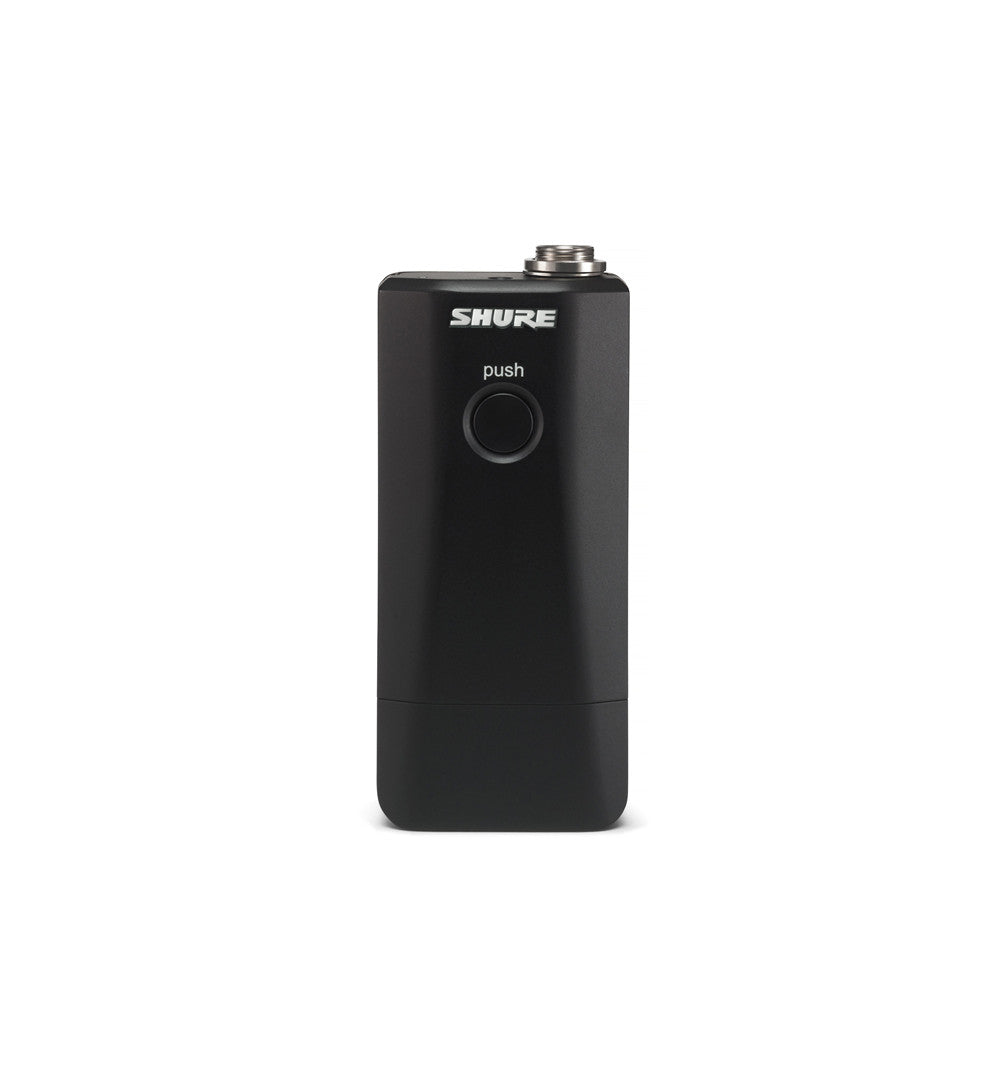

Shure MXW1/O Z11 Omnidirectional Microphone Hybrid Bodypack Transmitter
Introducing the MXW1: Hybrid Bodypack Transmitter Compatible with Microflex Wireless Systems
The MXW1 is a cutting-edge bodypack transmitter designed to work with Microflex Wireless systems. With its integrated omnidirectional microphone and input jack, it offers the best of both worlds. The integrated microphone is perfect for picking up speech, while the input jack allows for the connection of an ear-worn or lavalier style microphone.
For added convenience, the MXW1 comes equipped with a belt clip that can be attached to clothing. All Microflex Wireless transmitters provide outstanding audio quality, intelligent wireless performance, encrypted transmission, and advanced rechargeability, making them ideal for conferencing and presentation applications.
In summary, the MXW1 is an excellent choice for anyone seeking a reliable and efficient hybrid bodypack transmitter for their Microflex Wireless system.
Key Features
- Hybrid bodypack transmitter design: Works with Shure Microflex Wireless systems for conferencing and presentation applications
- Integrated omnidirectional microphone: Captures speech without requiring an external microphone
- External microphone input: Supports various earworn or lavalier condenser microphones
- Bi-directional wireless technology: Enables real-time remote control and return channel audio
- Earphone output: Allows monitoring of translation, cueing, or program audio from a return channel
- Programmable mute button: Configurable for push-to-talk, push-to-mute, and external control
- Remote standby mode: Can be enabled during inactivity to extend battery life
- Working range up to 160 feet (50 meters): Supports reliable wireless coverage
- Out-of-range alert: Audible indication when the microphone exceeds operating range
- AES 256-bit encryption: Provides secure wireless transmission
- Rechargeable lithium-ion battery system: Supports long runtime and recharge monitoring
- USB charging support: Allows charging from a standard USB power source for flexible operation
- Easy linking workflow: Links by docking into a networked charging station and assigning to an access point channel
- Sleek compact housing: Fits in a shirt pocket or clips to clothing
Technical Specifications
-
General
- Product Type: Hybrid Bodypack Transmitter
- Model: MXW1/O Z11
- System Compatibility: Microflex Wireless systems
-
Microphone
- Internal Microphone: Omnidirectional
- Internal Microphone Frequency Response: 20 Hz ā 20 kHz
- Microphone Connector: 4-pin male mini connector (TA4M)
- Input Impedance: >20 kĪ© @ 1 kHz
-
Wireless Performance
- Working Range: Up to 160 feet (50 meters)
- Encryption: AES 256-bit
- Wireless Control: Bi-directional wireless technology with return channel audio
-
Battery & Charging
- Battery Life: Up to 7 hours (Standard Density), up to 8 hours (High Density)
- Full Charge Time: 2 hours
- USB Charging: Supported from standard USB power sources
- Charge Time with SBC-USB Adapter While In Use: Less than 3.5 hours
-
Controls & Monitoring
- Mute Control: Programmable mute button
- Monitoring: Earphone output for return channel audio
- Alert: Out-of-range beeping alert
- Standby Mode: Remote standby capability
-
Physical
- Dimensions (H Ć W Ć D): 22 mm Ć 45 mm Ć 99 mm (0.9 in. Ć 1.8 in. Ć 3.9 in.)
- Weight: 85 g (3.0 oz.) with batteries, without microphone
- Mounting Style: Pocket or clothing attachment via belt clip
Use Cases
- Wireless conferencing systems
- Presentation and speech reinforcement
- Bodypack operation with earworn microphones
- Bodypack operation with lavalier microphones
- Installations requiring encrypted wireless audio and remote control
Package Contents
- Shure MXW1/O Z11 Hybrid Bodypack Transmitter
Frequently Asked Questions
What is the Shure MXW1/O Z11 used for?
The Shure MXW1/O Z11 is a hybrid bodypack transmitter designed for use with Microflex Wireless systems in conferencing and presentation applications.
Does the MXW1/O Z11 have a built-in microphone?
Yes, it includes an integrated omnidirectional microphone for speech pickup.
Can the MXW1/O Z11 be used with an external microphone?
Yes, it has an external microphone input that supports various earworn or lavalier condenser microphones.
Does the Shure MXW1/O Z11 support encrypted wireless transmission?
Yes, it uses AES 256-bit encrypted wireless transmission for secure communication.
How long does the battery last on the MXW1/O Z11?
Battery life is up to 7 hours in standard density mode and up to 8 hours in high density mode.
What applications is the MXW1/O Z11 best suited for?
It is designed for conferencing and presentation environments that need compact wireless microphone performance, remote control capability, and rechargeable operation.
