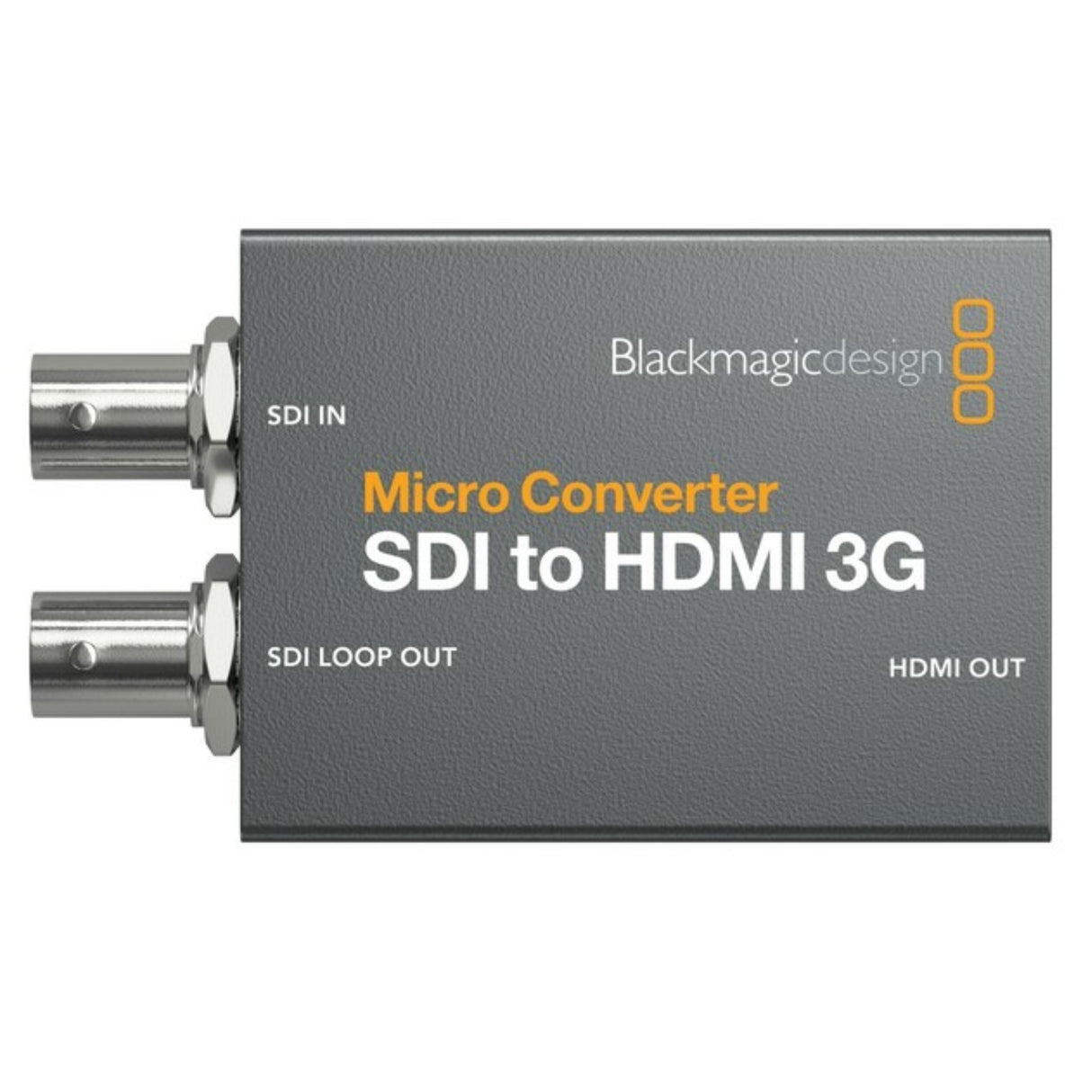

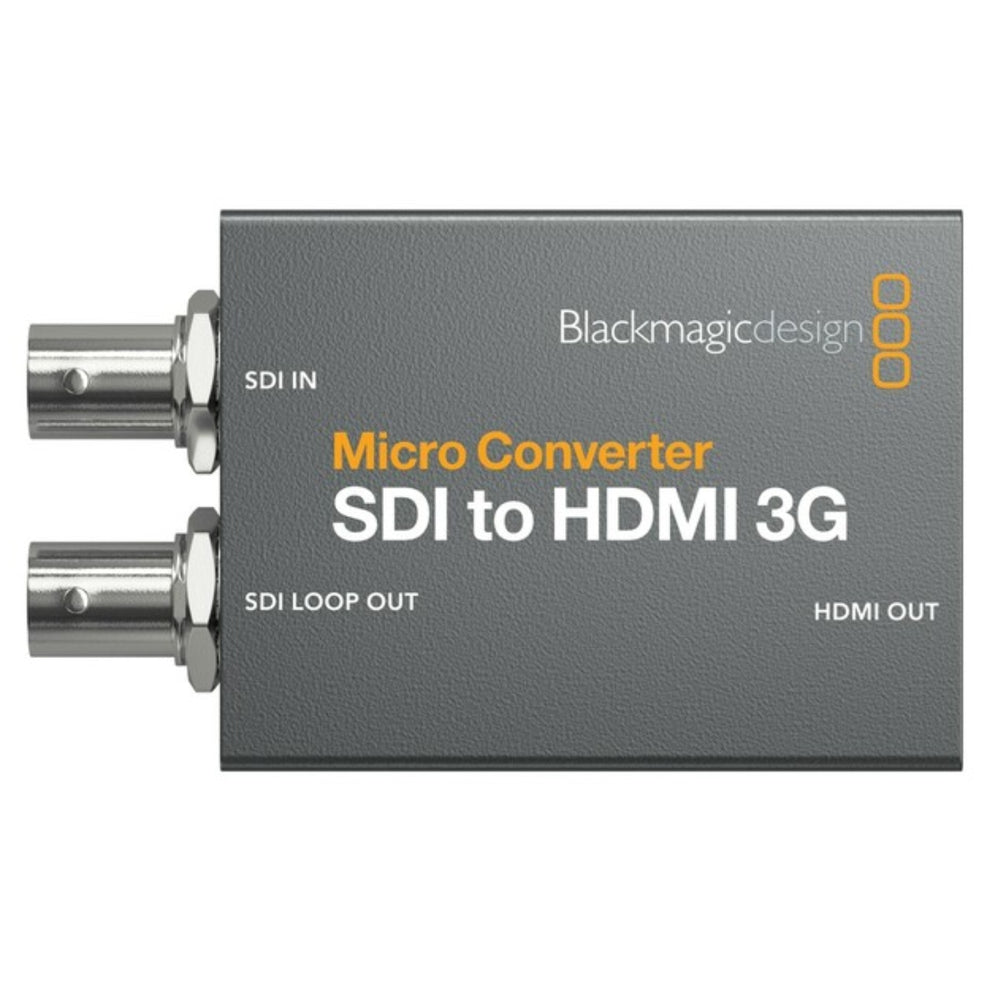

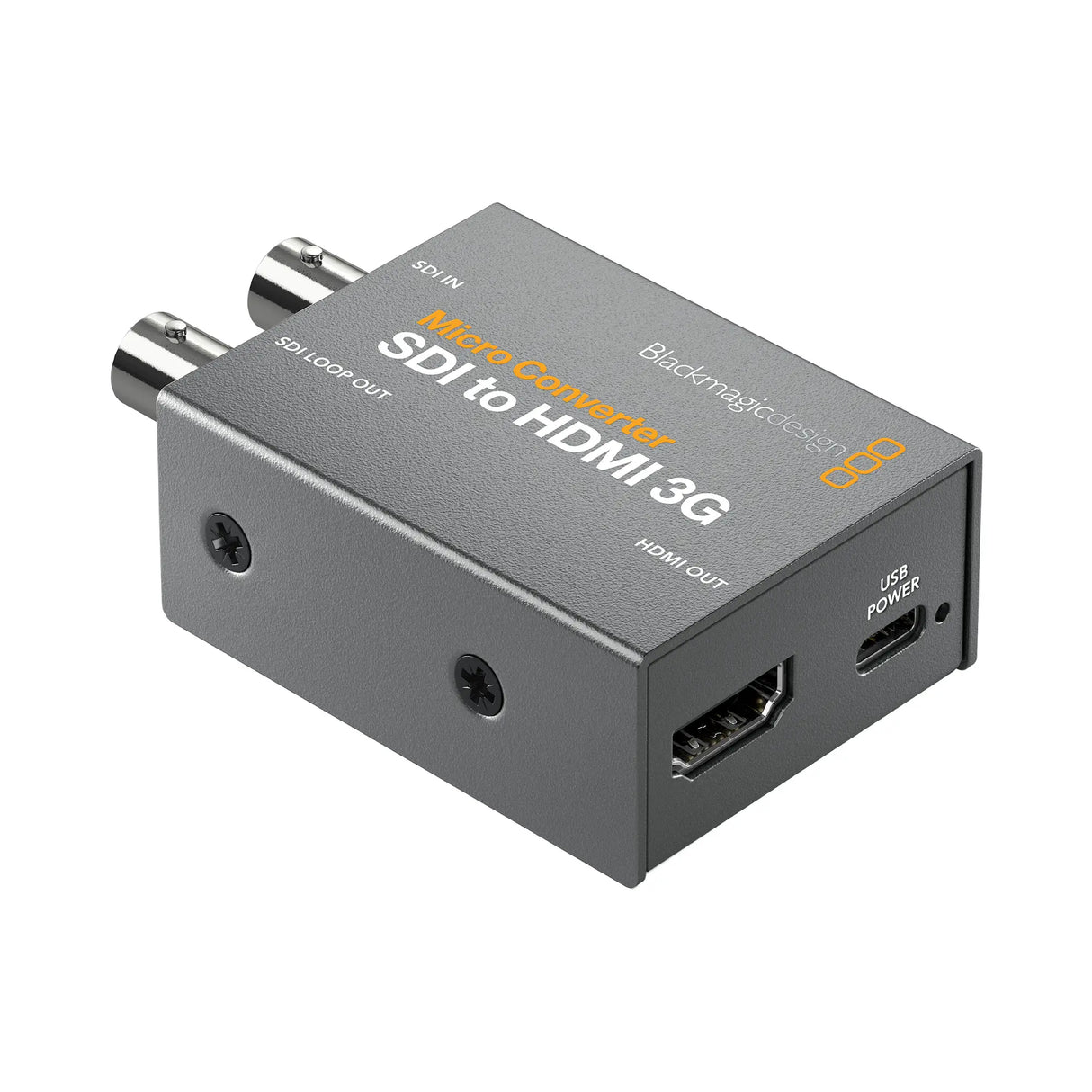

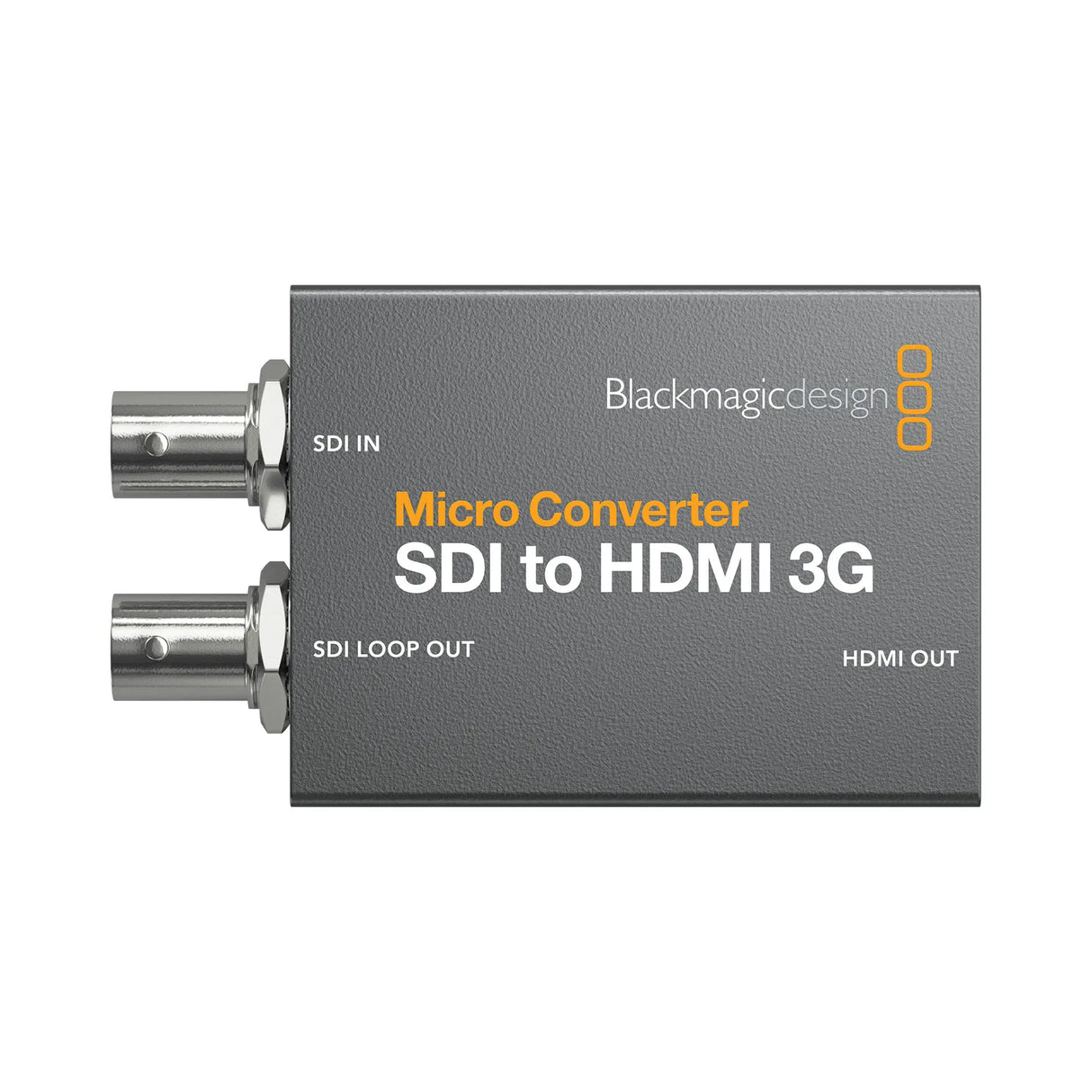

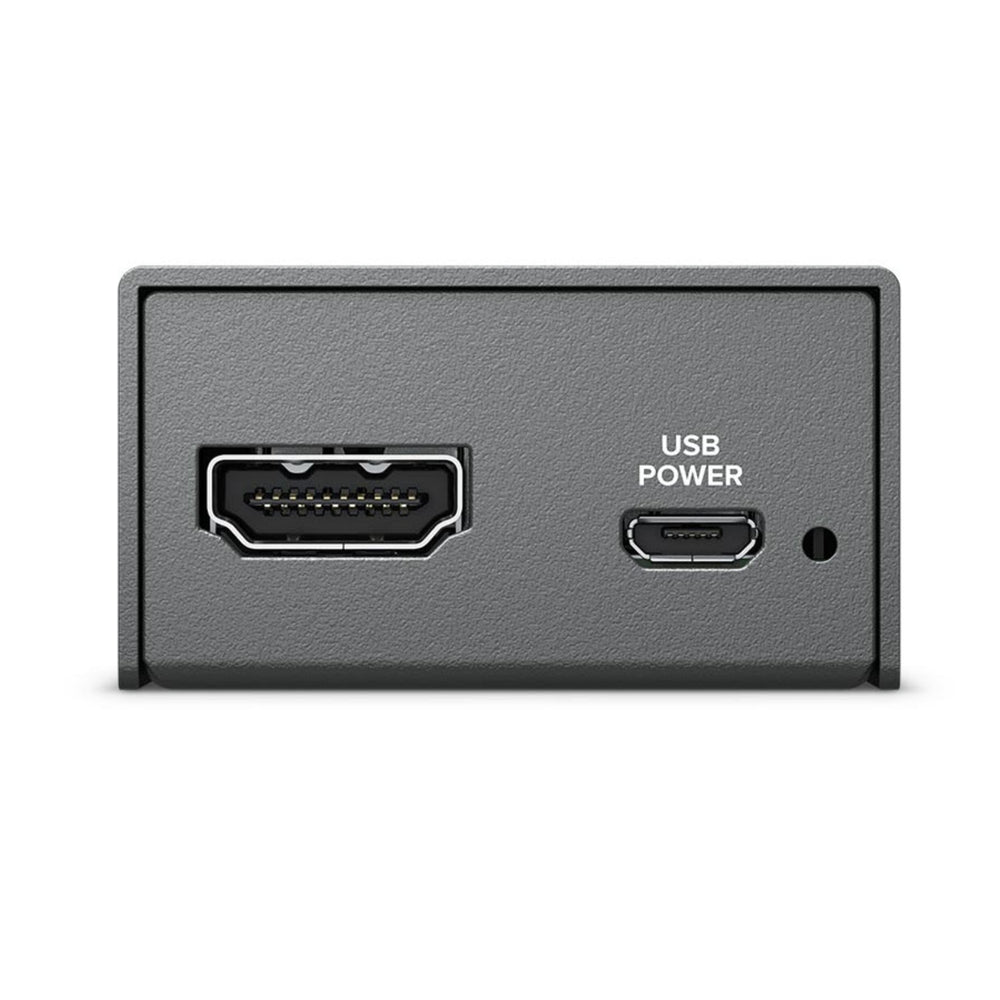

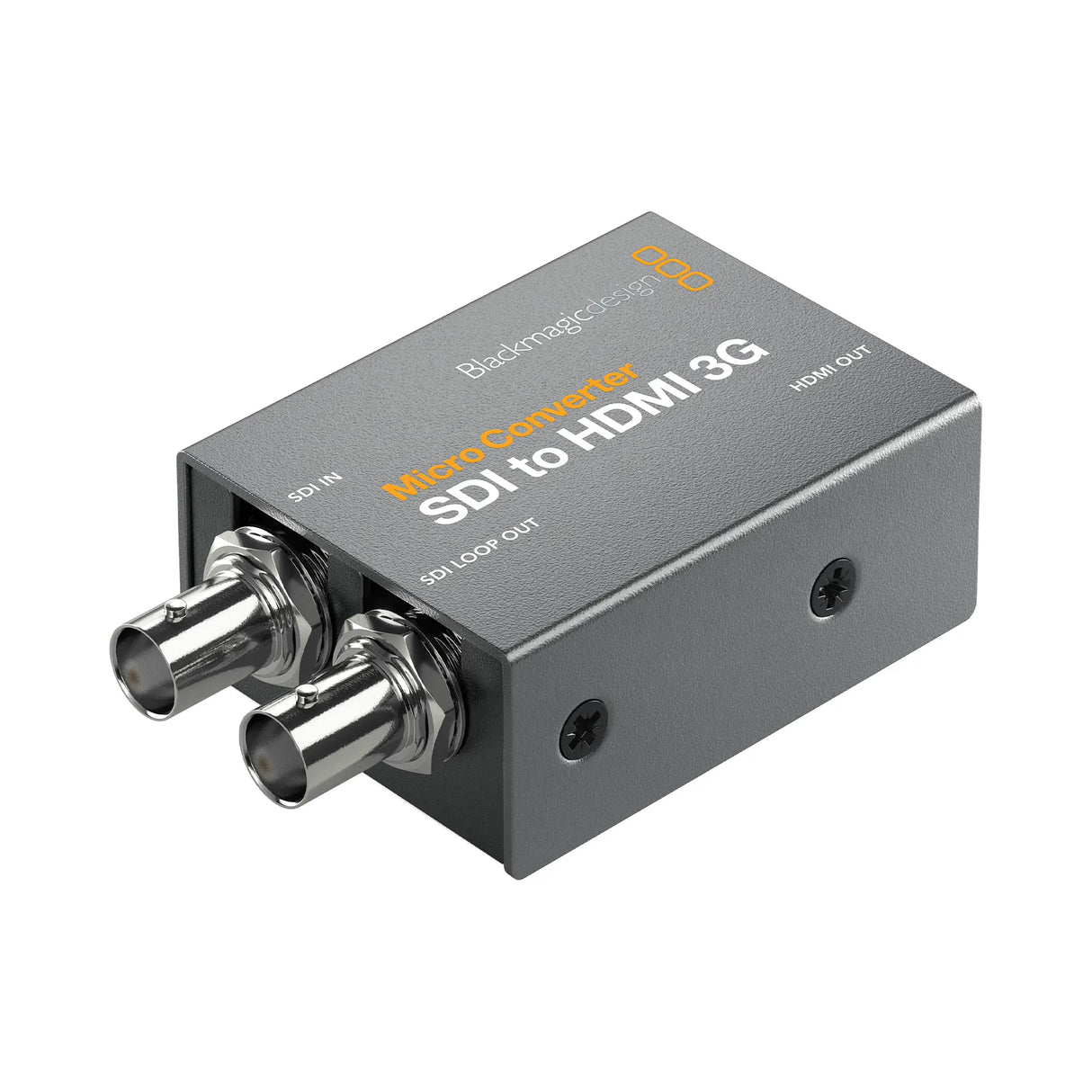

Blackmagic Design Micro Converter SDI to HDMI 3G without Power Supply

Blackmagic Design | SKU: BMD-BMDCONVCMICSH03G
$5900

Estimated Shipping Widget will be displayed here! (with custom color)

Condition: New


Blackmagic Design Micro Converter SDI to HDMI 3G without Power Supply

This model has been specifically designed for professional monitoring. It includes a 17-point 3D LUT for color-calibrating any monitor, projector, or television. You can even output the 3D LUT on the SDI loop output! Plus It'supports DCI formats and film rates including 1080p24, 1080p47.95, and 1080p48.

Technical Specifications

Connections
SDI Video Inputs
1 x SD, HD or 3G-SDI
SDI Video Outputs
1 x SDI loop out
HDMI Outputs
HDMI Type A out
Multi Rate Support
Auto-detection of SD or HD
Updates, Configurations, and Power
USB Type C
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates
SDI video connections are switchable between standard definition, 720p 1080i, 1080p and DCI high definition.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD, and level A or B for 3G?SDI.
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
4:2:2. A 17-point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color Space
YUV
Software
Software Control
Mac and Windows software upgrade via USB.
Internal Software Upgrade
Via USB
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later
Windows 10
Power Requirements
Power Consumption
1.6 W
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
