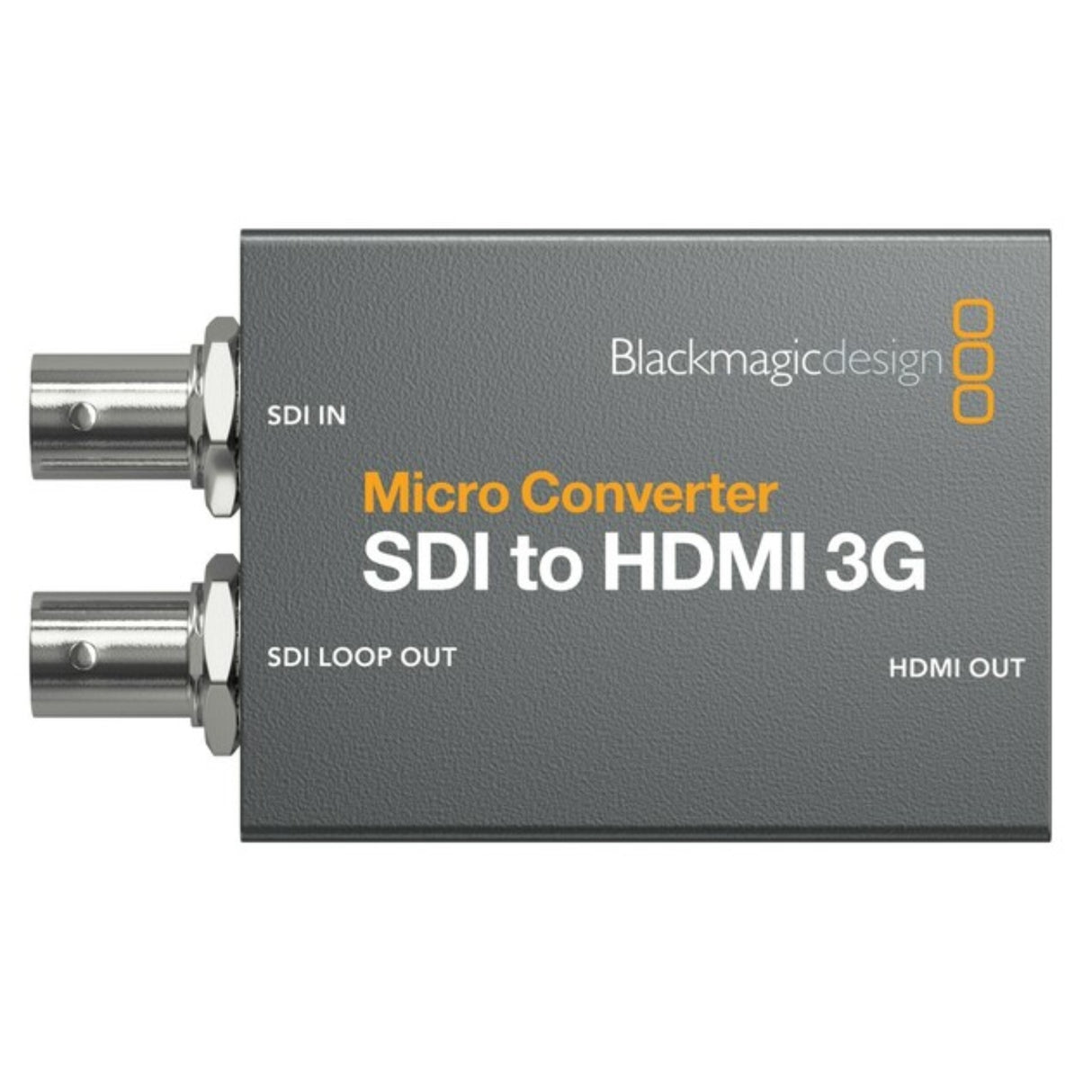

Blackmagic Design Micro Converter SDI to HDMI 3G without Power Supply

Blackmagic Design Micro Converter SDI to HDMI 3G without Power Supply

The Blackmagic Design Micro Converter SDI to HDMI 3G (without power supply) delivers professional SD/HD/3G-SDI to HDMI conversion in a pocket-sized, rugged package ideal for field production, camera teams, and broadcast monitoring setups. This USB-C powered converter features automatic format detection and supports all standard resolutions up to 1080p60, making it perfect for connecting SDI cameras or switchers to HDMI monitors, TVs, or projectors without bulky rack gear.

With SDI loop-through for daisy-chaining, embedded audio passthrough, and a 17-point 3D LUT for precise color calibration, this converter ensures broadcast-quality output for live events, ENG shoots, and studio monitoring—powered directly from cameras, laptops, or USB batteries for ultimate portability.

Key Features

• Converts SD/HD/3G-SDI input to HDMI 3G output for monitoring on TVs, projectors, or HDMI displays.
• SDI loop output allows daisy-chaining to additional equipment without signal splitters.
• 17-point 3D LUT support for color calibrating HDMI monitors; LUT also available via SDI loop.
• Automatic SD/HD/3G-SDI detection (Level A/B) with support for all broadcast resolutions up to 1080p60.
• USB Type-C power input—runs off cameras, laptops, monitors, or USB batteries (no AC adapter included).
• Embedded SDI audio passed through to HDMI output for complete signal monitoring.
• Supports cine-style rates (1080p23.98/24/25/47.95/48) and DCI 2K formats via SDI.
• Precision SDI re-clocking reduces jitter for reliable long cable runs.
• LED indicators for power and signal status; rugged metal housing for field durability.
• HDCP 2.2 compliant for protected content workflows.

Specifications

• SDI Video Input: 1 x SD, HD or 3G-SDI
• SDI Video Output: 1 x SDI loop out
• HDMI Output: HDMI Type A out
• Multi Rate Support: Auto-detection of SD or HD
• USB Connection: USB Type C for updates, configurations, and power
• SDI Video Standards: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Rates: Switchable between standard definition, 720p, 1080i, 1080p, and DCI high definition
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically detects SD, HD, and A or B level for 3G-SDI
• HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision: 4:2:2
• HDMI Color Space: YUV
• Software Control: Mac and Windows software upgrade via USB
• Internal Software Upgrade: Via USB
• Operating Systems Compatibility: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10
• Power Consumption: 1.6 W
• Operating Voltage: 4.4V to 5.25V DC
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Blackmagic Design Micro Converter SDI to HDMI 3G
• SD Card with software and manual
