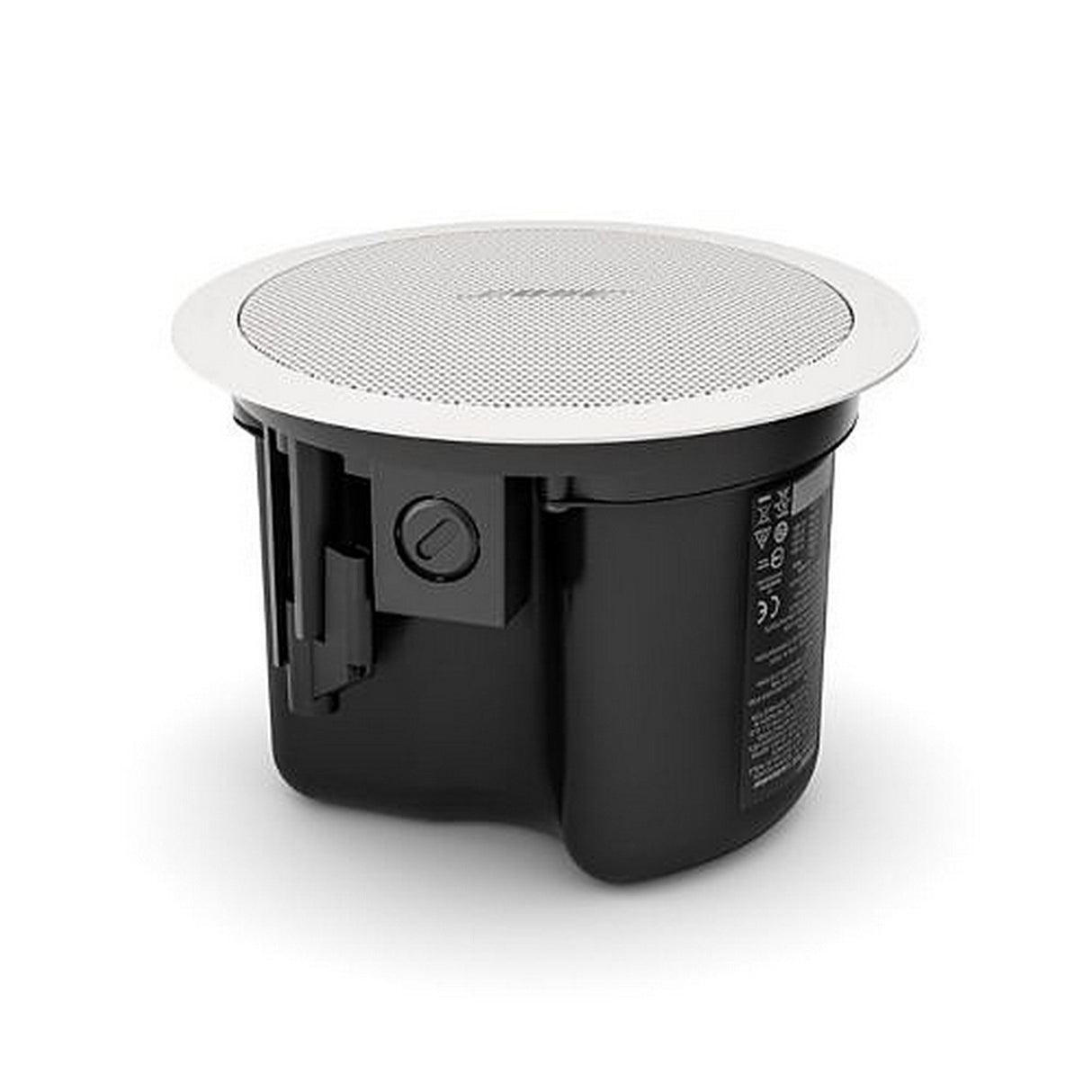

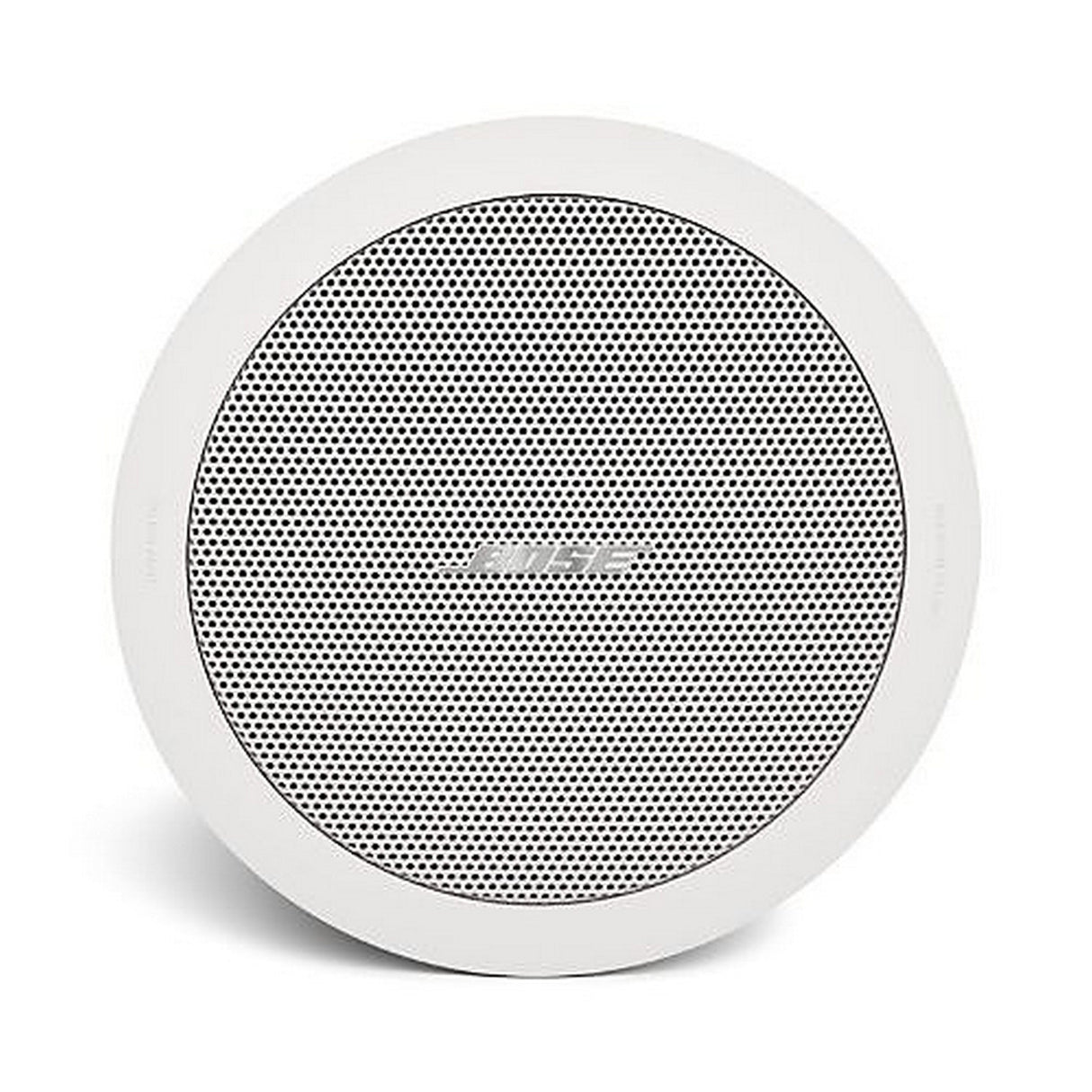

Bose FreeSpace FS2C 2.25-Inch 20W In-Ceiling Passive Loudspeaker, White Pair

The Bose FreeSpace FS2C is an in-ceiling loudspeaker engineered for high-quality background music and voice announcement applications. Its full-range 2.25-inch transducer delivers clear voice reproduction and a smooth response, making it suitable for various commercial environments. Designed for easy installation, the FS2C features front-baffle-mounted tap settings and audio connections, simplifying setup and configuration.

With a frequency response extending from 83 Hz to 19,000 Hz and a nominal coverage angle of 150 degrees, the FS2C ensures consistent and immersive sound throughout the listening area. Its modern aesthetics, available in black and white with removable logos, allow it to blend seamlessly into diverse room designs. The speaker's plenum-rated construction and compliance with safety standards make it a reliable choice for commercial installations.

Key Features:

• Full-Range Transducer: Equipped with a 2.25-inch (57 mm) woofer, the FS2C offers a frequency response from 83 Hz to 19,000 Hz, ensuring clear and detailed audio reproduction.
• Flexible Power Options: Supports both 70V and 100V systems with selectable transformer taps at 1W, 2W, 4W, 8W, and 16W, as well as a 16-ohm bypass for versatile integration.
• Wide Coverage: Provides a nominal coverage angle of 150 degrees, delivering consistent sound across the listening area.
• Easy Installation: Features front-baffle-mounted tap settings and audio connections, streamlining the installation process and reducing setup time.
• Modern Design: Available in black and white with removable logos, the FS2C complements various interior designs and aesthetics.
• Safety Certified: Plenum-rated and compliant with EN54-24 for Voice Alarm Systems, UL 1480 UUMW, and CAN/ULC-S541 UUMW7, ensuring reliable performance in commercial settings.

Technical Specifications:

Frequency Response (-10 dB): 83 Hz – 19,000 Hz
Nominal Impedance: 16 ohms (transformer bypass)
Power Handling (Long-Term Continuous): 16 W
Calculated Maximum SPL @ 1 m: 98 dB
Transformer Taps (70V): 1W, 2W, 4W, 8W, 16W, bypass
Transformer Taps (100V): 2W, 4W, 8W, 16W, bypass
Product Dimensions (H × W × D): 7.2 in × 5.2 in (182 mm × 132 mm), loudspeaker diameter × depth / 5.0 in × 4.9 in (127 mm × 125 mm), backcan diameter × depth
Net Weight: 3.6 lb (1.6 kg) per speaker with grille
Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
Color Options: Black (RAL 9005) and White (RAL 9003)
Certifications: EN54-24, UL 1480 UUMW, CAN/ULC-S541 UUMW7, UL 2043

Package Contents:

• FreeSpace FS2C In-Ceiling Loudspeaker
• Grille
• Mounting arms
• Euroblock connector
• Quick start guide
• Safety instructions
