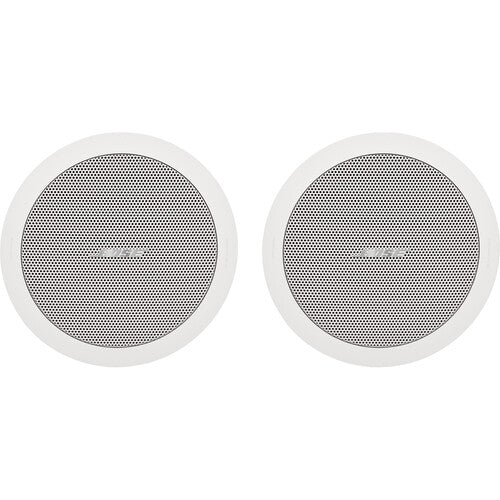

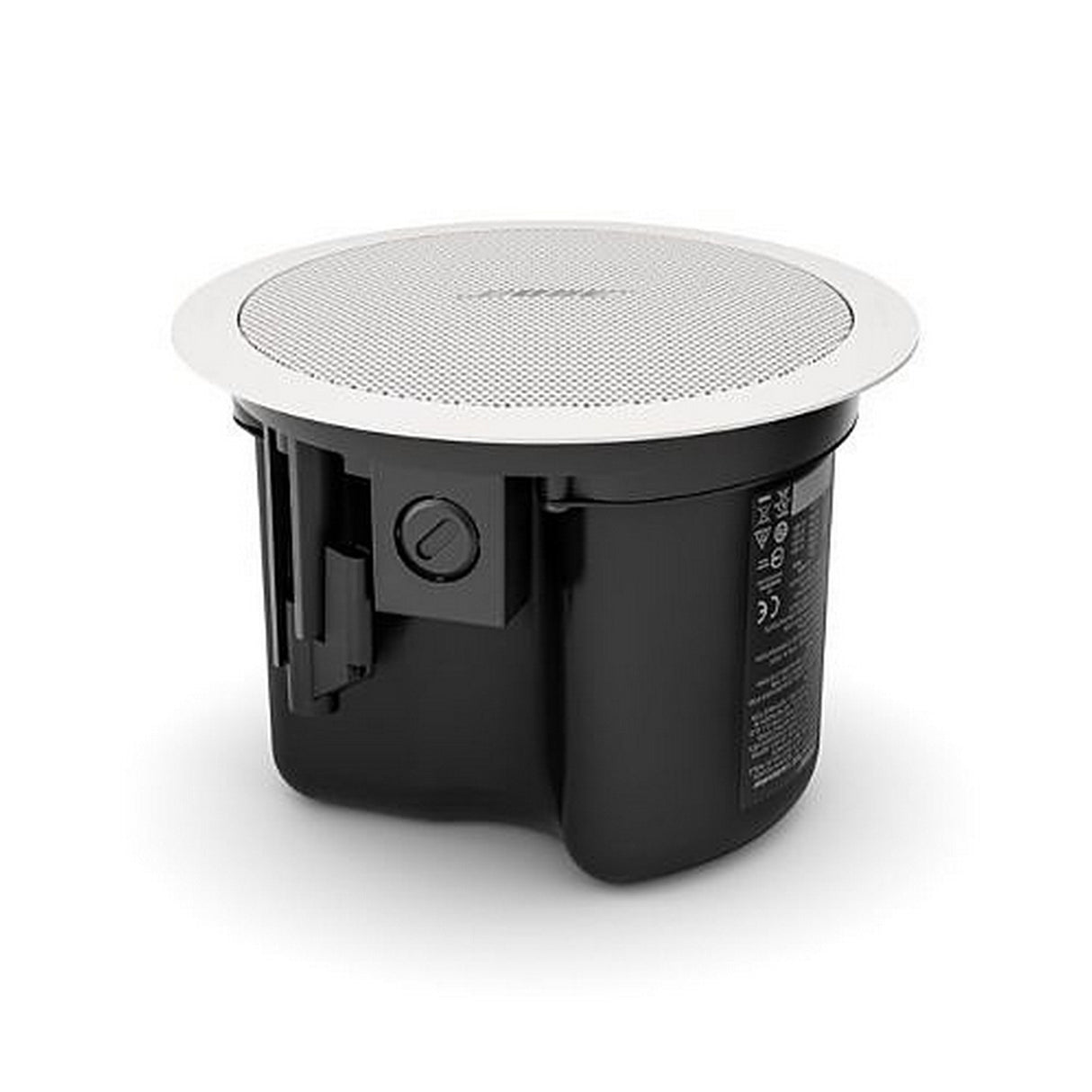

Bose FreeSpace FS2C 2.25-Inch 20W In-Ceiling Passive Loudspeaker, White Pair

Bose FreeSpace FS2C 2.25-Inch 20W In-Ceiling Passive Loudspeaker, White Pair

The Bose FreeSpace FS2C is an in-ceiling loudspeaker engineered for high-quality background music and voice announcement applications. Its full-range 2.25-inch transducer delivers clear voice reproduction and a smooth response, making it suitable for various commercial environments. Designed for easy installation, the FS2C features front-baffle-mounted tap settings and audio connections, simplifying setup and configuration.

With a frequency response extending from 83 Hz to 19,000 Hz and a nominal coverage angle of 150 degrees, the FS2C ensures consistent and immersive sound throughout the listening area. Its modern aesthetics, available in black and white with removable logos, allow it to blend seamlessly into diverse room designs. The speaker's plenum-rated construction and compliance with safety standards make it a reliable choice for commercial installations.

Key Features

• In-ceiling loudspeaker design for commercial installed audio applications
• 2.25-inch full-range transducer for clear voice reproduction and smooth background music performance
• 150° nominal coverage for broad and consistent sound distribution
• 70V/100V and 16-ohm bypass support for flexible system integration
• Front-baffle-mounted tap settings and audio connections for simplified installation and configuration
• Shared voicing across the FreeSpace FS family for more consistent tonal quality in mixed FS systems
• Plenum-rated construction and listed commercial safety certifications for installed environments
• Removable logo design to better match different room aesthetics

Technical Specifications

• General
  • Product Type: In-ceiling passive loudspeaker (pair)
  • Application: Background music and voice announcement
  • Speaker Type: Full-range commercial loudspeaker
• Driver
  • Transducer: 2.25-inch (57 mm) full-range driver
• Performance
  • Frequency Response (-10 dB): 83 Hz – 19,000 Hz
  • Nominal Coverage: 150°
  • Power Handling (Long-Term Continuous): 16 W
  • Calculated Maximum SPL @ 1 m: 98 dB
  • Nominal Impedance: 16 ohms (transformer bypass)
• Transformer
  • Transformer Taps (70V): 1W, 2W, 4W, 8W, 16W, bypass
  • Transformer Taps (100V): 2W, 4W, 8W, 16W, bypass
• Physical
  • Product Dimensions: 7.2 in × 5.2 in (182 mm × 132 mm), loudspeaker diameter × depth / 5.0 in × 4.9 in (127 mm × 125 mm), backcan diameter × depth
  • Net Weight: 3.6 lb (1.6 kg) per speaker with grille
  • Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
• Certifications
  • Certifications: EN54-24, UL 1480 UUMW, CAN/ULC-S541 UUMW7, UL 2043

Installation & Use Case

The FS2C is intended for commercial ceiling-mounted audio systems that need compact full-range performance and broad coverage for distributed sound.

• Background music systems
• Voice announcement systems
• Commercial ceiling speaker installations
• Distributed audio environments

Package Contents

• FreeSpace FS2C in-ceiling loudspeaker
• Grille
• Mounting arms
• Euroblock connector
• Quick start guide
• Safety instructions
