Clear-Com FSE-BASE FreeSpeak Edge IP Base Station
The FreeSpeak Edge base station is a standalone 1RU device that provides extensive connectivity to a wide range of Clear-Com endpoints along with third-party Dante devices. Built primarily to deploy 5 GHz transceivers and beltpacks, the base station also provides support to FreeSpeak II splitters, 1.9 GHz E1 and IP transceivers/beltpacks*, and 2.4 GHz E1 transceivers/beltpacks.
*Note
A 1.9 GHz beltpack cannot roam between and E1 1.9 GHz transceiver and an IP 1.9 GHz transceiver. Beltpacks on each system can communicate through the base station.
Key Features
- Supports up to 6 IPT or FSE transceivers and up to 10 E1 transceivers (1.9 or 2.4GHz)
- Supports up to 100 channels

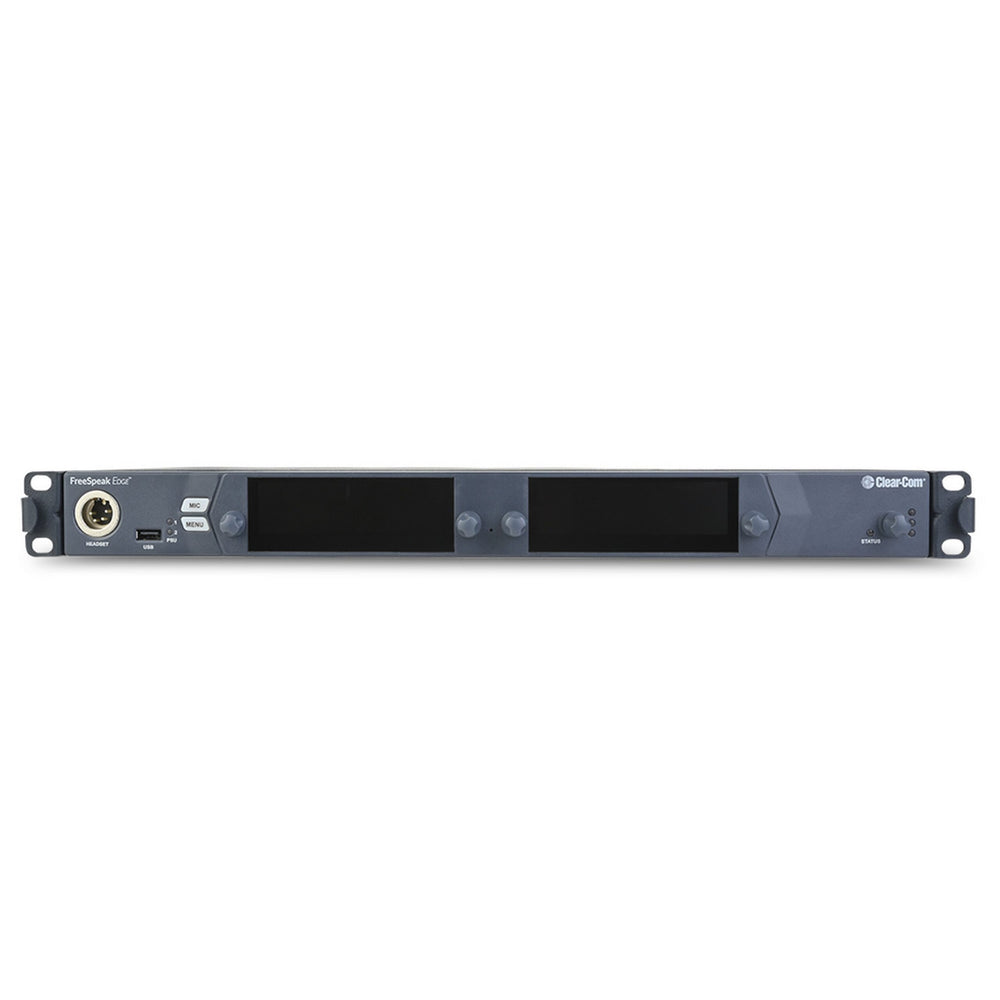

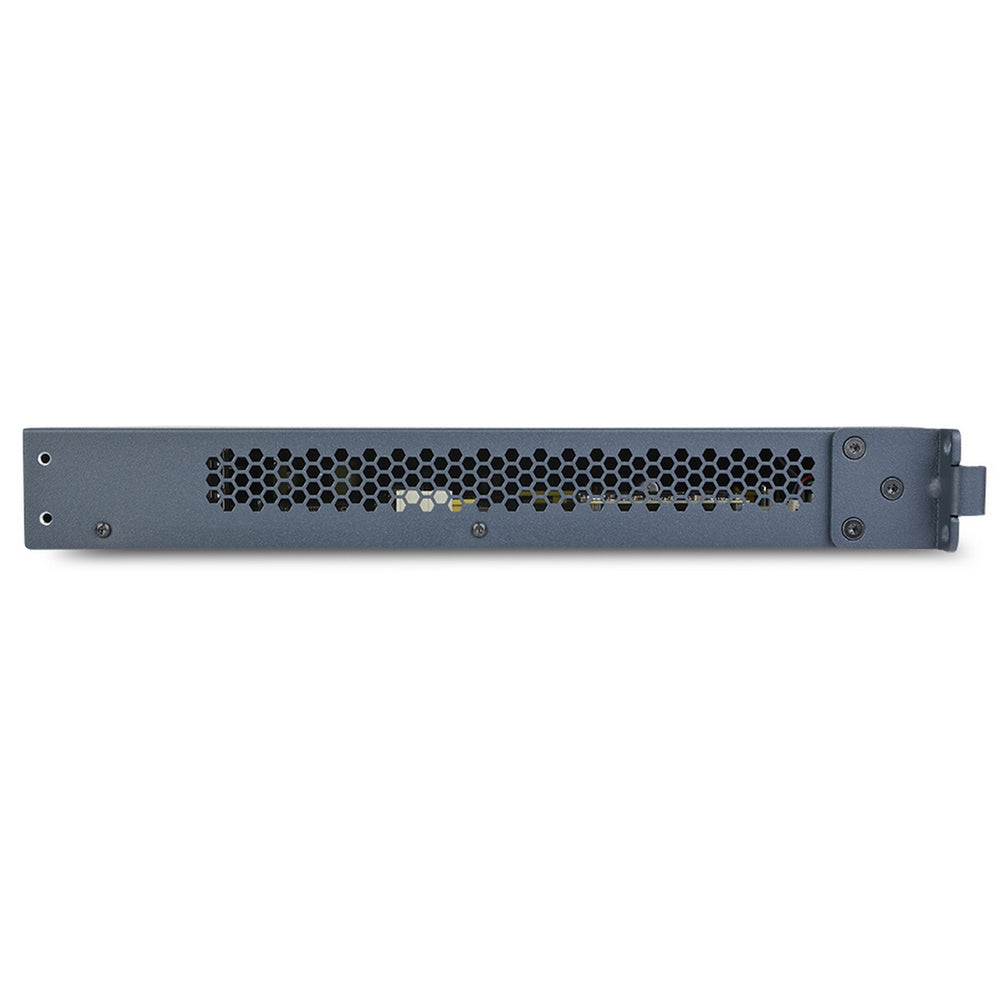

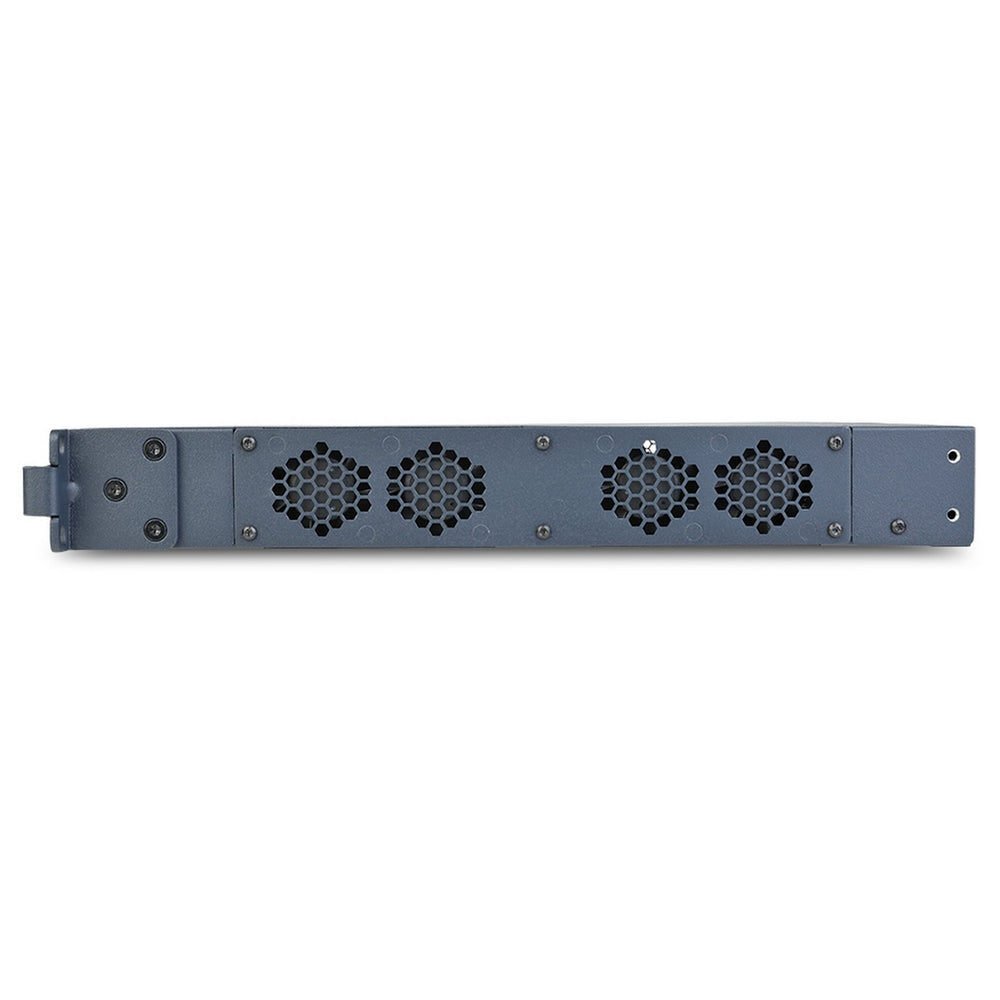

Base Station - Standard 1 rack unit (RU) device
- High quality 12kHz audio to FS Edge beltpacks

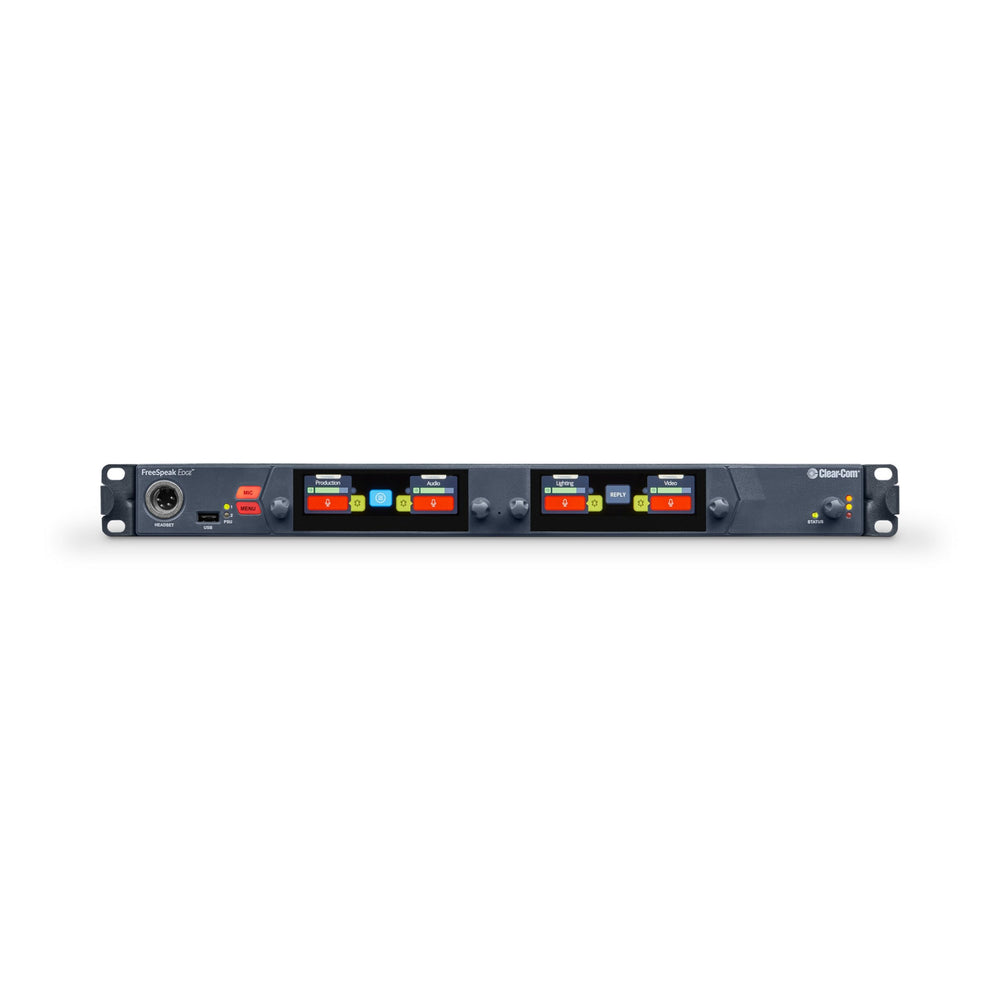

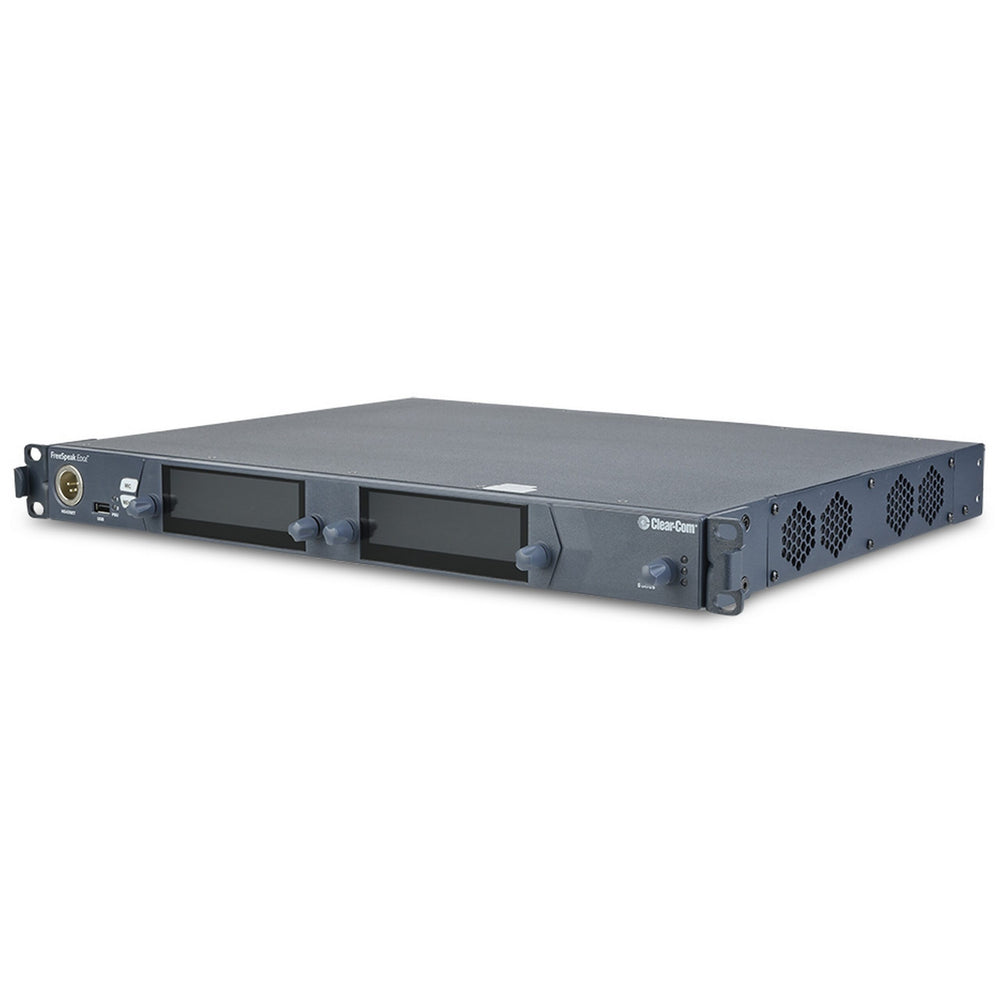

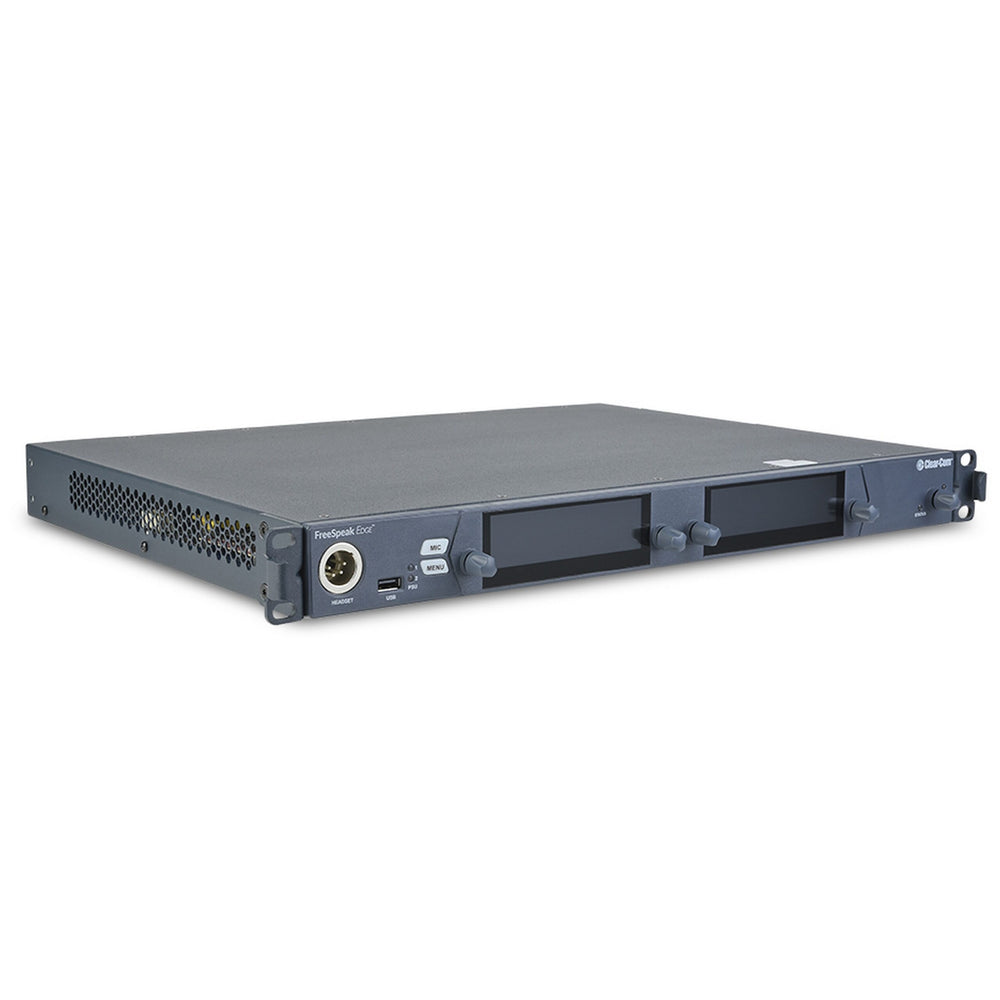

- 2 large full-color touch screen TFT displays
- 4 rotary encoders for gain and menu operation
- Headset connection
- Stage Announce and Prog. Audio cable included
- Functions as PTP Leader Clock
Connectivity - Wireless 5GHz Edge transceivers and beltpacks
- Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks
- Dante enabled audio devices
- AES67 devices via Dante controller
- 4-wire ports (8 ports RJ45)
- 2-wire ports (4 XLR-3F)
- GPIO (D-type 9 pin)
- LAN - 2 x RJ45, 2 x SFP
Configuration - CCM browser-based configuration tool
- Direct management with encoders and display
Technical Specifications
Beltpacks per Base Station
16 BPs (FSII or FSE)
Transceivers/Antennas Supported by Base
6 x IPT or FSE TCVR and 10 x E1 TCVRs (1.9 or 2.4GHz)
Headset Microphone Input
Input Type
Dynamic /Electret - Selectable
Frequency Response
Headset Mic - Partyline: 200Hz - 12kHz + 3dBu
Frequency Response
Headset Mic - Line Out: 200Hz - 20kHz + 3dBu
Mic Limiter Threshold
-50dBu +/-3dB
Mic Limiter Range
>= 20dB
Max Input Level
-25dBu
Input Level
-60dBu nominal; -25dBu MAX
Headset Mic Voltage
5V (Electret selectable)
Headset Output
Load Impedance
> 32 OHM
Output Impedance
33 OHM
Max Output Level before Distortion
> 13dBu
Total Harmonic Distortion (THD)
< 0.1% THD at 1kHz
Headset Mic - Partyline
-78dBu (Clear-Com mode)
Headset Mic - Line Out
-60dBu
Frequency Response
Partyline - Headset Out: 200Hz - 10kHz + 3dBu
Audio/Radio
4-wire I/O
Output Impedance >10k OHM, Input Impedance 200 OHM + 10%, transformer isolated balanced input and output.
4-wire Operating Levels
0dBu Nominal, 18dBu headroom
2-wire I/O
Selectable RTS or Clear-Com mode, Software controlled auto-null, null depth >60dB at 1kHz
2-wire Operating Levels
-18dBu nominal (Clear-Com Mode), -12dBu nominal (RTS Mode), Headroom 18dB
Freespeak Edge Beltpack
200Hz - 12kHz
Freespeak II Beltpack
200Hz - 7.1kHz
Partyline I/O
2W Power On/Off
A/B, C/D paired- software controlled
2W Output Voltage
25 - 28V DC, 560 mA per pair (A/B or C/D)
2W Impedance
>10k OHM
2W Frequency Response
200 to 12kHz. +/-3dB
2W Total Harmonic Distortion (THD)
< 0.1% THD at 1 kHz
Relay Contacts or GPIO
Connector Type
2 x DB9
Relay Contact Type
SPDT
Relay Quantity
4
Relay Contact Voltage Rating
30V DC
Relay Contact Current Rating
1A
Input Type
Opto-Isolated
Input Quantity
2
Input Voltage Range
4 - 30 volts DC or AC
Input Current
>=1.2mA required

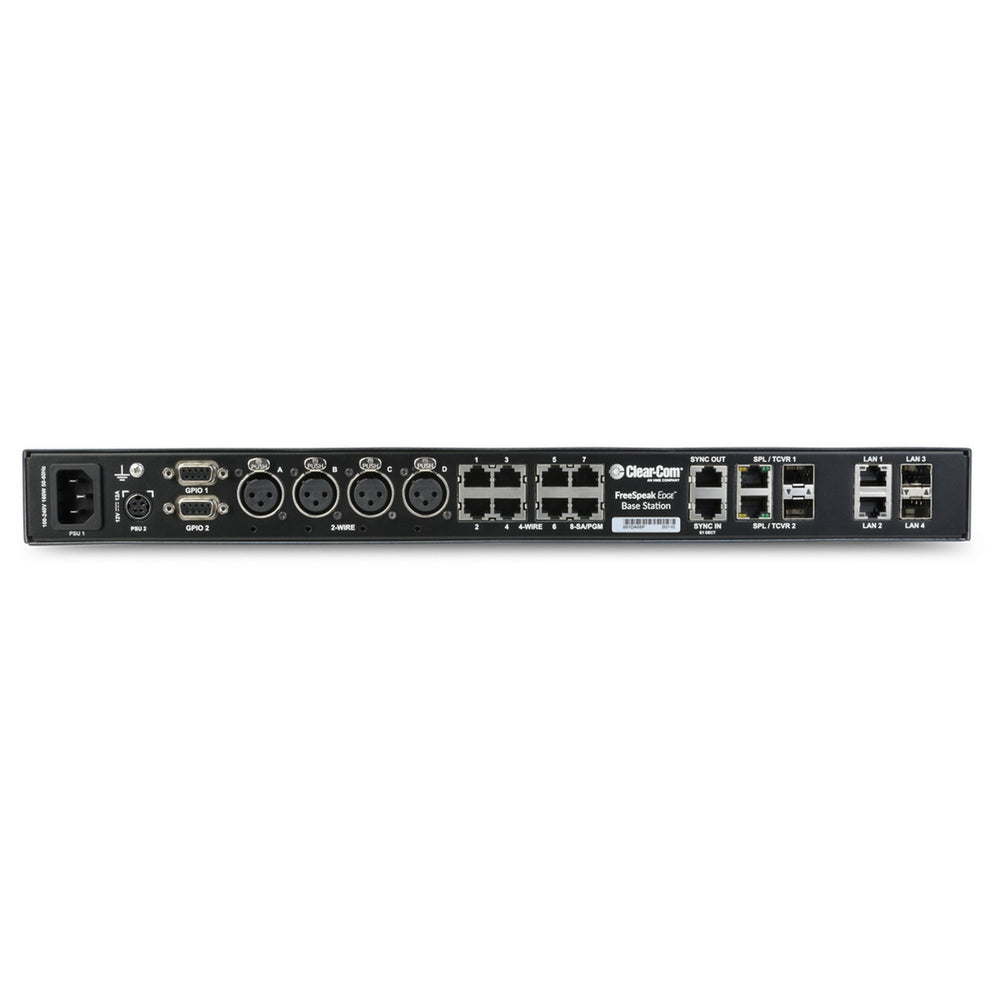

Connectors
4-wire I/O
(8) RJ45
2-wire I/O
(4) XLR-3F
Program Input
XLR-3M, provided using cable assembly CAB-RJ45-PGM-SA
Stage Announce Output
XLR-3F, provided using cable assembly CAB-RJ45-PGM-SA
Headset
Freespeak Edge Base: 4-pin XLR-M, auto headset detect
USB
USB type A Receptacle
Number of E1 antenna ports
2 x RJ45, 2 x Fiber (2 active at any time)
DECT Radio frequency sync
Rear RJ45 input and output RF sync connectors

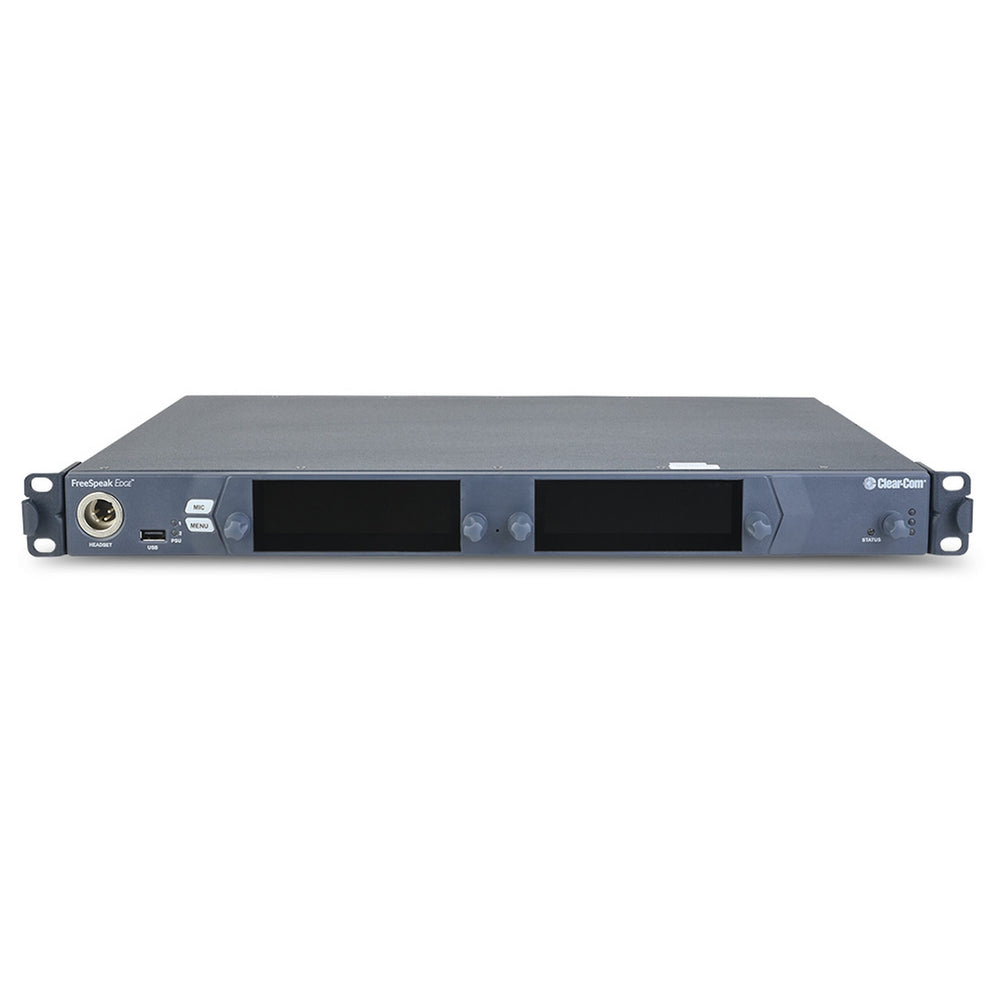

Indicators and Function
Displays: (2) 480 x 128 color TFT LED Touch Screen displays
Front Panel Indicators & Function:
(2) Power Supply Status LEDs
(1) Status LED (Edge)
(1) Three Color Level Control LED Array
Power:
AC Mains input: 100-240V AC, 50-60Hz, 160W Max, IEC60320 C14 inlet.
DC Low Voltage Input: 12V DC +/- 5%, 12A
External AC/DC Power Supply (453G020-1 Supplied)
Input: 100-240V AC, 50-60Hz, 2.2A Max, IEC60320 C14 inlet.
Output: 12V DC +/- 5%, 12.5A
Environmental
IP53 water and dust resistance
Operating: 32 to 113F (0 to 45C)
Storage: 86 to 158F (30 to 70C)
Humidity: 20-90% Non-Condensing
Dimensions
1RU
19 x 1.72 x 13.929in (WxHxL)
(43.6 x 482.6 x 353.8mm)
Depth: 260mm
Weight
7.25lbs (3.29kg)
Network Specifications
AoIP Interfaces
Protocols: RTSP/SAP, AES67, Dante
Audio Sampling
24 bit Linear 48KHz
IP Addressing
Static, DHCP
Network Compatibility
Layer 2 & 3 LAN only
Quality of Service
DiffServ RFC2474
IGMP
On (AoIP)
Multicast
On (AoIP)
Network Timing
PTPv2 (AoIP) / PTP v1 (Dante)
Minimum Network Bandwidth Required
Perduplex Connection
1 x FS II IPT bandwidth usage: ~7 Mbps.
1 x FS Edge IPT: ~ 9.6 Mbps
Network Protocols
Ethernet IPv4 Unicast Audio and Control
mDNS-Multicast Device Discovery
Network Ports
Unicast:
Port 80 TCP-Web Interface, System Management, Expansion
Port 443 for HTTPS
Port 6001 UDP-AES67 Data
Port 15000 - 15256 UDP - AES67 Audio
Multicast
Port 5353 UDP-mDNS, Names, Discovery, Linking, Expansion, Dante (through various ports)
Network Jitter Tolerance
< 1us required for RF Syncing of Transceivers
Recommended Ethernet Switches
Managed Ethernet Switch - Layer 3
100/1000 Base-T ports for endpoints
1000 Base IP Trunks between switches
QoS Configuration
Energy Efficient Ethernet bypass option
IGMP Snooping bypass option
