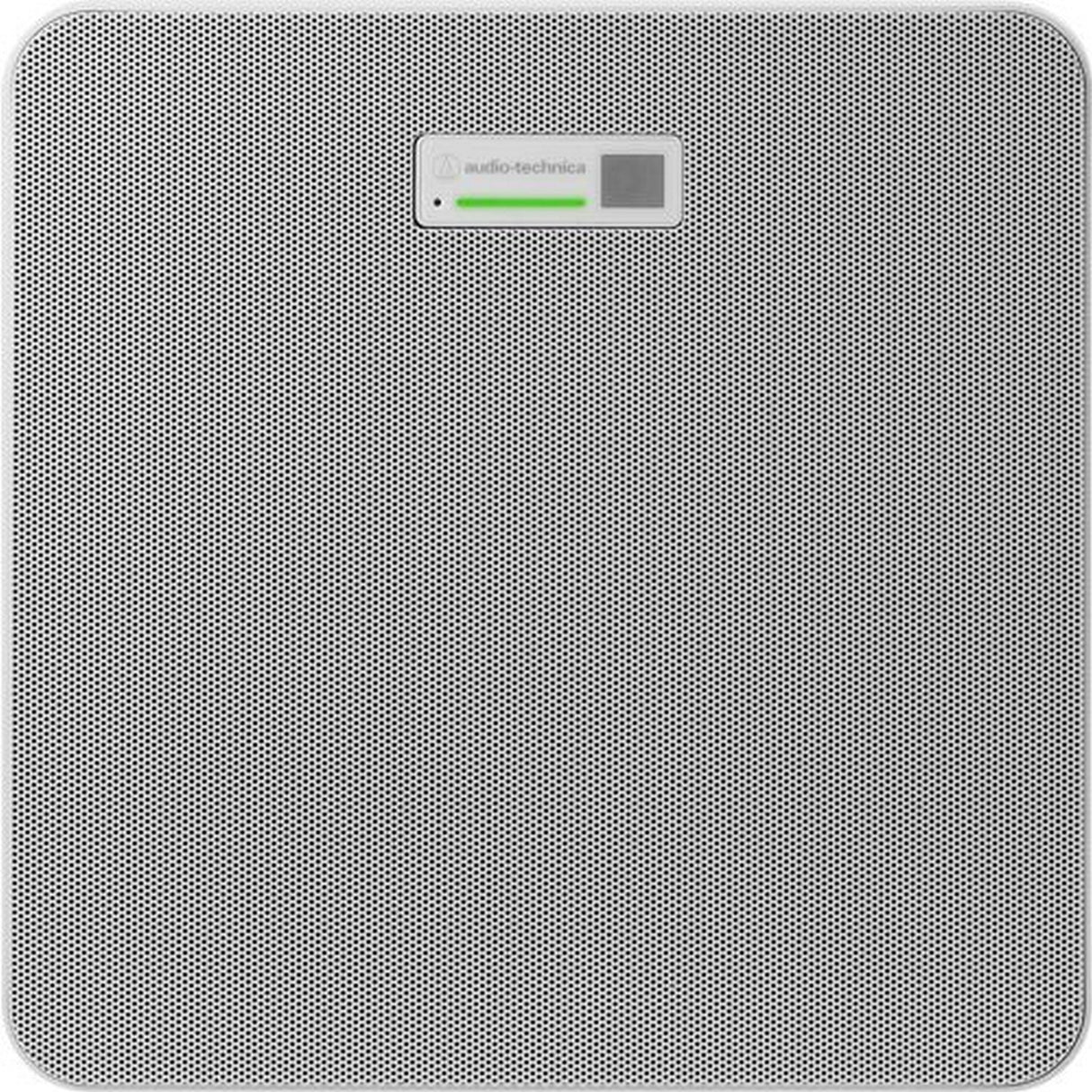

Audio-Technica ATND1061DAN Beamforming Microphone with Dante
The Audio-Technica ATND1061DAN is a cutting-edge beamforming ceiling array microphone designed for seamless integration into modern conference rooms, boardrooms, and meeting spaces of all sizes. Its sleek, low-profile design—comparable in size to a wireless access point—allows for discreet installation, either flush-mounted or surface-mounted on various ceiling types, including drop ceilings and open architecture environments. This microphone ensures clear, natural audio capture from every participant in the room, significantly reducing distracting environmental noises.
Equipped with advanced onboard digital signal processing (DSP), the ATND1061DAN offers features such as automix, acoustic echo cancellation, noise reduction, automatic gain control, and a 4-band EQ. These features work in tandem to deliver superior audio quality. The user-friendly Digital Microphone Manager software facilitates easy configuration of single or multiple microphones, allowing for up to six individual output channels and 32 user-defined microphone pickup zones. This flexibility ensures optimal coverage for a wide variety of room sizes and meeting types.
Key Features:
- Ideal for conference rooms, boardrooms, and meeting spaces of all sizes
- Advanced onboard DSP: automix, acoustic echo cancellation, noise reduction, automatic gain control, and 4-band EQ
- User-friendly Digital Microphone Manager software for easy configuration
- Six individual output channels with up to 32 user-defined microphone pickup zones
- Output Channel 1 supports up to 16 user-defined Coverage Zones for nonpriority participants
- Output Channels 2–6 support up to 16 user-defined Priority Zones for known participant locations
- Proprietary voice activity detection (VAD) technology distinguishes between speech and unwanted noises
- Configurable exclusion zones to avoid known sources of unwanted noise
- Dual network ports with Single Cable and Split modes for Dante audio and microphone control data

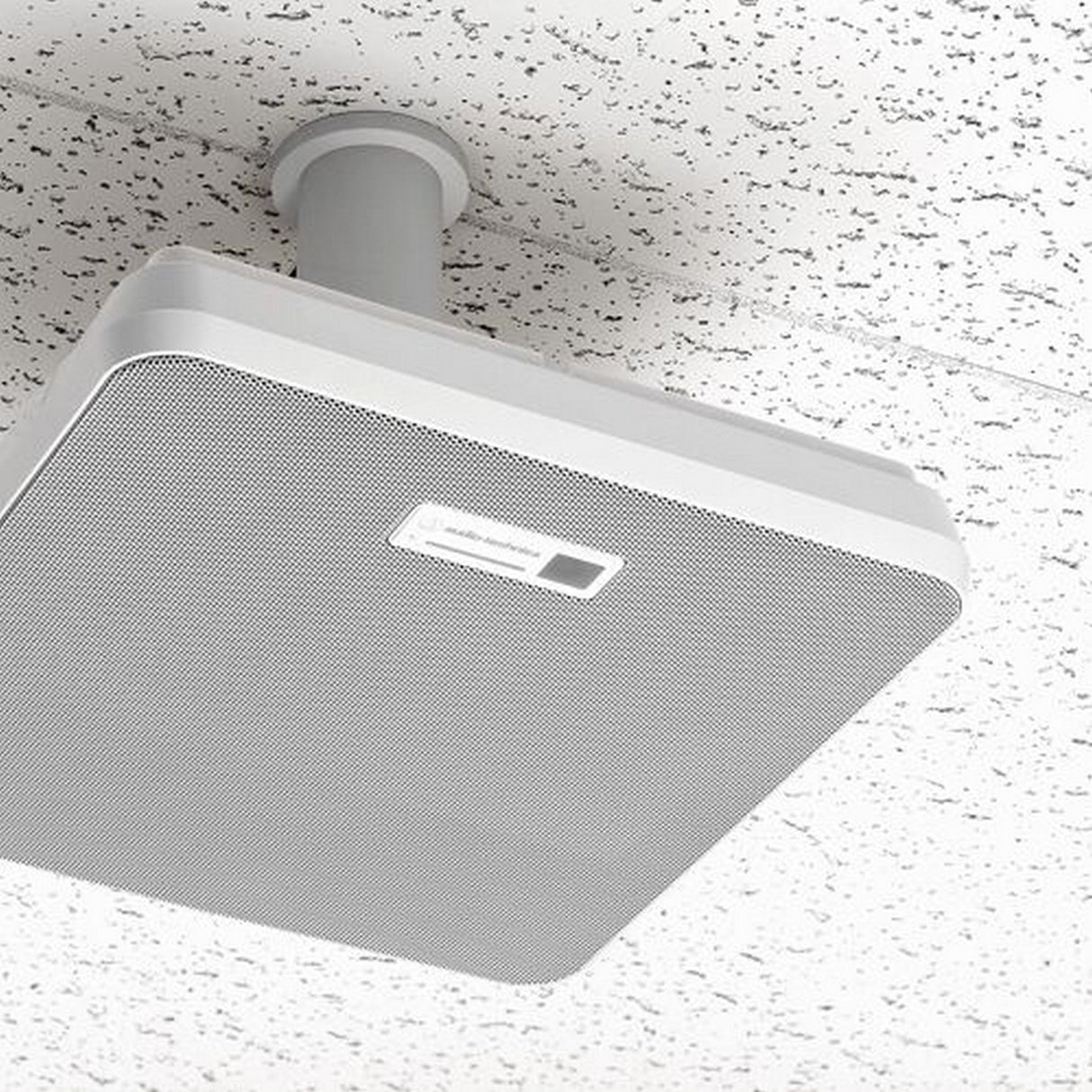

- Mounts flush or on the surface of various ceiling types; compatible with VESA mounts
- UL 2043 compliant for installation in plenum spaces
- Low-reflective white finish blends with most ceiling tiles
- Powered via network PoE (IEEE 802.3af Class 0)
Technical Specifications:
Power Requirement: PoE (IEEE 802.3af Class 0)
Power Consumption: Max. 7 W
Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
Operating Humidity Range: 25% to 85% (Non-condensing)
Dimensions: 227.5 mm (9.0") × 227.5 mm (9.0") × 30 mm (1.2") (W × D × H)
Weight: 1,250 g (44 oz)
Plenum Rating: UL 2043
Beam Width: 90°
Polar Pattern: Beam pattern
Frequency Response: 60 Hz to 18,000 Hz
Sensitivity: -8 dBFS (1 kHz, 94 dBSPL)
Dynamic Range: 89 dB (A-weighted)
Signal-to-Noise Ratio: 61.5 dB (A-weighted)
Self-Noise: 25 dBSPL (A-weighted)
Maximum Input Sound Level: 102 dBSPL
Analog Audio Frequency Response: 20 Hz to 20 kHz (+1.0/-2.0 dB)
Analog Audio Dynamic Range: 100 dB (A-weighted)
Analog Audio Signal-to-Noise Ratio: 80 dB (A-weighted)
Headroom: 20 dB
Residual Noise: -75.8 dBu (A-weighted)
Total Harmonic Distortion (T.H.D.): <0.1% (1 kHz, unity)
Analog Input: MIC Maximum: -30 dBu; MIC Unity: -50 dBu; LINE Maximum: +12.2 dBu; LINE Unity: -10 dBV (Switchable)
Analog Output: OUTPUT Maximum: +19.2 dBu; OUTPUT Unity: +4 dBu / -10 dBV / -33 dBV (Switchable)
Network: Dante: 1 Gbps; IP Control: 100 Mbps
Digital Audio: Sampling Rate: 48 kHz; Bit Depth: 24-bit
Latency: Microphone (CH1 to CH6): 18 ms; Auto Mix CH in voice lift mode: 33 ms; Auto Mix CH in AEC mode: 50 ms; Dante: Min. 250 µs, Max. 5 ms

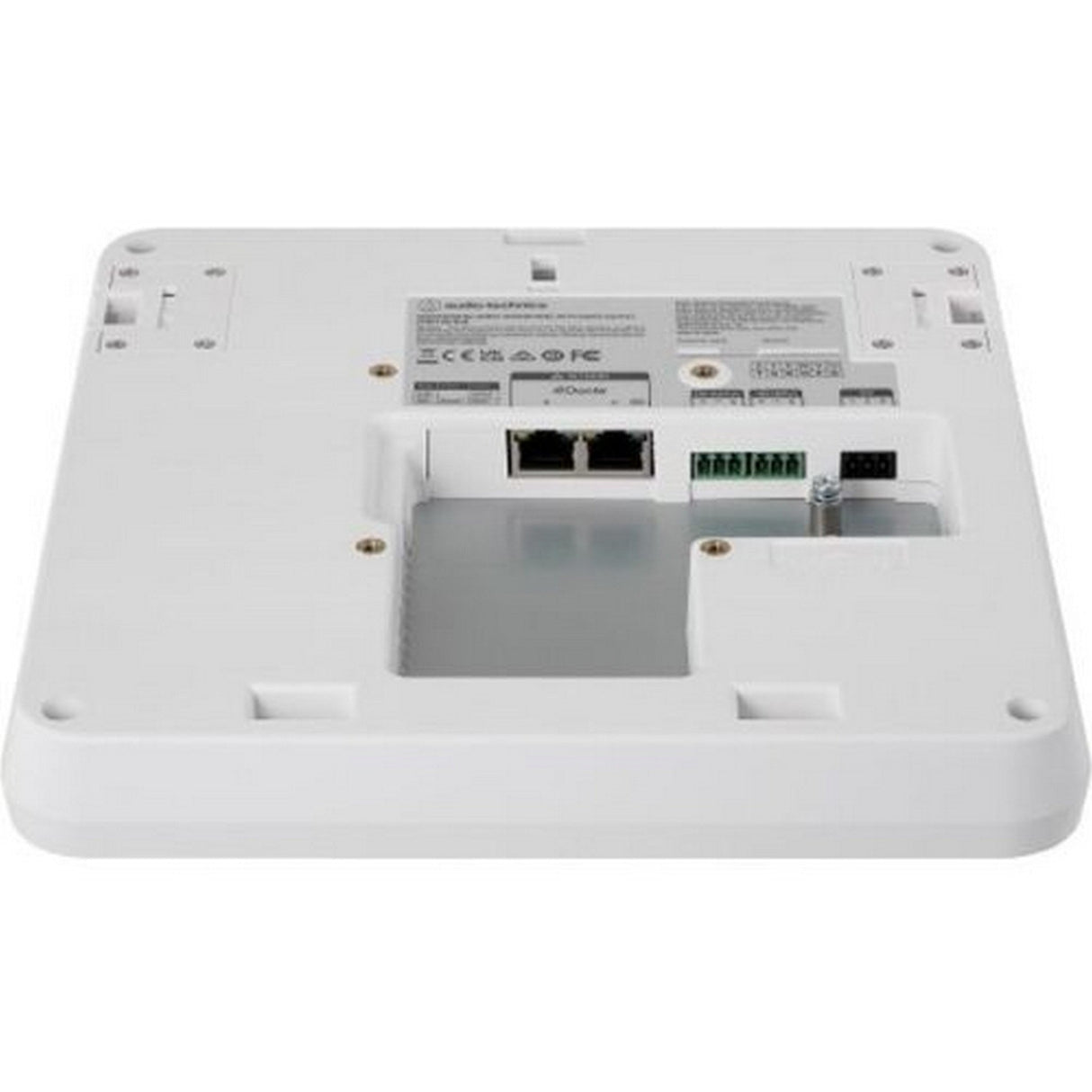

I/O Connectors: Network/Dante: RJ-45; Analog Input: Euroblock 3-pin; Analog Output: Euroblock 3-pin; GPI: Euroblock 3-pin
Phantom Power: Analog Input: 12 V
Installation / Use Cases
- Ceiling-mounted audio capture using a beamforming microphone with Dante for conference and meeting rooms
- Corporate environments requiring clear speech pickup and network audio integration
- Video conferencing systems with Dante-enabled audio networking for seamless connectivity
- Boardrooms and training spaces needing multi-person voice capture without tabletop microphones
- Installed AV systems where ceiling microphone solutions reduce cable clutter and improve aesthetics
Package Contents:
- Beamforming Ceiling Array Microphone ATND1061
- IR Remote Controller
- Surface Mount Adapter
- 4 × Screw (M4 × 50 mm)

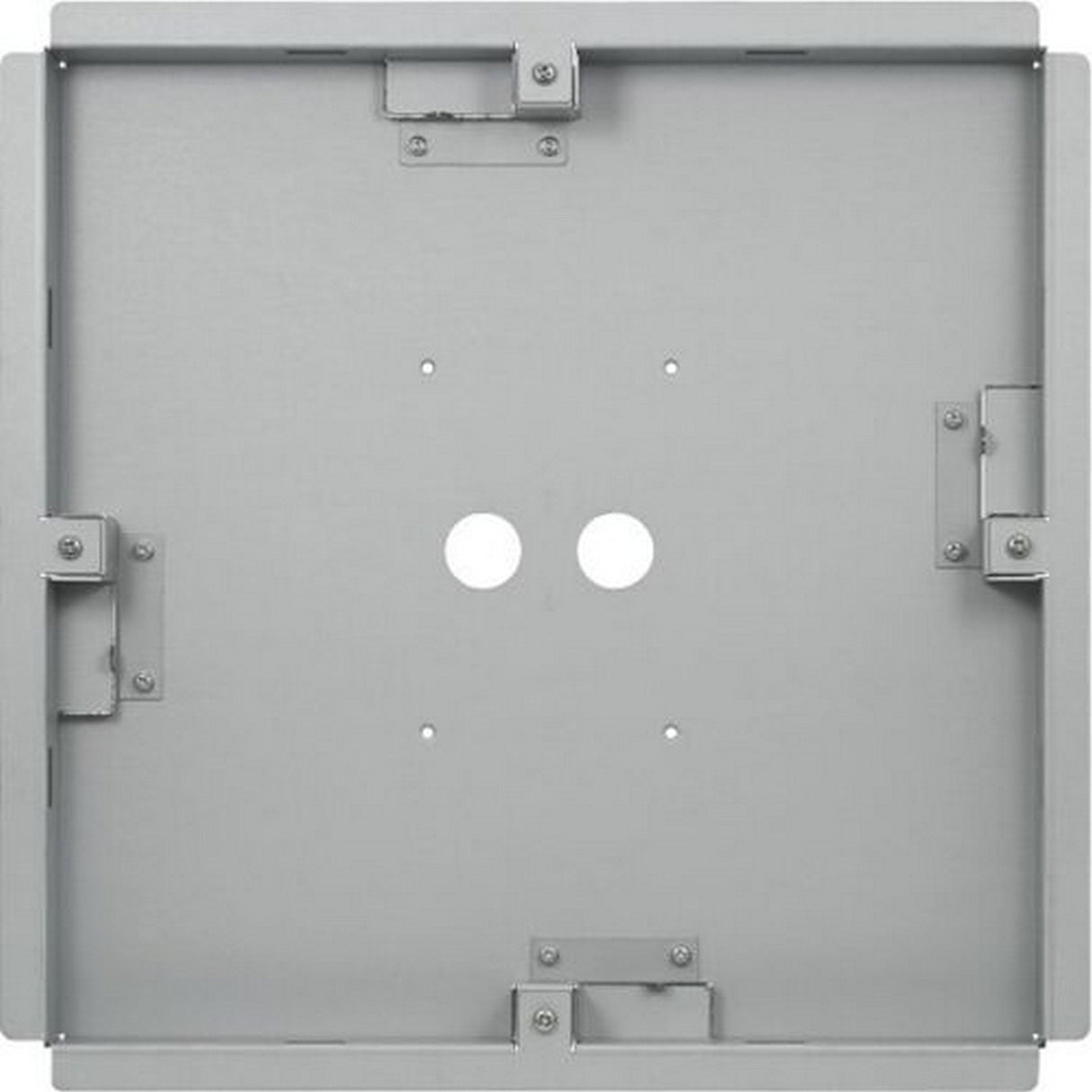

- Flush Mount Adapter
- Flush Mount Cover
- 12 × Screw (M4 × 10 mm)
- Hole Cover
- 4 × Nut
- 2 × Snap Bushing
- 2 × Tile Bridge A
- 2 × Tile Bridge B
- 4 × Tile Bridge C
- Seismic Cable
- Zip Tie
- Safety Belt
- 3 × Euroblock Connector
- Installation Template
Frequently Asked Questions
What is the Audio-Technica ATND1061DAN beamforming microphone used for?
The Audio-Technica ATND1061DAN is a beamforming ceiling array microphone designed for conference rooms, meeting spaces, and corporate environments, capturing clear speech audio for video conferencing and installed sound systems.
Does the Audio-Technica ATND1061DAN support Dante audio networking?
Yes, the Audio-Technica ATND1061DAN features Dante audio networking, allowing seamless integration with Dante-enabled audio systems for low-latency digital audio transmission over standard network infrastructure.
How does the beamforming technology work on the ATND1061DAN microphone?
The ATND1061DAN uses beamforming technology to focus on active speakers within a defined area, improving speech intelligibility by capturing voices while reducing background noise in conferencing environments.
Is the ATND1061DAN suitable for ceiling installation in conference rooms?
Yes, the Audio-Technica ATND1061DAN is designed for ceiling installation, making it ideal for conference rooms and boardrooms where discreet placement and wide audio coverage are required.
Who is the Audio-Technica ATND1061DAN best suited for?
The ATND1061DAN is ideal for corporate offices, conference facilities, and AV integrators who need a professional beamforming microphone with Dante connectivity for clear and reliable speech capture.
What are the key benefits of using a Dante-enabled beamforming microphone like the ATND1061DAN?
A Dante-enabled beamforming microphone like the ATND1061DAN offers flexible network audio integration, simplified cabling, precise audio pickup, and improved voice clarity, making it well suited for modern conferencing and installed AV systems.
