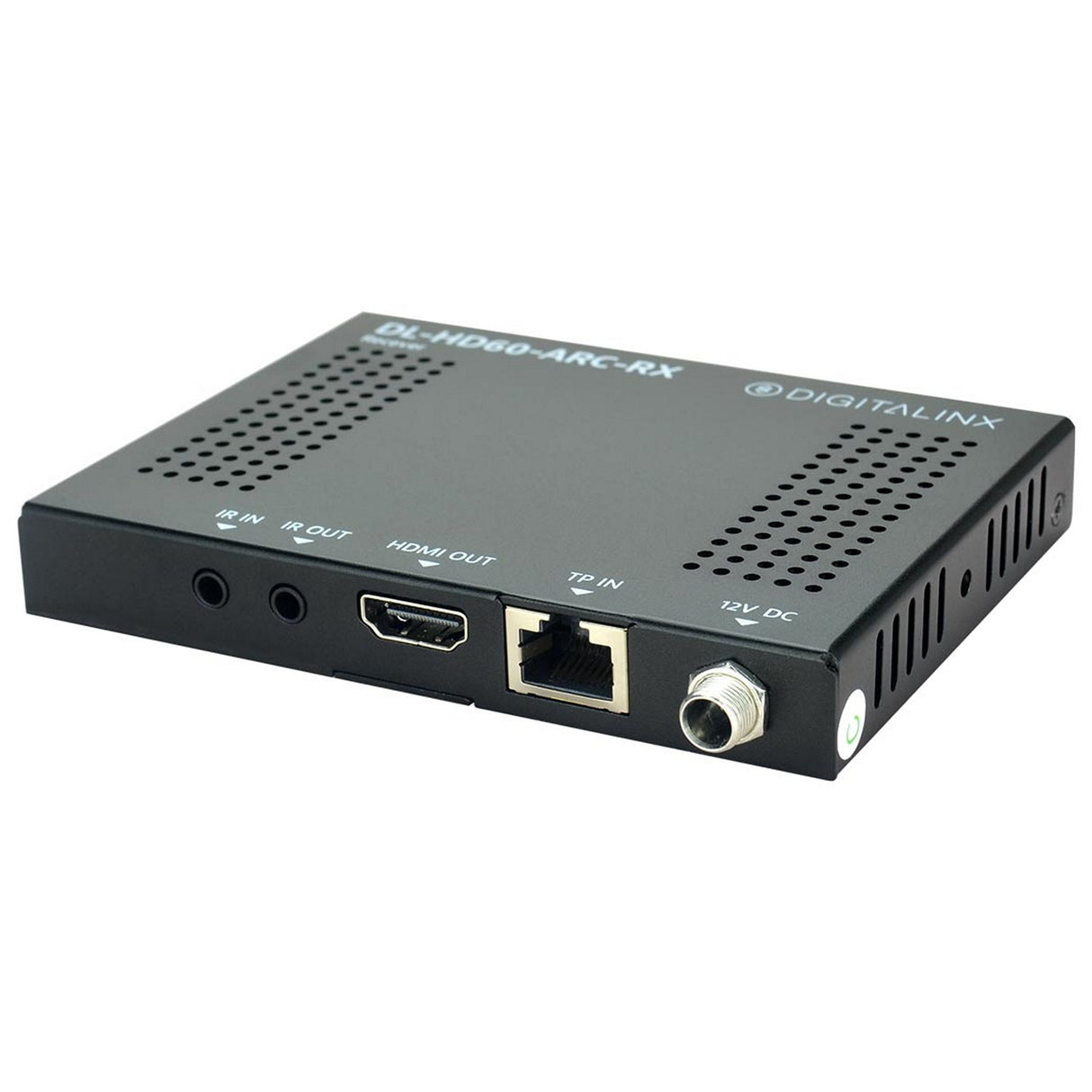

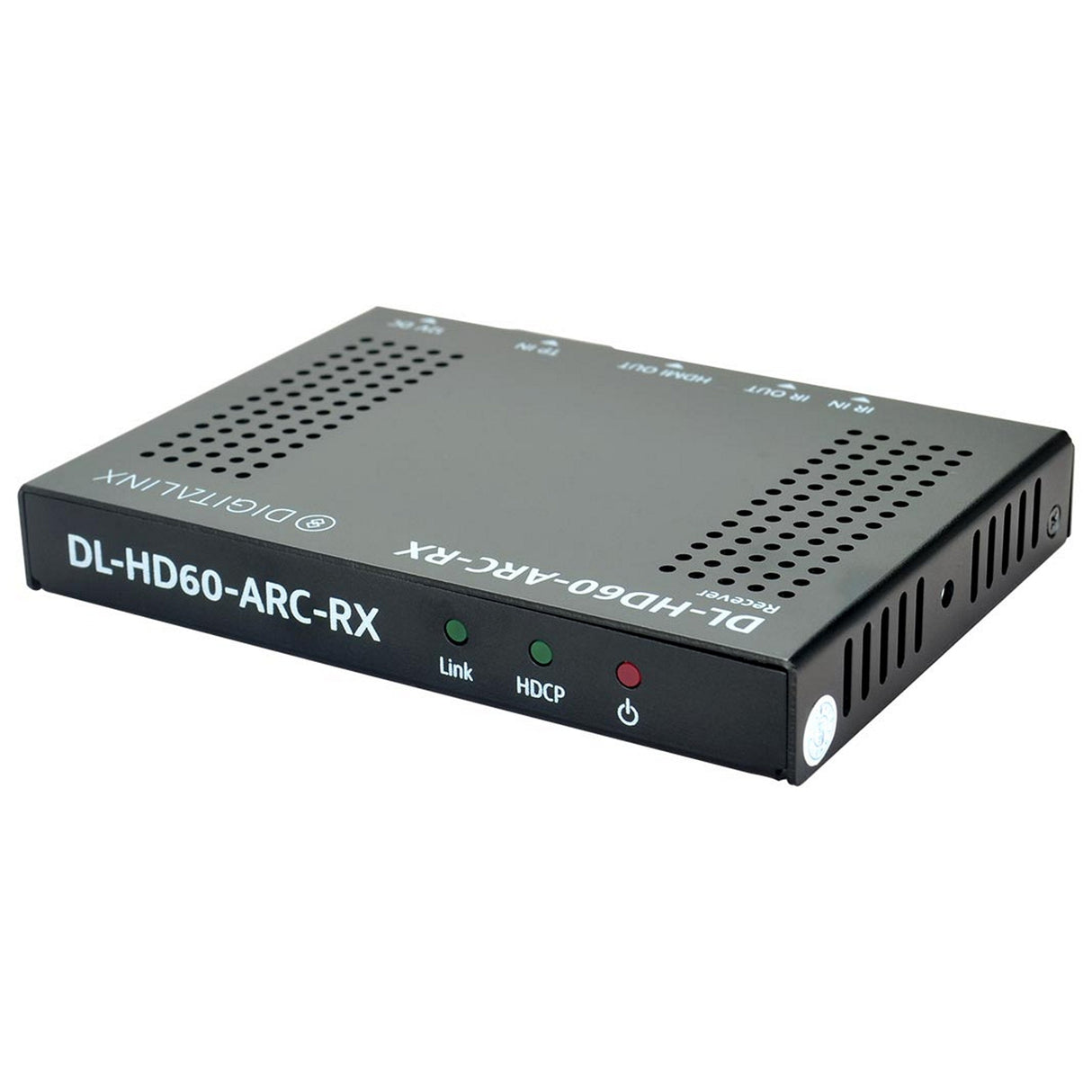

DigitaLinx DL-HD60-ARC HDBaseT Extender Set
Tired of trying to route multi-channel audio from a display or projector location when using HDMI extenders? The NEW DL-HD60-ARC is a professional 4K HDBaseT extender set that supports Audio Return Channel (ARC) so you can route multi-channel audio back through the HDMI transmitter.
With two ARC modes you can determine if the HDMI extender transmitter will act as the ARC device with a dedicated SPDIF output or if it will connect to an audio / video receiver (AVR) via HDMI so it can route the audio back to the AVR.
With flexible power required only at one end of the extension system you can keep bulky power adapters away from your display or projector location which will help clean up your install.
Key Features
- HDMI extension up to 70 meters
- 4K, HDCP 1.4 compliance
- Transmitter features S/PDIF audio output
- Selectable ARC from HDMI input or SPDIF output on transmitter
- Bi?directional IR extension
- Flexible PoC power only requires power on one end (Either End)
Technical Specifications
Supported Audio and Video
Maximum Video Compatibility: 70m: 1080p/60 & 40m: 4k x 2k @30Hz (4:2:0)
Resolution Range: 800x600@60Hz - 4Kx2K@30Hz
Video Compliance: HDMI 1.4, HDCP 1.4
Control Method: Bi-directional IR
HDBaseT Signal Characteristics
Transmission Distance: CAT 5e/6: 1080p: Max 70m; 3840x2160: Max 40m
Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
Bandwidth: 10.2 Gbps
Chassis and Environmental
Dimensions: 84mm x 16.2mm x 115mm (3.31 in. x 0.64 in. x 4.53 in.)
Operating Temperature: 0Ā° to +50Ā° C (+32Ā° to +122Ā° F)
Storage Temperature: -20Ā° to +70Ā° C (-4Ā° to +158Ā° F)
Operating Humidity (Environment): 10 % to 90%, Non-condensing
Power
Power Supply Input Voltage: 100-240V AC at 50-60 Hz
Power Supply Output Voltage: DC12V - 1A
Regulatory: CE, UL, FCC
