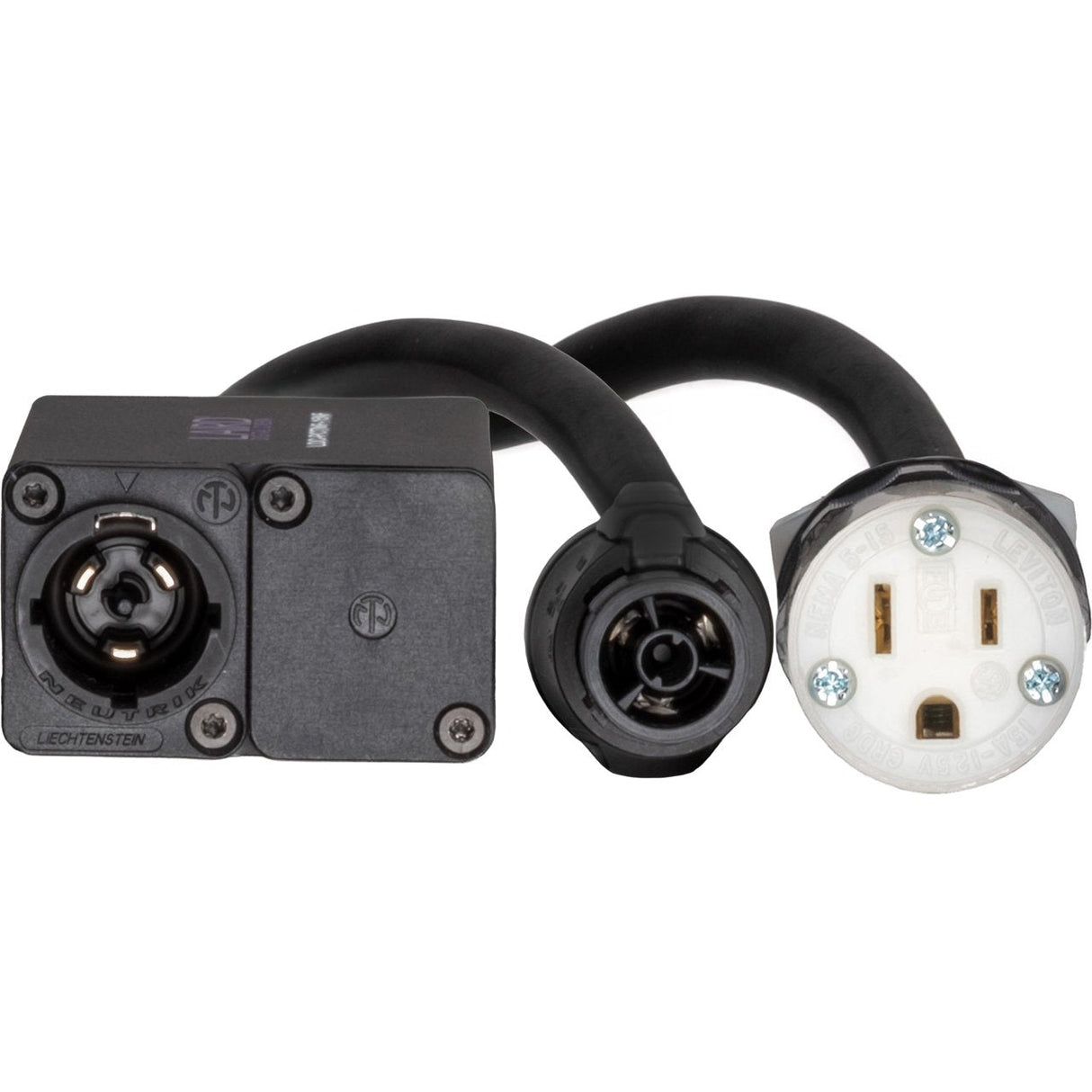

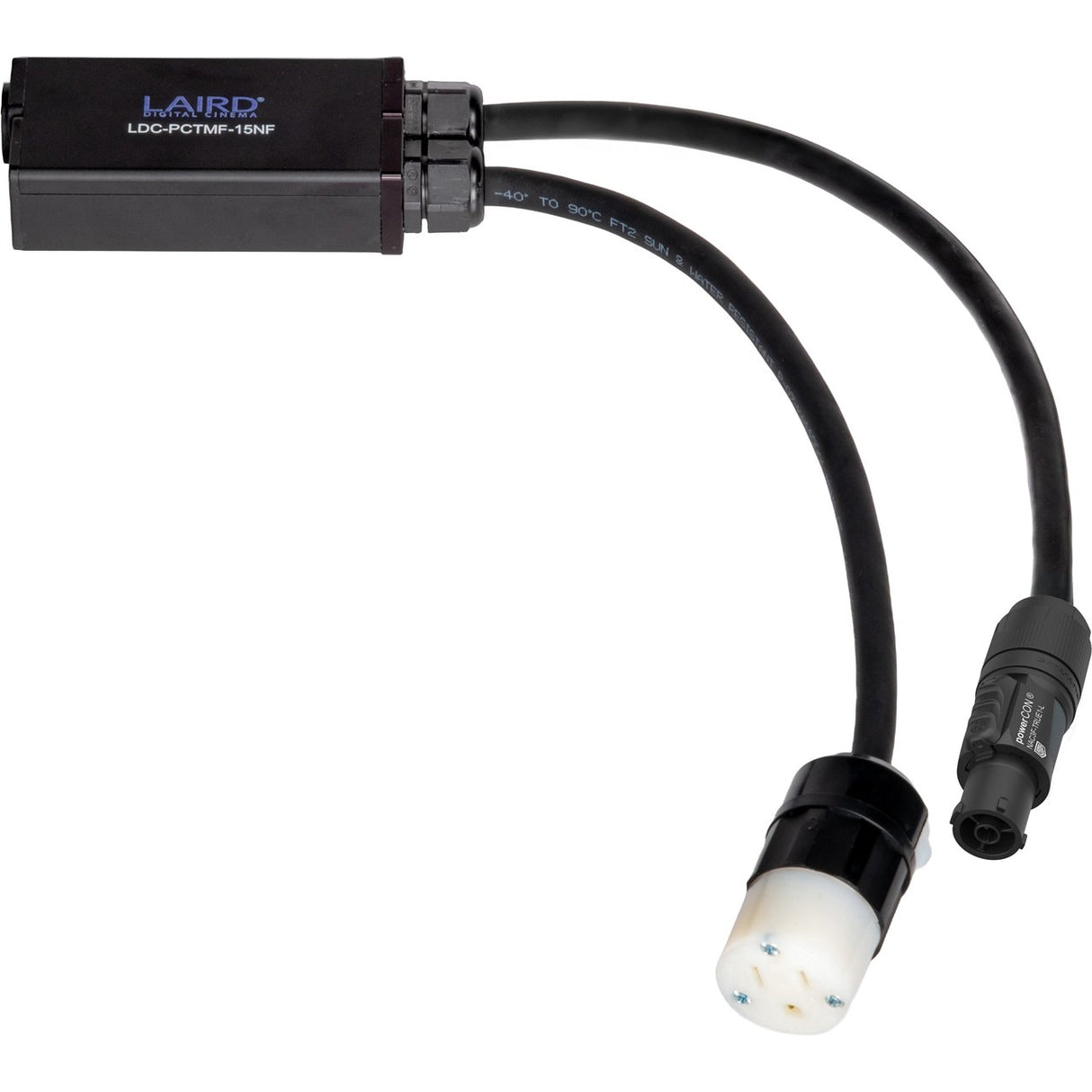

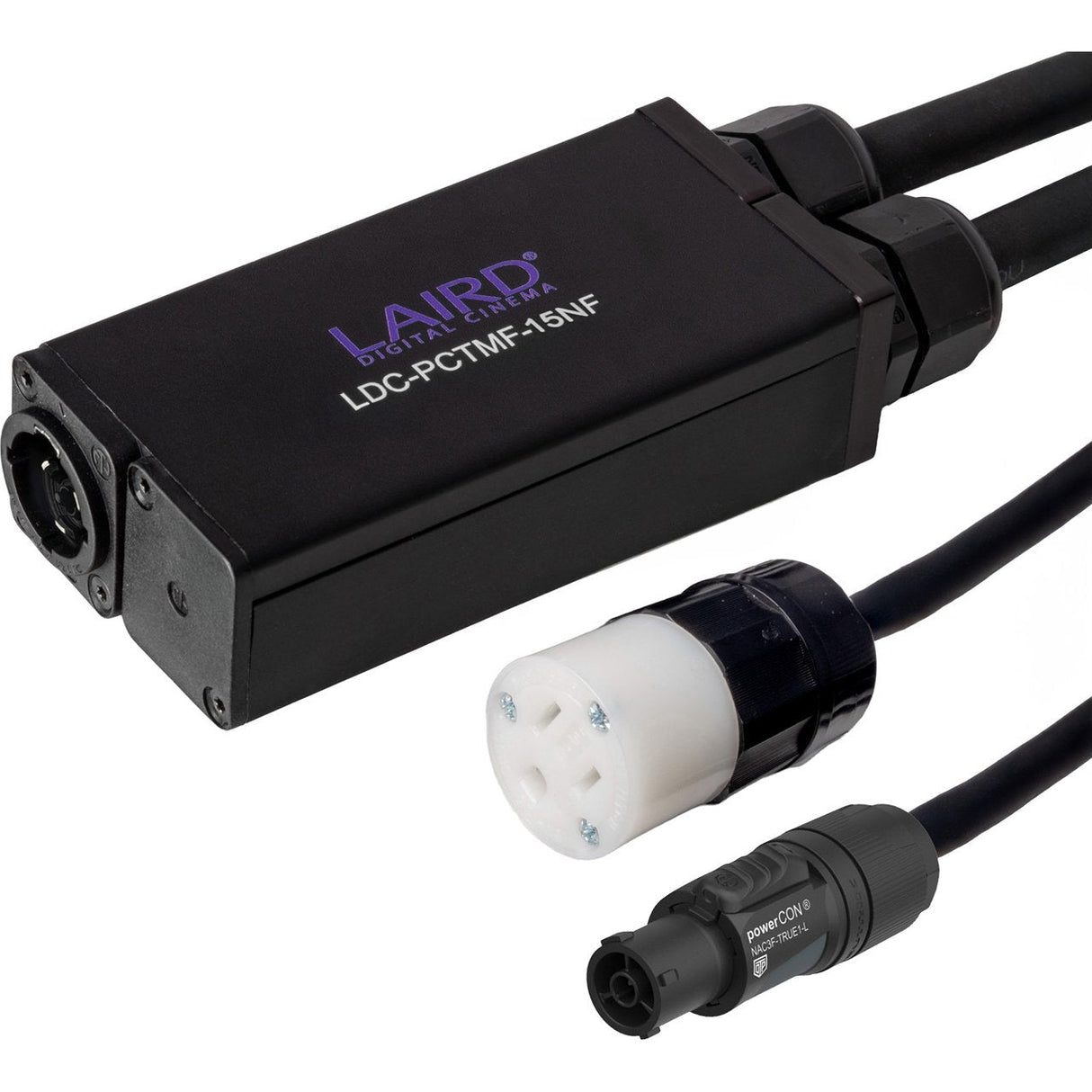

Laird LDC-PCTMF-15NF powerCON TRUE1 Power Distribution Splitter Cable
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Laird LDC-PCTMF-15NF powerCON TRUE1 Power Distribution Splitter Cable
The Laird LDC-PCTMF-15NF power distribution splitter is designed to route power from a Neutrik powerCON TRUE1 male input to mixed professional power outputs used in live production systems. It is built for professional audio, lighting, and event environments that require secure and reliable power distribution.
This LDC-PCTM series splitter supports feed thru power routing that allows daisy chaining of multiple units while maintaining consistent power delivery. High quality Neutrik connectors and rugged cabling are selected to withstand repeated use in demanding production settings.
Ideal for touring rigs, stage power drops, and production racks, this splitter simplifies power management while maintaining a compact footprint. Its durable construction supports dependable operation in professional AV and live event workflows.
Key Features
- Power Distribution: Routes power from a Neutrik powerCON TRUE1 male input to mixed output connectors.
- Dual Output Design: Provides one powerCON TRUE1 female output and one Edison female receptacle.
- Daisy Chain Support: Feed thru connectors enable chaining multiple power distribution boxes.
- Rugged Power Cable: Built using Laird PWR-12-3-TP rugged yet flexible power cable.
- Durable Enclosure: Rugged aluminum enclosure designed for professional field use.
Technical Specifications
- Input Connector: 1 Neutrik powerCON TRUE1 male.
- Output Connectors: 1 Neutrik powerCON TRUE1 female and 1 Edison female receptacle.
- Enclosure Dimensions: 4 x 2.04 x 1.24 in.
- Cable Type: SJOOW.
- Conductors: 3 x 12 AWG.
- Current Carrying Capacity: 25 A.
- Cable Outer Diameter: 0.42 to 0.47 in.
- Outer Jacket: Rubber CPE black.
- Cable Insulation: Rubber EPR.
- Neutrik Connector Amperage: 20 A.
- Neutrik Connector Rated Voltage: 250 VAC.
- Leviton Connector Amperage: 15 A.
- Leviton Connector Rated Voltage: 125 VAC.
- Leviton Contact Material: Solid brass.
