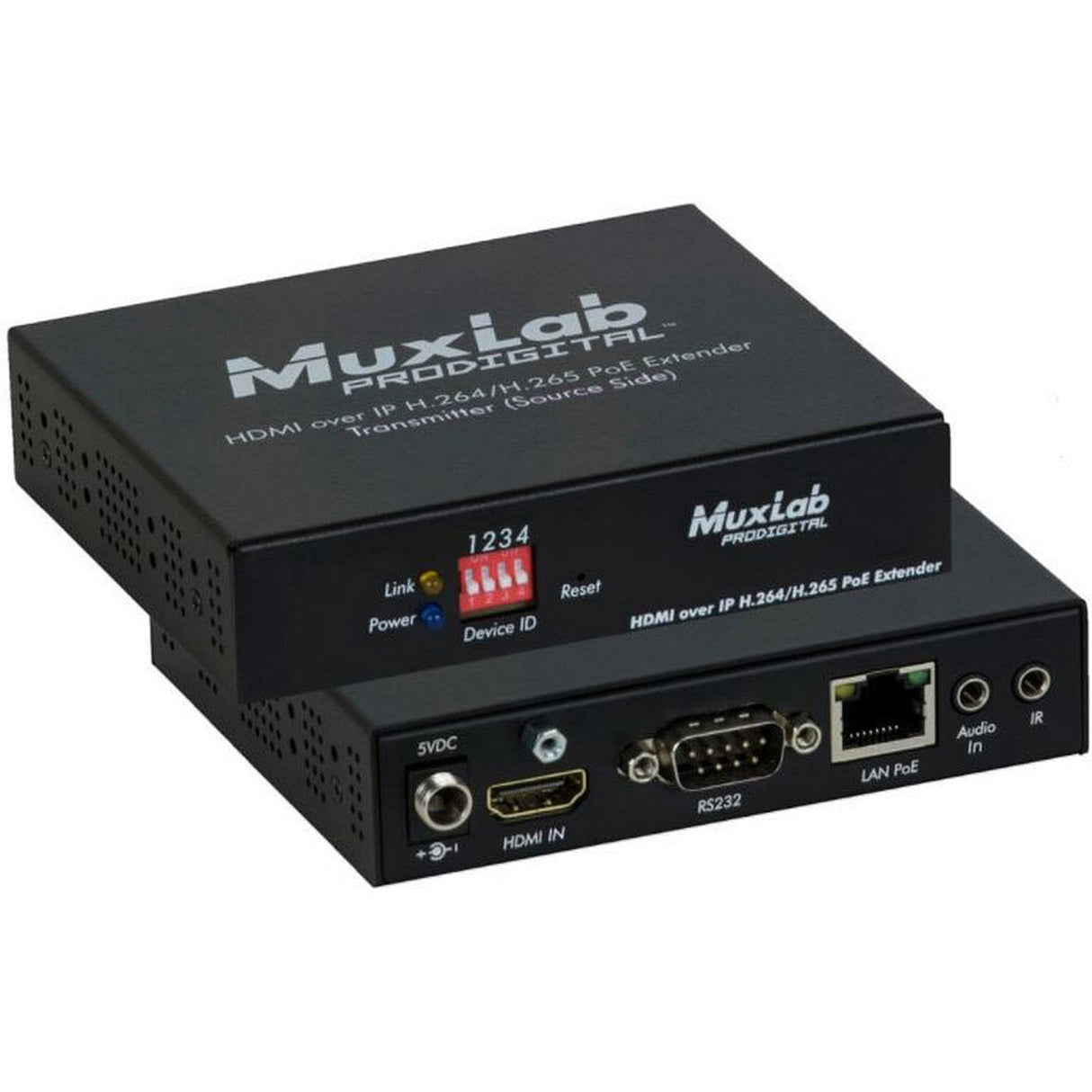

MuxLab 500762-TX 1080p HDMI to H.264/H.265 Over IP Transmitter with PoE
The Muxlab MUX-500762-TX HDMI over IP H.264/H.265 PoE transmitter, when used in combination with the MUX-500762-RX (receiver, sold separately), allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems.
Key Features
- Receiver supports up to 4K @ 60Hz (4:4:4) video streams
- Receiver up-scales 1080p @ 60Hz video streams from Transmitter and other devices up to 4K @ 60Hz
- Transmitter supports up to 1080p @ 60Hz video
- Extends local audio/video transmission up to 330ft (100m) over Cat5e/6
- H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
- High image quality and 100ms latency depending on protocol
- Supports 100's of Transmitters & Receivers depending on network bandwidth
- Supports Multicast (LAN), and RTSP / RTMP / HLS (LAN & Internet)
- USB 3.0 port for storing and playback of local content from an external USB drive (RX)
- Supports SPDIF (TosLink) Audio Out (RX)
- 2CH audio insert (TX), and 2CH audio extract (RX)
- RS232 and Directional IR for remote control of end-devices
- PoE powered, via PoE (PSE) Ethernet Switch
- Managed remotely via Pro Digital Network Controller (500811)
Technical Specifications
Environment
HDMI 1.3a
Devices
Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs, supporting HDMI.
Signal Protocol/Standard: HDMI 1.3a and HDCP 1.3
Video Bandwidth
225MHz
Network Bandwidth
30Mbps (max)
Protocols
Supports Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264) & TS
Maximum Distance
Cat5e/6: 330ft (100m) from Ethernet Switch. Unlimited over the Internet
RJ45 Pin Configuration: RJ45 Link: Pin 1 ®, Pin 2 (T), Pin 3 ®, Pin 6 (T), Pin 4 ®, Pin 5 (T), Pin 7 ®, Pin 8 (T)
Power Source
This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
PoE
IEEE 802.3af
Power Consumption
4.5W
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity
Up to 95% non-condensing
Dimensions
4.4" x 3.6" x 1.0"
Weight
0.9lbs
Compliance Regulatory
FCC, CE, RoHS Flammability: 94V0
Warranty
3 years
