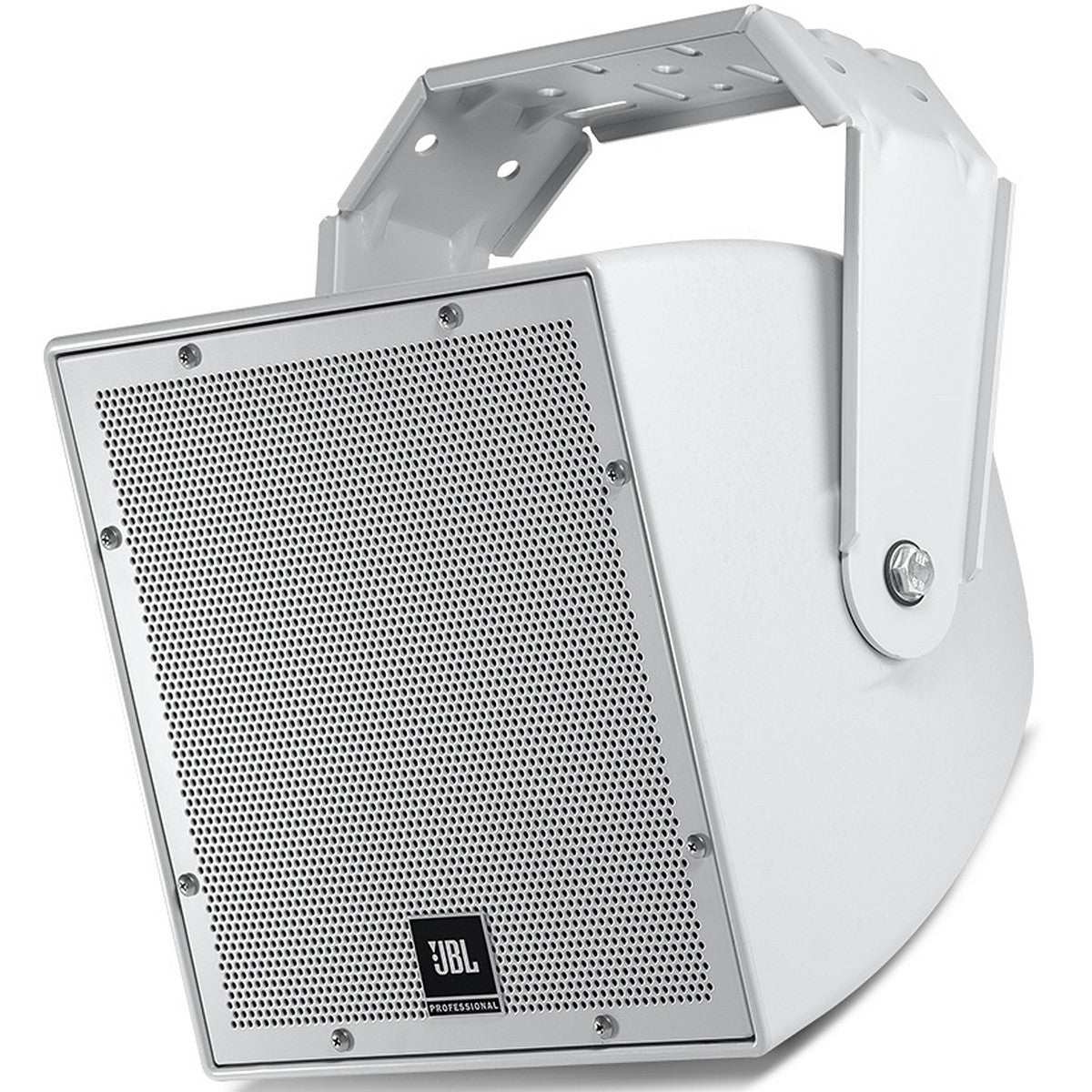

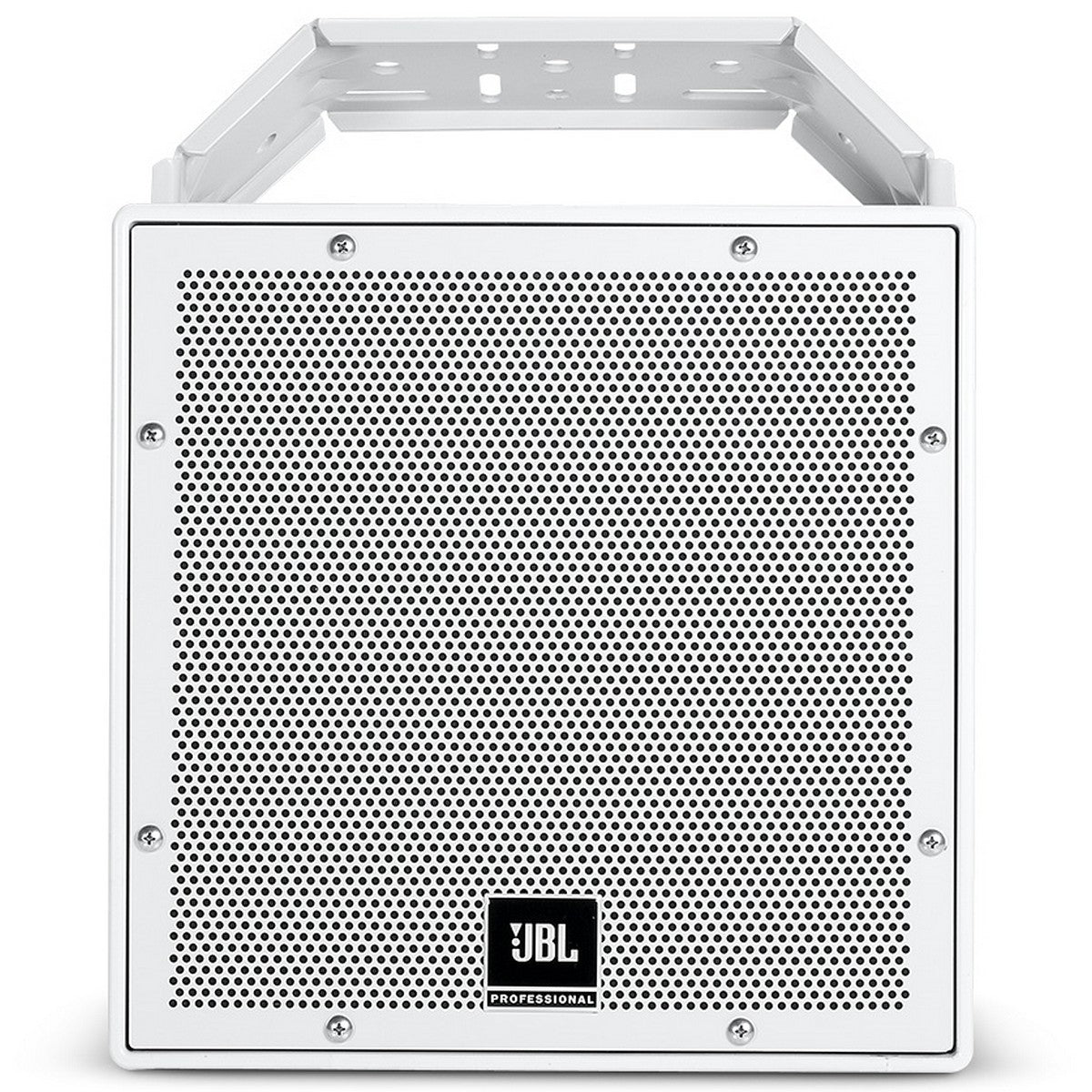

JBL AWC82 Compact Two Way Coaxial Loudspeaker Gray Each

JBL AWC82 | Compact Two Way Coaxial Loudspeaker Gray Each

The JBL AWC82 Compact Two-Way Coaxial Loudspeaker is an epitome of engineering excellence, offering unparalleled sound clarity and robustness in one compact unit. Designed for all-weather durability, this 8-inch speaker is perfect for a variety of applications from outdoor events to permanent installations in public spaces. With a Kevlar-reinforced woofer and a high-temperature polymer diaphragm in the compression driver, you are assured of long-lasting, high-performance audio output. Whether it's a busy day at the park or a special indoor event, the JBL AWC82 provides exceptional audio coverage and clarity that enhances your auditory experience.

Optimized for both vocal and musical nuances, the JBL AWC82 features a broad frequency range and advanced crossover network to deliver balanced audio performance. This loudspeaker operates efficiently with high sensitivity, allowing it to produce high sound pressure levels without distortion. Its IP56 weather-resistant rating means it can withstand harsh environmental conditions without compromising on sound quality, making it ideal for both indoor and outdoor settings.

Engineered with user convenience in mind, the JBL AWC82 includes a built-in transformer with multi-tap settings and a robust ABS enclosure with corrosion-resistant components. This means easy installation and minimal maintenance, ensuring you can focus more on enjoying high-quality sound and less on upkeep. From professional audio installations to everyday use, the JBL AWC82 is designed to adapt and perform.

Key Features

• Highly weather-resistant IP56 rating
• Consistent 120 x 120-degree broadband pattern control
• 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil
• 25 mm (1 in) exit compression driver with unique patented design and high-temperature polymer diaphragm
• Extraordinary clarity for speech, with extended frequency response for music
• Advanced high-slope crossover network for consistent coverage and smooth, natural midrange
• 250 Watt power handling (average continuous pink noise) with high sensitivity providing high SPL capability
• High-power passive crossover network
• Overload protection
• 80 Hz - 20 kHz frequency response
• 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8-ohm low-impedance

Specifications

• Color: Gray
• Frequency Range (-10 dB): 80 Hz - 20 kHz
• Frequency Response (±3 dB): 100 Hz - 20 kHz
• Coverage Pattern: 120 x 120 degrees
• Directivity Factor (Q): 8.1 (1 kHz - 16 kHz)
• Directivity Index (DI): 8.4 dB (1 kHz - 16 kHz)
• Long-Term System Power Rating (IEC): 250W for 2 hours, 200W for 100 hours
• Sensitivity (2.83V @ 1m): 94 dB (Ave. 100 Hz - 20 kHz)
• Maximum SPL: Direct 8 ohm: 118 dB (124 dB peaks); 200W Tap: 117 dB
• Crossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass, 2nd order low-pass
• Nominal Impedance: 8 ohms
• Transformer Taps: 70V: 200W, 100W, 50W, 25W; 100V: 200W, 100W, 50W
• Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil
• High Frequency Driver: 25 mm (1 in) diaphragm, high-temperature polymer diaphragm, fluid cooling
• HF Driver Protection: Minimum audibility SonicGuard HF overload protection
• Enclosure: ABS with glass enclosure, heavily braced
• Attachment: Two M10 points, M6 secondary attachment
• Grille: Corrosion-resistant zinc-rich powder-coated steel, 3-layer assembly
• Input Connection: CE-compliant covered barrier strip terminals
• Environmental: IP56 per IEC529, exceeds Mil-Spec 810
• Dimensions: 300 x 300 x 305 mm (cabinet); 331 mm with gland nut; 359 mm with bracket
• Net Weight: 9.8 kg; 11.6 kg with U-bracket
• Shipping Weight: 14.1 kg

Package Contents

• JBL AWC82 Loudspeaker
• Matching U-bracket (gray)
