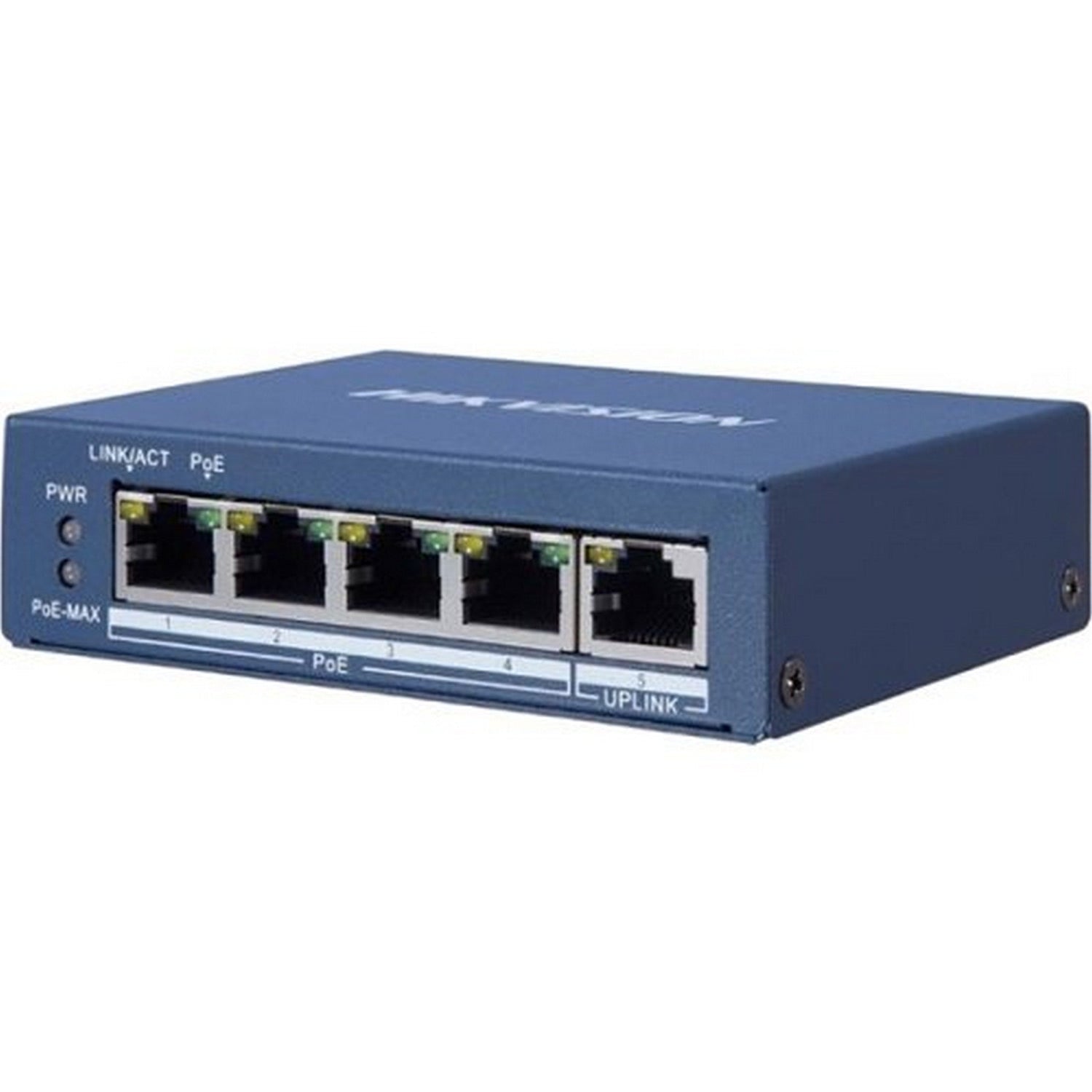

Hikvision DS‑3E0505P‑E 4‑Port Gigabit Unmanaged PoE Switch
The Hikvision DS‑3E0505P‑E is a compact Layer‑2 unmanaged switch engineered to carry high‑bandwidth video and data traffic for IP cameras, NVRs, and other PoE‑powered edge devices. Four 10/100/1000 Mb/s PoE ports simplify installation by delivering up to 60 W of total IEEE 802.3af/at power while simultaneously providing gigabit backhaul speeds. A dedicated gigabit uplink, wire‑speed switching fabric, and 1 Mbit cache ensure smooth, non‑blocking transmission—crucial for latency‑sensitive surveillance streams.
Designed for harsh deployment sites, the switch features a fan‑less metal chassis with 6 kV surge protection on every PoE port, safeguarding connected equipment from lightning or power anomalies. Desk‑ or wall‑mount options, silent operation, and automatic PoE power management make the DS‑3E0505P‑E a versatile drop‑in upgrade for small camera clusters, VoIP phones, or other IoT endpoints needing robust gigabit connectivity with minimal configuration.
Key Features:
- 4 × Gigabit PoE ports (10/100/1000 Mb/s), plus 1 × Gigabit RJ‑45 uplink
- Up to 30 W per port; 60 W PoE power budget (IEEE 802.3af/at compliant)
- 10 Gbps switching capacity with 7.44 Mpps forwarding rate
- 2 K MAC address table & 1 Mbit packet buffer
- 6 kV surge protection on PoE ports for enhanced lightning immunity
- Fan‑less, high‑strength metal shell for silent operation
- Desk‑mount or wall‑mount installation; plug‑and‑play unmanaged design
Technical Specifications:
Ports: 4 × Gigabit PoE, 1 × Gigabit RJ‑45 uplink
Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3af/at
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
MAC Address Table: 2 K entries
Internal Cache: 1 Mbit
Max Port PoE Power: 30 W
Total PoE Budget: 60 W
PoE Pinout: End‑span 1/2 (+), 3/6 (–)
Surge Protection: 6 kV (PoE ports)
Installation Methods: Desk‑mounted or wall‑mounted
Shell Material: Metal, fan‑less design
Package Contents:
- DS‑3E0505P‑E Gigabit PoE Switch
- Power adapter & cord
- Wall‑mount screws & anchors
- Quick Start Guide
