Hikvision DS‑3E0505P‑E 4‑Port Unmanaged Gigabit PoE Switch, 10-Gbps, Blue
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

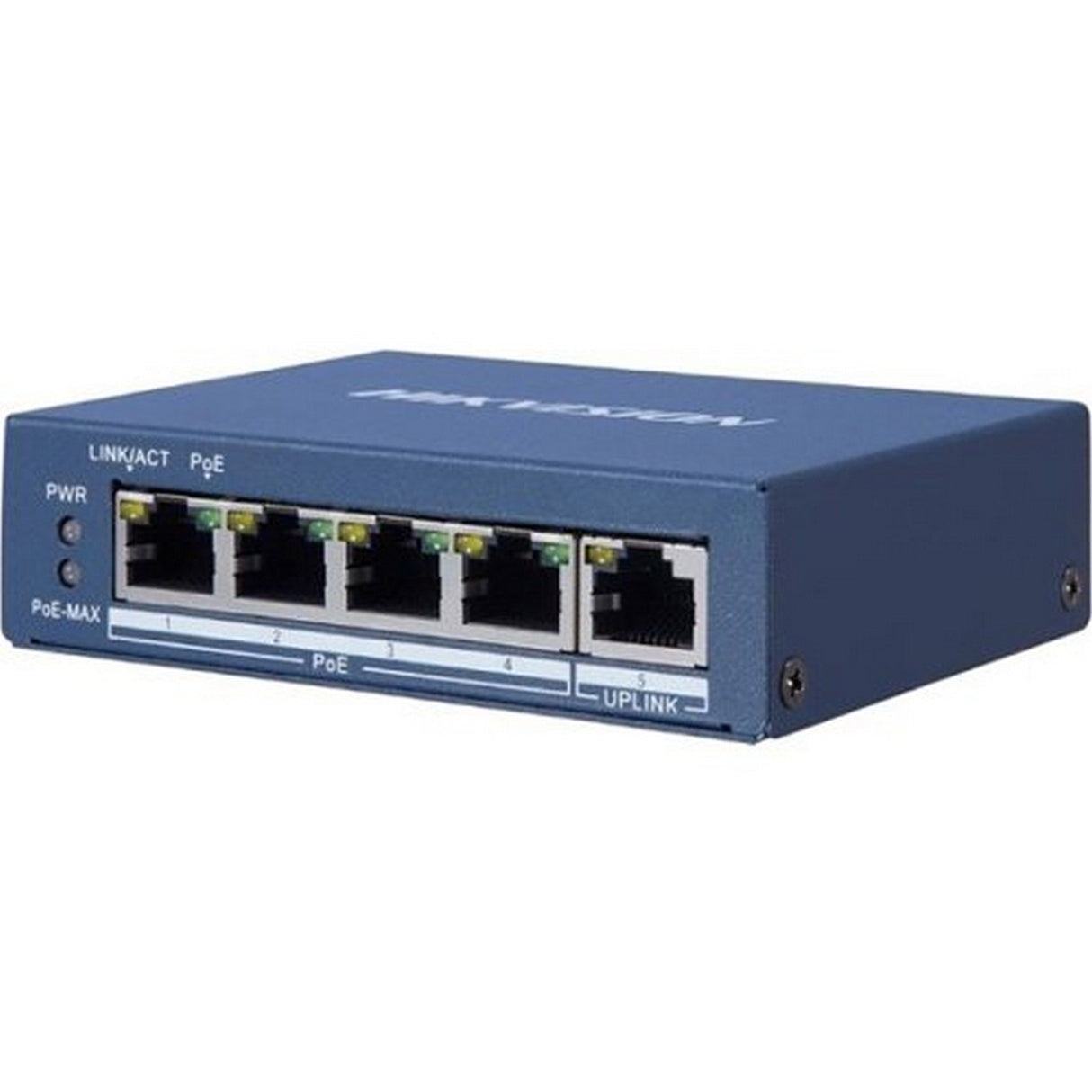

Hikvision DS‑3E0505P‑E 4‑Port Gigabit Unmanaged PoE Switch
The Hikvision DS‑3E0505P‑E is a compact Layer‑2 unmanaged switch engineered to carry high‑bandwidth video and data traffic for IP cameras, NVRs, and other PoE‑powered edge devices. Four 10/100/1000 Mb/s PoE ports simplify installation by delivering up to 60 W of total IEEE 802.3af/at power while simultaneously providing gigabit backhaul speeds. A dedicated gigabit uplink, wire‑speed switching fabric, and 1 Mbit cache ensure smooth, non‑blocking transmission—crucial for latency‑sensitive surveillance streams.
Designed for harsh deployment sites, the switch features a fan‑less metal chassis with 6 kV surge protection on every PoE port, safeguarding connected equipment from lightning or power anomalies. Desk‑ or wall‑mount options, silent operation, and automatic PoE power management make the DS‑3E0505P‑E a versatile drop‑in upgrade for small camera clusters, VoIP phones, or other IoT endpoints needing robust gigabit connectivity with minimal configuration.
Key Features:
- 4 × Gigabit PoE ports (10/100/1000 Mb/s), plus 1 × Gigabit RJ‑45 uplink
- Up to 30 W per port; 60 W PoE power budget (IEEE 802.3af/at compliant)
- 10 Gbps switching capacity with 7.44 Mpps forwarding rate
- 2 K MAC address table & 1 Mbit packet buffer
- 6 kV surge protection on PoE ports for enhanced lightning immunity
- Fan‑less, high‑strength metal shell for silent operation
- Desk‑mount or wall‑mount installation; plug‑and‑play unmanaged design
Technical Specifications:
Ports: 4 × Gigabit PoE, 1 × Gigabit RJ‑45 uplink
Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3af/at
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
MAC Address Table: 2 K entries
Internal Cache: 1 Mbit
Max Port PoE Power: 30 W
Total PoE Budget: 60 W
PoE Pinout: End‑span 1/2 (+), 3/6 (–)
Surge Protection: 6 kV (PoE ports)
Installation Methods: Desk‑mounted or wall‑mounted
Shell Material: Metal, fan‑less design
Package Contents:
- DS‑3E0505P‑E Gigabit PoE Switch
- Power adapter & cord
- Wall‑mount screws & anchors
- Quick Start Guide
