Bose L1 Pro16 Portable Line Array Speaker System with Bluetooth

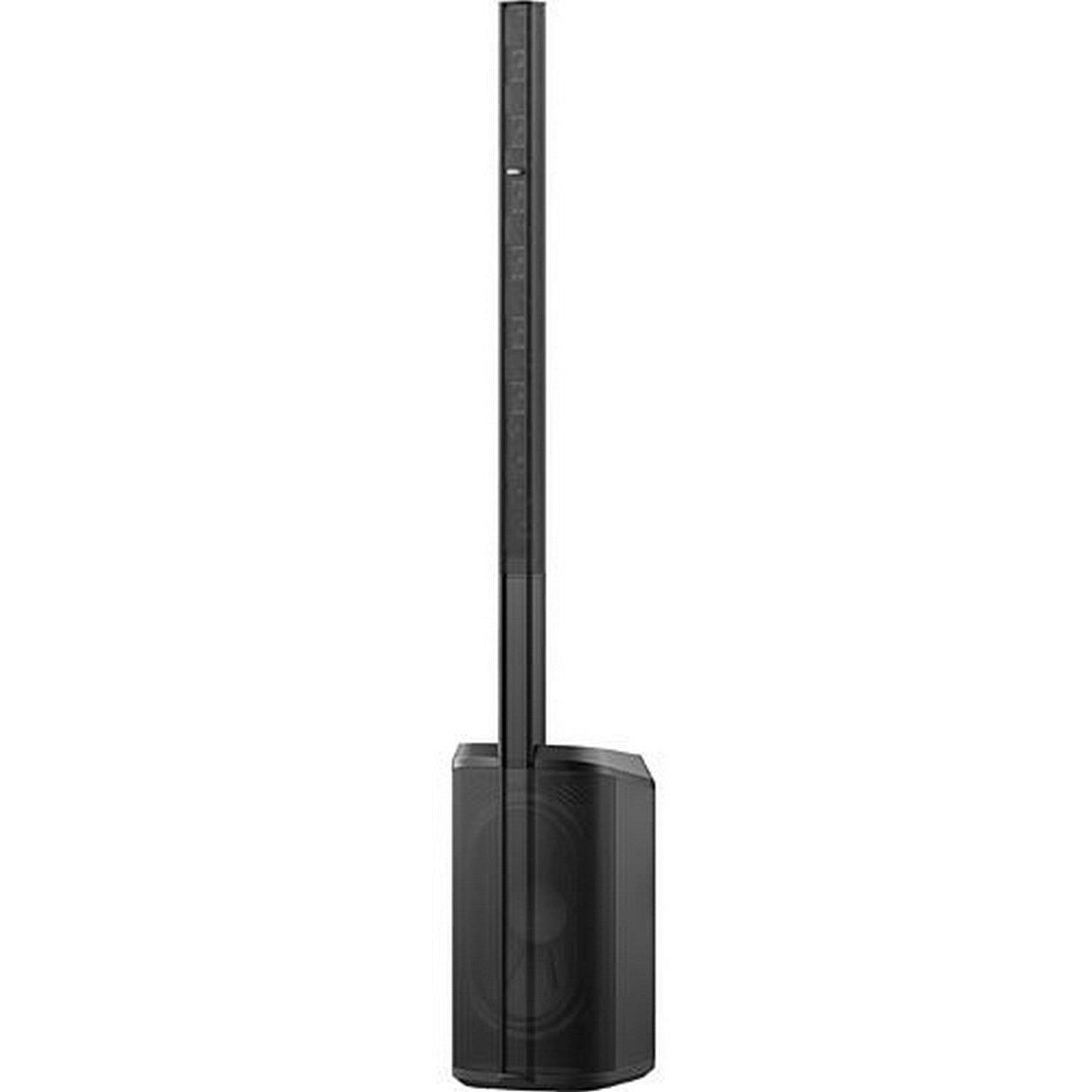

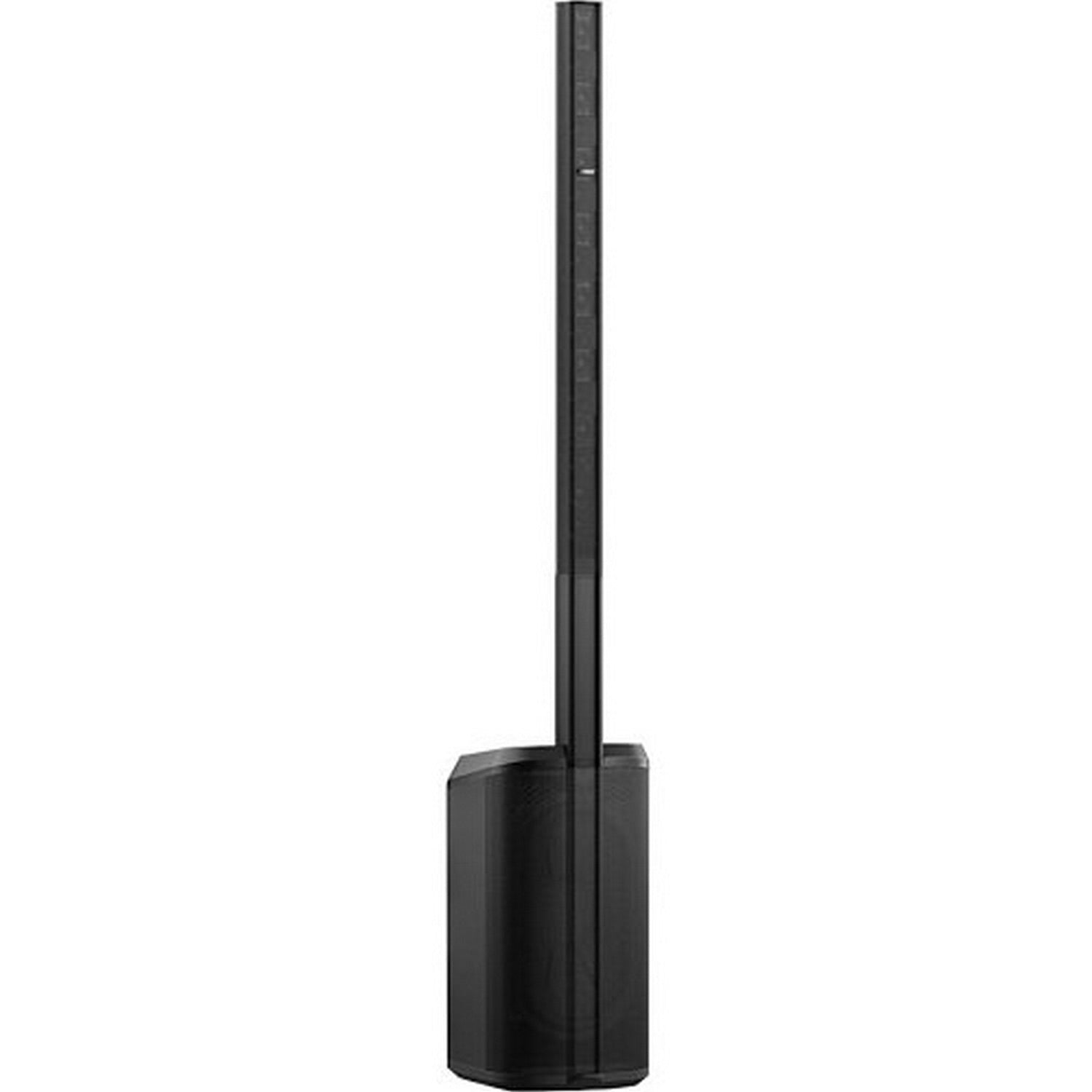

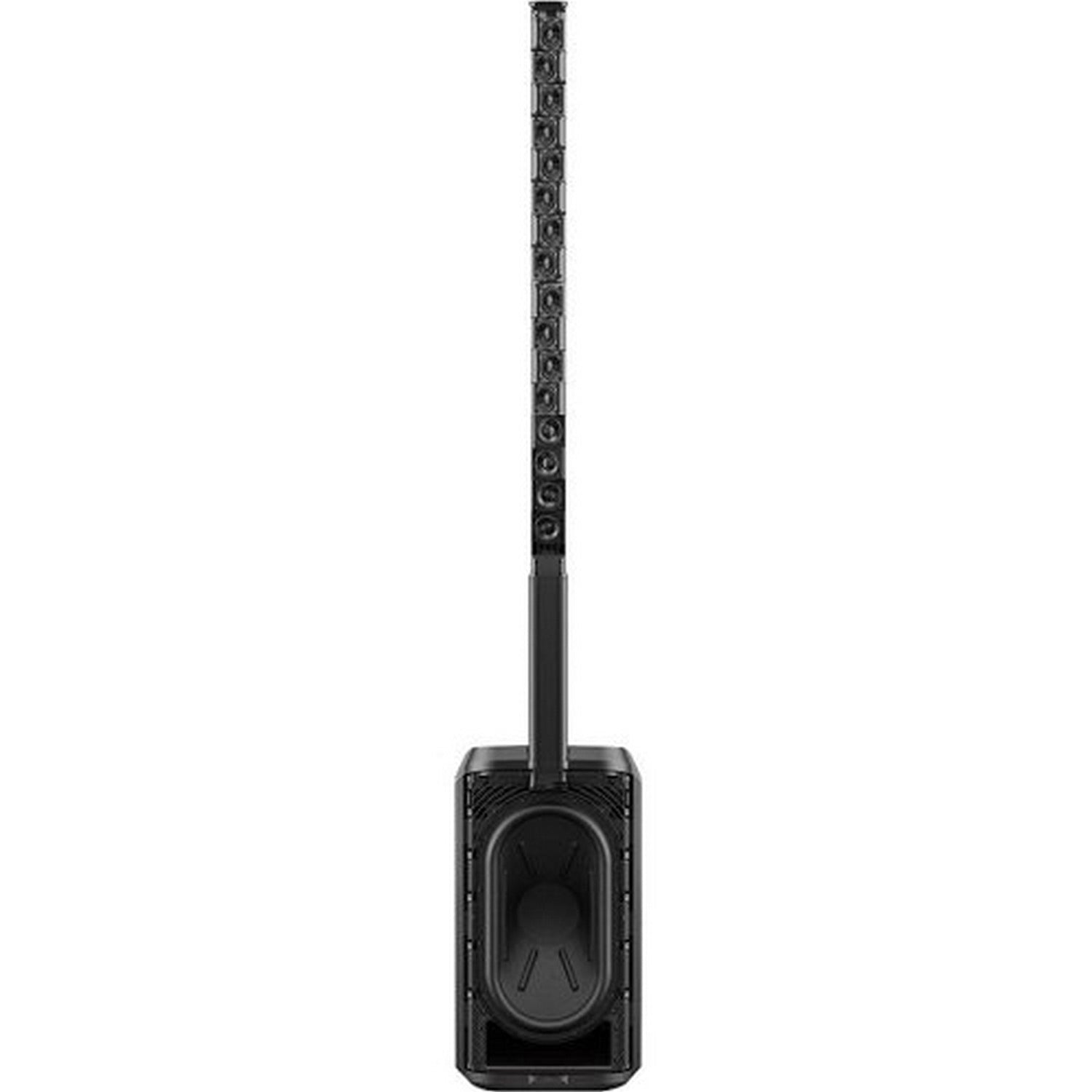

The Bose L1 Pro16 is a high-performance portable line array system designed for musicians, DJs, and performers seeking a balance between power and portability. It features a J-shaped line array with 16 articulated 2" neodymium drivers, delivering 180-degree horizontal coverage and versatile vertical dispersion. This design ensures clear and consistent sound across medium to large venues, whether the system is set up on the floor or on an elevated stage. The integrated subwoofer, equipped with a unique RaceTrack driver measuring 10" x 18", provides deep bass response comparable to a conventional 15" woofer, all within a compact form factor that simplifies transportation and setup.

Equipped with a built-in mixer, the L1 Pro16 offers multiple input options, including two combo XLR-1/4" inputs, 1/4" and 1/8" aux inputs, and Bluetooth streaming capability. The mixer also features illuminated rotary encoders for intuitive control over volume, tone, and reverb settings. Performers can further customize their sound using the system's EQ presets optimized for live and recorded music. Additionally, the Bose Music App allows for wireless mixer control, enabling adjustments from a smartphone or tablet, enhancing flexibility during performances.

Key Features:

• High-Output Performance: Features a 16-driver J-shaped array and an integrated RaceTrack subwoofer, delivering powerful sound suitable for medium to large venues.
• Wide Coverage: Provides 180-degree horizontal coverage with adjustable vertical dispersion (0° to -30°), ensuring consistent audio delivery across the audience area.
• Built-In Mixer: Includes a 3-channel mixer with various input options—two combo XLR-1/4" inputs, 1/4" and 1/8" aux inputs, and Bluetooth streaming—for versatile connectivity.
• Intuitive Controls: Equipped with illuminated rotary encoders for easy adjustment of volume, tone, and reverb, along with system EQ presets tailored for different performance scenarios.
• Wireless Control: Compatible with the Bose Music App, allowing performers to adjust mixer settings remotely from a smartphone or tablet for greater flexibility during shows.

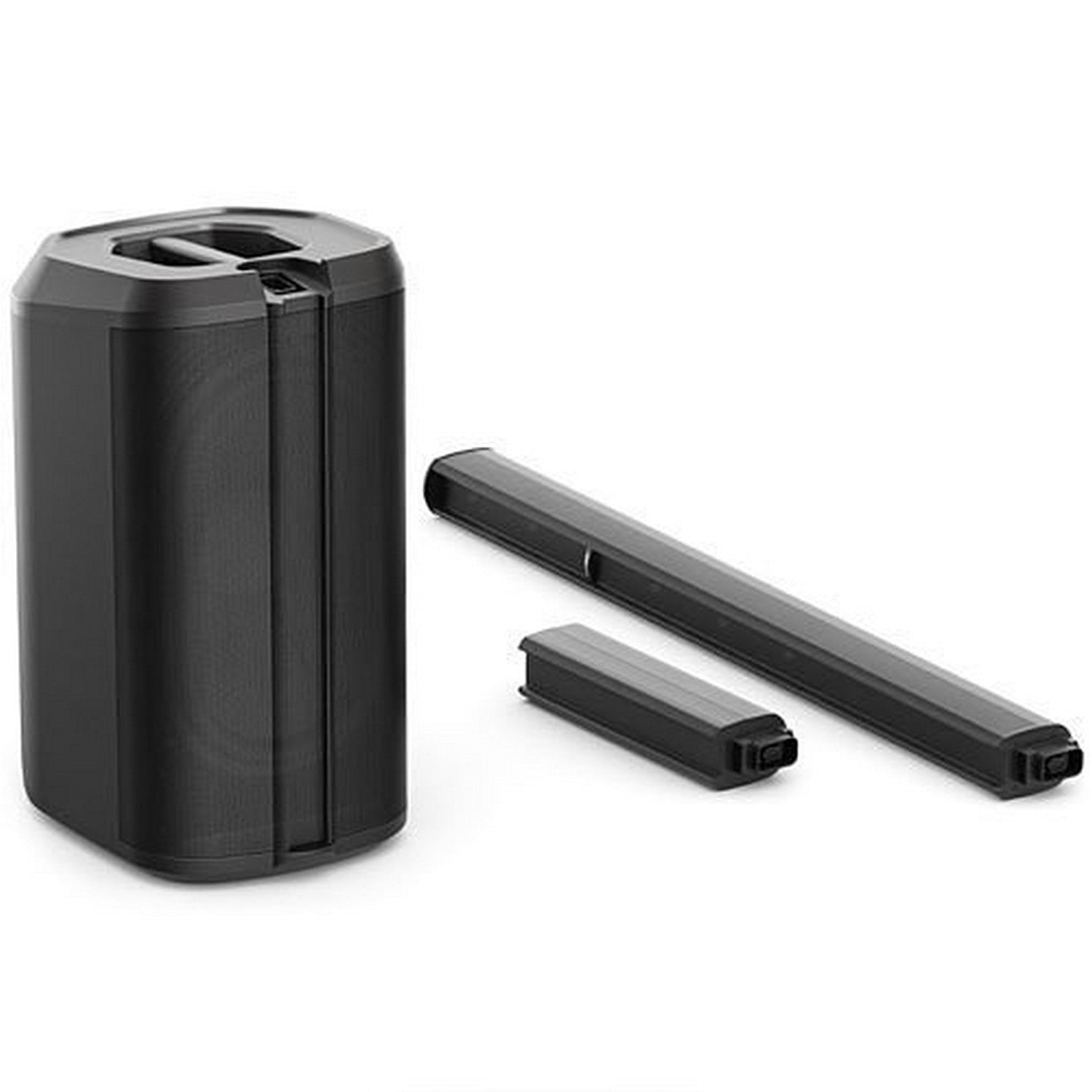

• Portability: Designed for easy transport and setup, with a modular system comprising the power stand, extension, and array, totaling a net weight of 50.6 lbs (23.0 kg).

Technical Specifications:

Frequency Range (-10 dB): 31 Hz – 18,000 Hz
Frequency Response (-3 dB): 42 Hz – 16,000 Hz
Nominal Horizontal Coverage: 180°
Nominal Vertical Coverage: 0° to -30°
Maximum SPL at 1 m: 124 dB peak
Power Amplification: Class D; 1,000 W for low-frequency driver; 250 W for high-frequency drivers
Inputs: Two combo XLR-1/4" TRS (Channels 1 & 2); 1/4" TRS and 1/8" TRS aux inputs; Bluetooth audio streaming
Controls: Three digital rotary encoders for channel parameters; system EQ presets; reverb; phantom power; Bluetooth pairing
Dimensions (H x W x D): 79.2" x 14.0" x 18.0" (with extension); 65.625" x 14.0" x 18.0" (without extension)
Weight: Net weight of 50.6 lbs (23.0 kg); shipping weight of 62.6 lbs (28.4 kg)
Included Accessories: Carry bag for arrays; IEC power cord
Optional Accessories: Bose ToneMatch mixers; speaker stands; protective covers

Package Contents:

• L1 Pro16 Portable Line Array System (includes power stand, extension, and array)
• Carry bag for arrays
• IEC power cord
• Owner's guide
• Quick start guide
• Safety instructions
