Bose L1 Pro16 Portable Line Array Speaker System with Bluetooth
Authorized Dealer
Last 1
Pick up available In-StoreMore finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Bose L1 Pro16 Portable Line Array Speaker System with Bluetooth

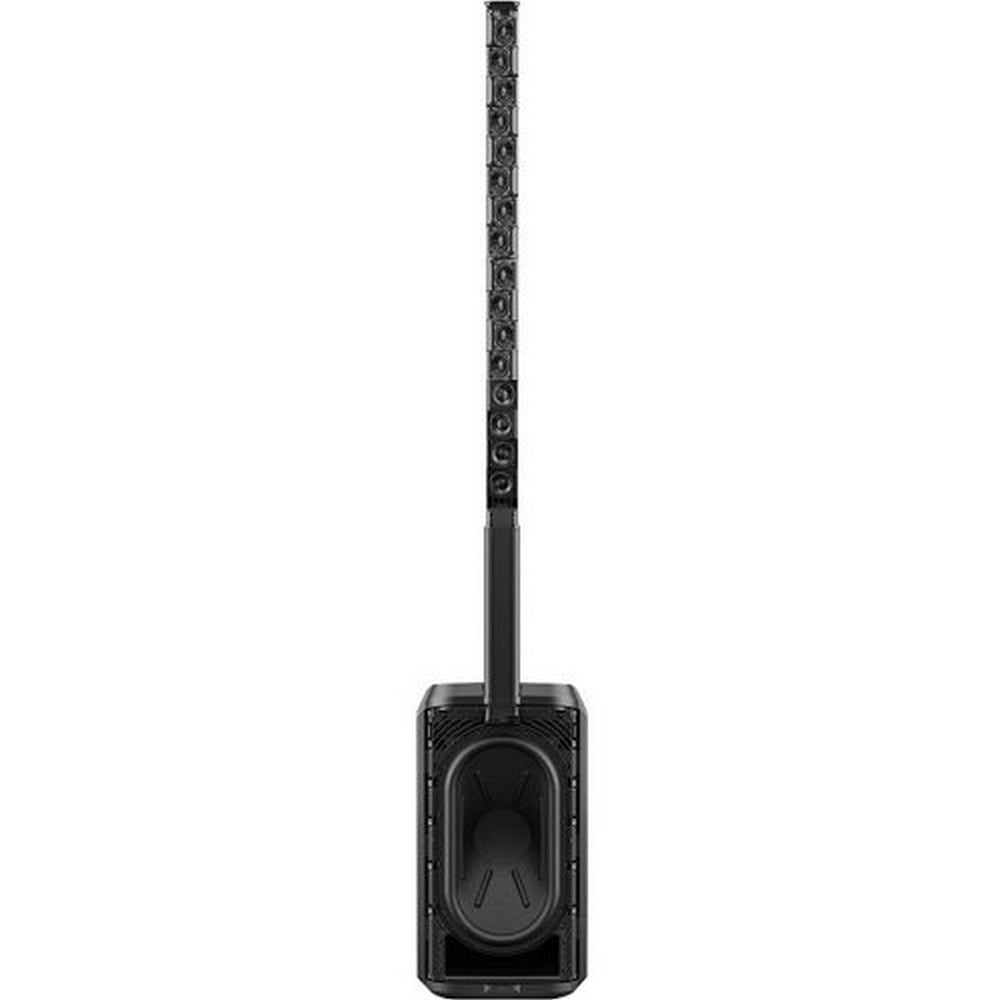

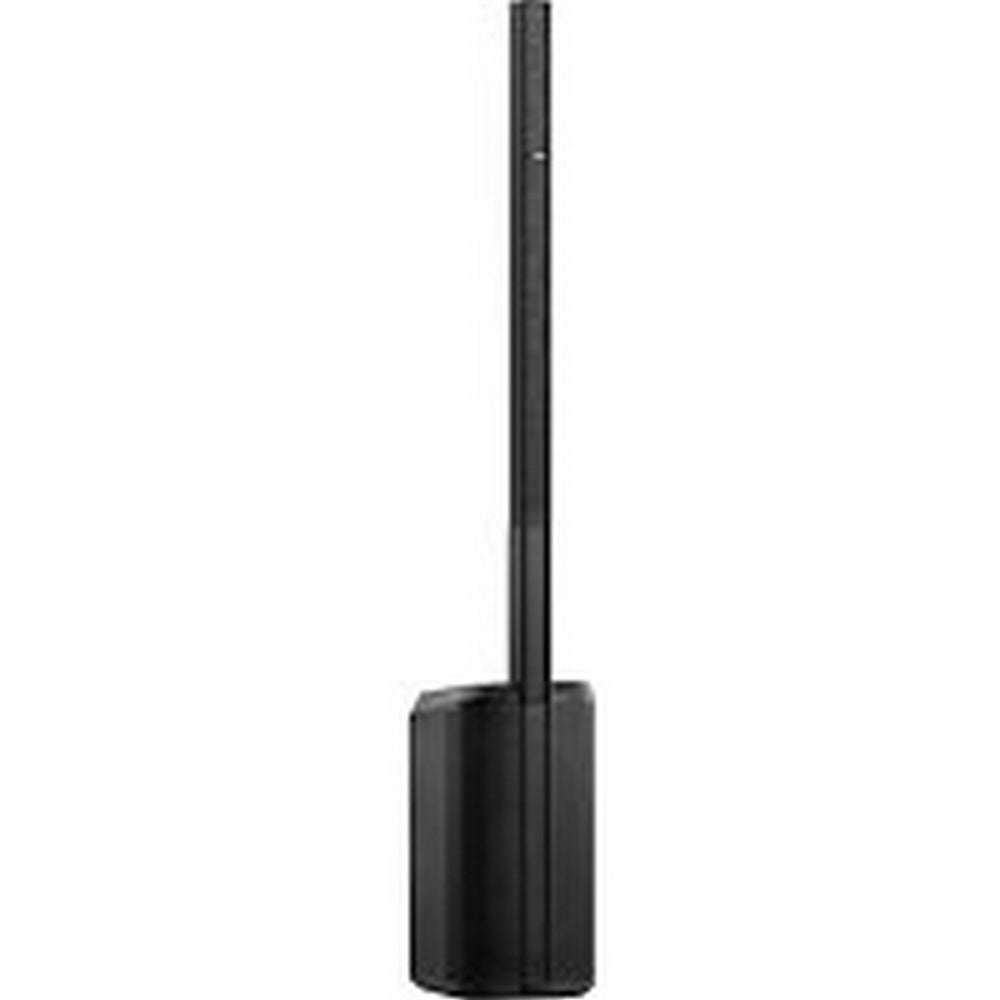

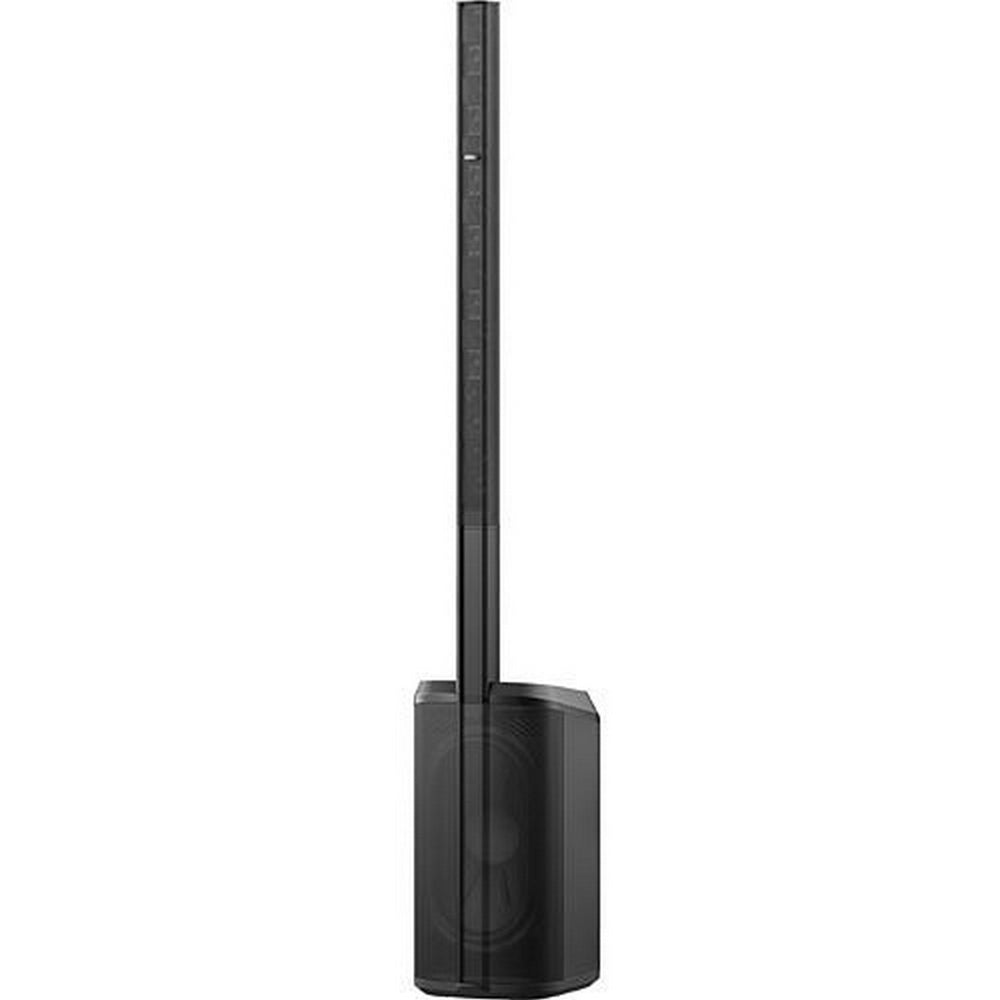

The Bose L1 Pro16 is a high-performance portable line array system designed for musicians, DJs, and performers seeking a balance between power and portability. It features a J-shaped line array with 16 articulated 2" neodymium drivers, delivering 180-degree horizontal coverage and versatile vertical dispersion. This design ensures clear and consistent sound across medium to large venues, whether the system is set up on the floor or on an elevated stage. The integrated subwoofer, equipped with a unique RaceTrack driver measuring 10" x 18", provides deep bass response comparable to a conventional 15" woofer, all within a compact form factor that simplifies transportation and setup.
Equipped with a built-in mixer, the L1 Pro16 offers multiple input options, including two combo XLR-1/4" inputs, 1/4" and 1/8" aux inputs, and Bluetooth streaming capability. The mixer also features illuminated rotary encoders for intuitive control over volume, tone, and reverb settings. Performers can further customize their sound using the system's EQ presets optimized for live and recorded music. Additionally, the Bose Music App allows for wireless mixer control, enabling adjustments from a smartphone or tablet, enhancing flexibility during performances.
Key Features:
- High-Output Performance: Features a 16-driver J-shaped array and an integrated RaceTrack subwoofer, delivering powerful sound suitable for medium to large venues.
- Wide Coverage: Provides 180-degree horizontal coverage with adjustable vertical dispersion (0Ā° to -30Ā°), ensuring consistent audio delivery across the audience area.
- Built-In Mixer: Includes a 3-channel mixer with various input optionsātwo combo XLR-1/4" inputs, 1/4" and 1/8" aux inputs, and Bluetooth streamingāfor versatile connectivity.
- Intuitive Controls: Equipped with illuminated rotary encoders for easy adjustment of volume, tone, and reverb, along with system EQ presets tailored for different performance scenarios.
- Wireless Control: Compatible with the Bose Music App, allowing performers to adjust mixer settings remotely from a smartphone or tablet for greater flexibility during shows.

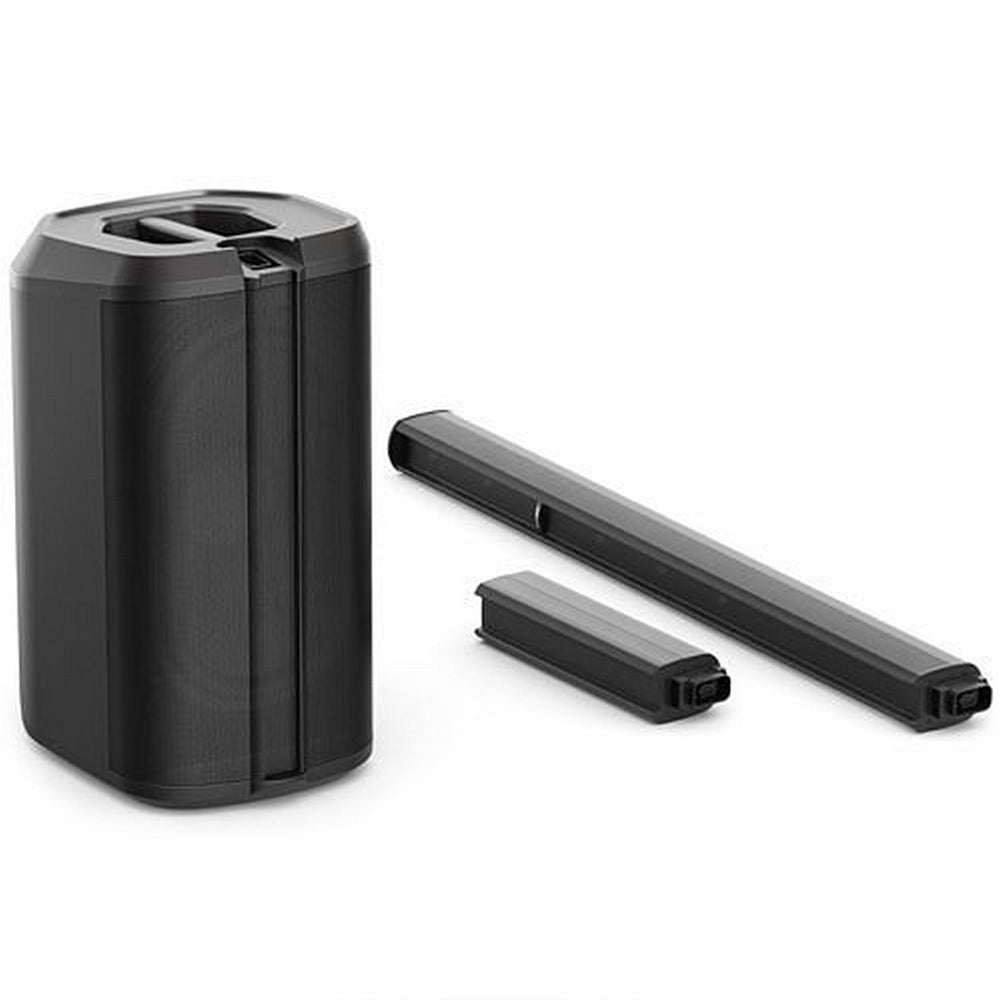

- Portability: Designed for easy transport and setup, with a modular system comprising the power stand, extension, and array, totaling a net weight of 50.6 lbs (23.0 kg).
Technical Specifications
-
General
- Product Type: Portable line array PA system
- Configuration: Line array with integrated subwoofer
- Amplification: Class D
-
Speaker System
- Array Drivers: 16 Ć 2-inch drivers
- Subwoofer: Integrated RaceTrack driver
- Nominal Horizontal Coverage: 180Ā°
- Nominal Vertical Coverage: 0Ā° to -30Ā°
-
Performance
- Frequency Range (-10 dB): 31 Hz ā 18,000 Hz
- Frequency Response (-3 dB): 42 Hz ā 16,000 Hz
- Maximum SPL @ 1 m: 124 dB peak
-
Amplification
- Low-Frequency Amplifier Power: 1,000 W
- High-Frequency Amplifier Power: 250 W
-
Inputs & Connectivity
- Inputs: Two combo XLR-1/4" TRS (Channels 1 & 2); 1/4" TRS and 1/8" TRS auxiliary inputs
- Bluetooth: Audio streaming and app control
- Outputs: XLR line output
- ToneMatch Port: Yes
-
Controls
- Control Interface: Three digital rotary encoders
- Processing: Channel EQ, system EQ presets, reverb
- Additional Features: Phantom power, Bluetooth pairing
-
Physical
- Dimensions (H Ć W Ć D): 79.2" Ć 14.0" Ć 18.0" (with extension); 65.625" Ć 14.0" Ć 18.0" (without extension)
- Net Weight: 50.6 lb (23.0 kg)
- Shipping Weight: 62.6 lb (28.4 kg)
- System Type: Modular portable system
-
Included Accessories
- Included: Carry bag for array components, IEC power cord
-
Optional Accessories
- Compatible Accessories: Bose ToneMatch mixers, speaker stands, protective covers
Installation & Use Case
The L1 Pro16 is designed for portable sound reinforcement where fast setup, consistent coverage, and integrated system control are important.
- Live performances
- DJs and mobile events
- Small to medium venues
- Corporate presentations
- Houses of worship
Package Contents:
- L1 Pro16 Portable Line Array System (includes power stand, extension, and array)
- Carry bag for arrays
- IEC power cord
- Owner's guide
- Quick start guide
- Safety instructions
Frequently Asked Questions
Is the Bose L1 Pro16 good for live performances and DJs?
Yes, the Bose L1 Pro16 is designed for live performances, DJs, and small bands, offering wide coverage, strong output, and built-in mixing for streamlined setups.
What size audience can the Bose L1 Pro16 cover?
The L1 Pro16 is typically used for small to medium venues such as bars, clubs, events, and presentations, and can cover audiences of up to around 250 people depending on the environment.
Does the Bose L1 Pro16 have a built-in mixer?
Yes, the L1 Pro16 includes a built-in multi-channel mixer with EQ, reverb, and multiple input options, allowing direct connection of microphones, instruments, and playback devices.
Does the Bose L1 Pro16 support Bluetooth audio?
Yes, the L1 Pro16 supports Bluetooth streaming and can also be controlled wirelessly using the Bose L1 Mix app.
Do I need a separate subwoofer with the Bose L1 Pro16?
No, the L1 Pro16 includes an integrated subwoofer with a RaceTrack driver, providing low-frequency performance without requiring an external subwoofer.
What is the difference between the Bose L1 Pro16 and L1 Pro8?
The L1 Pro16 offers higher output, extended low-frequency performance, and a larger array compared to the L1 Pro8, making it more suitable for larger venues and louder applications.
