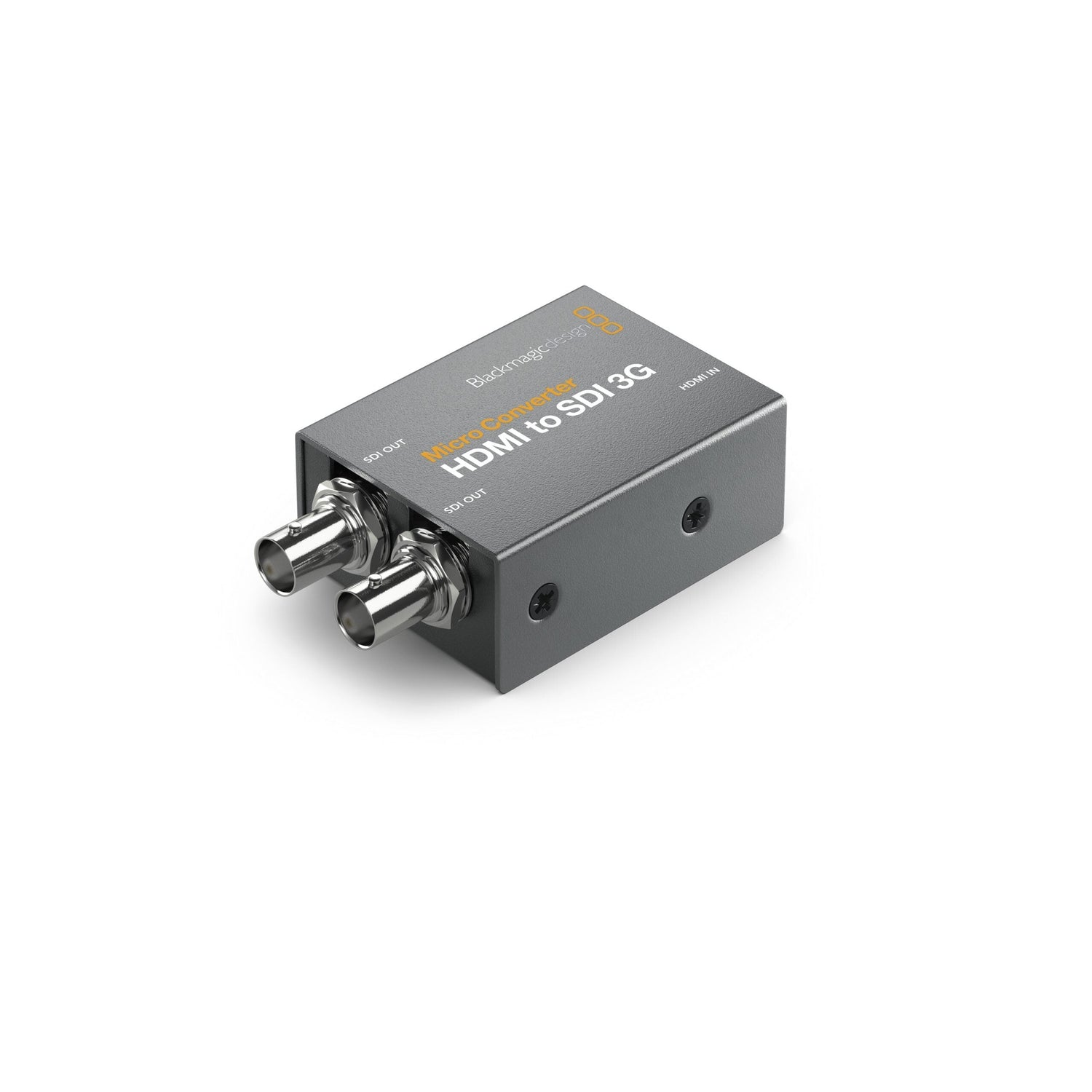

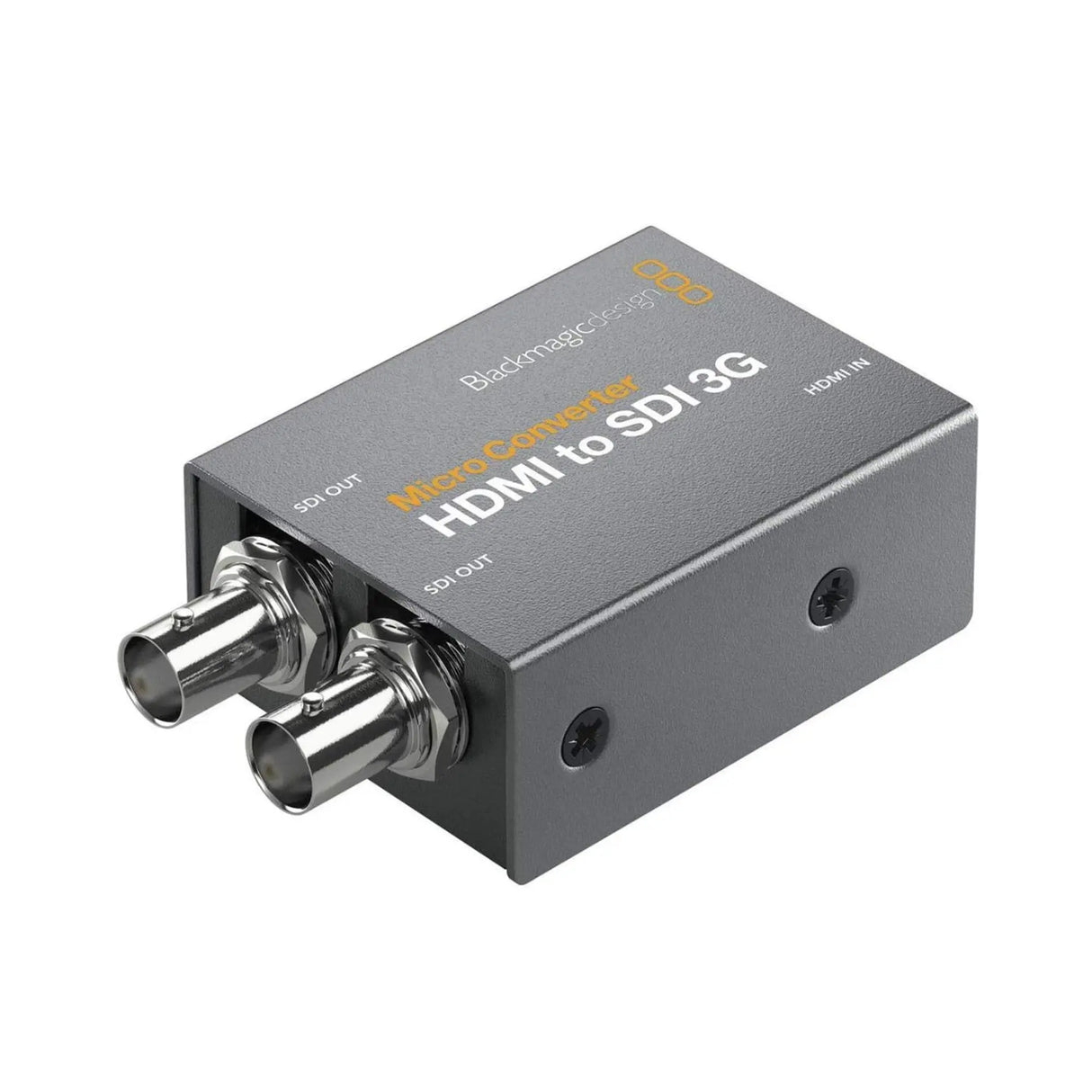

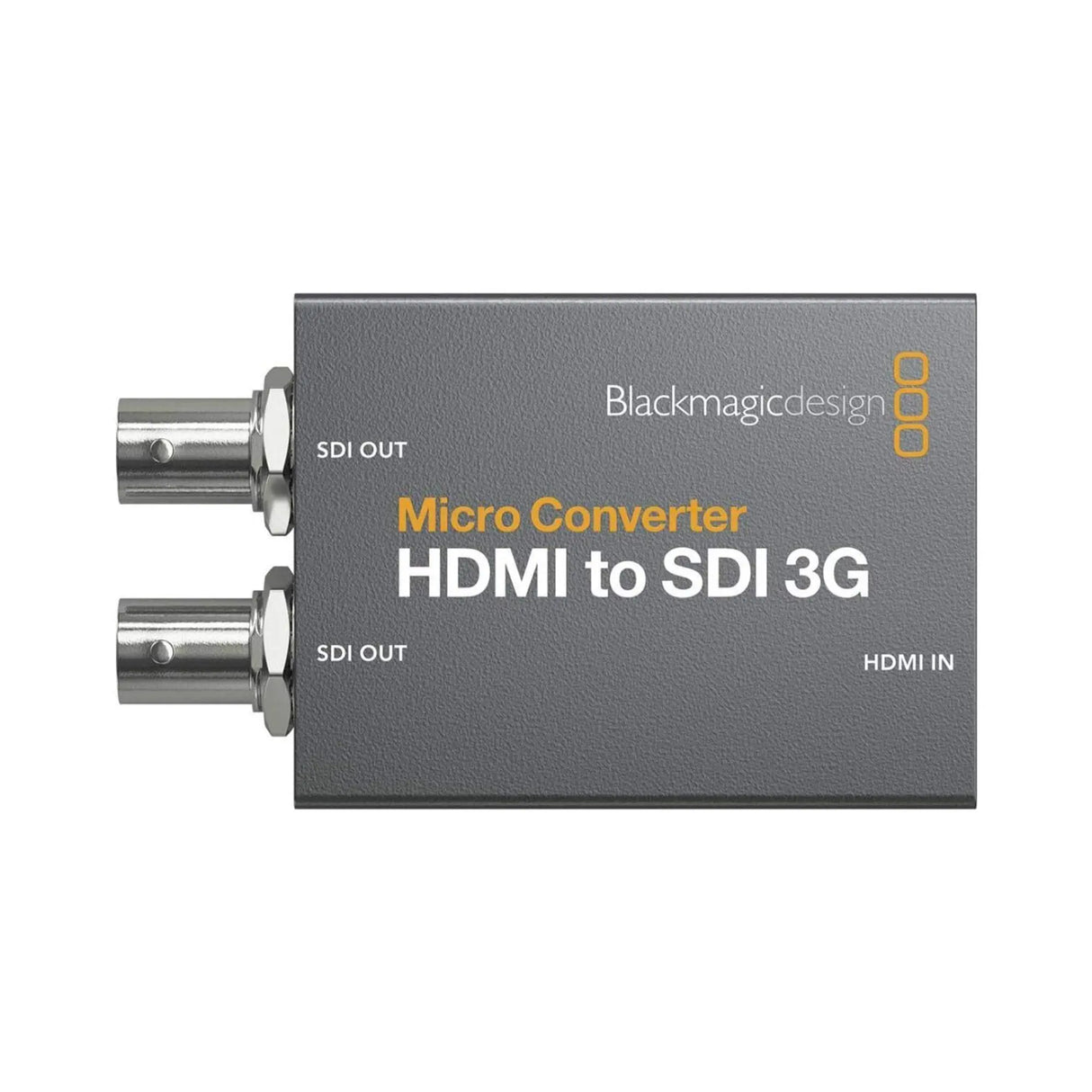

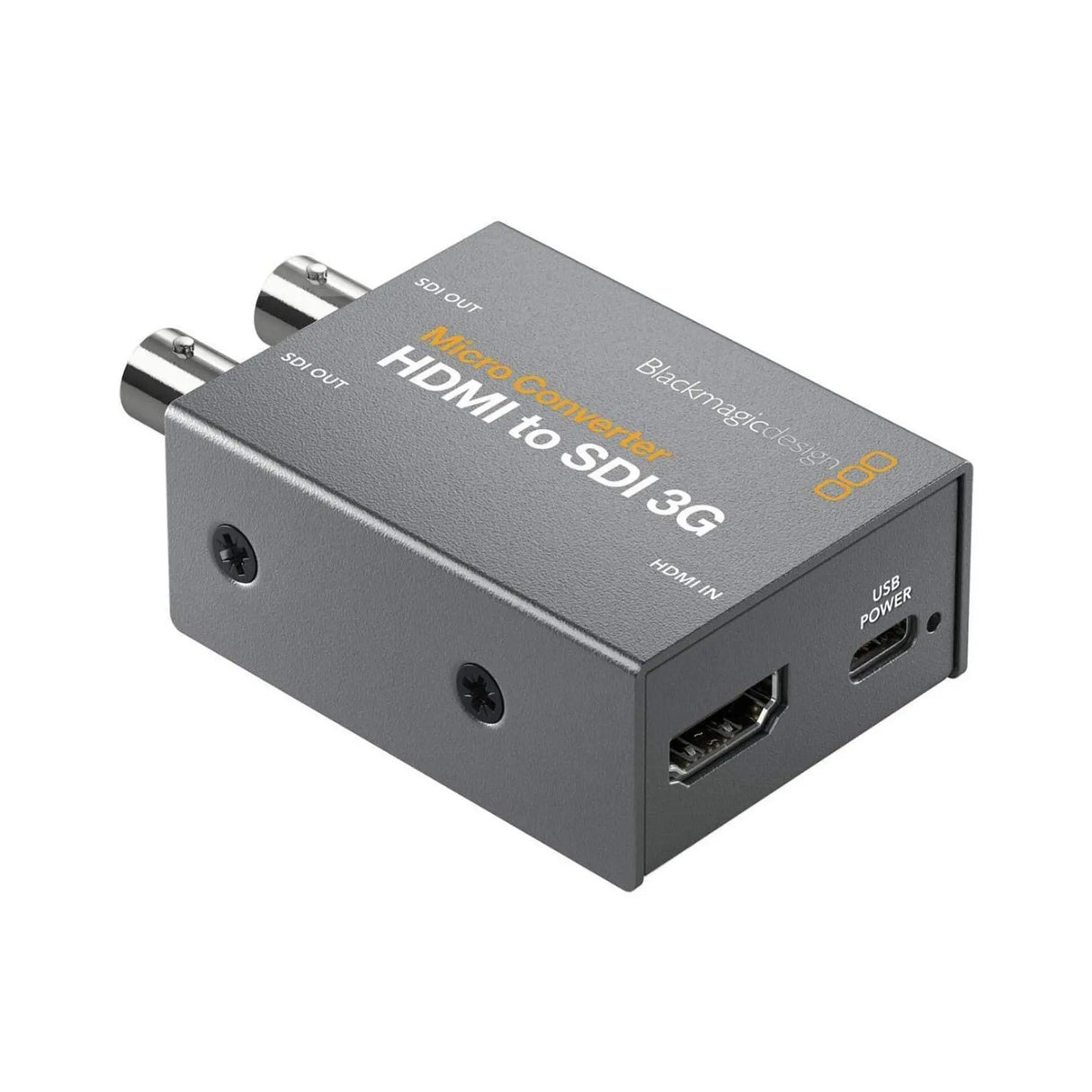

Blackmagic Design Micro Converter HDMI to SDI 3G without Power Supply

Blackmagic Design Micro Converter HDMI to SDI 3G without Power Supply

The Blackmagic Design Micro Converter HDMI to SDI 3G without Power Supply is the ultimate tool for professionals looking to bridge the gap between HDMI and SDI equipment. Perfect for connecting HDMI cameras and computers to professional SDI equipment, this compact yet powerful device offers unrivaled versatility and compatibility. Whether you're working on a feature film or a live broadcast, the Blackmagic Design Micro Converter ensures uncompromised video quality and reliability. With two 3G-SDI outputs that can be set to level A or level B formats, this converter supports a wide range of video standards, including 1080p24, 1080p47.95, and 1080p48.

Unlike cheaper alternatives, this micro converter doesn't just meet the basic requirements but excels in providing superior performance, with auto-detection for SD and HD alongside feature film video formats. Ease of use is paramount, and with multi-rate support and USB Type-C for updates, configurations, and power, setting up and operating this device is a breeze. It's a must-have for any professional video production toolkit.

Key Features

• Supports HDMI to SDI conversion at 3G-SDI
• Two 3G-SDI outputs, configurable to level A or B formats
• Supports feature film video formats like 1080p24, 1080p47.95, and 1080p48
• HDMI Type A input with multi-rate support
• Auto-detection of SD or HD
• USB Type-C for updates, configurations, and power
• Re-clocking technology for stable and reliable signal

Specifications

• SDI Video Outputs: 2 x SD, HD, or 3G-SDI
• HDMI Video Inputs: HDMI Type A
• Multi-Rate Support: Auto detection of SD or HD
• Standards Supported: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Standards: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• Power Consumption: 2 W
• Operational Voltage Range: 4.4 to 5.25V DC
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Blackmagic Design Micro Converter HDMI to SDI 3G without Power Supply
• USB Type-C Cable
• Setup and Configuration Guide
