Blackmagic Design Micro Converter HDMI to SDI 3G without Power Supply - HDMI to Dual 3G‑SDI

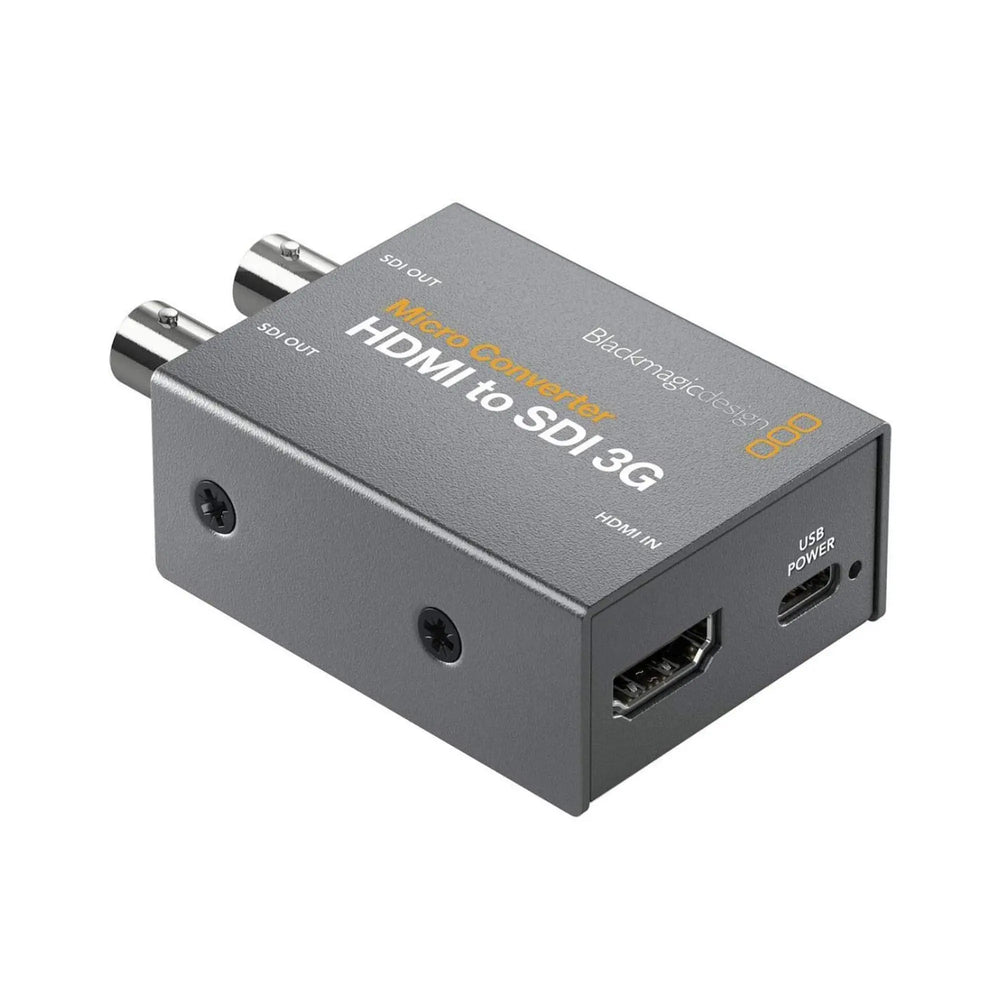

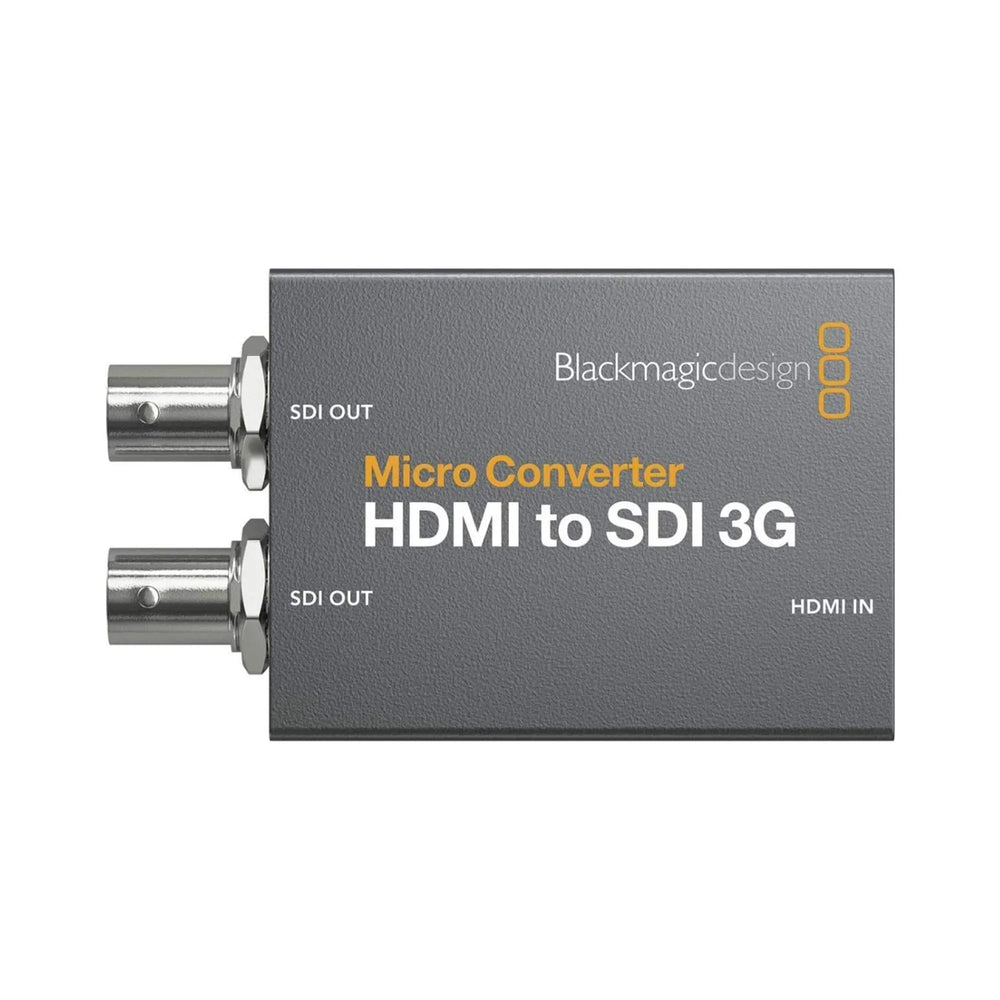

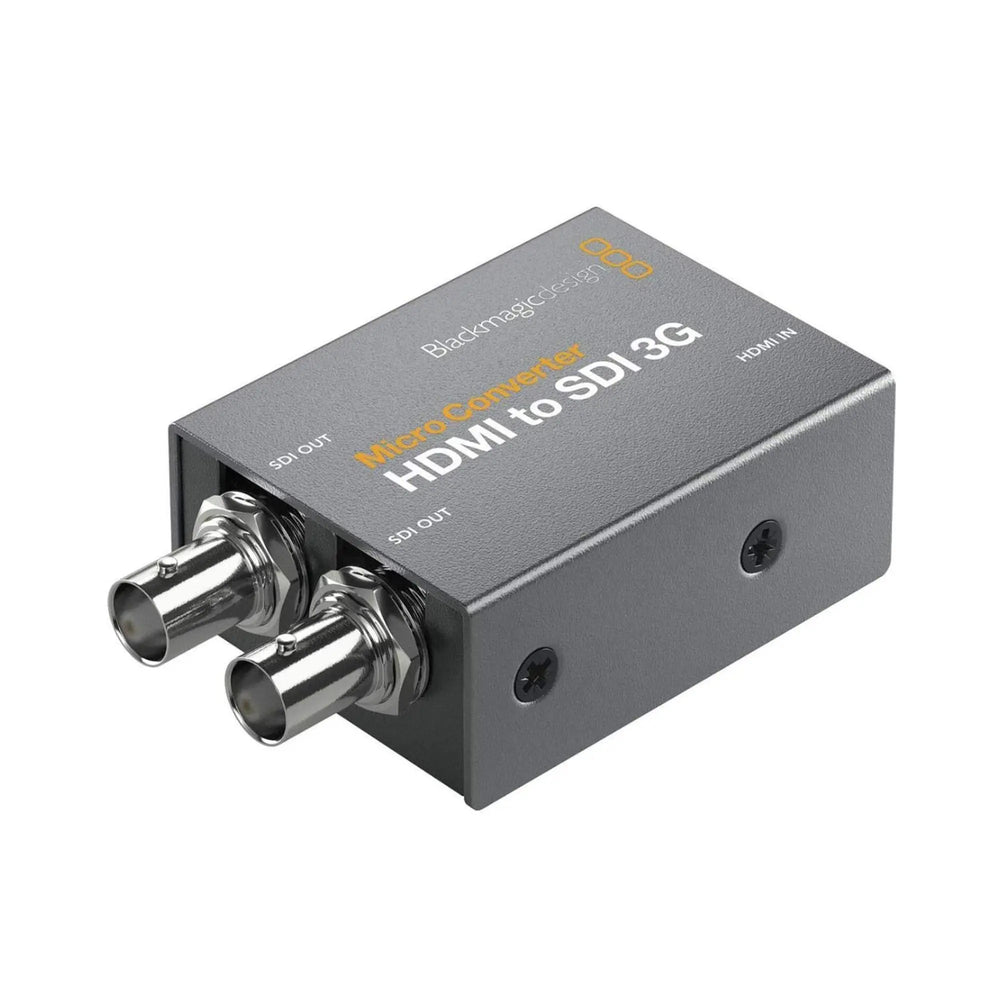

Blackmagic Design Micro Converter HDMI to SDI 3G without Power Supply

The Blackmagic Design Micro Converter HDMI to SDI 3G without Power Supply is the ultimate tool for professionals looking to bridge the gap between HDMI and SDI equipment. Perfect for connecting HDMI cameras and computers to professional SDI equipment, this compact yet powerful device offers unrivaled versatility and compatibility. Whether you're working on a feature film or a live broadcast, the Blackmagic Design Micro Converter ensures uncompromised video quality and reliability. With two 3G-SDI outputs that can be set to level A or level B formats, this converter supports a wide range of video standards, including 1080p24, 1080p47.95, and 1080p48.

Unlike cheaper alternatives, this micro converter doesn't just meet the basic requirements but excels in providing superior performance, with auto-detection for SD and HD alongside feature film video formats. Ease of use is paramount, and with multi-rate support and USB Type-C for updates, configurations, and power, setting up and operating this device is a breeze. It's a must-have for any professional video production toolkit.

Key Features

• Broadcast‑quality HDMI to SDI 3G conversion in a compact metal enclosure.
• One HDMI Type A input feeding two independent 3G‑SDI outputs.
• Outputs configurable for level A or level B 3G‑SDI formats.
• Supports SD and HD video standards up to 1080p60, including 1080p24/47.95/48 for feature film workflows.
• Auto detection of SD or HD signals for plug‑and‑play operation.
• SDI re‑clocking on both outputs for stable, low‑jitter signals over long cable runs.
• USB Type‑C port for power, firmware updates, and settings configuration from macOS or Windows utility software.
• Powered from USB monitors, laptops, or standard USB power adapters (AC power supply not included).

Specifications

• SDI Video Outputs: 2 x SD, HD, or 3G-SDI
• HDMI Video Inputs: HDMI Type A
• Multi-Rate Support: Auto detection of SD or HD
• Standards Supported: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Standards: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• Power Consumption: 2 W
• Operational Voltage Range: 4.4 to 5.25V DC
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Installation / Use Cases

• Convert an HDMI camera or computer signal to professional SDI for connection to compatible broadcast monitors, switchers, routers, and recorders.
• Feed two compatible SDI destinations simultaneously using the converter's dual 3G-SDI outputs.
• Use in broadcast, live production, studio, film, or mobile workflows that require compact HDMI-to-SDI conversion through supported formats up to 1080p60.
• Power the converter from an existing compatible USB-C power source when a separate AC adapter is unnecessary.

Package Contents

• Blackmagic Design Micro Converter HDMI to SDI 3G without Power Supply
• USB Type-C Cable
• Setup and Configuration Guide
