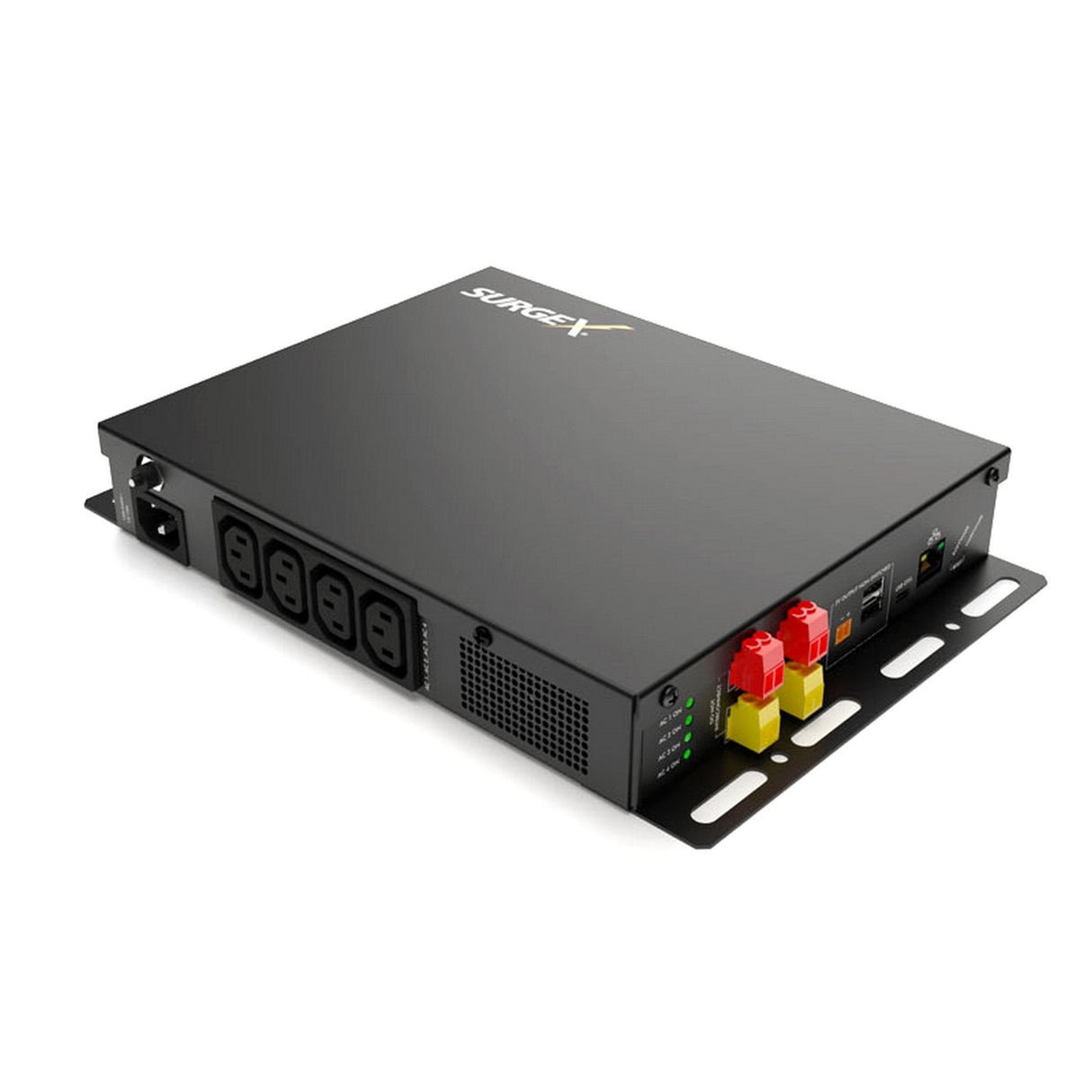

SurgeX SX-DC-8-1224-120 SQUID 120V Surge Protector and Power Management System

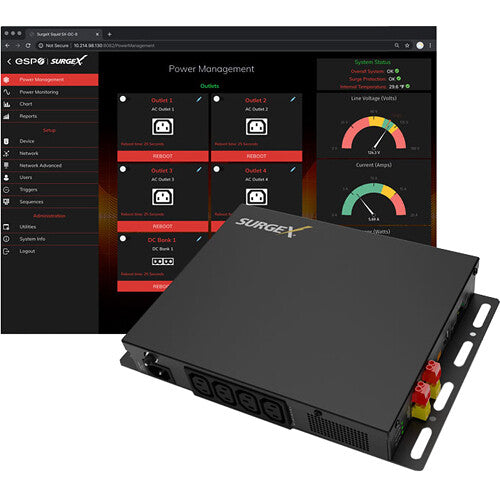

The SurgeX SQUID is the only product that provides AC/DC power protection, boxed network control, and analytical software in one chassis. You’ll no longer have to install a product for AC, another for DC, and yet another to monitor and control the power environment. It is the perfect solution for collaborative flex environments, huddle spaces, and other tight-spaced AV settings.
Key Features
- Universal 120V-240V AC input with IEC connectors
- 4 controlled and monitored AC receptacles
- 3 DC banks, 2 controllable
- Measures electrical parameters, including Voltage, Current, Power, Frequency, Power Factor, Crest Factor
- Time stamped power quality events
- Internal storage of 30 days’ worth of Max/Min/Avg electrical parameters
- Wired Ethernet for Web server (HTTP/HTTPS), 802.1x authentication
- TLS, SSL, SNMP V3, single sign-on
- 2, 5V USB ports for charging
- Compact size fits along, behind, or near equipment
Technical Specifications
Outlet Configuration
DC 1 Output Rating
2.5A @ 24V
DC 2 Output Rating
5A @ 12V
Combined 5V Output Rating
3A @ 5V
Installation / Use Cases
- Use as a compact AC and DC power protection and management system for AV installations.
- Suitable for collaborative flex environments, huddle spaces, and tight-spaced AV settings.
- Use when AC power protection, DC power protection, network control, and analytical software are needed in one chassis.
- Suitable for systems that require four controlled and monitored AC receptacles.
- Use three DC banks, including two controllable banks, to support compatible DC-powered devices.
- Suitable for monitoring electrical parameters including voltage, current, power, frequency, power factor, and crest factor.
- Use wired Ethernet for web server access, 802.1x authentication, TLS, SSL, SNMP V3, and single sign-on support.
Package Contents
- SurgeX SX-DC-8-1224-120 SQUID 120V Surge Protector and Power Management System
Frequently Asked Questions
What makes the SurgeX SQUID useful for compact AV spaces?
The SQUID combines AC power protection, DC power protection, boxed network control, and analytical software in one compact chassis, reducing the need for separate power and monitoring devices.
Where is the SX-DC-8-1224-120 a good fit?
It is a good fit for collaborative flex environments, huddle spaces, and tight AV installations where power protection and remote power management need to fit near the equipment.
How many AC outlets can be controlled and monitored?
The unit provides four controlled and monitored AC receptacles.
What DC power outputs are available?
DC 1 provides 2.5A at 24V, DC 2 provides 5A at 12V, and the combined 5V output rating is 3A at 5V.
What power information can the SQUID monitor?
It can measure voltage, current, power, frequency, power factor, and crest factor, while also storing 30 days of maximum, minimum, and average electrical parameter data.
How does the SQUID support networked power management?
Wired Ethernet supports web server access through HTTP or HTTPS, 802.1x authentication, TLS, SSL, SNMP V3, and single sign-on.
Can the SQUID charge USB-powered devices?
Yes. It includes two 5V USB ports for charging.
