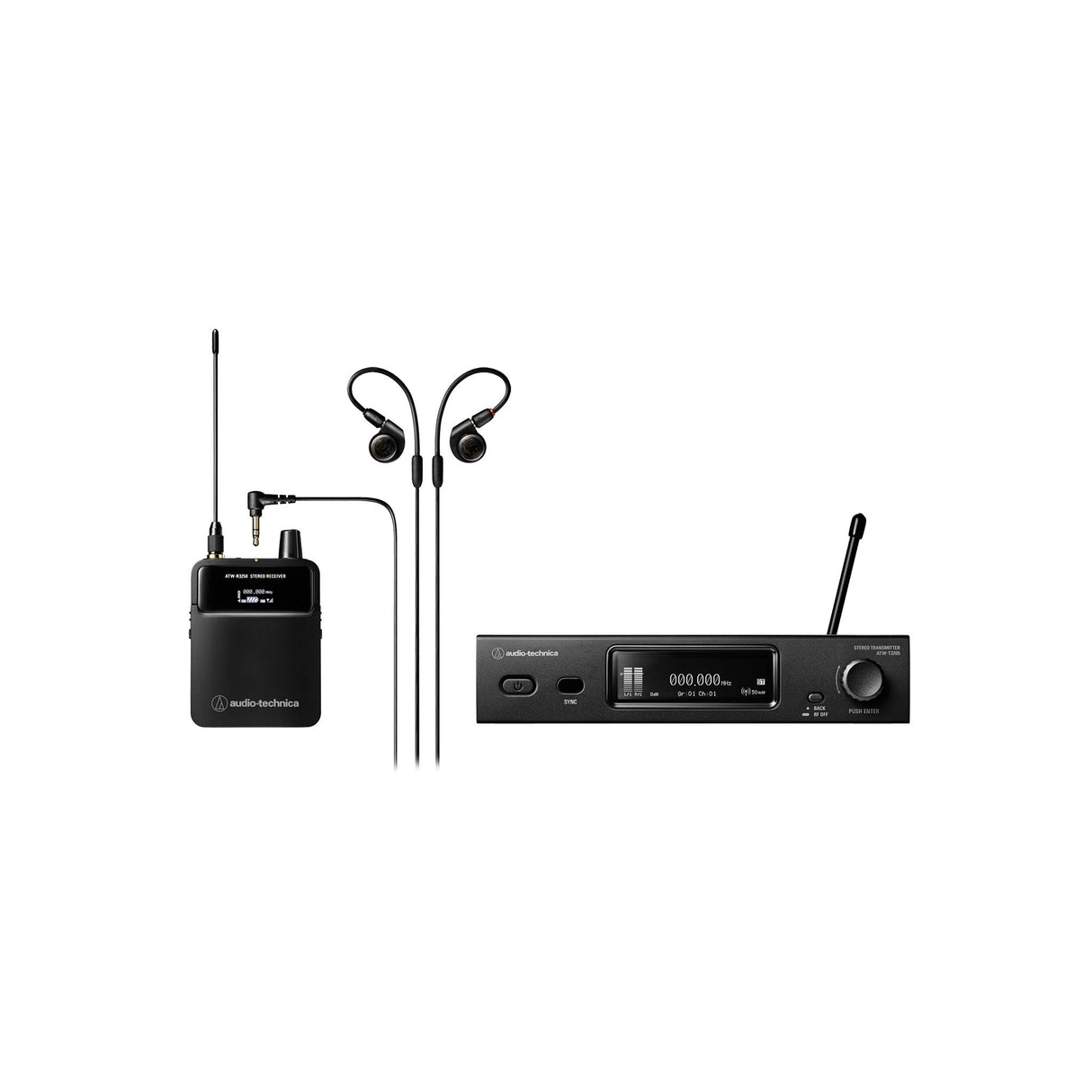

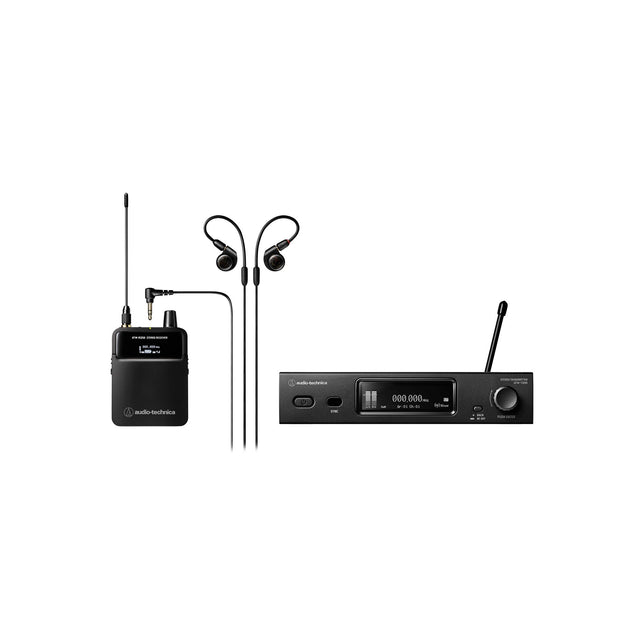

Audio-Technica ATW-3255 3000 Series Wireless In-Ear Monitor System, DF2 470-608 MHz
Audio-Technica ATW-3255 3000 Series Wireless In-Ear Monitor System, DF2 470-608 MHz
The Audio-Technica 3000 Series Wireless In-Ear Monitor System was designed to bring professional sound quality and features to all levels of performers and performance venues. System integrators for houses of worship, owners of live-performance venues and the musicians who play in them all tell us the same thing: They need an affordable, durable in-ear monitor system that is easy to use and, crucially, delivers high-quality sound with dependable RF.
The 3000 Series Wireless IEM offers exceptionally wideband UHF coverage (138 MHz), available in frequency band DF2 (470 - 608 MHz); receiver antenna diversity to ensure RF stability; and stereo or mono operation with pan/personal mix controls. Additional features include network monitoring and control via the Audio-Technica Wireless Manager software, a cue mode that allows an audio engineer to monitor several IEM channels from a single receiver, and a 3000 Link mode that enables compatibility with 3000 Series wireless microphone components.
Key Features
- Optimized internal digital signal processing provides exceptional stereo separation
- Wide UHF tuning bandwidth of 138 MHz for maximum versatility in an increasingly congested RF environment; available in frequency band DF2 (470 - 608 MHz)
- Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility
- Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
- A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation
- Body-pack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately)
- Receiver is equipped with an efficient headphone amp to ensure clear, natural sound quality
- Receiverās antenna diversity improves RF stability
Technical Specifications
ATW-R3250
Receiving System*1
Antenna diversity
Image Rejection
>80 dB, typical
RF Sensitivity
20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Headphone Output Jack
3.5 mm (1/8ā) TRS stereo mini-jack
Headphone Output
40 mW (at 12 ohms)
EQ
Low: 80 Hz / 160 Hz / 320 Hz / Ā±9 dB in 3 dB step
High: 6 kHz / 8 kHz / 10 kHz / Ā±9 dB in 3 dB step
Limiter
Selectable: -30dB to OFF (0 dB) in 6 dB steps
Antenna Input
SMA type, 50 ohms
Batteries
3 V DC (two 1.5 V AA) (not included)
Operating Temperature Range*2
-5 Degrees Celcius to +45 Degrees Celcius (23 Degrees Fahrenheit to 113 Degrees Fahrenheit)
Battery Life*3
4 to 6 hours (alkaline)
5 to 7 hours (Ni-MH, 1900 mAh)
11 to 13 hours (Lithium)
Dimensions
64 mm (2.5ā) x23 mm (0.91ā) x82 mm (3.2ā) (WxDxH)
Weight (Without Batteries)
102 g (3.6 oz)
Included Accessories

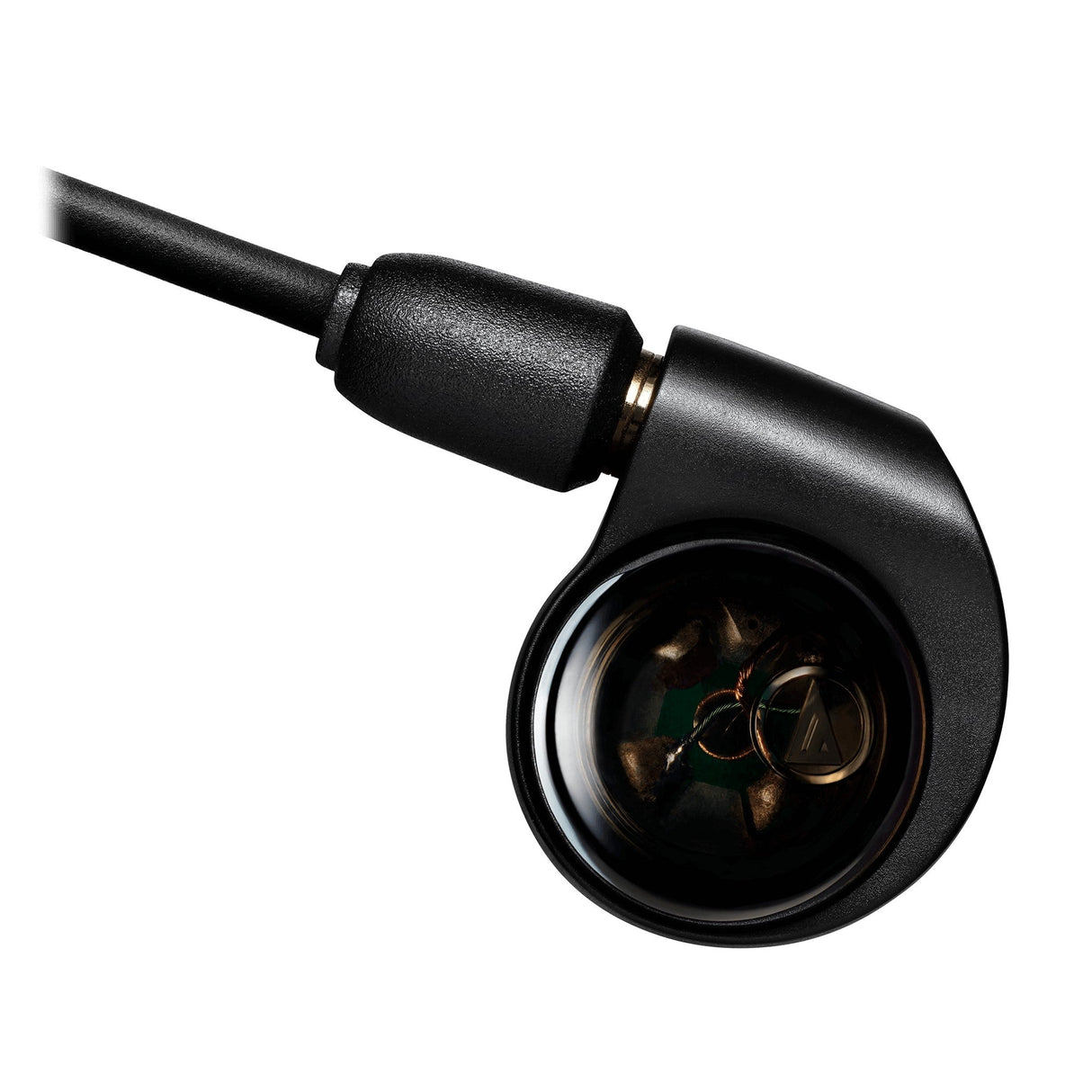

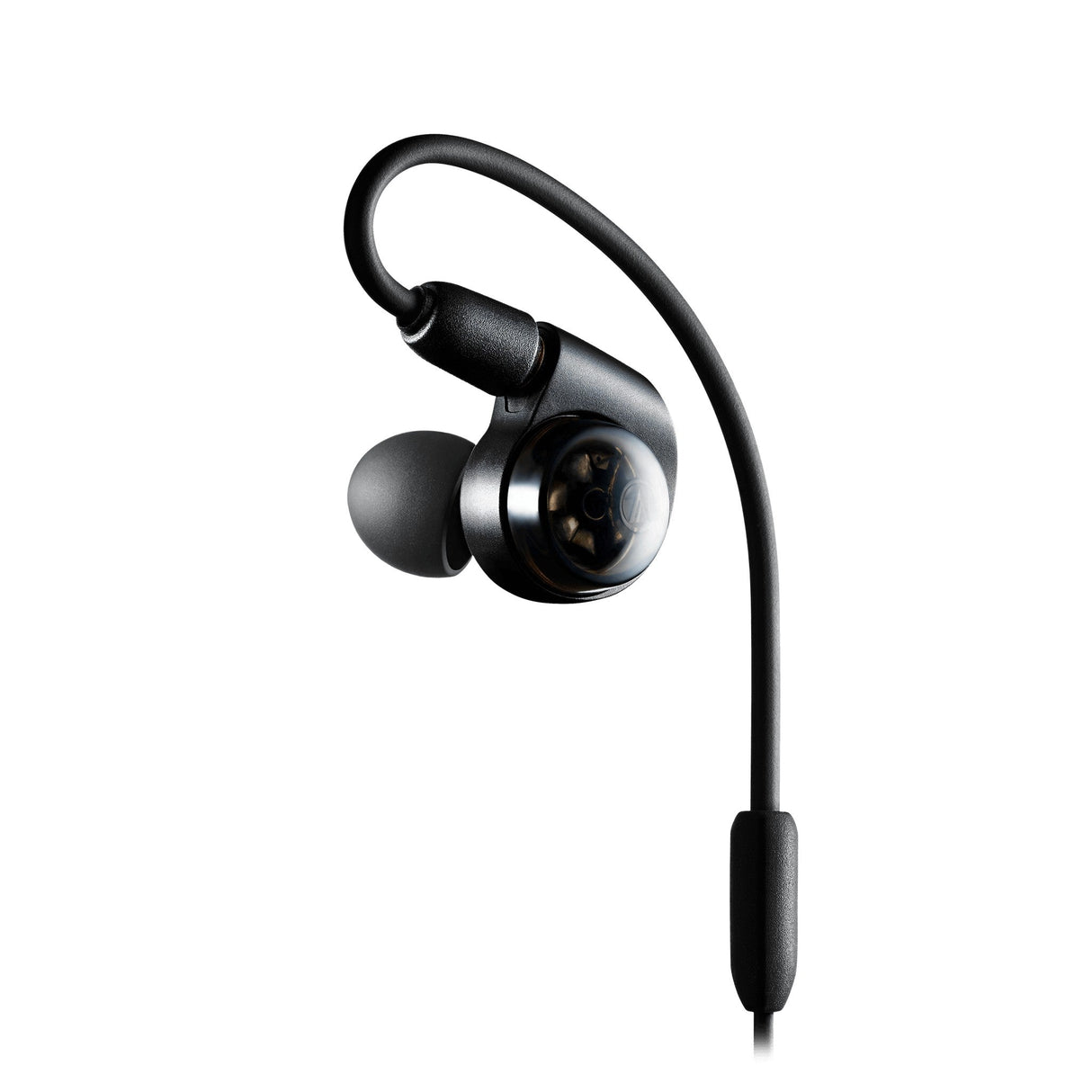

ATH-E40
