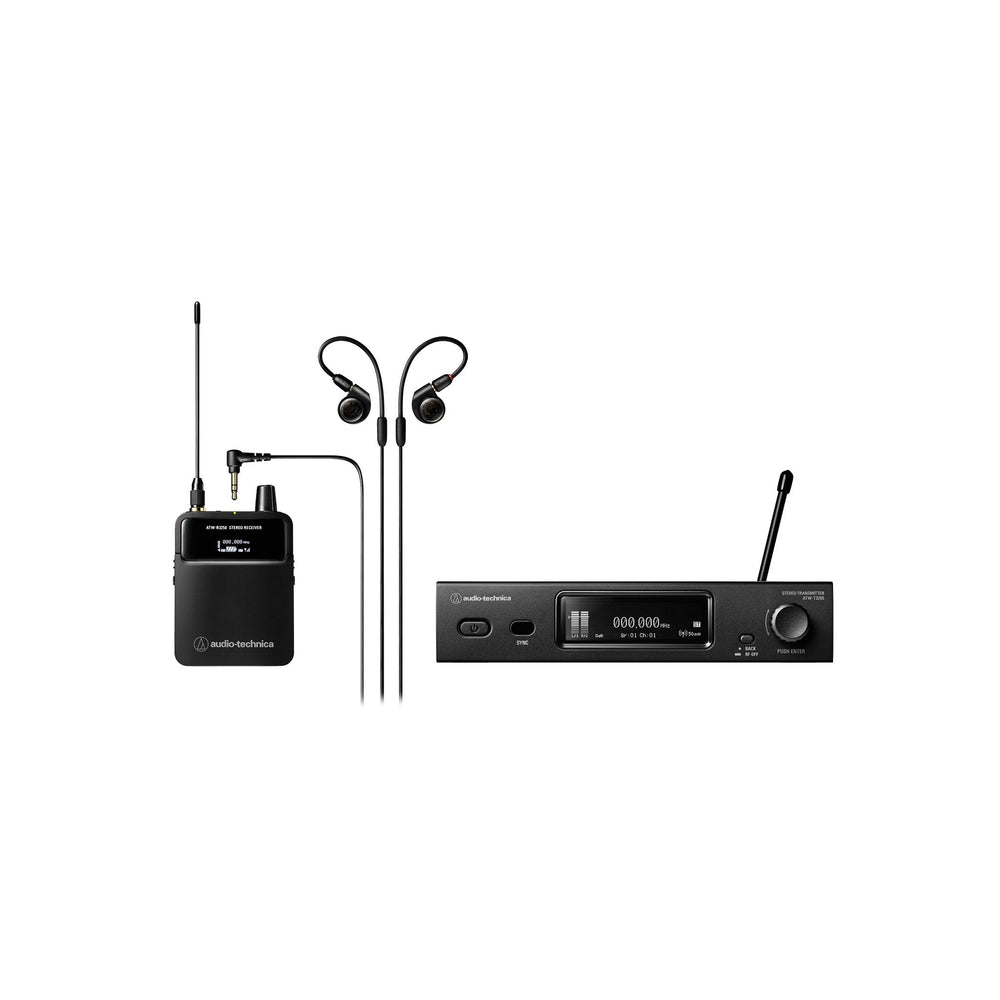

Audio-Technica ATW-3255 3000 Series Wireless In-Ear Monitor System, DF2 470-608 MHz

Audio-Technica ATW-3255 3000 Series Wireless In-Ear Monitor System, DF2 470-608 MHz

The Audio-Technica 3000 Series Wireless In-Ear Monitor System, DF2 470-608 MHz, is meticulously crafted to elevate the audio experience for both professionals and enthusiasts alike. Designed with the input of system integrators for houses of worship, live-performance venue owners, and performers, this in-ear monitor system delivers uncompromising sound quality, making it an essential tool in any high-demand audio environment. Engineered for reliability, the ATW-3255 boasts wideband UHF coverage and sophisticated internal digital signal processing, ensuring clarity and consistency in diverse performance settings.At the core of the ATW-3255 is its 138 MHz UHF coverage operating within the DF2 frequency band (470-608 MHz), offering unmatched versatility and reliability even in congested RF environments. The system incorporates receiver antenna diversity for robust RF stability and allows for both stereo and mono operations with personalized mix controls. Innovations such as network monitoring and control via the Audio-Technica Wireless Manager software, and cue modes for monitoring multiple IEM channels, set the ATW-3255 apart from its peers. Musicians and audio engineers can depend on its impeccable design, further enhancing the seamless integration with 3000 Series wireless microphone components via the 3000 Link mode.The ATW-3255 system is equipped with OLED screens on both the transmitter and receiver, offering clear and precise readouts of key settings and alerts. The ability to deploy a channel plan across all network-connected transmitters through a single RF scan, free from interference or intermodulation issues, adds a layer of operational ease. The body-pack receiver's high-efficiency headphone amp ensures natural sound quality, while its robust battery life of up to 7 hours on NiMH batteries guarantees longevity throughout demanding performances.

Key Features

• Optimized internal digital signal processing for exceptional stereo separation
• Wide UHF tuning bandwidth of 138 MHz within DF2 frequency band (470-608 MHz)
• Easy integration and compatibility with 3000 Series wireless microphone components
• OLED screens on both transmitter and receiver for optimal key settings readout
• Network monitoring and control via Audio-Technica Wireless Manager software
• Cue mode to monitor multiple IEM channels from a single receiver
• Body-pack receiver operates up to 7 hours on NiMH batteries
• Efficient headphone amp for clear, natural sound quality
• Receiver antenna diversity for improved RF stability

Specifications

• Receiving System: Antenna diversity
• Image Rejection: >80 dB, typical
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
• Headphone Output Jack: 3.5 mm (1/8”) TRS stereo mini-jack
• Headphone Output: 40 mW (at 12 ohms)
• EQ Low: 80 Hz / 160 Hz / 320 Hz / ±9 dB in 3 dB steps
• EQ High: 6 kHz / 8 kHz / 10 kHz / ±9 dB in 3 dB steps
• Limiter: Selectable -30dB to OFF (0 dB) in 6 dB steps
• Antenna Input: SMA type, 50 ohms
• Batteries: 3 V DC (two 1.5 V AA) (not included)
• Operating Temperature Range: -5 Degrees Celsius to +45 Degrees Celsius (23 Degrees Fahrenheit to 113 Degrees Fahrenheit)
• Battery Life: 4 to 6 hours (alkaline), 5 to 7 hours (Ni-MH, 1900 mAh), 11 to 13 hours (Lithium)
• Dimensions: 64 mm (2.5”) x 23 mm (0.91”) x 82 mm (3.2”) (WxDxH)
• Weight (Without Batteries): 102 g (3.6 oz)

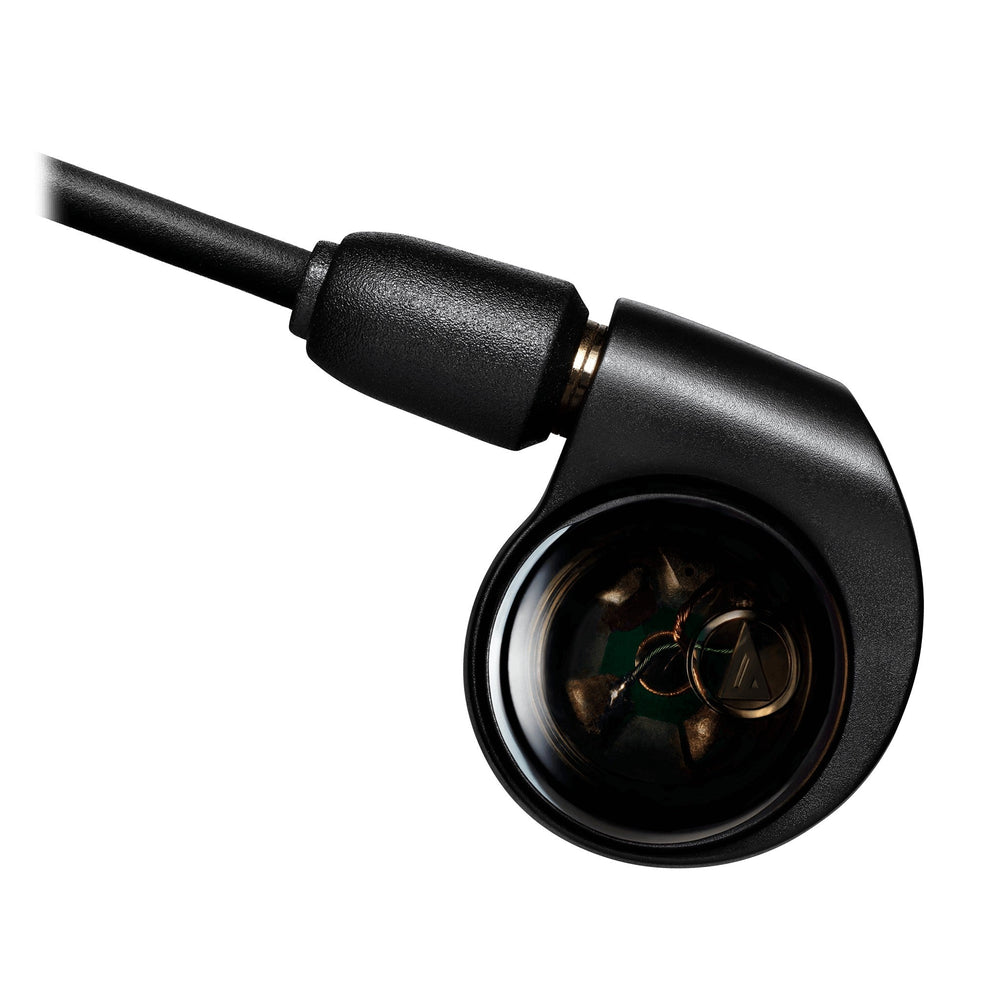

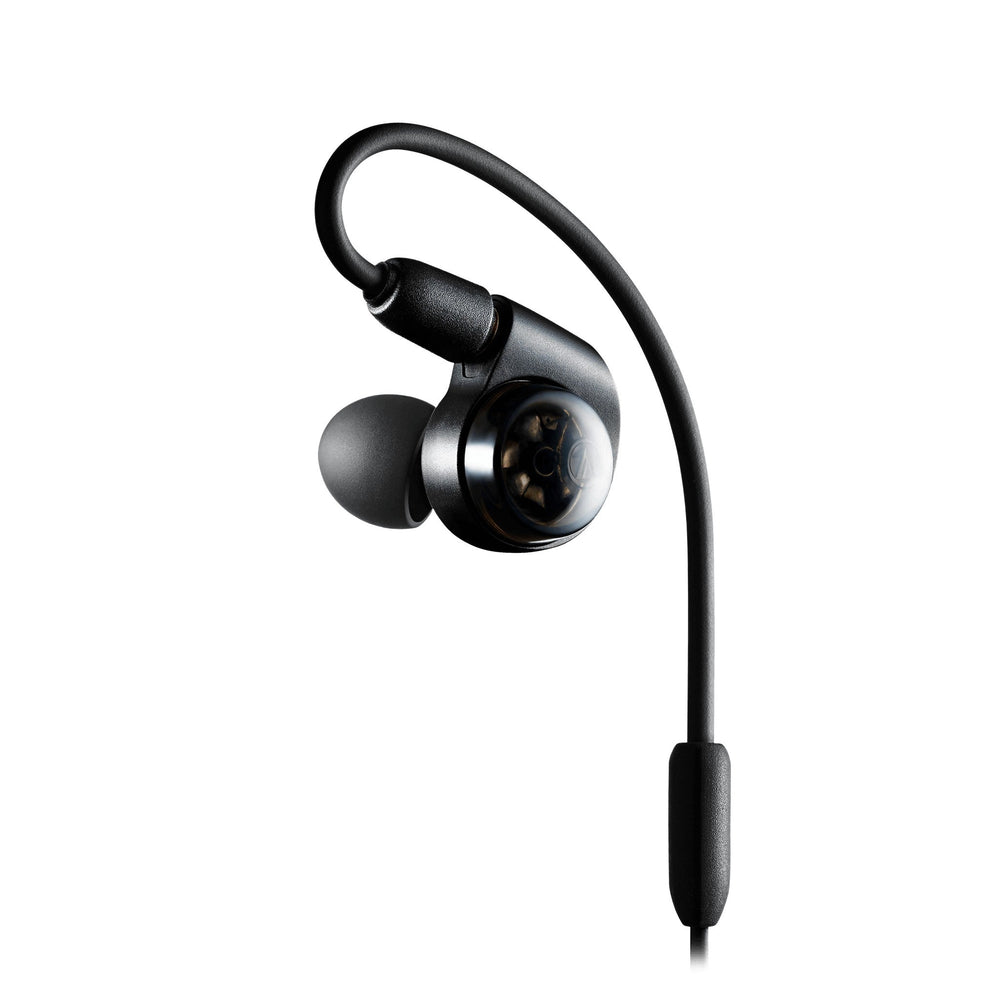

• Included Accessories: ATH-E40/n

Package Contents

• Audio-Technica ATW-3255 3000 Series Wireless In-Ear Monitor System
• ATH-E40/n accessories
