AtlasIED AP-30 30W Omni‑Purpose Horn Speaker, 8 Ohms

AtlasIED AP-30 30W Omni‑Purpose Horn Speaker, 8 Ohms

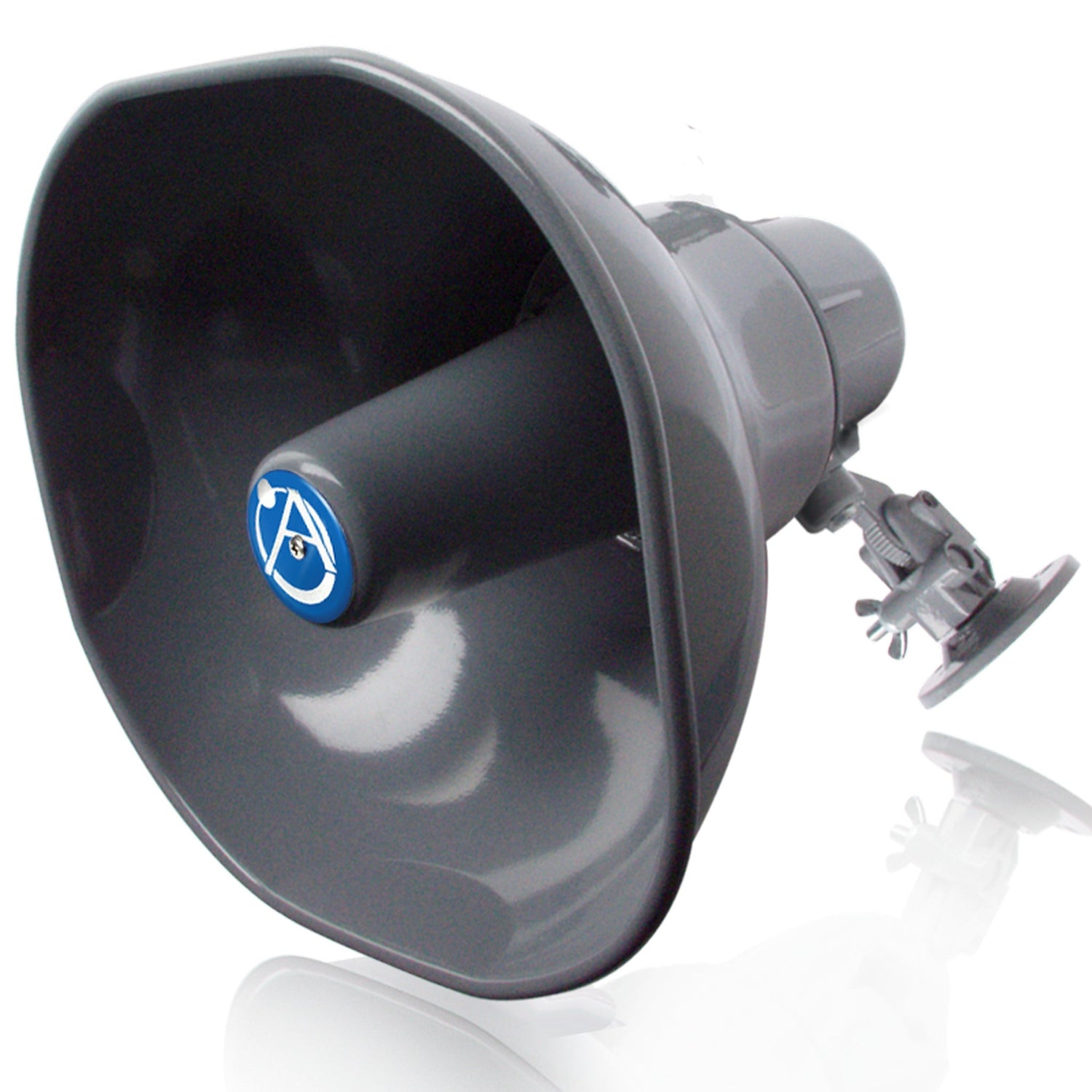

The AtlasIED AP‑30 is a rugged, 30-watt compression horn speaker engineered to deliver maximum intelligibility and efficiency in indoor or outdoor environments. Featuring a signature squared-flare bell design and weather-resistant aluminum/ABS construction, this speaker withstands harsh conditions while projecting clear voice and tone signals across 300 Hz to 12 kHz with a sensitivity of up to 121 dB at rated power.

Equipped with the versatile Omni‑Purpose® mounting bracket, the AP‑30 enables precise vertical and horizontal aiming and easy installation on flat surfaces or by strap-mounting to I‑beams and pillars. Built in the U.S. and covered with a durable grey baked epoxy finish, it’s ideal for use in industrial facilities, transportation hubs, educational campuses, and large-scale public address systems.

Key Features

• 30 W continuous power with superior audio efficiency
• Wide 300 Hz–12 kHz frequency response for clear voice signaling
• Up to 121 dB sensitivity at rated power
• 60° dispersion angle for focused coverage
• Weather-resistant housing with grey baked epoxy finish
• Omni‑Purpose® bracket for precise aiming and strap mounting
• 7‑year warranty (60 months limited)

Technical Specifications

• Height: 11 in
• Width: 10 in
• Depth: 10.5 in
• Weight: 4.5 lb (2.0 kg)
• Shipping Weight: 6.0 lb (2.72 kg)
• Power Rating: 30 W continuous
• Frequency Response: 300 Hz–12 kHz
• Sensitivity: 108 dB @ 1 W/1 m; 121 dB @ 30 W/1 m
• Dispersion Angle: 60° (-6 dB at 2 kHz)
• Operating Temp Range: -40 °C to 70 °C
• Finish: Grey baked epoxy
• Construction: Metal and ABS
• Warranty: 60 months

Included in the Box

• AtlasIED AP‑30 Horn Speaker (8 Ω)
• Omni‑Purpose® mounting bracket
• Installation hardware
• Owner’s manual and datasheet
