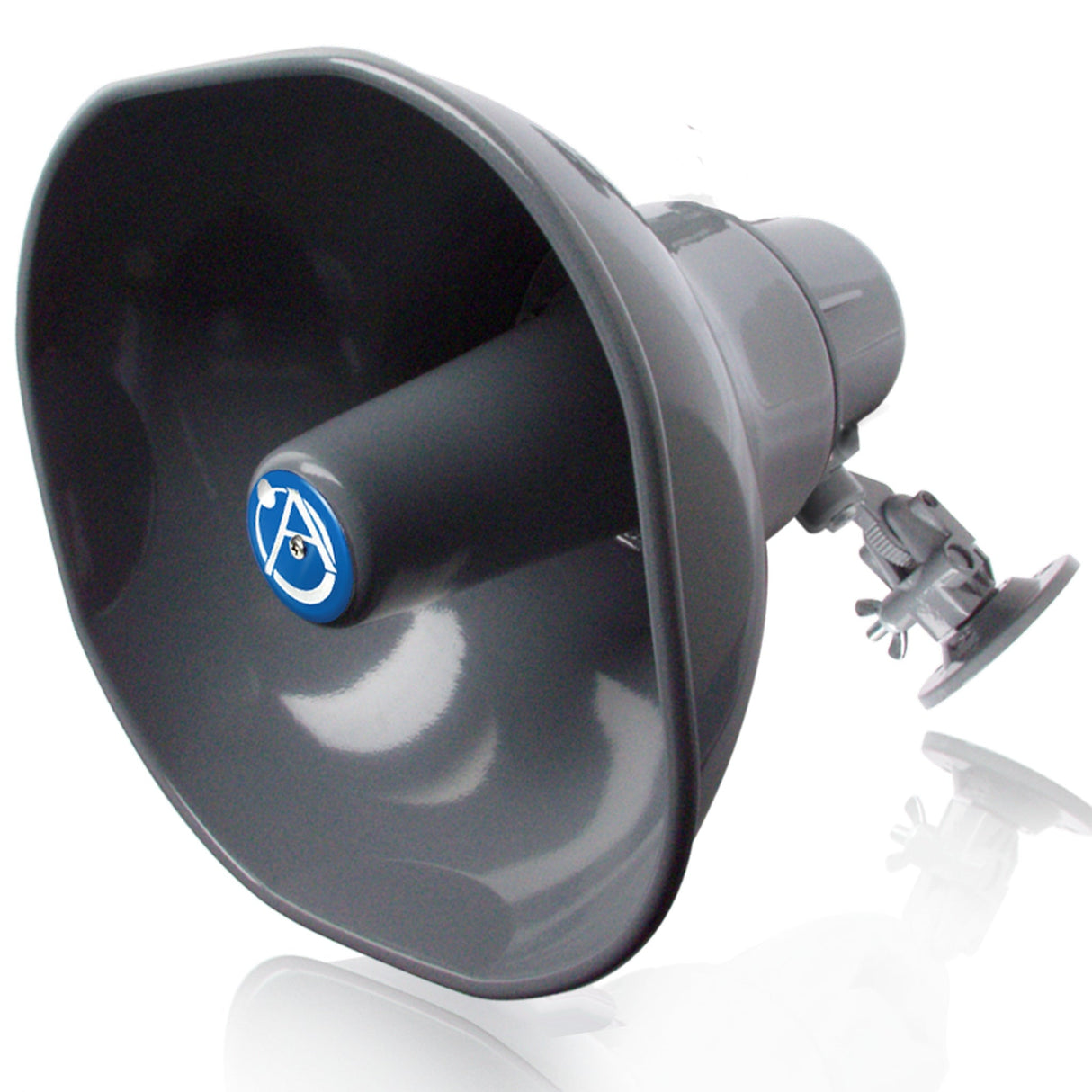

AtlasIED AP-30 30W Omni‑Purpose Horn Speaker, 8 Ohms
The AtlasIED AP‑30 is a rugged, 30-watt compression horn speaker engineered to deliver maximum intelligibility and efficiency in indoor or outdoor environments. Featuring a signature squared-flare bell design and weather-resistant aluminum/ABS construction, this speaker withstands harsh conditions while projecting clear voice and tone signals across 300 Hz to 12 kHz with a sensitivity of up to 121 dB at rated power.
Equipped with the versatile Omni‑Purpose® mounting bracket, the AP‑30 enables precise vertical and horizontal aiming and easy installation on flat surfaces or by strap-mounting to I‑beams and pillars. Built in the U.S. and covered with a durable grey baked epoxy finish, it’s ideal for use in industrial facilities, transportation hubs, educational campuses, and large-scale public address systems.
Key Features
- 30 W continuous power with superior audio efficiency
 - Wide 300 Hz–12 kHz frequency response for clear voice signaling
 - Up to 121 dB sensitivity at rated power
 - 60° dispersion angle for focused coverage
 - Weather-resistant housing with grey baked epoxy finish
 - Omni‑Purpose® bracket for precise aiming and strap mounting
 - 7‑year warranty (60 months limited)

Technical Specifications
- Height: 11 in
 - Width: 10 in
 - Depth: 10.5 in
 - Weight: 4.5 lb (2.0 kg)
 - Shipping Weight: 6.0 lb (2.72 kg)
 - Power Rating: 30 W continuous
 - Frequency Response: 300 Hz–12 kHz
 - Sensitivity: 108 dB @ 1 W/1 m; 121 dB @ 30 W/1 m
 - Dispersion Angle: 60° (-6 dB at 2 kHz)
 - Operating Temp Range: -40 °C to 70 °C
 - Finish: Grey baked epoxy
 - Construction: Metal and ABS
 - Warranty: 60 months

Included in the Box
- AtlasIED AP‑30 Horn Speaker (8 Ω)
 - Omni‑Purpose® mounting bracket
 - Installation hardware
 - Owner’s manual and datasheet
