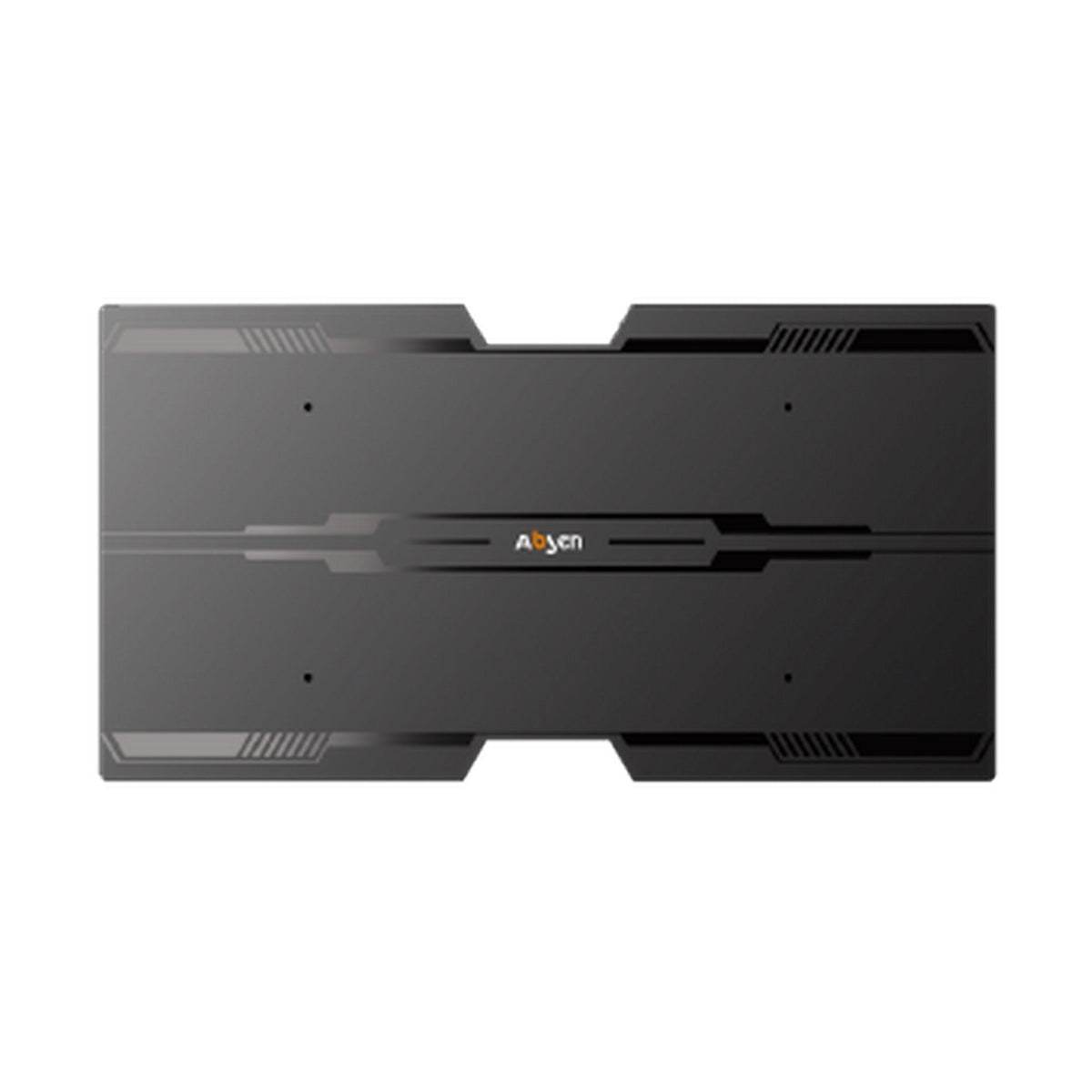

Absen M54 Micro LED Display 1080p Single Panel, 54 Inch

Absen M54 Micro LED Display - 54-Inch 1080p Single Panel

The Absen M54 Micro LED Display is a 54-inch professional direct-view LED panel designed for commercial video walls, digital signage, and corporate AV installations. Featuring 1080p Full HD resolution with virtual pixel technology, 600-nit brightness, and a 10,000:1 contrast ratio, this single-panel display combines Flip Chip COB technology with plug-and-play HDMI connectivity.

Designed for AV integrators, corporate offices, retail environments, hospitality venues, and control rooms, the M54 delivers a flexible alternative to traditional LCD video walls. Its 47.2-inch-wide display surface supports detailed visual presentations, advertising content, and information displays. Unlike conventional LED systems that may require multiple external processing components, the M54 integrates sending, receiving, and hub functionality directly into the display. This three-in-one architecture simplifies system configuration and allows users to connect compatible video sources through a standard HDMI interface. Whether installing a standalone commercial Micro LED display, upgrading an existing LCD video wall, or creating a seamless multi-panel presentation system, the M54 accommodates a range of professional applications.

The Absen M54 incorporates Flip Chip Chip-on-Board (COB) LED technology, which integrates LED components directly onto the display substrate. Its virtual pixel processing supports a 1920 x 1080 Full HD image, while the 10,000:1 contrast ratio provides separation between bright and dark picture areas. Multiple M54 panels can be joined to create larger video walls without the visible bezels associated with conventional LCD displays. The VESA-compatible mounting design supports professional wall installations, and the integrated signal architecture works with compatible LCD video wall controllers. This listing covers one M54 display panel rather than a complete multi-panel video wall package.

Key Features

• 54-Inch Micro LED Display: Provides a 54-inch direct-view display surface for professional digital signage, commercial presentations, and video wall applications.
• 1080p Full HD Resolution: Uses virtual pixel processing to deliver 1920 x 1080 image resolution for displaying detailed video, graphics, and presentation content.
• Flip Chip COB Technology: Incorporates Chip-on-Board LED construction for a compact display architecture suited to professional direct-view installations.
• 600-Nit Brightness: Delivers bright images for commercial indoor applications, including corporate environments, retail displays, and hospitality installations.
• 10,000:1 Contrast Ratio: Provides strong differentiation between bright and dark image content for detailed video presentations and visual communications.
• Integrated Three-in-One Architecture: Combines sending, receiving, and hub functions within the display to simplify professional AV system integration.
• Plug-and-Play HDMI Connectivity: Accepts video from compatible HDMI sources without requiring a traditional external LED sending system.
• Seamless Video Wall Expansion: Supports adjoining multiple M54 panels to create larger displays without conventional LCD panel bezels.

Technical Specifications

General Specifications

• Brand: Absen
• Product Series: M54
• Model: M54
• Distributor SKU: ABSM541X1
• Product Type: Professional Micro LED Display
• Display Configuration: Single Panel
• Installation Type: Indoor Fixed Installation
• Primary Applications: Digital Signage, Commercial Displays, Corporate AV, Video Walls, and Information Displays

Display Specifications

• Display Technology: Direct-View Micro LED
• LED Packaging Technology: Flip Chip COB
• Display Size: 54" Diagonal
• Display Resolution: 1920 x 1080 (Full HD)
• Resolution Technology: Virtual Pixel Processing
• Aspect Ratio: 16:9
• Brightness: 600 nits
• Contrast Ratio: 10,000:1
• Display Width: 47.2"
• Display Height: 26.6"

Video Connectivity and Processing

• Video Input Interface: HDMI
• Integrated Processing: Three-in-One Sending, Receiving, and Hub Architecture
• Video Source Compatibility: Compatible HDMI Video Sources
• Controller Compatibility: Compatible LCD Video Wall Controllers
• Video Wall Support: Multiple-Panel Seamless Display Configurations

Installation and Integration

• Mounting Compatibility: VESA-Compatible Wall Mounting
• Installation Orientation: Landscape
• Multi-Panel Capability: Supports Seamless Display Splicing
• Display Configuration: Single 54-Inch Panel
• Panel Width: 47.2"
• Panel Height: 26.6"
• Installation Environment: Indoor Commercial Applications

Professional Applications

• Corporate Conference Rooms: Display presentations, meeting materials, and visual communications on a professional Full HD Micro LED screen.
• Retail Digital Signage: Present promotional videos, advertising content, and product information in commercial environments.
• Hospitality and Restaurants: Support information displays, menus, entertainment content, and venue messaging.
• Control Rooms: Create scalable information displays for monitoring and visualization applications.
• Professional Video Walls: Combine compatible M54 panels into larger seamless configurations for presentation and digital signage systems.
