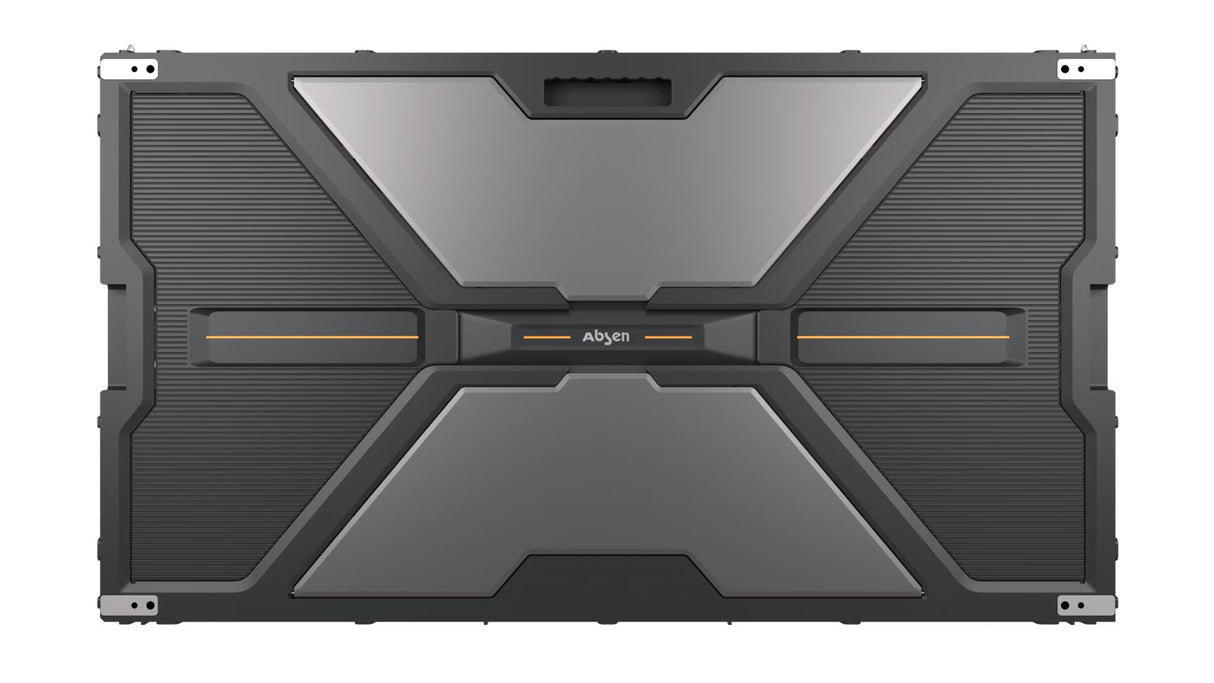

Absen NX1.8 960x540mm LED Video Wall Panel

NX Series V1X
Unparalleled visual experience

Features:

• Aspect ratio: 16: 9
• 1200nits (Peak Brightness): Image booster engine technology
• Quick Installation: Large cabinet design
• 20kg/㎡ 43.5mm: Lightweight and ultra-thin
• EMC Class B: Civil use level
• Magnetic Shielding Solution: Clean screen, clear vision
• 7680Hz: Pictures taken without scanning lines
• Intelligent Modules: Remote monitoring and centralized management

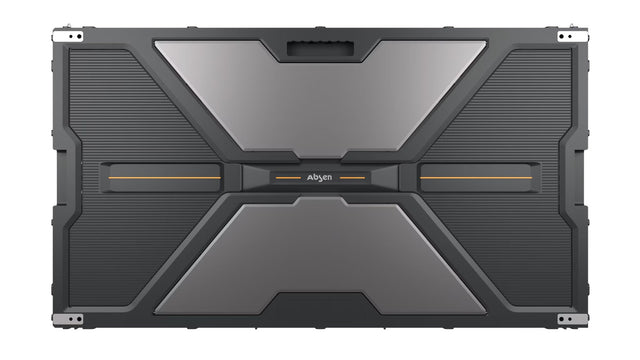

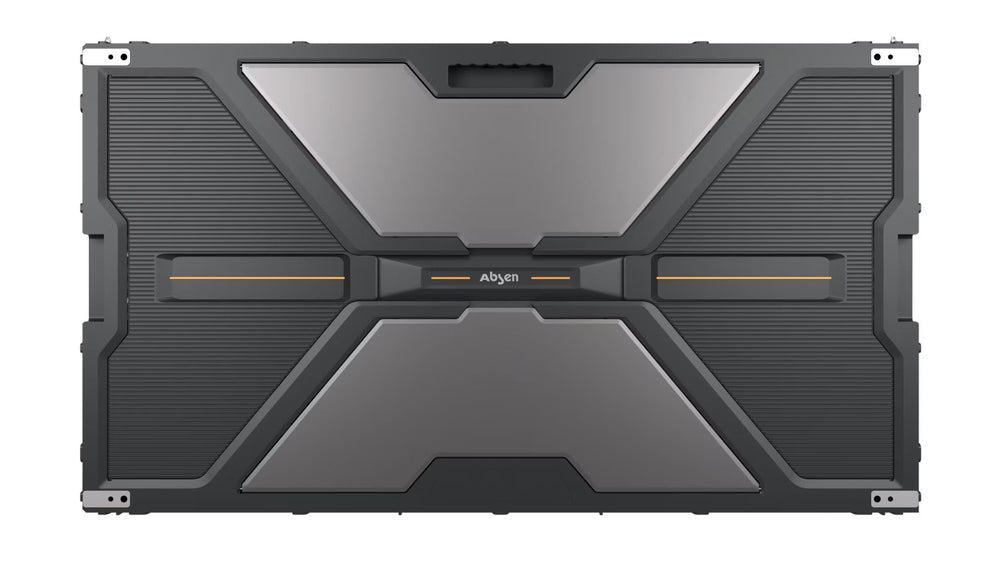

Striking “X” design
As a symbol of infinite possibilities, letter “X” becomes an exterior design element of the panel, and the Xs will form a “honeycomb”, an Absen brand element. The unique design conveys Absen’s confidence in its display expertise and product quality.

Superior 4K/8K visual experience
The NX series adopts a 16:9 golden ratio design to improve viewing comfort, and has a variety of pixel pitches to provide customers with more high-definition options.

NX1.8

• Panel Resolution: 512*288
• 4K Display: 8*8pcs
• 8K Display: 15*15pcs

Up to 7680Hz High Refresh Rate
Boasting a refresh rate exceeding 7680Hz, it ensures flawless image quality in camera shots or live streams, free of scanlines.

Remote Monitoring and Centralized Management
Experience smarter displays with intelligent modules. Boost efficiency while monitoring real-time performance data. Stay in control and manage everything effortlessly.

Amazing Color Management Technology
Absen's professional color management technology makes the color of the NX series more textured and naturla

Image Booster Engine Technology
Through the seamless integration of control systems, intelligent algorithims, full grayscale correction, and hybrid PWM+PAM drive ICs, the local picture brightnes can reach 1200nits (peak brightness), significantly enhancing dynamic contrast and achieving extraordinary display effects
*To achieve peak brightness, it is necessary to pair with a specific controller and enable the Image Booster Engine function
**Upon activating the peak brightness mode, the maximum luminance under full-white screen conditions reaches 600nits

HDR10
Supports HDR10 high dynamic range image processing technology. The color expression ability is enhanced, the dynamic contrast ratio is significantly improved, presenting excellent picture quality.

Flat Screen Solutions
Flexible 2-in-1 small panel, enhancing project dimension compatibility.

Creative Splicing Stimulates More Inspiration
Flexible 2-in-1 small panel, enhancing project dimension compatibility.

• Cube with Small Panels
• Concave Splicing with Small Panels
• 90° L-Shape Splicing
• Cube with Large and Small Panels

Multiple installation solution
NX series provides hanging, wall-mounting and steel structure stacking installation solutions to fit in all use scenarios.

• Suspended with all-black hanging bar
• Ultra-thin wall-mounting solution
• Floor installation with steel structure

Use scenario
The NX series is very thin and flexible, and can be widely used in various commercial display scenarios.

• Mall
• Chain Store
• Transportation Hub
• Corporate

Technical Specifications

Physical Parameter

• LED Type: SMD 3in1 1515
• Pixel Pitch (mm): 1.87
• Panel Dimensions (WxHxD)/(mm): 960x540x43.5
• Pixel Per Panel: 512x288
• Panel Weight (kg): 10.5
• Panel Material: Die Casting Aluminum
• Module Dimensions (WxH)/(mm): 240x270

Optoelectronic Parameter

• Brightness (nit): 800
• Refresh Rate (Hz): 3840
• Gray scale（Bit）: 16
• Contrast Ratio: 4000:1
• Color Temperature (K): 6500
• Viewing Angle (H/V) (°): 160/160
• Driving Type: 1/36
• AC Operating Voltage (V): 100～240
• Power Consumption (Max./Avg.)(W/m²): 420/140

Application Parameter

• Storage Temperature (℃): ‑40～+60
• Operating Temperature (℃): ‑10～+40
• Storage Humidity (RH): 10%～85%
• Operating Humidity (RH): 10%～80%
• IP Rating (Front/Rear): IP40/IP21
• Module Maintenance: Front or Rear
• PSU & Others Maintenance: Front or Rear
• Panel Installation Type: Front/Rear
• Max Rigging QTY.: 12
• Certificate: CE,ETL,FCC,ROHS,TUV,EMC CLASS B
