Access Networks A350 Unleashed Wi-Fi 6 Indoor Access Point

Access Networks A350 Unleashed Wi-Fi 6 Indoor Access Point

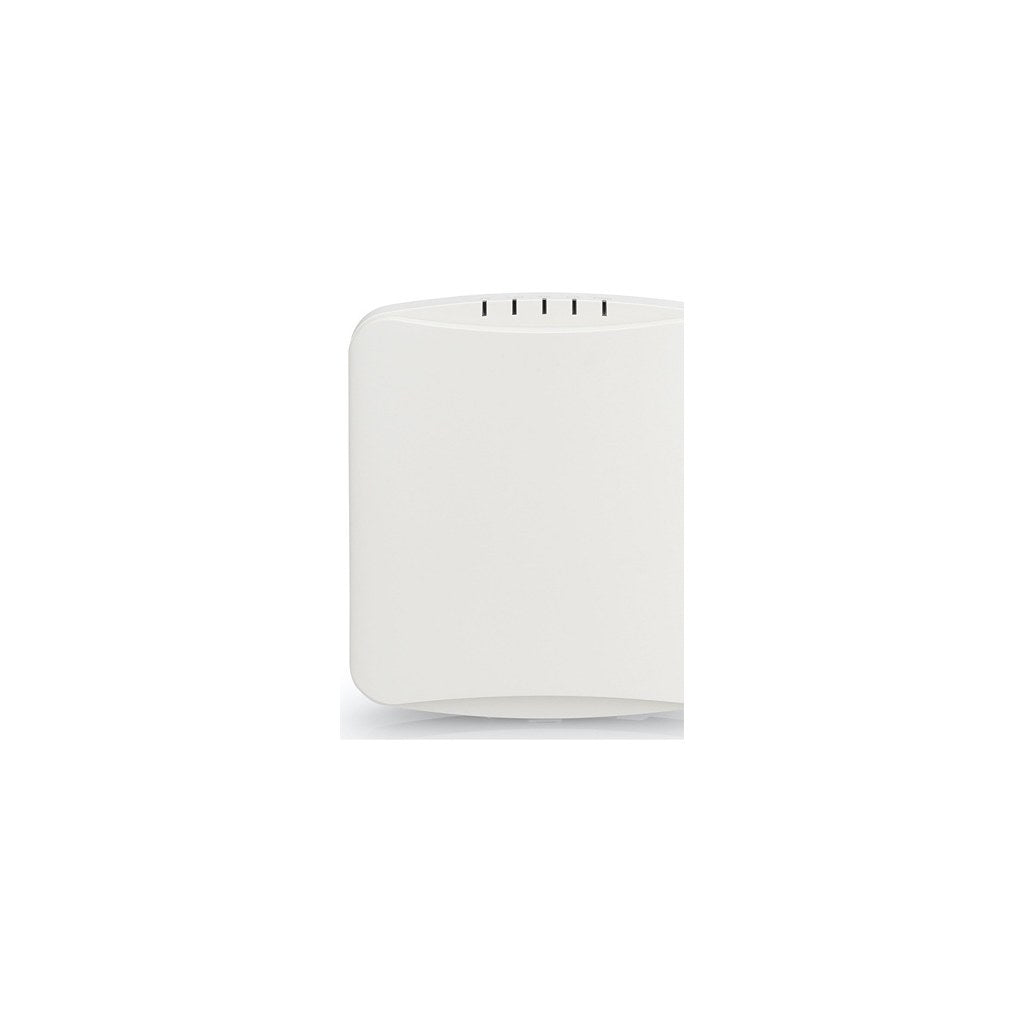

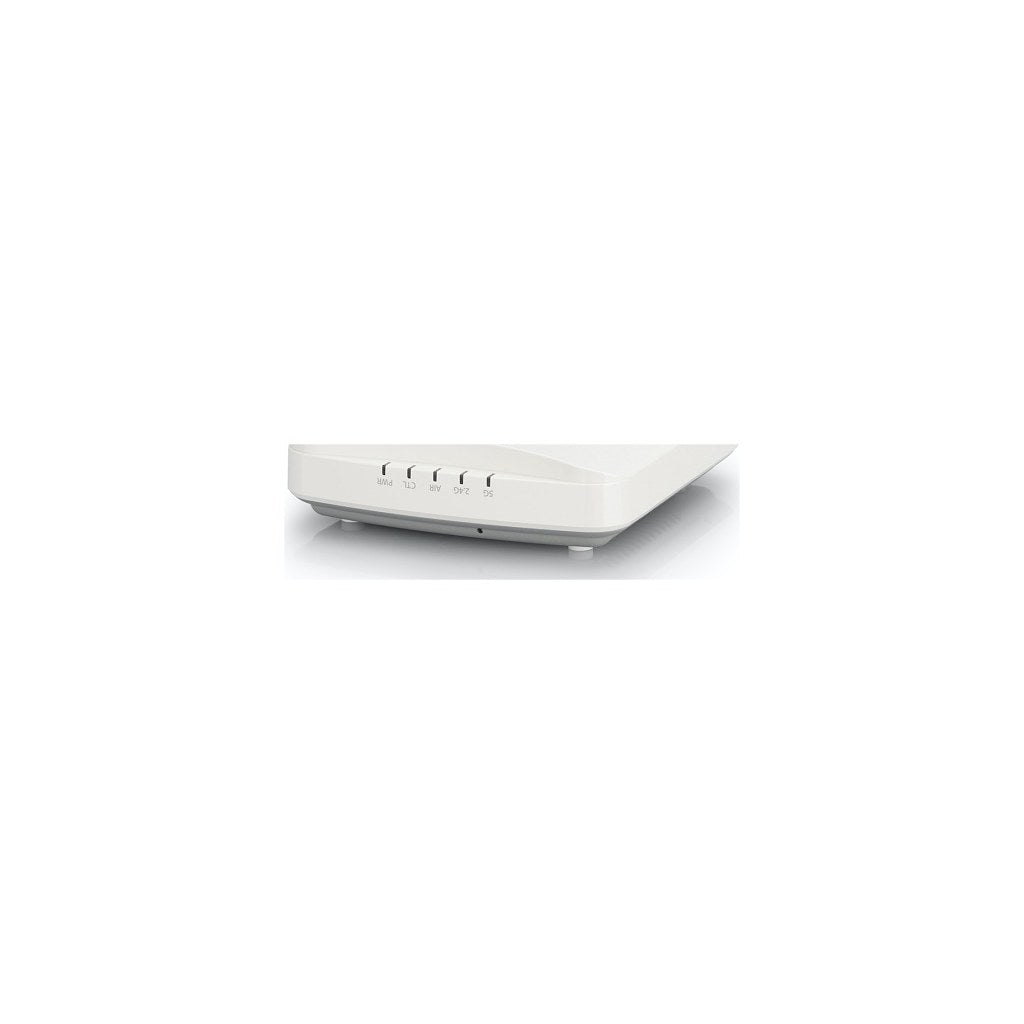

The Access Networks A350 Indoor Access Point is an entry-level Wi-Fi 6 AP for low-density indoor networks. It provides dual-band, dual-concurrent 802.11ax performance, supports four spatial streams, manages up to 256 client connections, and includes a built-in controller for simplified setup and wireless management.

Designed for small offices, homes, retail locations, restaurants, multi-tenant offices, and branch offices, the A350 gives integrators a cost-effective way to deploy reliable indoor Wi-Fi 6 access point coverage. It is a practical choice for low-density wireless networks, managed guest Wi-Fi services, and enterprise-grade network performance in smaller spaces.

BeamFlex adaptive antenna technology improves coverage by selecting signal patterns in real time, while ChannelFly helps find less congested Wi-Fi channels. Unleashed management, OvrC support, SmartMesh wireless meshing, WPA3 security, and Wi-Fi CERTIFIED 6 operation help the A350 support secure, scalable, professionally managed wireless deployments.

A350 Unleashed Wi-Fi 6 Access Point Features

• Wi-Fi 6 Performance: Supports IEEE 802.11ax networking for improved capacity, coverage, and efficiency in indoor wireless environments.
• Dual-Band Operation: Runs 2.4GHz and 5GHz radios concurrently for flexible device connectivity across common Wi-Fi bands.
• Built-In Controller: Uses Unleashed management to simplify setup and operation without requiring a separate wireless controller.
• Client Capacity: Supports up to 256 client connections per AP for low-density residential and commercial installations.
• BeamFlex Antennas: Dynamically selects from up to 64 antenna pattern combinations to improve coverage and reduce RF interference.
• ChannelFly Management: Dynamically selects less congested channels to improve throughput and wireless reliability.
• SmartMesh Support: Enables self-healing wireless meshing to simplify expansion where cabling is limited or difficult.
• Secure Network Tools: Supports WPA3, 802.1x, VLAN tools, access control lists, device fingerprinting, and rate limiting.

Technical Specifications

• Brand: Access Networks
• Model: A350
• Manufacturer Part Number: ANU-A350-US00
• ADI Part Number: UM-NU350U00
• Product Series: Unleashed
• Product Type: Indoor access point
• Indoor/Outdoor: Indoor
• Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax
• Wi-Fi Generation: Wi-Fi 6
• Operating Frequency: 2.4GHz and 5GHz
• Frequency Bands: ISM 2.4-2.484GHz, U-NII-1 5.15-5.25GHz, U-NII-2A 5.25-5.35GHz, U-NII-2C 5.47-5.725GHz, U-NII-3 5.725-5.85GHz
• Supported Channels: 2.4GHz channels 1-13; 5GHz channels 36-64, 100-144, and 149-165
• Supported Rates: 802.11ax 4 to 1774 Mbps; 802.11ac 6.5 to 867 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 54, 48, 36, 24, 18, 12, 9, and 6 Mbps; 802.11b 11, 5.5, 2, and 1 Mbps
• MIMO: 2x2 SU-MIMO and 2x2 MU-MIMO
• Spatial Streams: 2 streams SU/MU-MIMO on 5GHz and 2 streams SU/MU-MIMO on 2.4GHz
• Radio Chains and Streams: 2x2:2 on 5GHz and 2x2:2 on 2.4GHz
• Channelization: 20MHz, 40MHz, and 80MHz
• Peak PHY Rates: 574 Mbps at 2.4GHz and 1200 Mbps at 5GHz
• Client Capacity: Up to 256 clients per AP
• SSIDs: Up to 16 per AP
• Antenna Type: BeamFlex adaptive antennas
• Antenna Patterns: Up to 64 unique antenna patterns per band
• Antenna Gain: Up to 3 dBi
• Peak Transmit Power: 23 dBm at 2.4GHz and 23 dBm at 5GHz
• Minimum Receive Sensitivity: -101 dBm
• 2.4GHz Receive Sensitivity: HT20 MCS0 -94 dBm, HT20 MCS7 -70 dBm, HT40 MCS0 -91 dBm, HT40 MCS7 -72 dBm
• 5GHz Receive Sensitivity: VHT20 MCS0 -95 dBm, VHT20 MCS7 -76 dBm, VHT40 MCS0 -92 dBm, VHT40 MCS7 -73 dBm, VHT80 MCS0 -89 dBm, VHT80 MCS7 -70 dBm
• 2.4GHz TX Power Target: MCS0 HT20 20 dBm; MCS7 HT20 15 dBm
• 5GHz TX Power Target: MCS0 VHT20 20 dBm; MCS7 VHT20 17 dBm; MCS0 VHT40/VHT80 17 dBm; MCS7 VHT40/VHT80 17 dBm
• Antenna Optimization: BeamFlex+ with polarization diversity and Maximal Ratio Combining
• Wi-Fi Channel Management: ChannelFly and background scan based channel management
• Client Density Management: Adaptive band balancing, client load balancing, airtime fairness, and airtime-based WLAN prioritization
• Quality of Service: QoS-based scheduling, directed multicast, and L2/L3/L4 ACLs
• Mobility: SmartRoam
• Diagnostic Tools: SpeedFlex
• Controller Platform Support: SmartZone, ZoneDirector, Unleashed, Cloud, and Standalone
• OvrC Enabled: Yes
• Mesh: SmartMesh self-healing wireless meshing technology
• IP Support: IPv4 and IPv6
• VLAN Support: 802.1Q, VLAN pooling, and port-based VLANs
• Authentication: 802.1x authenticator and supplicant
• Tunneling: L2TP, GRE, and Soft-GRE
• Policy Management: Application recognition and control, access control lists, device fingerprinting, and rate limiting
• Security: WPA-PSK, WPA-TKIP, WPA2, WPA3-Personal, WPA3-Enterprise, AES, WPA3, 802.11i, Dynamic PSK, and WIPS/WIDS
• Other Wi-Fi Features: WMM, Power Save, transmit beamforming, LDPC, STBC, 802.11r/k/v, Hotspot, Hotspot 2.0, Captive Portal, and WISPr

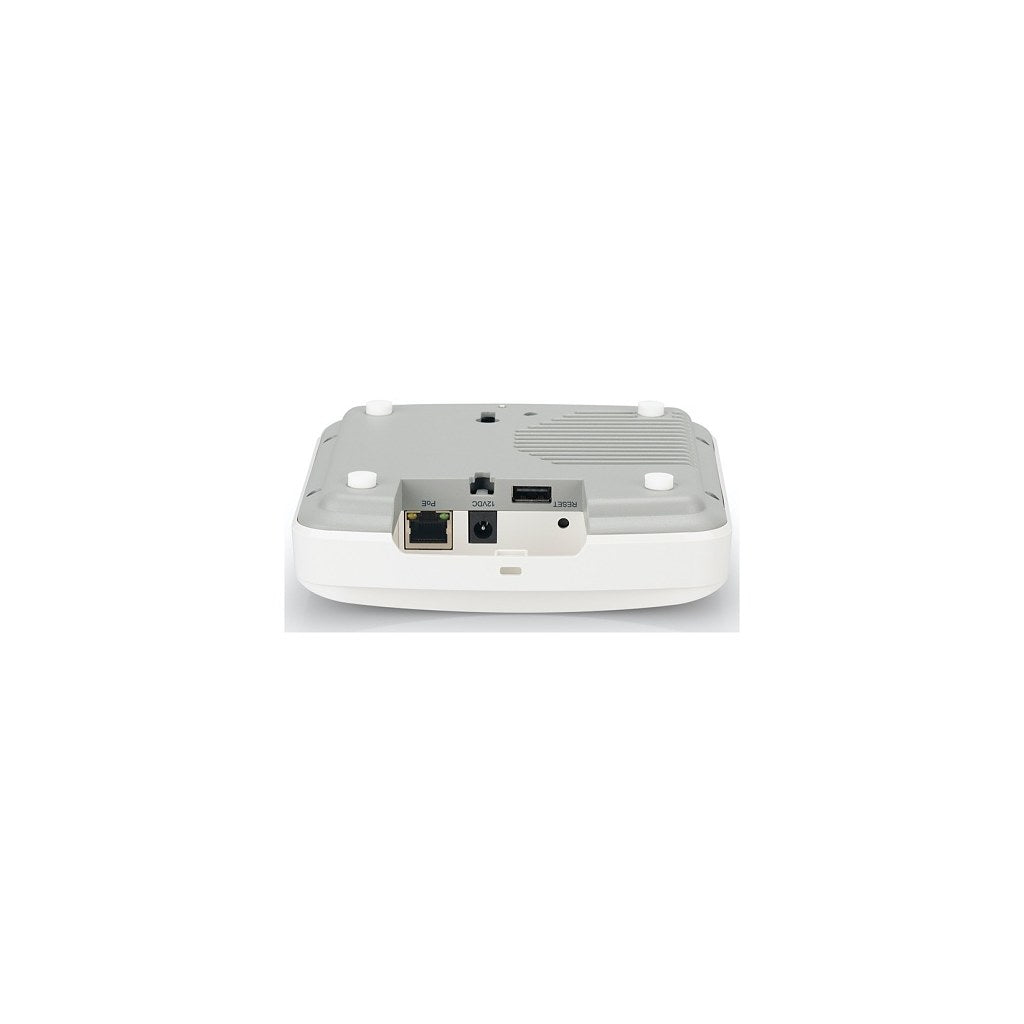

• Ethernet: One 1GbE RJ-45 port
• USB: One USB 2.0 Type-A port
• PoE Power Consumption: 12.62W maximum
• DC Input Power Consumption: 11.4W maximum
• Ingress Protection Rating: None
• Mounting: Wall, drop ceiling, or desk installation
• Physical Security: Hidden latching mechanism and T-bar Torx
• Operating Temperature: 32°F to 104°F
• Operating Humidity: Up to 95%, non-condensing
• Dimensions: 5.75" L x 6.14" W x 1.55" H
• Weight: 0.81 lbs
• Wi-Fi Certifications: Wi-Fi CERTIFIED a, b, g, n, ac; Wi-Fi CERTIFIED 6; WPA3 Enterprise and Personal; Wi-Fi Enhanced Open; Wi-Fi Agile Multiband; Passpoint; Vantage; WMM
• Standards Compliance: EN 60950-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock and Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE, RoHS, and ISTA 2A Transportation
• Software and Services: SPoT location based services, SmartCell Insight, and Cloudpath
• Optional Accessories: 902-0162-XXYY PoE injector, 902-0195-0000 T-bar ceiling mount kit, 902-0120-0000 accessory mounting bracket, and 902-0173-XXYY power adapter
• Power Adapter: Not included
• Warranty: Four-year warranty

What's In the Box

• Access Networks A350 indoor access point

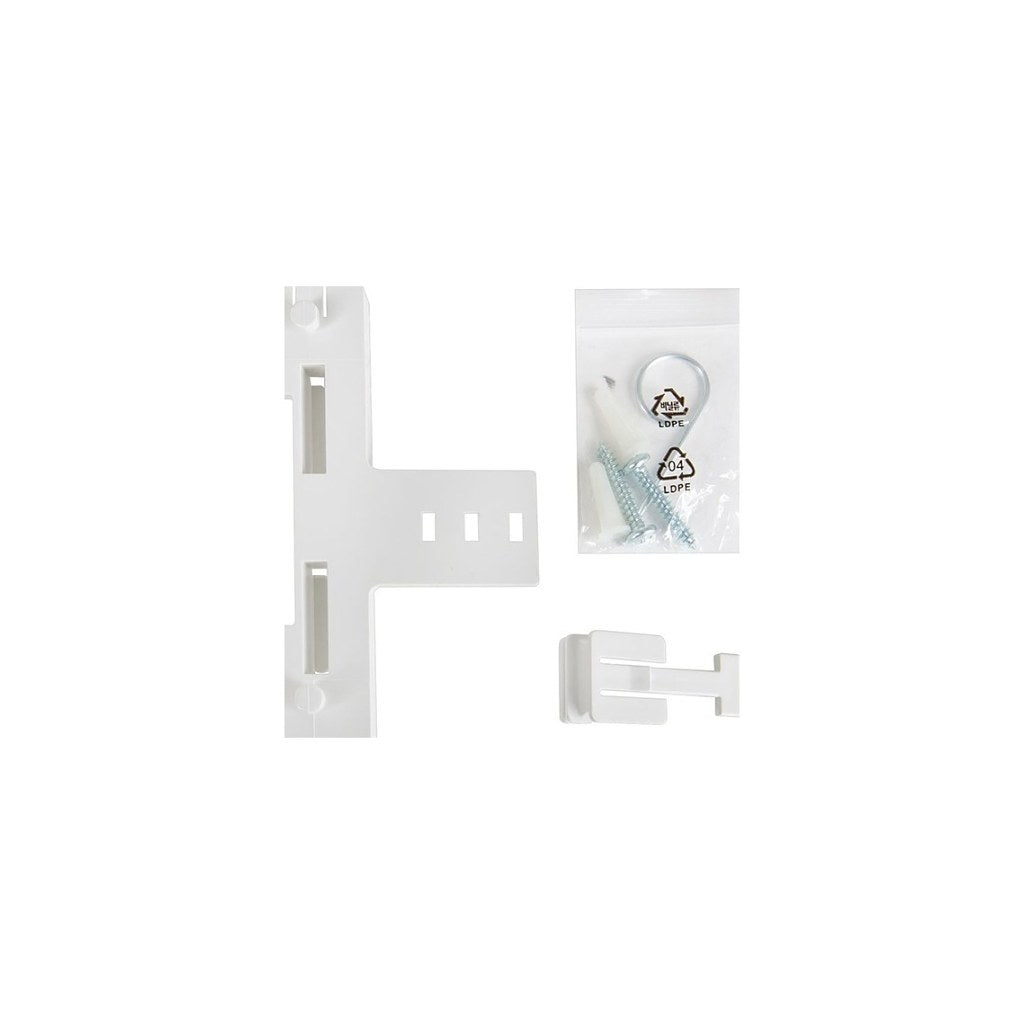

• Adjustable acoustic drop ceiling bracket
