Access Networks A670 Unleashed Wi-Fi 7 Indoor Access Point

Access Networks A670 Wi-Fi 7 Indoor Access Point

The Access Networks A670 Wi-Fi 7 Indoor Access Point is a tri-band 802.11be access point built for dense indoor networks. It delivers up to 9.34 Gbps combined data rate, supports up to 768 clients per AP, and uses six spatial streams across 2.4GHz, 5GHz, and 6GHz bands.

Designed for densely connected homes, multi-dwelling units, classrooms, hospitality spaces, and small-to-medium commercial projects, the A670 gives integrators a practical way to deploy indoor Wi-Fi 7 AP hardware for high-capacity installs. Multi-Link Operation, Preamble Puncturing, 4K QAM, and 320MHz channels help support UHD streaming, voice, data, and IoT traffic with lower latency.

Built-in Unleashed control and OvrC management simplify setup, remote service, and scaling without a separate controller. BeamFlex+ adaptive antennas, WPA3 security, 5 GbE PoE backhaul, BLE or Zigbee IoT support, and Wi-Fi CERTIFIED operation make it a strong enterprise-grade access point for residential and professional network deployments.

A670 Unleashed Tri-Band Wi-Fi 7 Features

• Wi-Fi 7 Performance: Supports 802.11be networking with up to 9.34 Gbps combined data rate for demanding indoor wireless environments.
• High-Density Client Support: Manages up to 768 clients per access point for connected homes, classrooms, MDUs, and commercial spaces.
• Tri-Band Flexibility: Runs 2.4GHz, 5GHz, and 6GHz bands concurrently, with dual-band 5GHz 4x4 operation available when needed.
• 5 GbE PoE Backhaul: Uses a multi-gigabit Ethernet port to reduce wired bottlenecks in high-throughput Wi-Fi 7 deployments.
• BeamFlex+ Adaptive Antennas: Dynamically selects from more than 4,000 antenna pattern combinations per band to improve coverage and reduce interference.
• Built-In Wireless Controller: Provides Unleashed setup and management for scalable installs without a separate hardware controller.
• IoT-Ready Design: Includes selectable BLE or Zigbee radio support with Matter and Thread capability for converged wireless networks.
• Enterprise-Grade Security: Supports WPA3, DPSK3 to WPA3/SAE, 802.1x, VLAN tools, and policy controls for protected network access.

Technical Specifications

• Brand: Access Networks
• Model: A670
• Manufacturer Part Number: ANU-A670-US00
• Part Number: UM-ANUA67S00
• Product Type: Indoor wireless access point
• Product Series: Unleashed
• Product Line: Wi-Fi 7
• Application/Usage: Multi-family housing
• Indoor/Outdoor: Indoor
• Wi-Fi Standard: 802.11be Wi-Fi 7
• Wi-Fi Bands: Tri-band concurrent 2.4GHz, 5GHz, and 6GHz
• Spatial Streams: 6 total; 2x2:2 on 2.4GHz, 5GHz, and 6GHz, or 2x2:2 on 2.4GHz plus 4x4:4 on 5GHz in dual-band mode
• Combined Data Rate: Up to 9.34 Gbps
• Peak PHY Rates: 2.4GHz 689 Mbps; 5GHz 5765 Mbps (4x4:4) or 2882 Mbps (2x2:2); 6GHz 5765 Mbps
• Client Capacity: Up to 768 clients per AP
• SSIDs: Up to 36 per AP
• Wi-Fi Technologies: Multi-Link Operation, Preamble Puncturing, 4K QAM modulation, and 320MHz channels
• Antenna Technology: BeamFlex+ adaptive antennas with polarization diversity and more than 4,000 antenna pattern combinations per band
• Radio Management: ChannelFly, background scan-based channel management, adaptive band balancing, client load balancing, airtime fairness, and airtime-based WLAN prioritization
• Quality of Service: QoS-based scheduling, QoS mirroring, directed multicast, and L2/L3/L4 ACLs
• Mobility: SmartRoam
• Diagnostic Tools: Spectrum Analysis and SpeedFlex
• Security: WPA3 with DPSK3 to WPA3/SAE support
• Controller Support: ARCC and Unleashed with OvrC
• Mesh: SmartMesh self-healing wireless meshing in 2.4GHz, 5GHz, and 6GHz
• IP Support: IPv4, IPv6, dual-stack
• VLAN Support: 802.1Q, VLAN pooling, and port-based VLANs
• Authentication: 802.1x authenticator and supplicant
• Tunneling: GRE and Soft-GRE
• Policy Management: Application recognition and control, access control lists, device fingerprinting, rate limiting, and URL filtering
• IoT Radio: Integrated BLE or Zigbee selectable radio; Matter and Thread capable

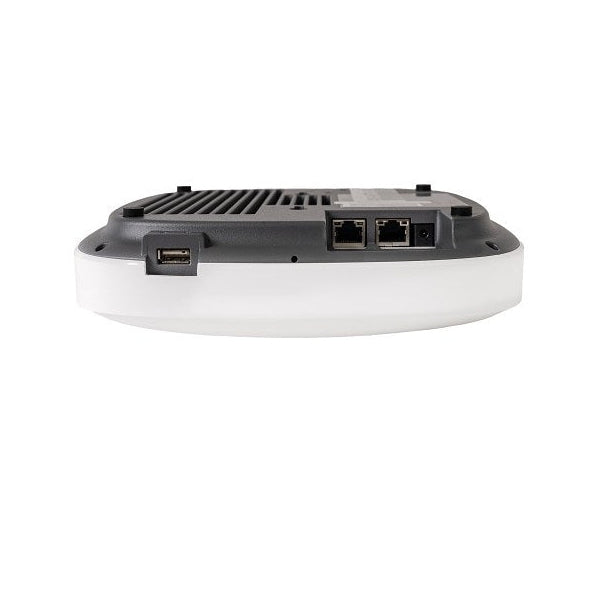

• Ethernet: One 100M/1/2.5/5GbE PoE port and one 10M/100M/1GbE port
• PoE Support: 802.3af/at/bt over Category 5e or better cable with LLDP support
• Installation Power Note: Requires 60W PoE++ allocation per access point; CAT6A cabling is recommended for proper operation
• Power Consumption: DC power 35W; 802.3bt/PoH/uPoE 35W; 802.3at 25.5W
• USB: One USB 2.0 Type-A port
• DC Power: 48V DC power jack
• Power Adapter: Not included
• Mounting: Wall, acoustic ceiling, or desk installation
• Operating Temperature: 32°F to 122°F
• Operating Humidity: Up to 95%, non-condensing
• Dimensions: 8.66" L x 8.66" W x 1.93" H
• Weight: 2.25 lbs
• Wi-Fi Certifications: Wi-Fi CERTIFIED a, b, g, n, ac, ax, be; Passpoint; Vantage
• Standards Compliance: IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1, EN 50121-4, IEC 61373, UL 2043, EN 62311, WEEE, RoHS, ISTA 2A
• Optional Accessories: 902-1180-XX00 multigigabit PoE injector; 902-0120-0000 spare accessory mounting bracket; 902-1170-XX00 power supply; 902-0196-0000 T-bar bracket
• Warranty: Limited lifetime warranty

What's In the Box

• Access Networks A670 Wi-Fi 7 tri-band concurrent wireless access point

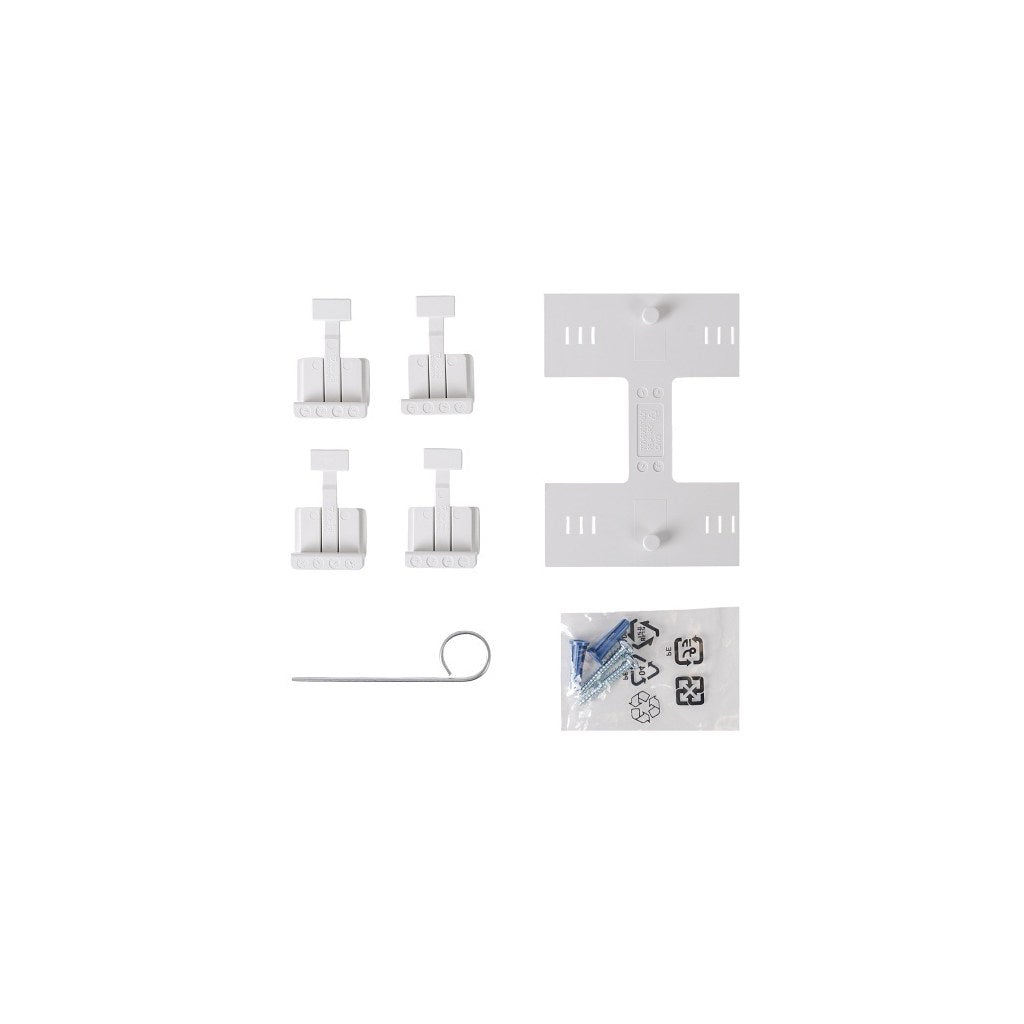

• Adjustable acoustic drop ceiling bracket
