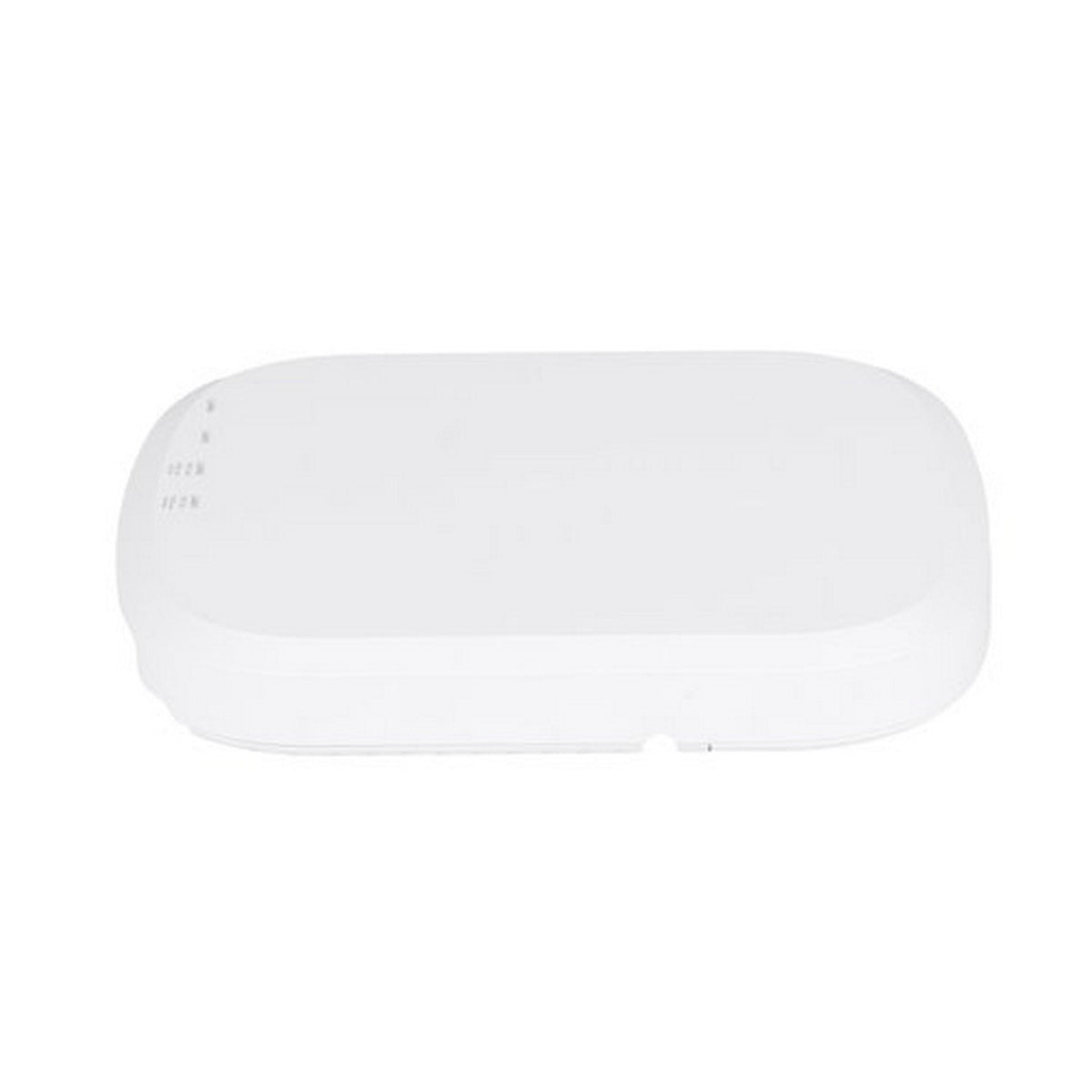

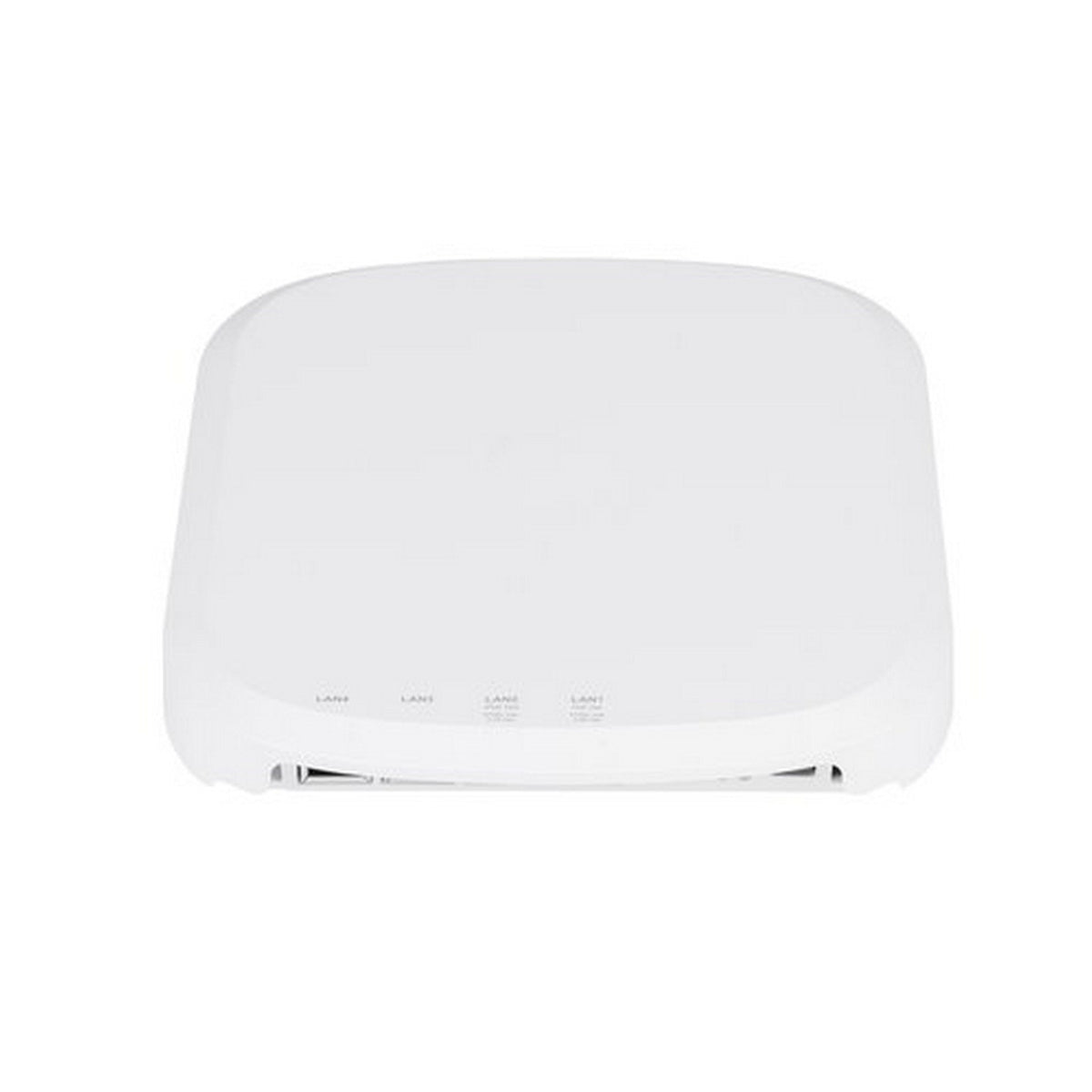

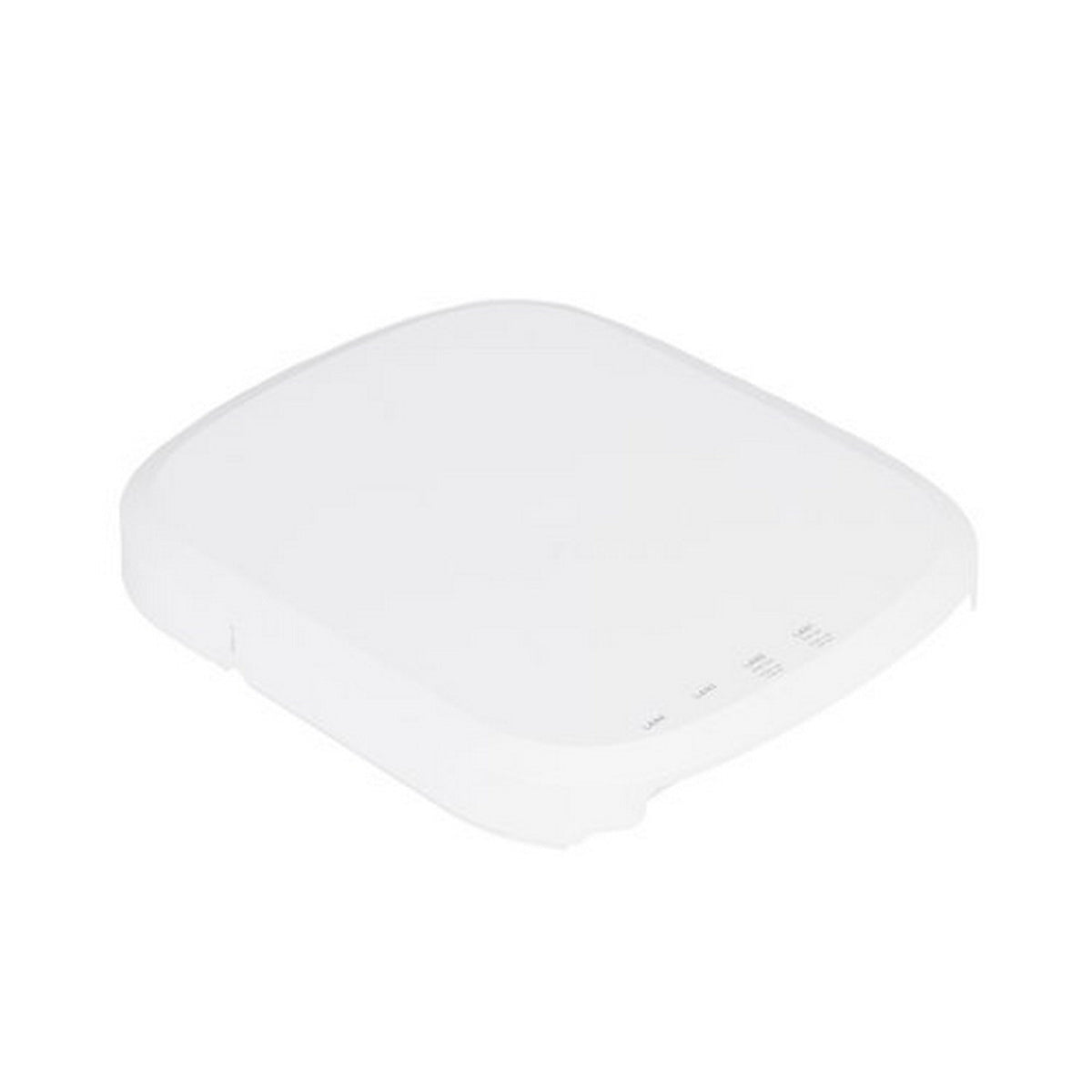

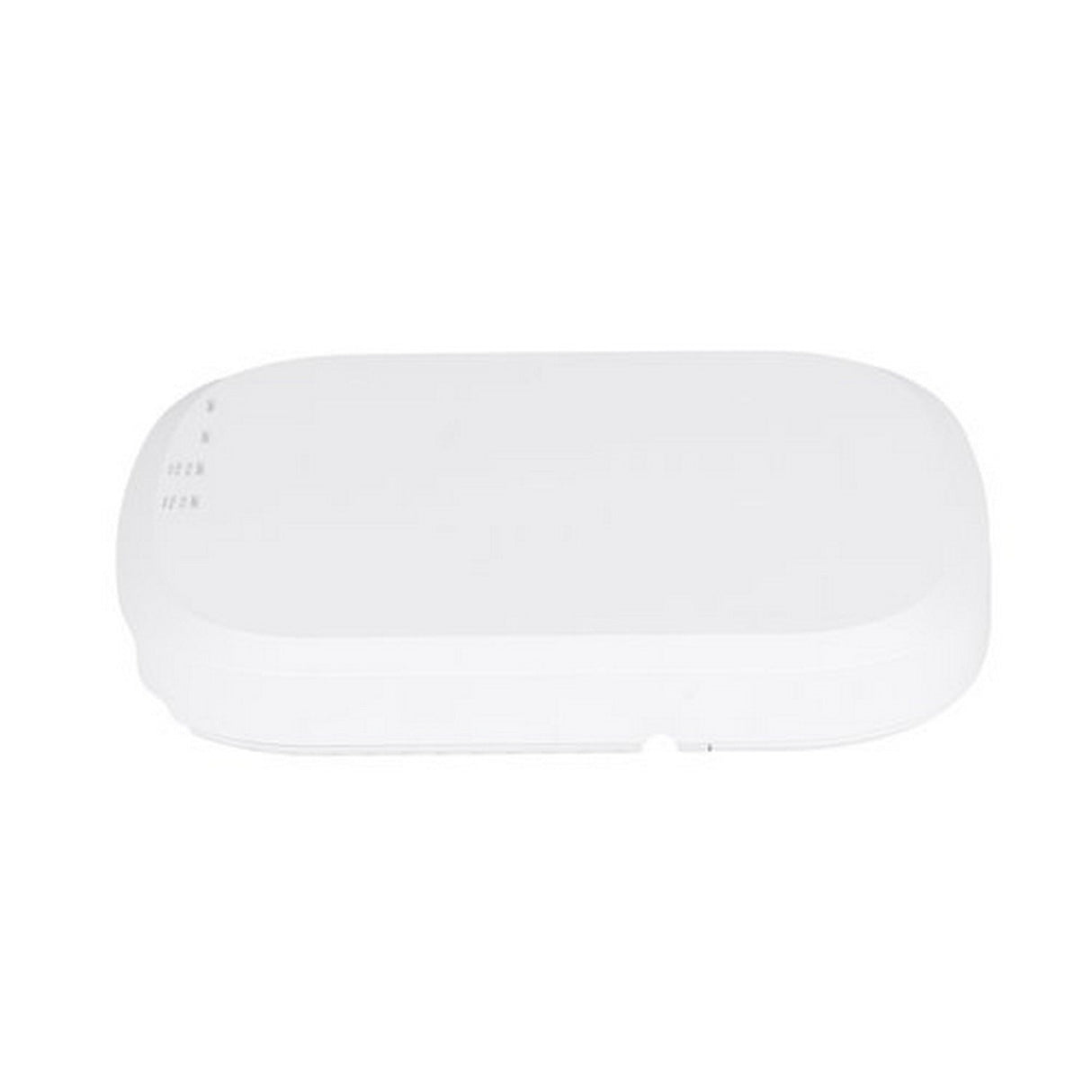

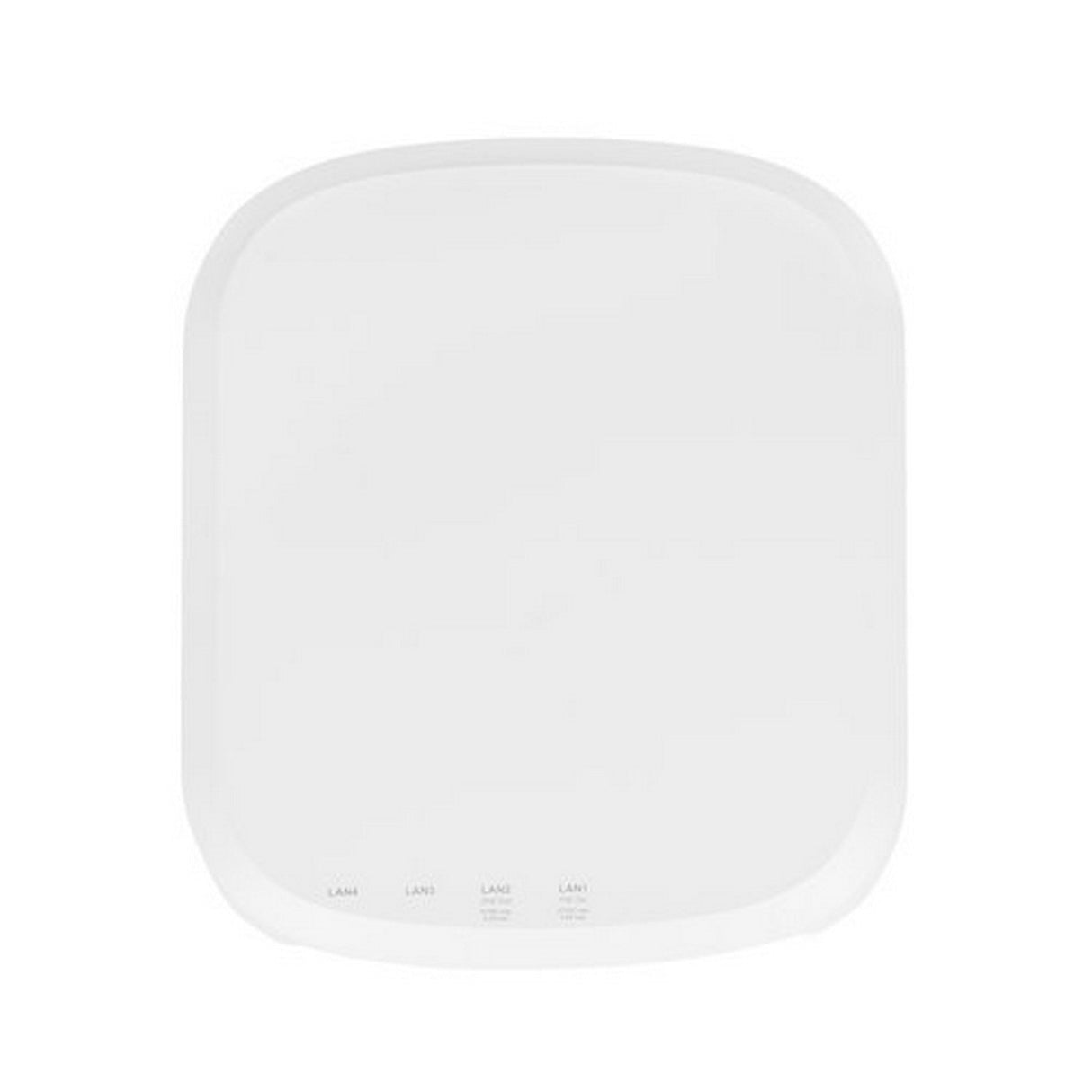

Access Networks ANU-C670-US00 Unleashed Wi-Fi 7 Wall Mount Access Point

Access Networks ANU-C670-US00 Unleashed Wi-Fi 7 Wall Mount Access Point

The Access Networks ANU-C670-US00 Unleashed Wi-Fi 7 Wall Mount Access Point combines tri-band wireless networking with a built-in multi-gigabit switch for in-room deployments. It provides six spatial streams, 2x2:2 operation across 2.4, 5, and 6 GHz, a 5GbE uplink, four 2.5GbE LAN ports, and up to two PoE outputs.

Designed for hospitality, multi-dwelling units, offices, and residential installations, the C670 places high-speed wired and wireless connectivity at a wall location where ceiling mounting may be impractical. Wi-Fi 7 technologies include Multi-Link Operation, 320 MHz channels, Preamble Puncturing, and 4K QAM, supporting a combined data rate up to 9.34 Gbps.

BeamFlex+ adaptive antennas select from more than 4,000 antenna patterns per band to optimize RF paths and reduce interference. The Unleashed platform provides an integrated controller with OvrC management, while SmartMesh supports self-healing wireless meshing across all three bands. TPM 2.0, Secure Boot, WPA3, WIPS/WIDS, VLAN functions, and policy controls support professionally managed networks.

Key Features

• Tri-Band Wi-Fi 7: Provides concurrent 2.4, 5, and 6 GHz operation with six total spatial streams.
• Multi-Gigabit Connectivity: Combines a 5GbE PoE input with four 2.5GbE LAN connections for wired endpoints.
• PoE Output: Supports one 802.3at or two 802.3af downstream outputs when powered by compatible 802.3bt or DC power.
• BeamFlex+ Antennas: Selects from more than 4,000 adaptive antenna patterns per band for optimized client connections.
• Wi-Fi 7 Technologies: Supports Multi-Link Operation, 4K QAM, Preamble Puncturing, and channel widths through 320 MHz.
• High Client Capacity: Supports up to 768 clients and up to 36 SSIDs per access point.
• Integrated Management: Supports Access Networks ARCC and Unleashed with OvrC for professional network administration.
• Wall-Mount Deployment: Mounts to standard US or EU single-gang wall boxes for convenient in-room installation.

Technical Specifications

• Manufacturer Part Number: ANU-C670-US00
• Model: C670
• Series: Unleashed
• Product Type: Indoor Wall-Mount Wireless Access Point
• Wi-Fi Generation: Wi-Fi 7
• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be
• Wireless Bands: 2.4 GHz, 5 GHz, and 6 GHz
• Combined Data Rate: Up to 9.34 Gbps
• 802.11be Supported Rate: 4 to 5765 Mbps
• 802.11ax Supported Rate: 4 to 4804 Mbps
• 802.11ac Supported Rate: 6.5 to 866 Mbps
• 802.11n Supported Rate: 6.5 to 300 Mbps
• 802.11a/g Supported Rate: 6 to 54 Mbps
• 802.11b Supported Rate: 1 to 11 Mbps
• 2.4 GHz Supported Channels: 1-13
• 5 GHz Supported Channels: 36-64, 100-144, 149-165
• 6 GHz Supported Channels: 1-233
• MIMO: 2x2 SU-MIMO and 2x2 MU-MIMO in tri-band mode
• Radio Chains and Streams: 2x2:2 across all three bands
• Total Spatial Streams: 6
• Channel Widths: 20, 40, 80, 160, and 320 MHz
• Wi-Fi 7 Technologies: Multi-Link Operation, Preamble Puncturing, and 4K QAM
• Wireless Security: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, and DPSK3
• Security Features: WIPS/WIDS, TPM 2.0, and Secure Boot
• Antenna Type: BeamFlex+ adaptive antennas with polarization diversity
• Antenna Patterns: More than 4,000 unique patterns per band
• Maximum Antenna Gain: Up to 3 dBi
• 2.4 GHz Peak Transmit Power: 19 dBm, 2x2
• 5 GHz Peak Transmit Power: 22 dBm, 2x2
• 6 GHz Peak Transmit Power: 22 dBm, 2x2
• 2.4 GHz Frequency Band: 2.4-2.4835 GHz ISM
• 5 GHz Frequency Bands: 5.15-5.25, 5.25-5.35, 5.47-5.725, and 5.725-5.85 GHz
• 6 GHz Frequency Bands: 5.925-6.425, 6.425-6.525, 6.525-6.875, and 6.875-7.125 GHz
• 2.4 GHz HT20 Receive Sensitivity: MCS0 -97 dBm; MCS7 -79 dBm
• 2.4 GHz HT40 Receive Sensitivity: MCS0 -94 dBm; MCS7 -76 dBm
• 2.4 GHz VHT20 Receive Sensitivity: MCS0 -97 dBm; MCS7 -79 dBm
• 2.4 GHz VHT40 Receive Sensitivity: MCS0 -94 dBm; MCS7 -76 dBm
• 2.4 GHz HE20/EHT20 Receive Sensitivity: MCS0 -97 dBm; MCS7 -79 dBm; MCS9 -70 dBm; MCS11 -68 dBm
• 2.4 GHz HE40/EHT40 Receive Sensitivity: MCS0 -94 dBm; MCS7 -76 dBm; MCS9 -67 dBm; MCS11 -61 dBm
• 5 GHz HT20/VHT20 Receive Sensitivity: MCS0 -95 dBm; MCS7 -77 dBm; MCS8 -74 dBm; MCS9 -70 dBm
• 5 GHz HT40/VHT40 Receive Sensitivity: MCS0 -92 dBm; MCS7 -74 dBm; MCS8 -70 dBm; MCS9 -67 dBm
• 5 GHz VHT80 Receive Sensitivity: MCS0 -89 dBm; MCS7 -70 dBm; MCS8 -67 dBm; MCS9 -64 dBm
• 5 GHz HE20/EHT20 Receive Sensitivity: MCS0 -95 dBm; MCS9 -70 dBm; MCS13 -59 dBm
• 5 GHz HE40/EHT40 Receive Sensitivity: MCS0 -92 dBm; MCS9 -67 dBm; MCS13 -57 dBm
• 5 GHz HE80/EHT80 Receive Sensitivity: MCS0 -89 dBm; MCS9 -64 dBm; MCS13 -55 dBm
• 5 GHz HE160/EHT160 Receive Sensitivity: MCS0 -86 dBm; MCS9 -61 dBm; MCS13 -52 dBm
• 6 GHz HE20/EHT20 Receive Sensitivity: MCS0 -95 dBm; MCS9 -71 dBm; MCS13 -58 dBm
• 6 GHz HE40/EHT40 Receive Sensitivity: MCS0 -92 dBm; MCS9 -68 dBm; MCS13 -56 dBm
• 6 GHz HE80/EHT80 Receive Sensitivity: MCS0 -89 dBm; MCS9 -65 dBm; MCS13 -53 dBm
• 6 GHz HE160/EHT160 Receive Sensitivity: MCS0 -86 dBm; MCS9 -62 dBm; MCS11 -55 dBm; MCS13 -50 dBm
• 6 GHz EHT320 Receive Sensitivity: MCS0 -83 dBm; MCS9 -59 dBm; MCS11 -52 dBm; MCS13 -47 dBm
• 2.4 GHz TX Power Target: MCS0 HT20 16 dBm; MCS7 HT20 15 dBm; MCS9 VHT20 14 dBm; MCS11 HE40 13 dBm; MCS13 EHT40 12 dBm
• 5 GHz TX Power Target at 20 MHz: MCS0 19 dBm; MCS7 15 dBm; MCS9 14 dBm; MCS11 13 dBm; MCS13 12 dBm
• 5 GHz TX Power Target at 40 MHz: MCS0 19 dBm; MCS7 14.5 dBm; MCS9 13.5 dBm; MCS11 12.5 dBm; MCS13 11.5 dBm
• 5 GHz TX Power Target at 80 MHz: MCS0 19 dBm; MCS7 14 dBm; MCS9 13 dBm; MCS11 12 dBm; MCS13 11 dBm
• 5 GHz TX Power Target at 160 MHz: MCS0 19 dBm; MCS7 13.5 dBm; MCS9 12 dBm; MCS11 11 dBm; MCS13 9 dBm
• 6 GHz TX Power Target at 20 MHz: MCS0 19 dBm; MCS7 14 dBm; MCS9 12 dBm; MCS11 11 dBm; MCS13 10 dBm
• 6 GHz TX Power Target at 40 MHz: MCS0 19 dBm; MCS7 13 dBm; MCS9 11.5 dBm; MCS11 10.5 dBm; MCS13 9.5 dBm
• 6 GHz TX Power Target at 80 MHz: MCS0 19 dBm; MCS7 13 dBm; MCS9 11.5 dBm; MCS11 10 dBm; MCS13 9 dBm
• 6 GHz TX Power Target at 160 MHz: MCS0 18 dBm; MCS7 12 dBm; MCS9 11 dBm; MCS11 9 dBm; MCS13 8 dBm
• 6 GHz TX Power Target at 320 MHz: MCS0 18 dBm; MCS7 11 dBm; MCS9 10 dBm; MCS11 8 dBm; MCS13 6 dBm
• 2.4 GHz Peak PHY Rate: 689 Mbps
• 5 GHz Peak PHY Rate: 2882 Mbps
• 6 GHz Peak PHY Rate: 5765 Mbps
• Client Capacity: Up to 768 clients per access point
• SSID Capacity: Up to 36 per access point
• Antenna Optimization: BeamFlex+ and Polarization Diversity with Maximal Ratio Combining
• Wi-Fi Channel Management: ChannelFly and background scan based
• Client Density Management: Adaptive Band Balancing, Client Load Balancing, Airtime Fairness, and Airtime-Based WLAN Prioritization
• Quality of Service: QoS-based scheduling, QoS Mirroring, Directed Multicast, and L2/L3/L4 ACLs
• Mobility: SmartRoam
• Diagnostic Tools: Spectrum Analysis and SpeedFlex
• Controller Platforms: ARCC and Unleashed with OvrC
• Mesh: SmartMesh self-healing mesh on 2.4, 5, and 6 GHz
• IP Support: IPv4, IPv6, dual-stack
• VLAN: 802.1Q, VLAN Pooling, and port-based VLAN
• 802.1X: Authenticator and Supplicant
• Tunneling: GRE, Soft-GRE, and VXLAN
• Policy Management: Application Recognition and Control, Access Control Lists, Device Fingerprinting, Rate Limiting, and URL Filtering

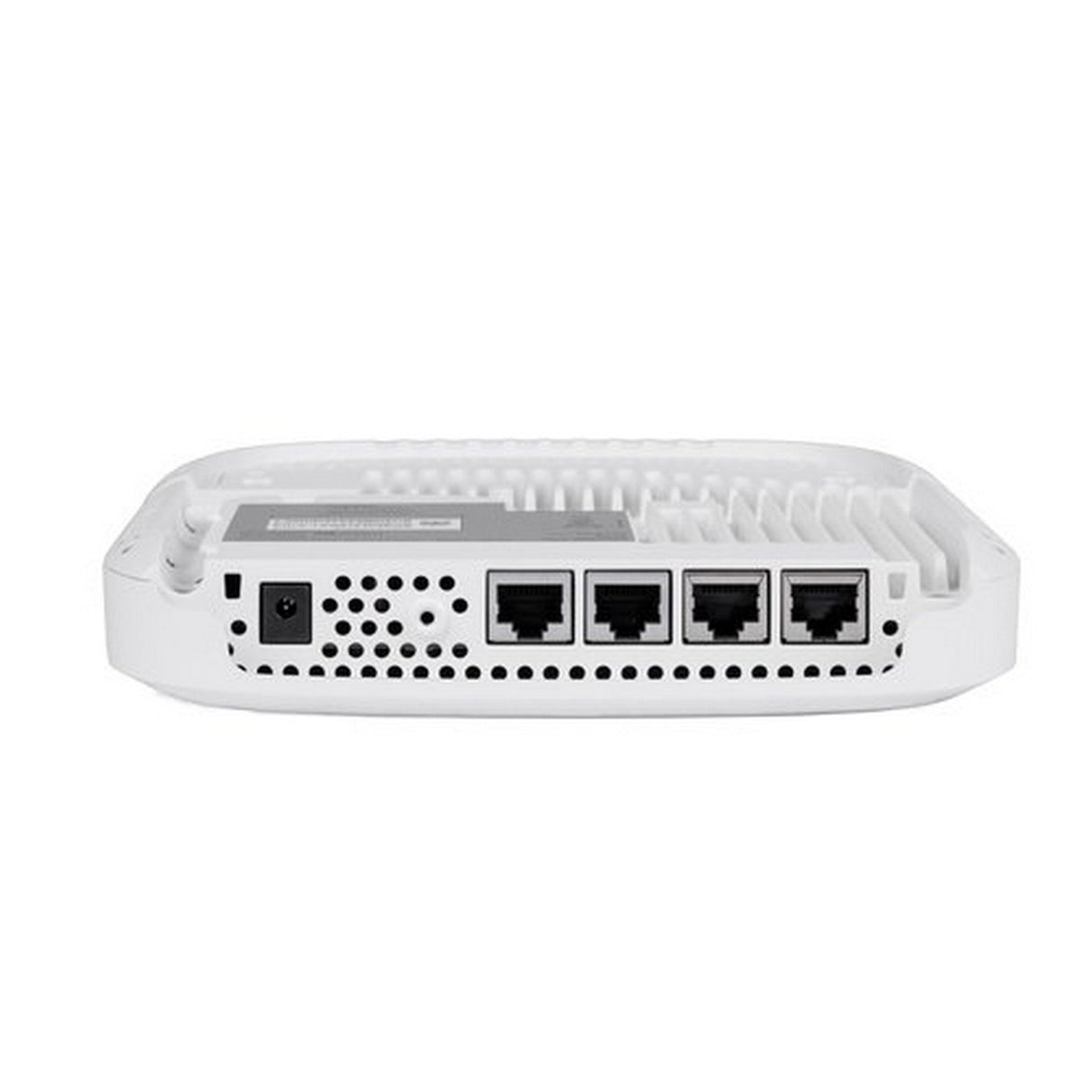

• PoE Input Port: 1 x 100M/1/2.5/5GbE
• LAN Ports: 4 x 10M/100M/1/2.5GbE
• PoE Output: Up to 1 x 802.3at or 2 x 802.3af with compatible DC or 802.3bt power
• PoE Input: IEEE 802.3at or 802.3bt Class 6 or higher
• Ethernet Cabling: Category 5e or better
• LLDP: Supported
• DC Input: 48 V DC power jack
• Maximum DC Power Consumption: 48.55 W
• 802.3bt Power Consumption: 45.74 W average; 51 W LLDP request
• 802.3at Power Consumption: 25.5 W
• 802.3at Operating Limitation: PoE output disabled

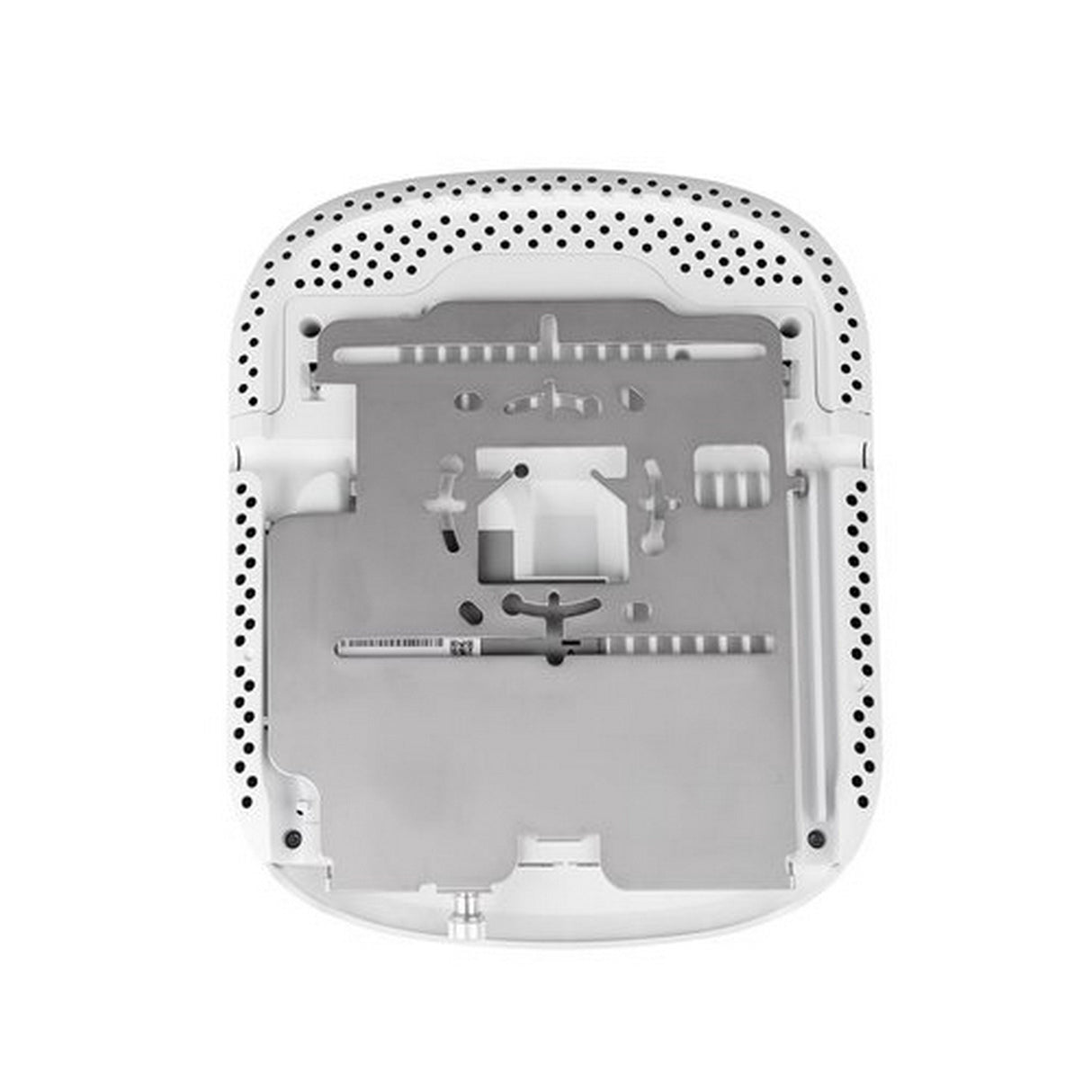

• Mounting: Wall bracket; compatible with standard US or EU single-gang wall boxes
• Physical Security: Secure bracket
• Dimensions: 8.8 x 7.2 x 1.3"
• Weight: 1.8 lb with bracket
• Operating Temperature: 32 to 104 degrees F
• Operating Humidity: Up to 95%, non-condensing
• Environment: Indoor
• Certifications and Compliance: Passpoint and Vantage
• Warranty: Limited lifetime
• OvrC Enabled: Yes
• Country of Origin: Vietnam

What's In the Box

• Access Networks C670 Access Point

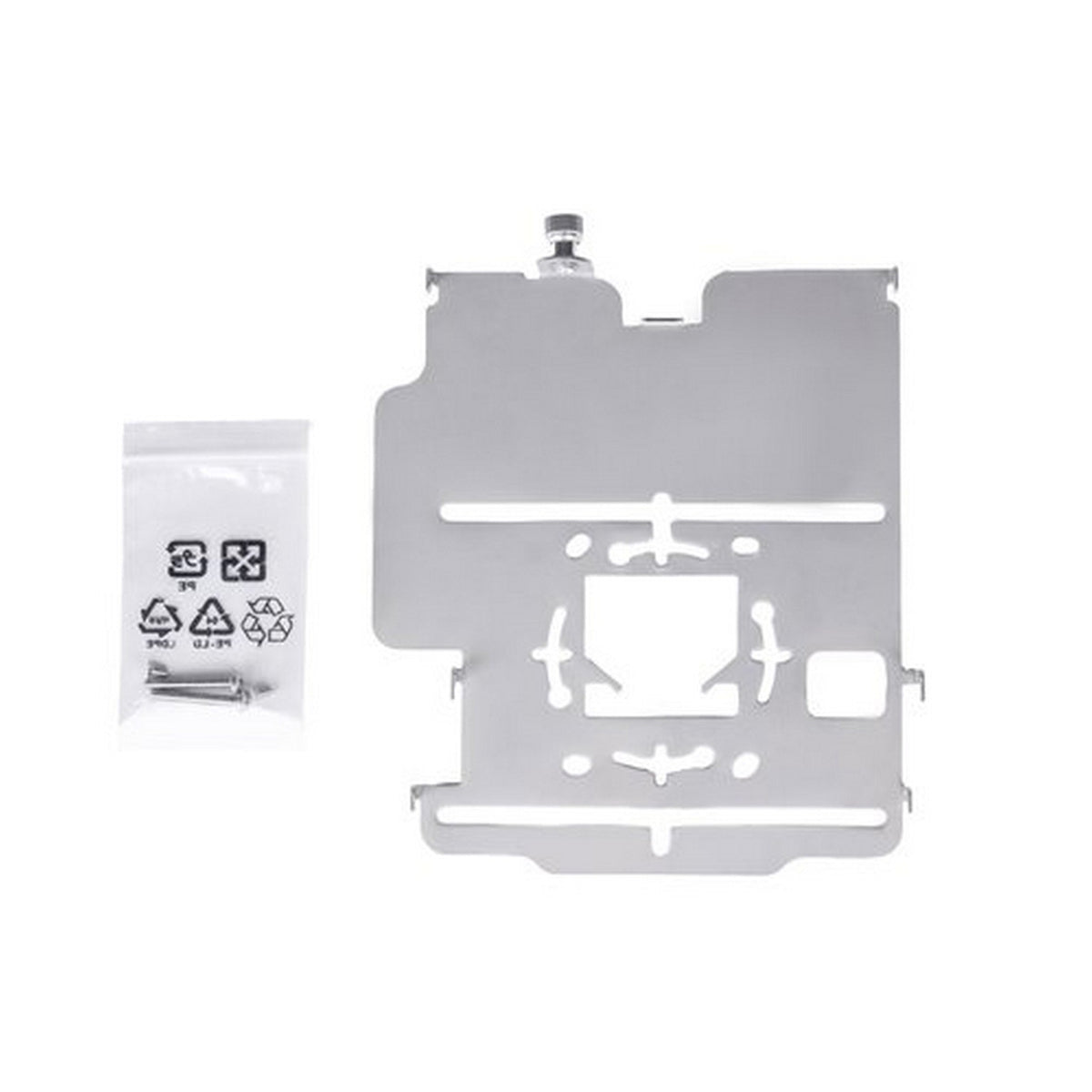

• Mounting Bracket
• 2 x 6-32 x 1" Phillips Pan-Head Machine Screws
• Declaration of Conformity / Regulatory Flyer
