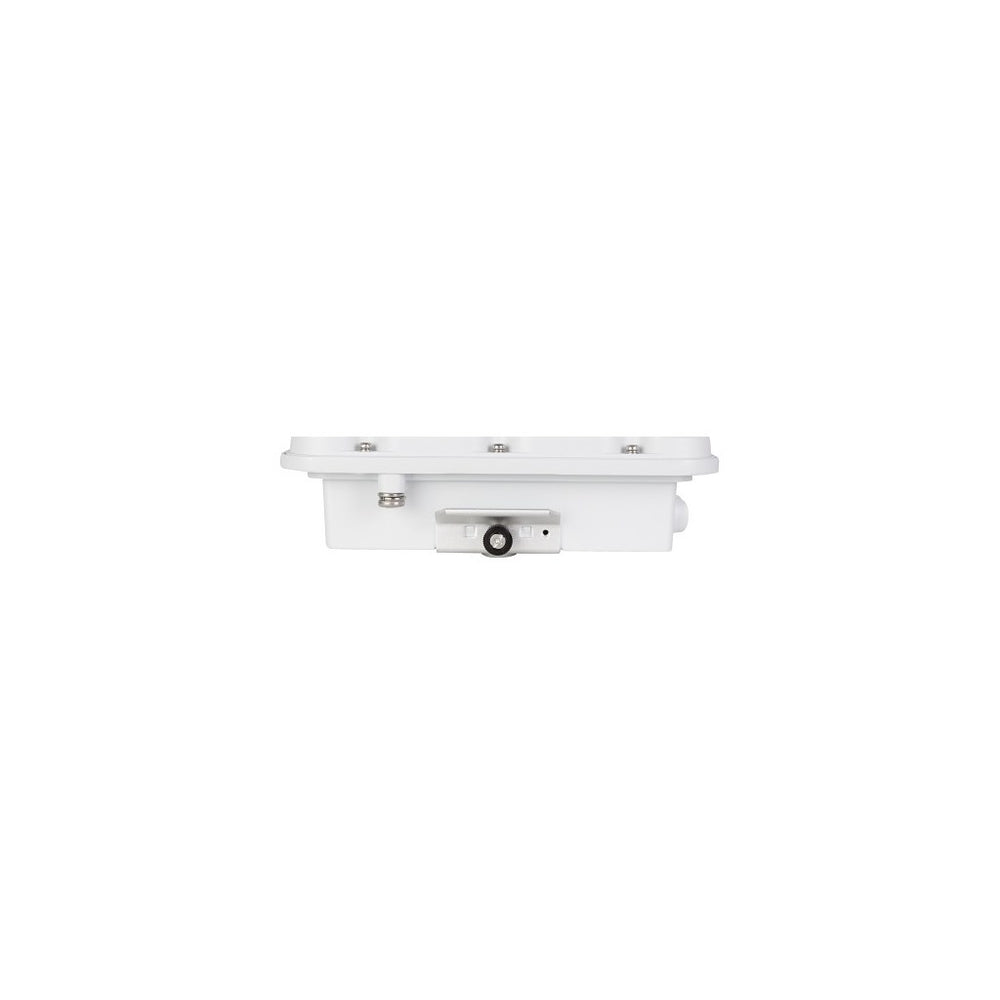

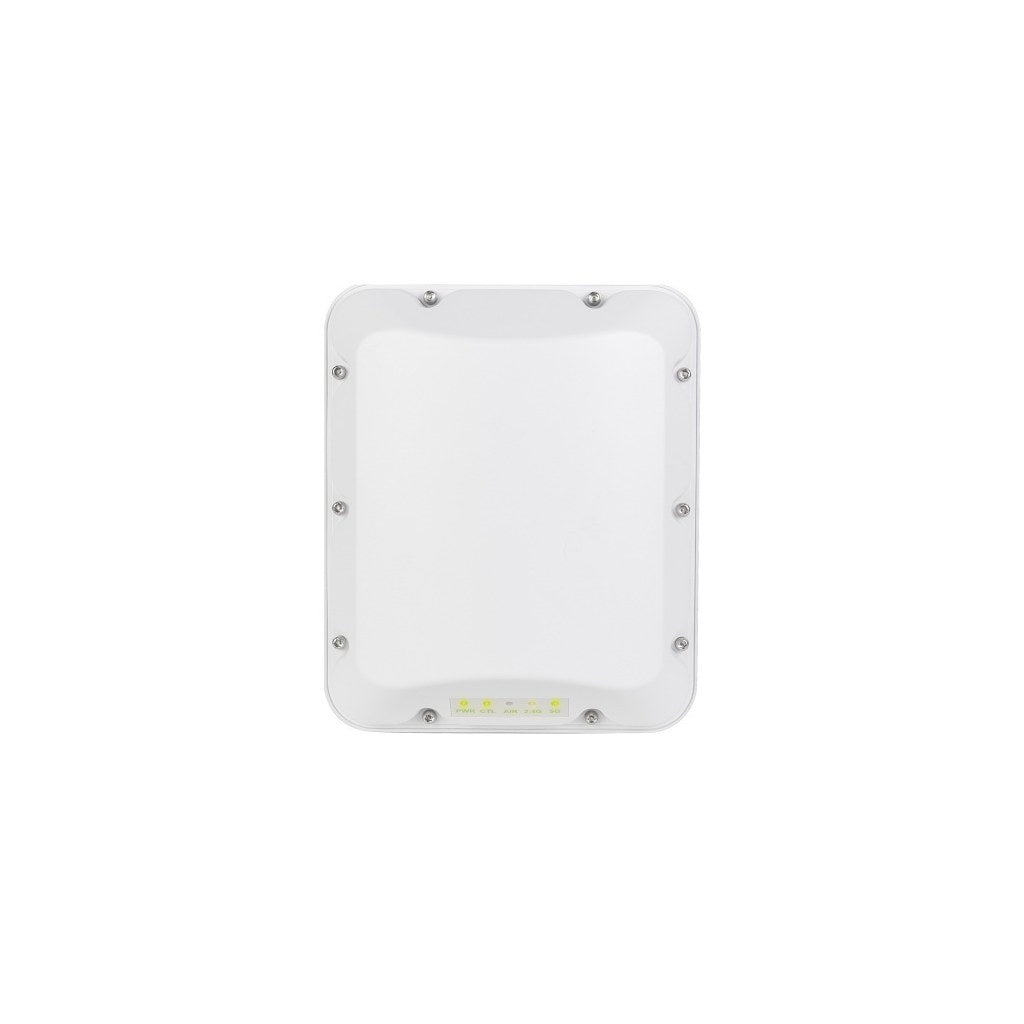

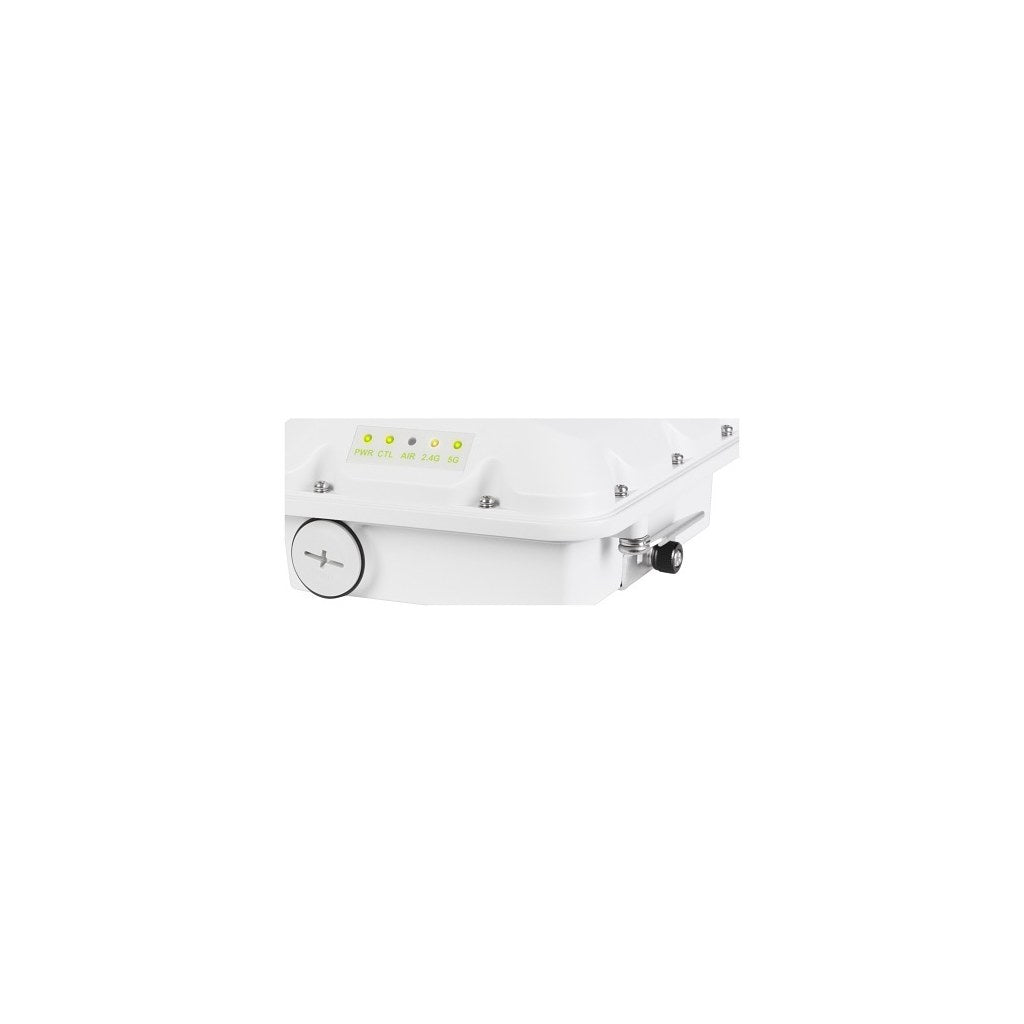

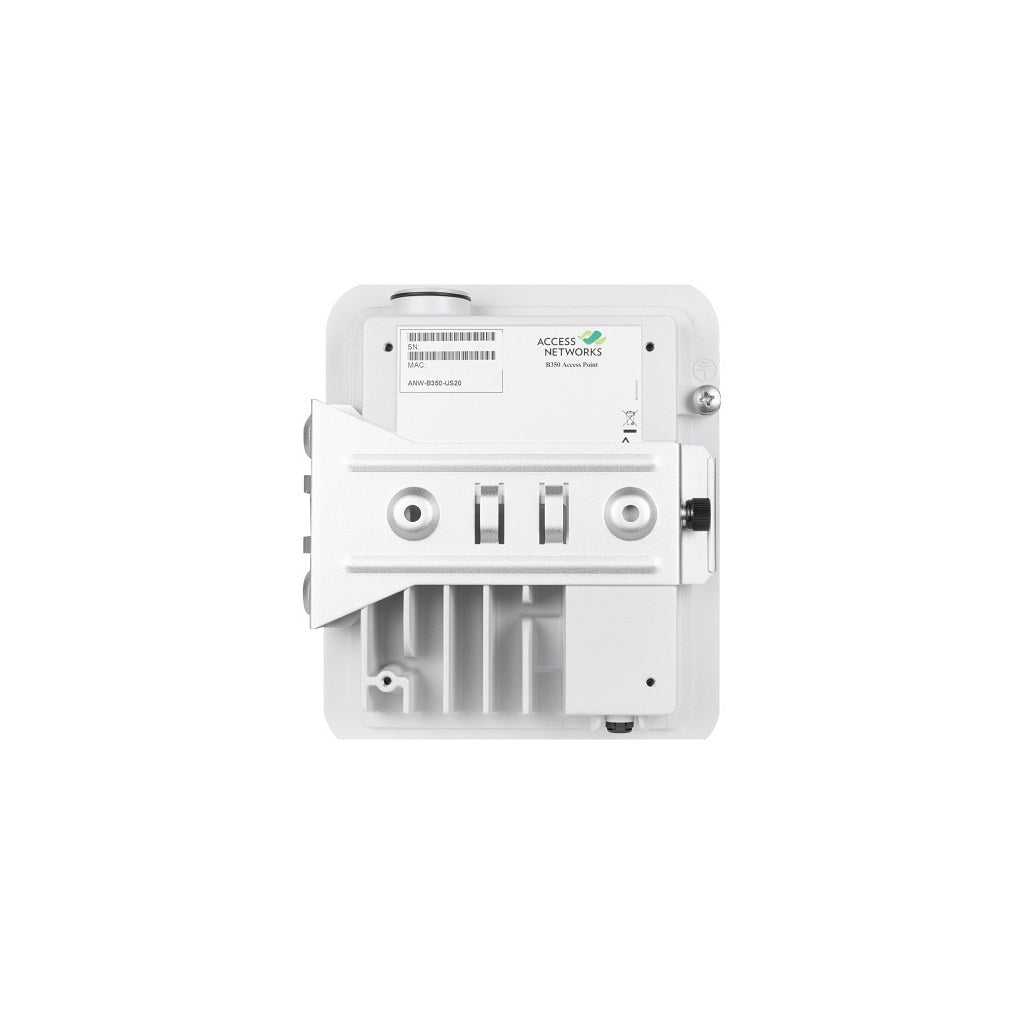

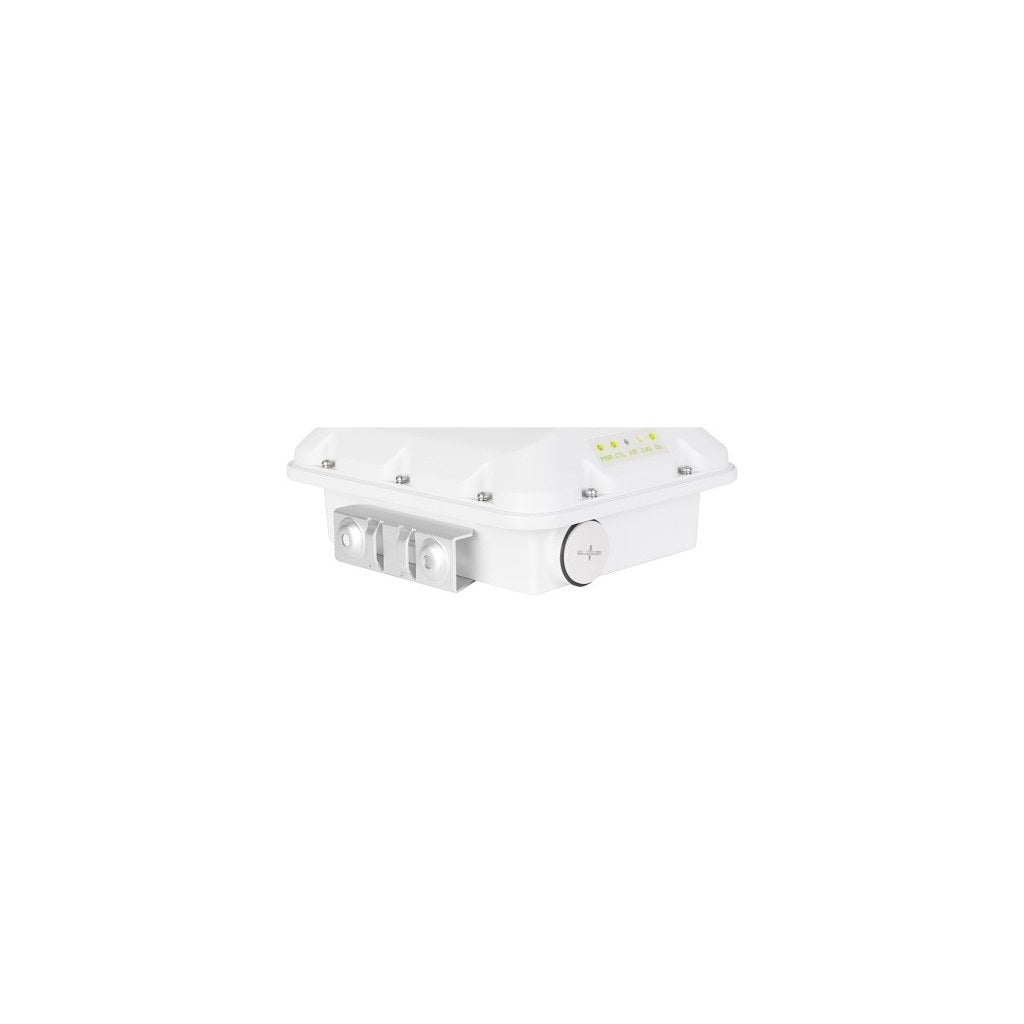

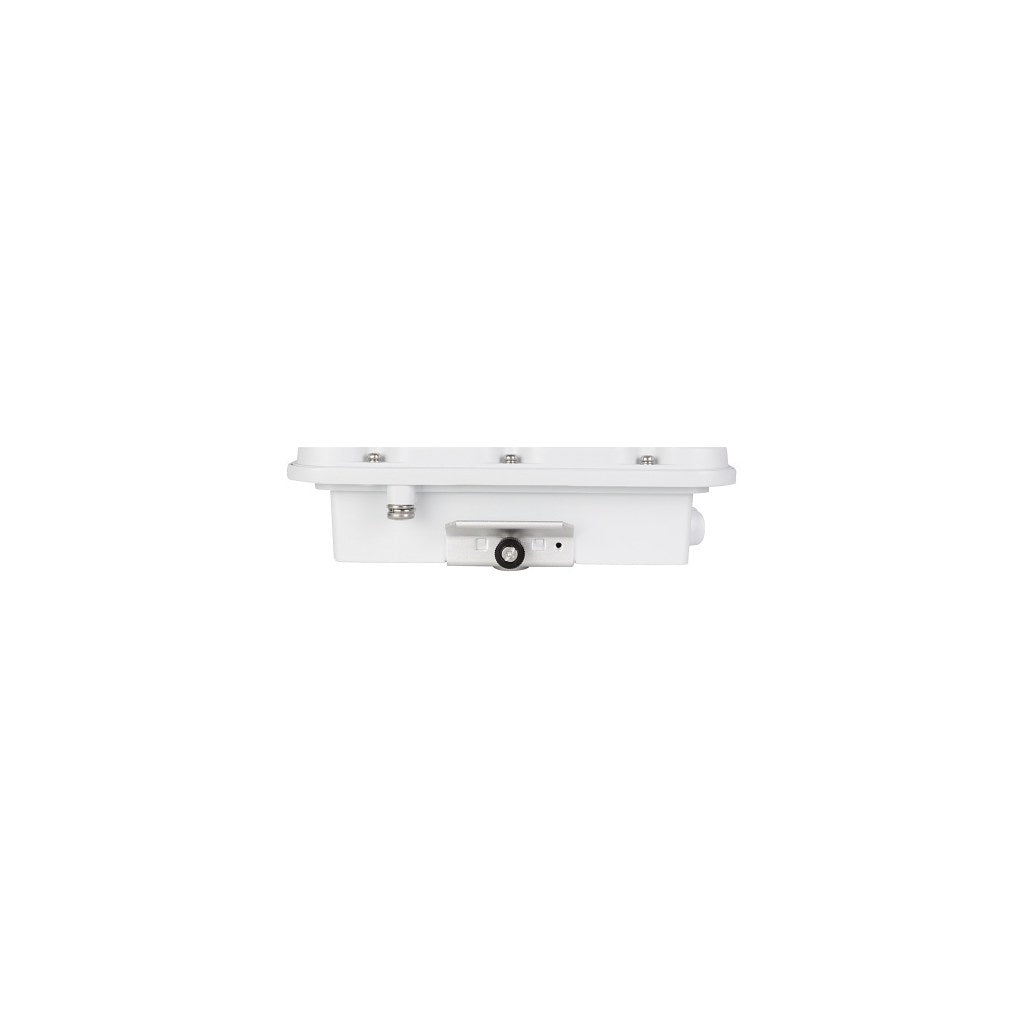

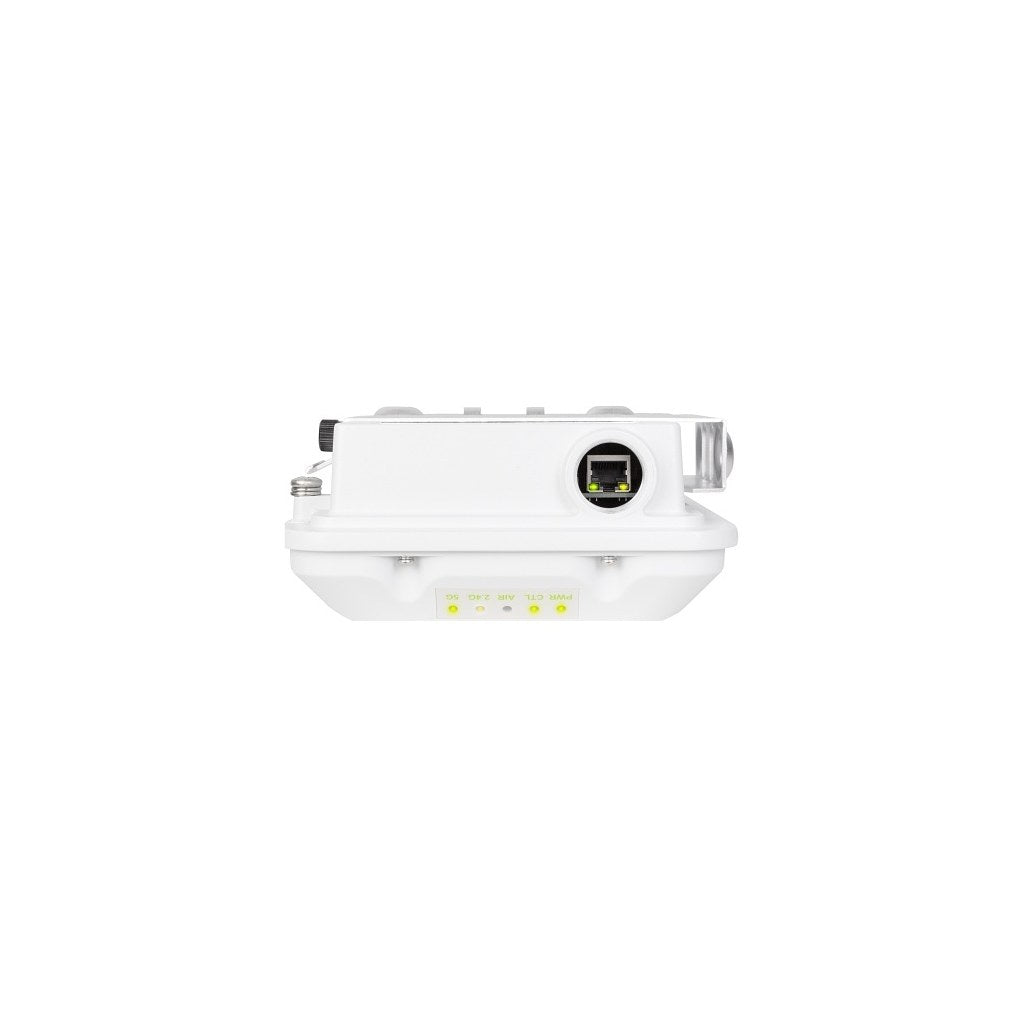

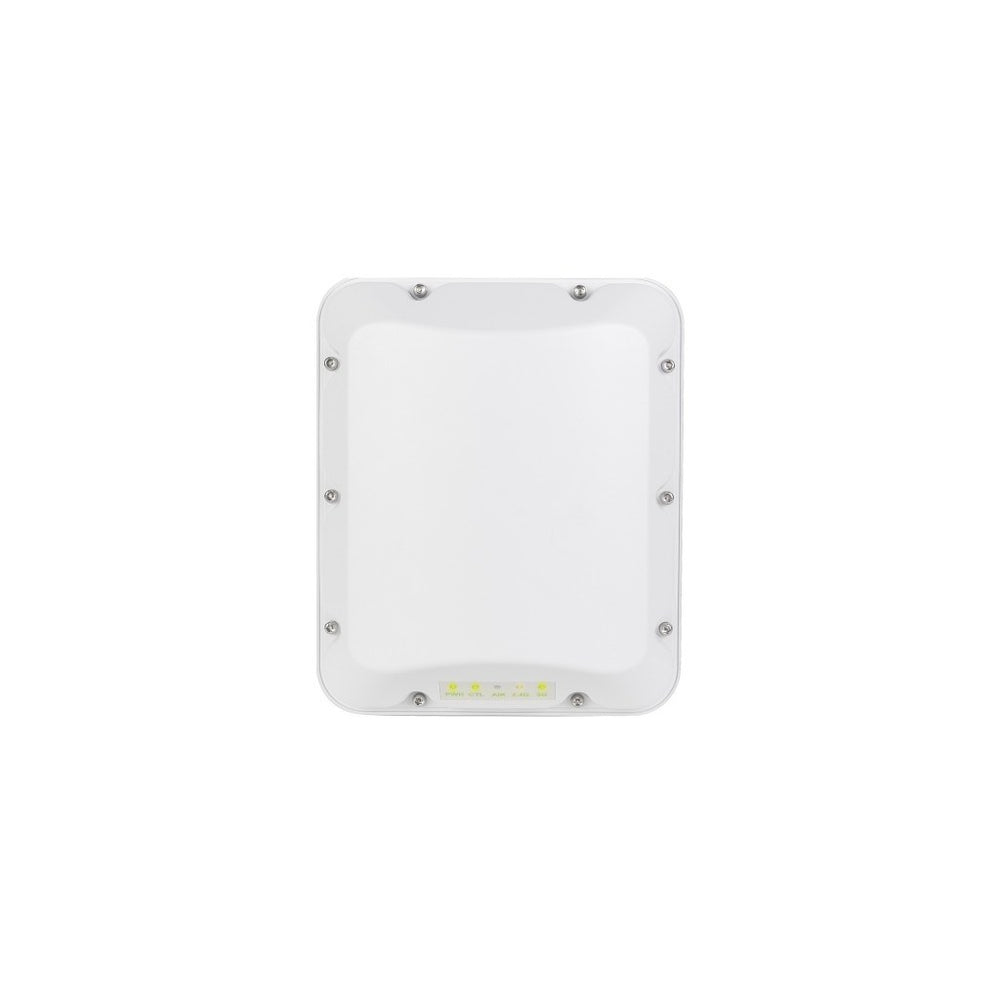

Access Networks B350 Unleashed Wi-Fi 6 Outdoor Access Point

Access Networks B350 Wi-Fi 6 Outdoor Access Point

The Access Networks B350 Wi-Fi 6 Outdoor Access Point is an outdoor 802.11ax AP with IP67 weather protection, omni-directional coverage, and dual-band 2.4GHz and 5GHz operation. It supports up to 512 clients per AP, reaches peak PHY rates up to 574 Mbps on 2.4GHz and 1200 Mbps on 5GHz, and includes a built-in controller for simplified deployment.

Built for patios, courtyards, multi-family housing, hospitality spaces, outdoor venues, and professional managed Wi-Fi projects, the B350 helps integrators deliver enterprise-grade outdoor wireless access without overcomplicating installation. Its lightweight enclosure, included mounting bracket, and PoE input support make it a practical outdoor Wi-Fi 6 AP for high-performance network upgrades.

BeamFlex+ adaptive antennas improve connection reliability by steering Wi-Fi energy toward connected devices instead of radiating in a fixed pattern. ChannelFly dynamic channel management, SmartMesh wireless meshing, WPA3 security, OvrC support, guest Wi-Fi services, and Wi-Fi CERTIFIED operation help the B350 support secure, scalable, and professionally managed outdoor networks.

B350 Outdoor Wi-Fi 6 Access Point Features

• Outdoor Wi-Fi 6 Performance: Supports 802.11ax wireless networking with concurrent 2.4GHz and 5GHz radios for modern outdoor coverage.
• IP67 Weather Protection: Helps protect the AP against dust, debris, rain, snow, and demanding outdoor installation environments.
• High Client Capacity: Supports up to 512 clients per AP, making it useful for dense outdoor and multi-user wireless deployments.
• BeamFlex+ Antennas: Uses adaptive antenna technology with polarization diversity to improve signal quality and reduce RF interference.
• Built-In Controller: Simplifies setup and management through the Unleashed platform without requiring a separate controller appliance.
• SmartMesh Support: Enables self-healing wireless meshing to help simplify outdoor AP placement and network expansion.
• PoE Installation: Uses a 1GbE RJ-45 PoE input for streamlined network and power connectivity over a single cable.
• Secure Network Tools: Supports WPA3, 802.1x, VLAN tools, access control lists, device fingerprinting, and rate limiting.

Technical Specifications

• Brand: Access Networks
• Model: B350
• Manufacturer Part Number: ANU-B350-US20
• ADI Part Number: UM-NUB350U20
• Product Series: Unleashed
• Product Type: Outdoor access point
• Application/Usage: Multi-family housing
• Indoor/Outdoor: Outdoor
• Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax
• Wi-Fi Generation: Wi-Fi 6
• Operating Frequency: 2.4GHz and 5GHz
• Frequency Bands: ISM 2.4-2.484GHz, U-NII-1 5.15-5.25GHz, U-NII-2A 5.25-5.35GHz, U-NII-2C 5.47-5.725GHz, U-NII-3 5.725-5.85GHz
• Supported Channels: 2.4GHz channels 1-13; 5GHz channels 36-64, 100-144, and 149-165
• MIMO: 2x2 SU-MIMO and 2x2 MU-MIMO
• Spatial Streams: 2 streams SU/MU MIMO on 5GHz and 2 streams SU/MU MIMO on 2.4GHz
• Radio Chains and Streams: 2x2:2 on 5GHz and 2x2:2 on 2.4GHz
• Channelization: 20MHz, 40MHz, and 80MHz
• Peak PHY Rates: 574 Mbps at 2.4GHz and 1200 Mbps at 5GHz
• Client Capacity: Up to 512 clients per AP
• SSIDs: Up to 31 per AP
• Antenna Type: Internal omni-directional
• Antenna Gain: Up to 3 dBi
• Antenna Optimization: BeamFlex+ adaptive antennas with polarization diversity and Maximal Ratio Combining
• Antenna Patterns: Up to 128 possible antenna pattern combinations
• Peak Transmit Power: 26 dBm at 2.4GHz and 25 dBm at 5GHz
• Radio Management: ChannelFly and background scan-based channel management
• Client Density Management: Adaptive band balancing, client load balancing, airtime fairness, and airtime-based WLAN prioritization
• Quality of Service: QoS-based scheduling, directed multicast, and L2/L3/L4 ACLs
• Mobility: SmartRoam
• Diagnostic Tools: Spectrum Analysis and SpeedFlex
• Controller Platform Support: ARCC cloud-based, C120 hardware controller, and Unleashed
• OvrC Enabled: Yes
• Mesh: SmartMesh self-healing wireless meshing technology
• IP Support: IPv4 and IPv6
• VLAN Support: 802.1Q, VLAN pooling, and port-based VLANs
• Authentication: 802.1x authenticator and supplicant
• Tunneling: L2TP, GRE, and Soft-GRE
• Policy Management: Application recognition and control, access control lists, device fingerprinting, and rate limiting
• Security: WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK, OWE, and WIPS/WIDS
• Other Wi-Fi Features: WMM, Power Save, transmit beamforming, LDPC, STBC, 802.11r/k/v, Hotspot 2.0, Captive Portal, and WISPr
• Ethernet: One 1GbE RJ-45 PoE input port
• PoE Standard: 802.3at PoE Class 4
• Power Consumption: 13.24W maximum with full functionality; 11.42W with USB and IoT disabled; 7.68W idle
• Ingress Protection Rating: IP67
• Mounting: Pole mount, wall mount, or flat surface
• Operating Temperature: -4°F to 149°F
• Operating Humidity: Up to 95%, non-condensing
• Wind Survivability: Up to 165 mph
• Altitude: Up to 10,000 ft functional operation
• Dimensions: 6.38" W x 7.67" L x 3.19" H
• Weight: 2.23 lbs with included bracket
• Wi-Fi Certifications: Wi-Fi CERTIFIED a, b, g, n, ac; Wi-Fi CERTIFIED 6; WPA3 Enterprise and Personal; Wi-Fi Enhanced Open; Wi-Fi Agile Multiband; Wi-Fi Optimized Connectivity; Wi-Fi Vantage; WMM; Passpoint
• Standards Compliance: EN 60950-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock and Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE, RoHS, and ISTA 2A Transportation
• Software and Services: SPoT location based services, SmartCell Insight, Access Networks Analytics, and Cloudpath
• Optional Accessories: 902-0162-XXYY PoE injector, 902-0125-0000 secure articulating mounting bracket, 902-0127-0000 extended USB dongle cap, 902-1121-0000 spare weatherizing cable gland, 902-0183-0000 spare RJ-45 weatherizing cable gland
• Warranty: Four-year warranty and support
• UPC: 818794022500

What's In the Box

• Access Networks B350 outdoor access point
• Mounting bracket
