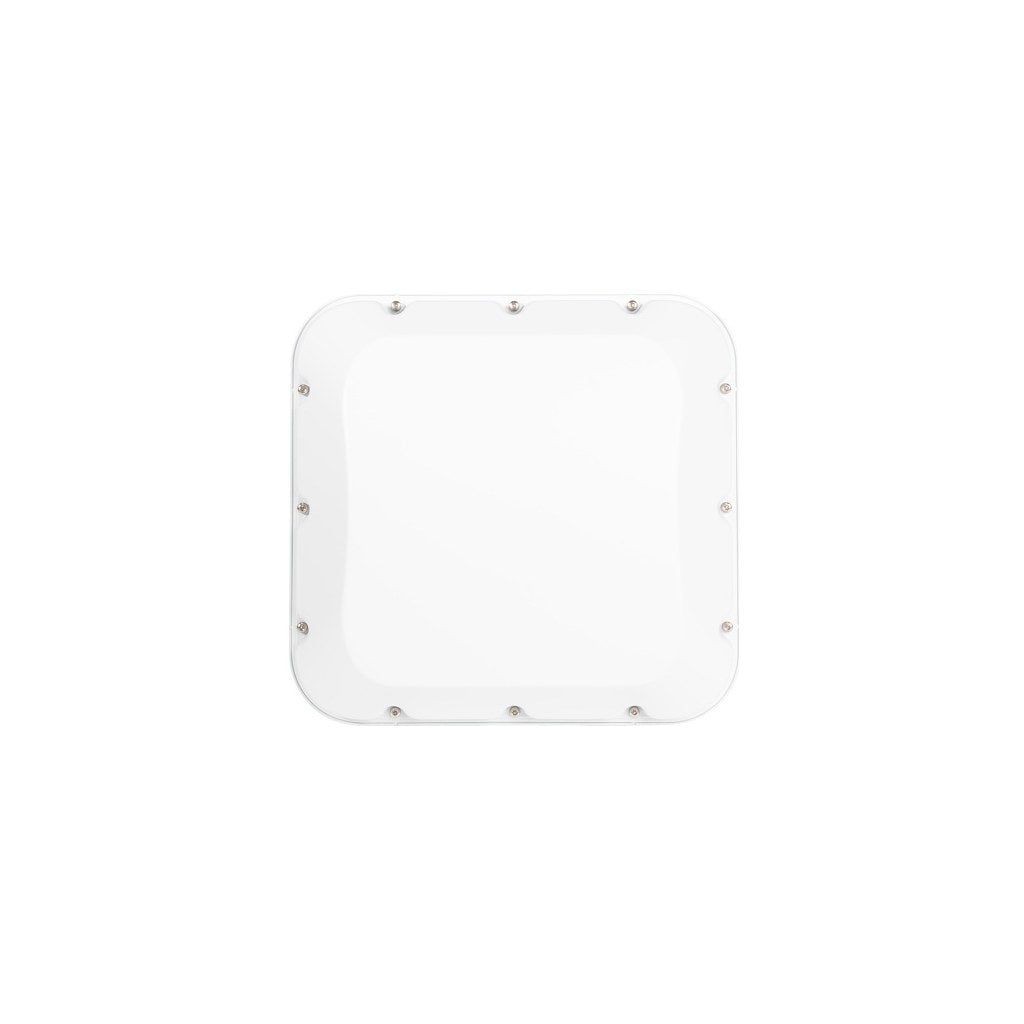

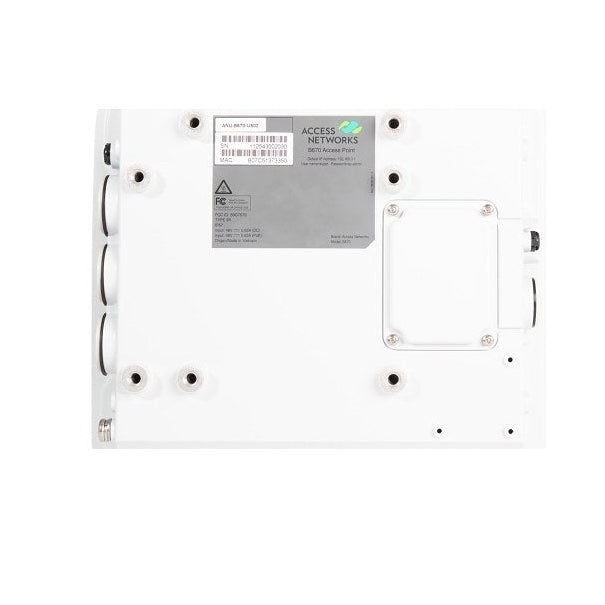

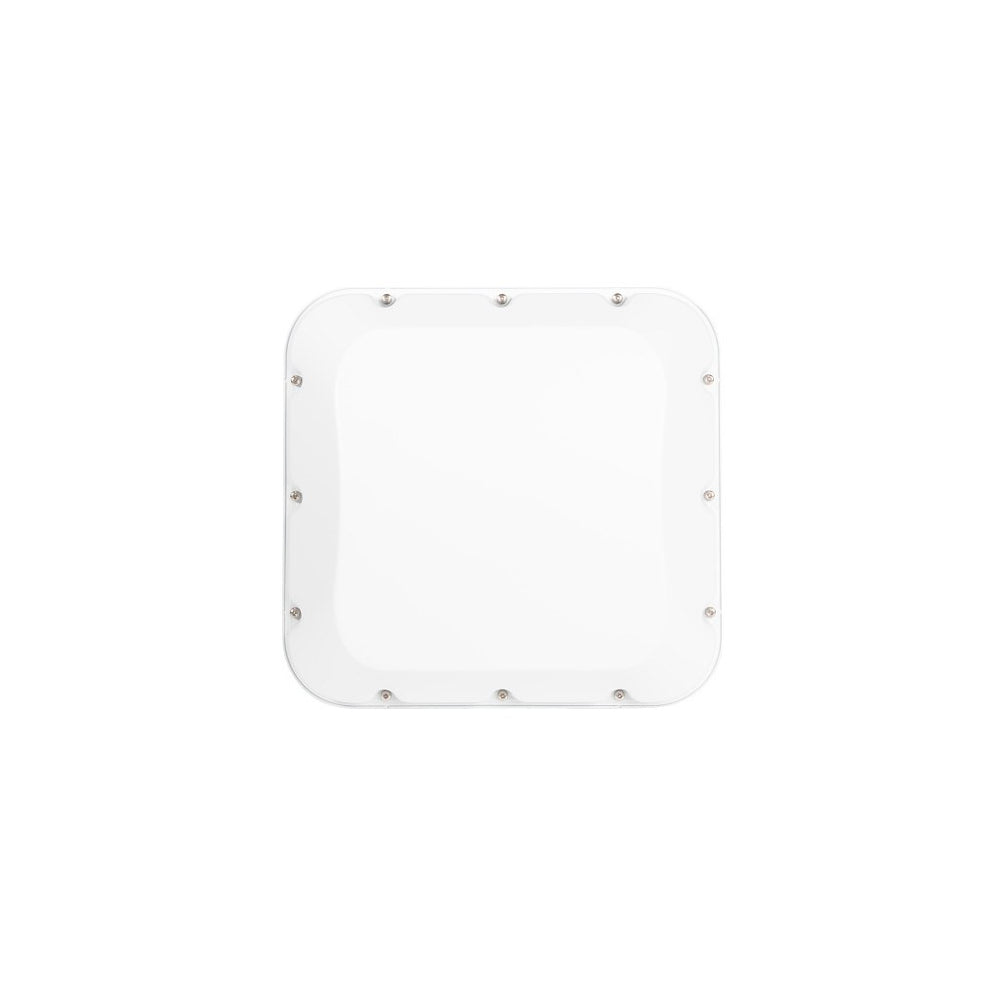

Access Networks B670 Unleashed Wi-Fi 7 Outdoor Access Point

Access Networks B670 Wi-Fi 7 Outdoor Access Point

The Access Networks B670 Wi-Fi 7 Outdoor Access Point is a tri-band outdoor AP built for high-capacity wireless coverage in demanding exterior environments. It delivers up to 9.34 Gbps combined data rate, supports up to 768 clients per AP, and uses six spatial streams across 2.4GHz, 5GHz, and 6GHz bands.

Designed for patios, courtyards, campuses, hospitality venues, transit hubs, stadiums, and outdoor commercial Wi-Fi deployments, the B670 helps integrators add enterprise-grade outdoor wireless coverage with simplified Unleashed management. Multi-Link Operation, Preamble Puncturing, 4K QAM, and 320MHz channels support 4K and 8K streaming, latency-sensitive voice, and dense mobile device traffic.

Its IP67-rated enclosure protects against weather, dust, debris, and water, while BeamFlex+ adaptive antennas improve signal direction and reduce interference. Built-in OvrC support, ARCC compatibility, AFC support for outdoor 6GHz operation, WPA3 security, 5 GbE PoE backhaul, onboard BLE or Zigbee IoT radio, TPM 2.0, Secure Boot, and built-in GPS make the B670 a strong fit for professional outdoor network projects.

B670 Unleashed Outdoor Wi-Fi 7 Features

• Wi-Fi 7 Performance: Supports 802.11be networking with up to 9.34 Gbps combined data rate for high-throughput outdoor wireless coverage.
• Outdoor-Rated Housing: IP67 ingress protection helps shield the access point from rain, snow, dust, debris, and harsh exterior conditions.
• High Client Capacity: Supports up to 768 clients per AP for dense outdoor spaces, public venues, commercial areas, and connected properties.
• 5 GbE PoE Backhaul: Uses a multi-gigabit Ethernet port to reduce wired bottlenecks in Wi-Fi 7 deployments.
• BeamFlex+ Adaptive Antennas: Dynamically selects from more than 4,000 antenna pattern combinations to improve coverage and reduce RF interference.
• Built-In Controller: Provides Unleashed setup and management with OvrC support for mobile, browser-based, and remote service workflows.
• Outdoor 6GHz Support: Includes AFC support and built-in GPS to help meet outdoor 6GHz regulatory requirements.
• Enterprise Security: Supports WPA3, DPSK3 to WPA3/SAE, 802.1x, VLAN tools, TPM 2.0, and Secure Boot for protected network access.

Technical Specifications

• Brand: Access Networks
• Model: B670
• Manufacturer Part Number: ANU-B670-US02
• ADI Part Number: UM-AN670US02
• Product Type: Outdoor access point
• Product Series: Unleashed
• Wi-Fi Generation: Wi-Fi 7
• Wi-Fi Standard: 802.11be
• Application/Usage: Multi-family housing
• Operating Frequency: 2.4GHz, 5GHz, and 6GHz
• Concurrent Operation: Tri-band concurrent 2.4GHz, 5GHz, and 6GHz
• Spatial Streams: 6 total; 2x2:2 on 2.4GHz, 5GHz, and 6GHz, or 2x2:2 on 2.4GHz plus 4x4:4 on 5GHz in dual-band mode
• Peak PHY Rates: 2.4GHz 689 Mbps; 5GHz 5765 Mbps in 4x4:4 mode or 2882 Mbps in 2x2:2 mode; 6GHz 5765 Mbps
• Combined Data Rate: Up to 9.34 Gbps
• Client Capacity: Up to 768 clients per AP
• SSIDs: Up to 36 per AP
• Wi-Fi Technologies: Multi-Link Operation, Preamble Puncturing, 4K QAM modulation, and 320MHz channels
• Antenna Optimization: BeamFlex+ with Polarization Diversity and Maximal Ratio Combining
• Antenna Patterns: More than 4,000 possible combinations
• Antenna Gain: Up to 4 dBi
• Radio Management: ChannelFly and background scan-based channel management
• Client Density Management: Adaptive band balancing, client load balancing, airtime fairness, and airtime-based WLAN prioritization
• Quality of Service: QoS-based scheduling, QoS mirroring, directed multicast, and L2/L3/L4 ACLs
• Mobility: SmartRoam
• Diagnostic Tools: Spectrum Analysis and SpeedFlex
• Controller Platform Support: ARCC and Unleashed with OvrC
• OvrC Enabled: Yes
• Mesh: SmartMesh self-healing wireless meshing in 2.4GHz, 5GHz, and 6GHz
• IP Support: IPv4, IPv6, and dual-stack
• VLAN Support: 802.1Q, VLAN pooling, and port-based VLANs
• Authentication: 802.1x authenticator and supplicant
• Tunneling: GRE and Soft-GRE
• Policy Management: Application recognition and control, access control lists, device fingerprinting, rate limiting, and URL filtering
• Security: WPA3 with DPSK3 to WPA3/SAE support
• IoT Radio: Onboard BLE and Zigbee selectable IoT radio
• Platform Security: TPM 2.0 and Secure Boot
• GPS: Built-in GPS
• AFC Requirement: AFC must be enabled for the 6GHz radio to operate outdoors
• Ethernet Ports: One 100M/1/2.5/5GbE PoE port and one 10M/100M/1GbE port
• Ethernet Technology: 5 Gigabit Ethernet
• Power over Ethernet: 802.3af/at/bt with Category 5e or better cable and LLDP support
• Recommended Power: 60W PoE++ allocation per access point
• Recommended Cabling: CAT6A cabling for proper operation
• DC Power: 48V DC power jack
• Power Adapter: Not included
• Power Consumption: DC power 33W; 802.3bt PoH/uPoE 33W; 802.3at 25.5W
• Ingress Protection Rating: IP67
• Operating Temperature: -40°F to 145°F
• Operating Humidity: Up to 95%, non-condensing
• Wind Survivability: 165 miles per hour
• Mounting: Wall mount, pole mount, or flat surface
• Physical Security: Secure bracket sold separately
• Dimensions: 9.8" L x 9.4" W x 4.3" H
• Weight: 5 lbs
• Wi-Fi Certifications: Wi-Fi CERTIFIED a, b, g, n, ac, ax, be; Passpoint; Vantage
• Standards Compliance: IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1, EN 50121-4, IEC 61373, UL 2043, EN 62311, WEEE, RoHS, ISTA 2A
• Cloud-Based Services: ARCC
• Cloud-Based Management: OvrC
• Optional Accessories: 902-1180-XX00 multigigabit PoE injector; 902-0120-0000 spare articulating mounting bracket; 902-1170-XX00 secure articulating mounting bracket; 902-0196-0000 spare cable gland
• Warranty: Four-year limited warranty with limited lifetime technical support

What's In the Box

• Access Networks B670 Wi-Fi 7 outdoor access point

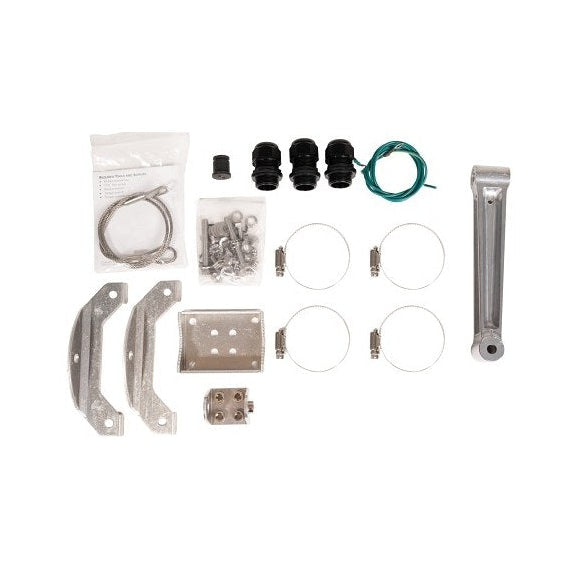

• Mounting brackets
