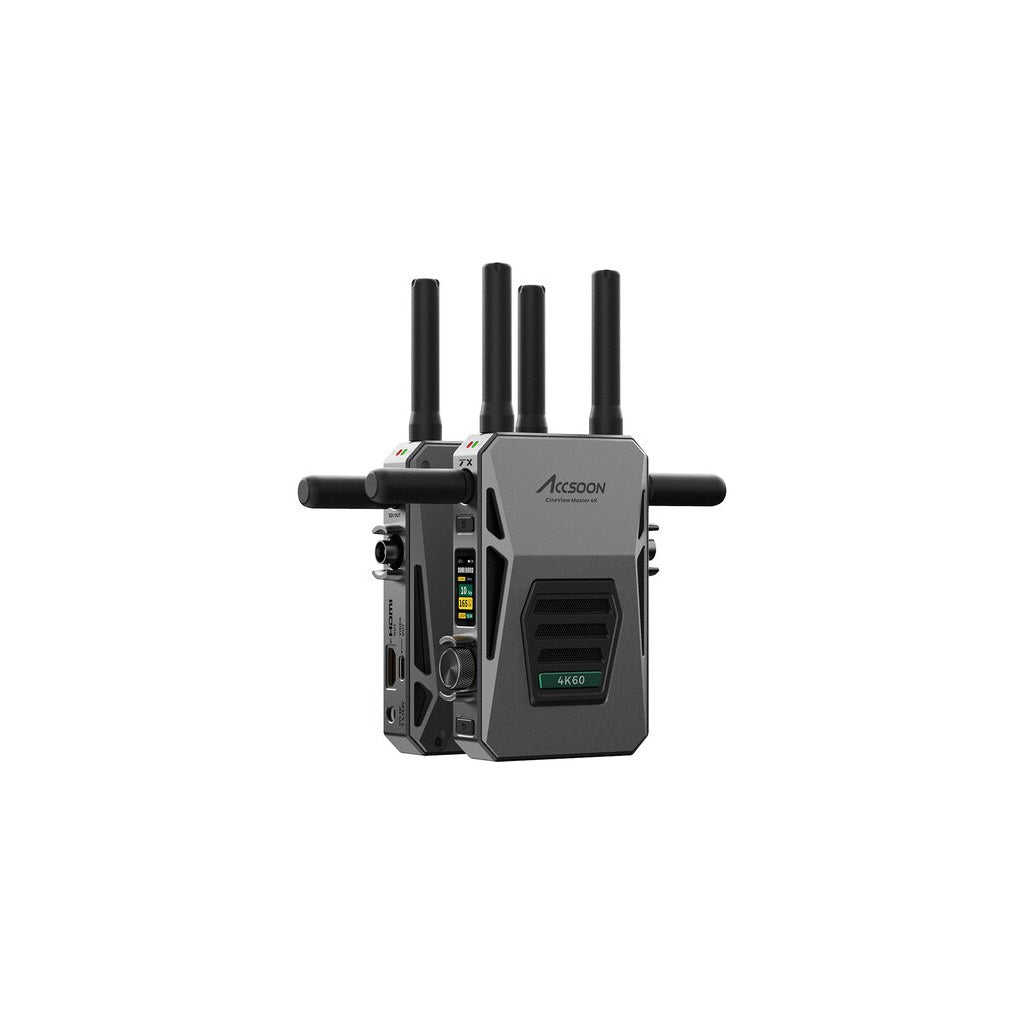

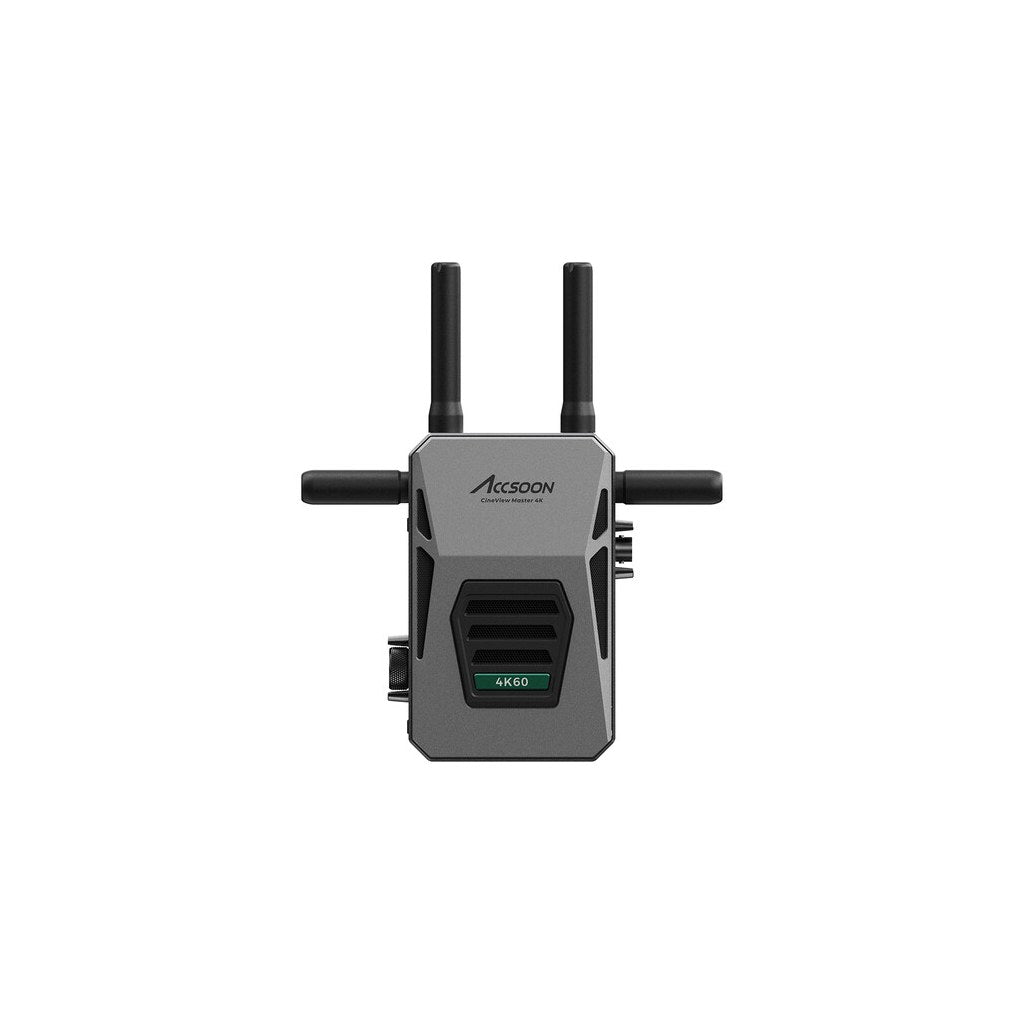

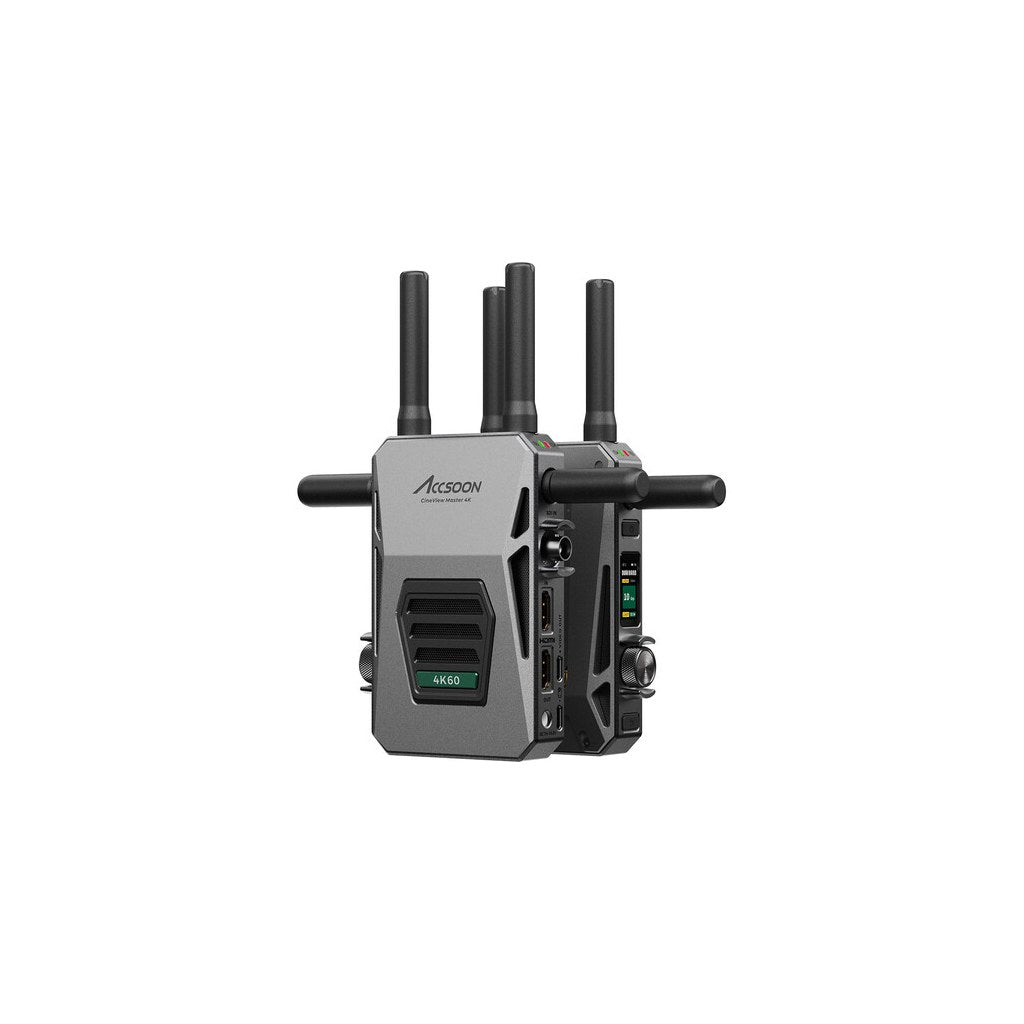

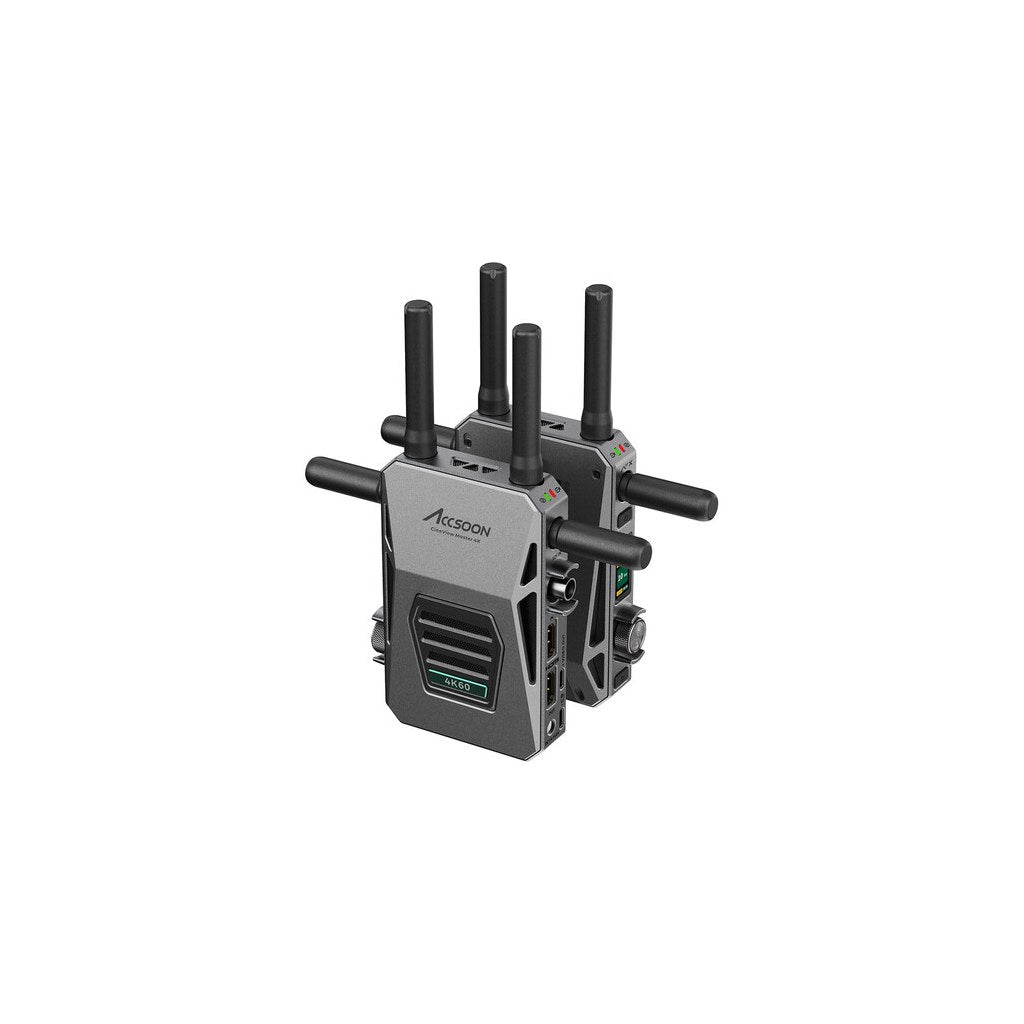

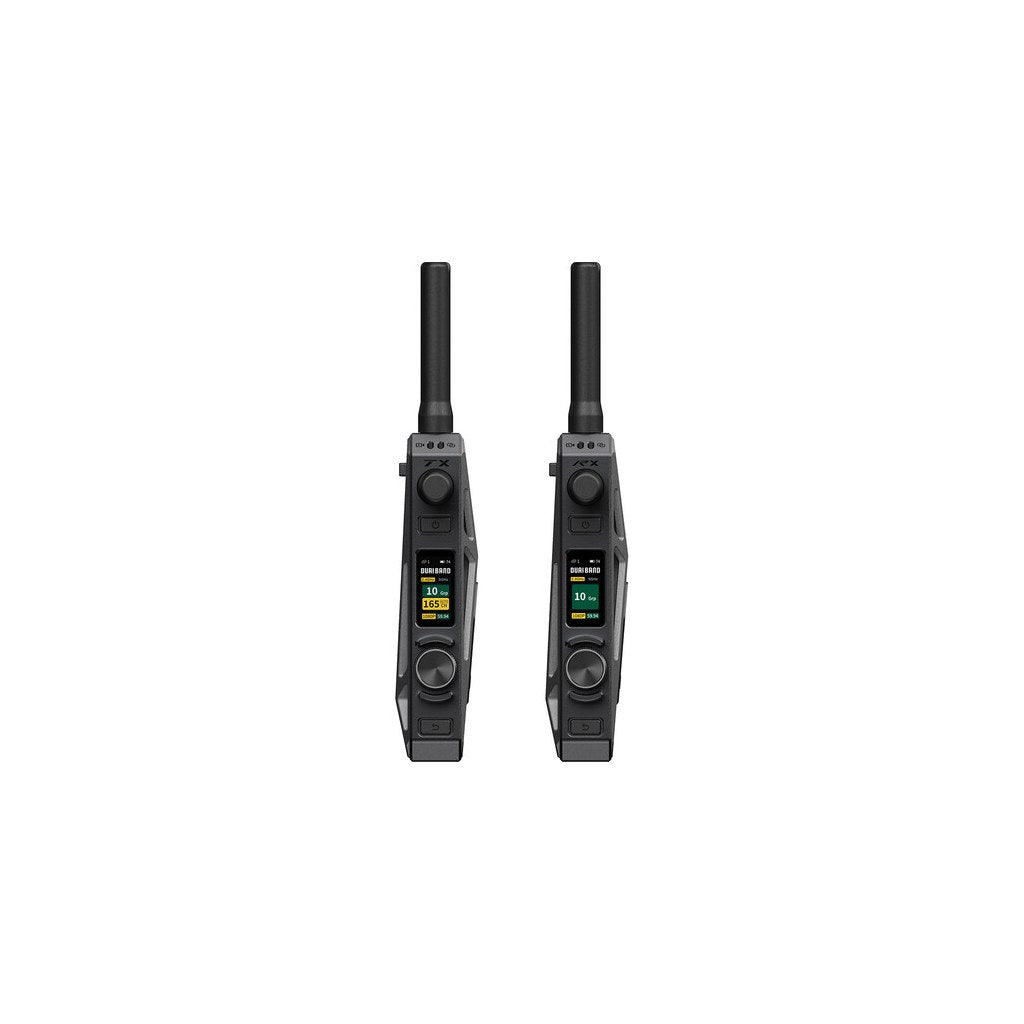

Accsoon CineView Master 4K Lite Wireless Video Receiver
The Accsoon CineView Master 4K Lite Wireless Video Receiver receives professional dual-band video for on-set monitoring. It supports up to DCI 4K60 and UHD 4K60 over HDMI, 1080p60 over 3G-SDI and USB video output, H.265 encoding, RTMS 4.0 transmission, and up to 1200' wireless range.
This 4K wireless video receiver is built for directors, focus pullers, camera crews, and live production teams that need reliable monitoring from a separately available CineView Master 4K Lite transmitter. Use it for director monitors, production carts, handheld monitor rigs, and multi-device video workflows.

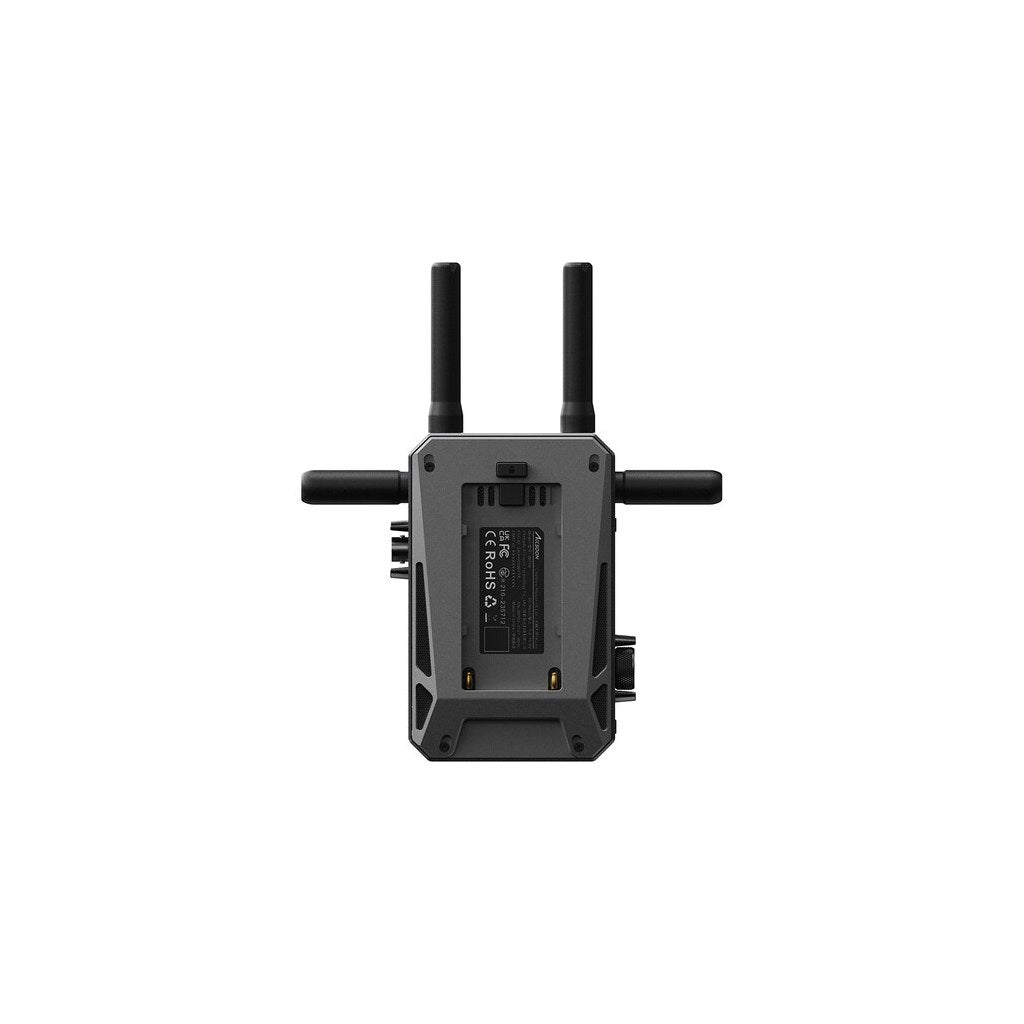

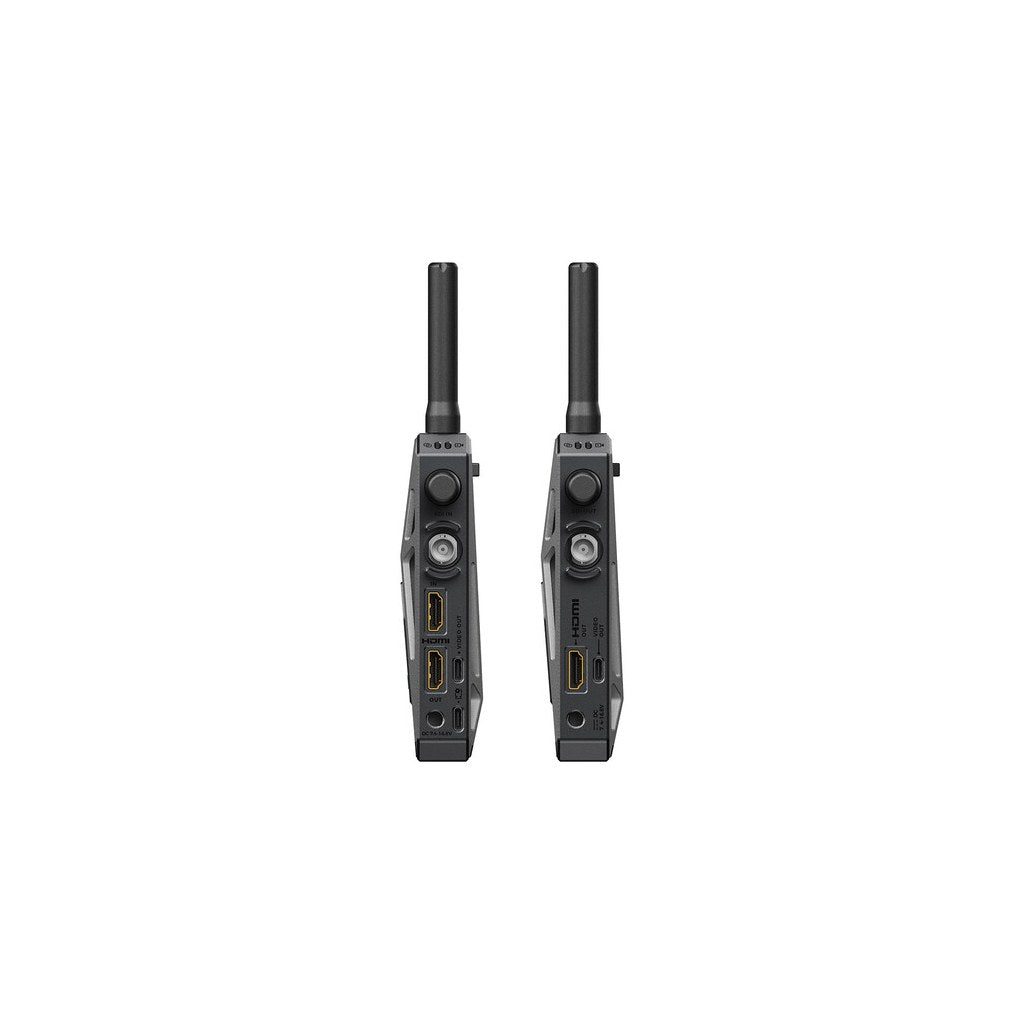

Accsoon’s proprietary RTMS 4.0 protocol combines 2.4 GHz and 5 GHz frequencies with DFS transmission for stable reception in demanding RF environments. HDMI, 3G-SDI, and USB video outputs support flexible monitoring, while NP-F battery compatibility, DC power input, and 1/4"-20 mounting fit field production.
Dual-Band 4K60 Wireless Video Reception
- 4K60 HDMI Output: Outputs DCI 4K, UHD 4K, and HD formats for high-resolution production monitoring.
- 3G-SDI Output: Sends 1080p video over SDI for professional monitors, switchers, and production systems.
- USB Video Output: Supports wired mobile device monitoring through compatible USB or Lightning connections.
- RTMS 4.0 Protocol: Integrates 2.4 GHz and 5 GHz transmission for improved stability, faster connection, and lower latency.
- Low-Latency Performance: Delivers less than 35 ms latency at 1080p60 and less than 65 ms latency at 4K60.
- Long-Range Reception: Communicates up to 1200' / 350 m in unobstructed, interference-free environments.
- H.265 Encoding: Maintains efficient, high-quality video transmission at bitrates up to 32 Mbps.

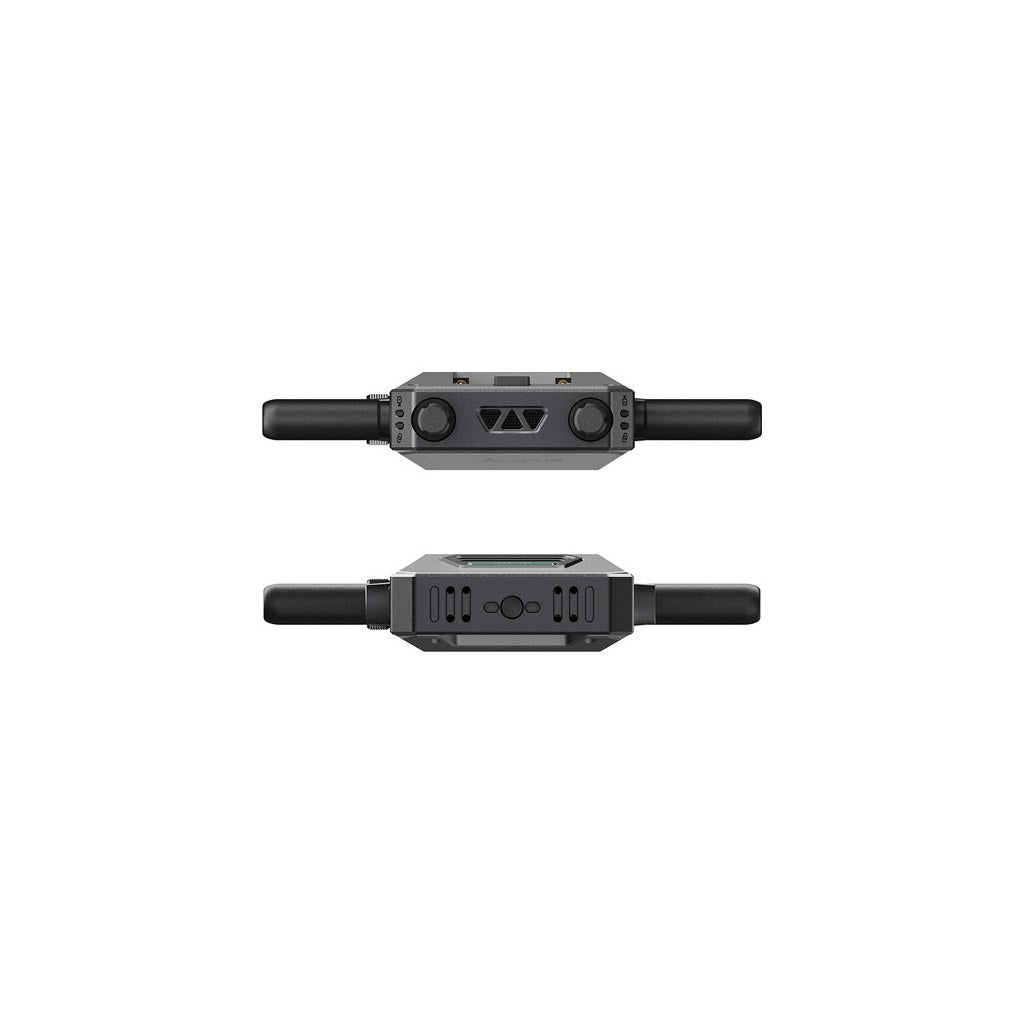

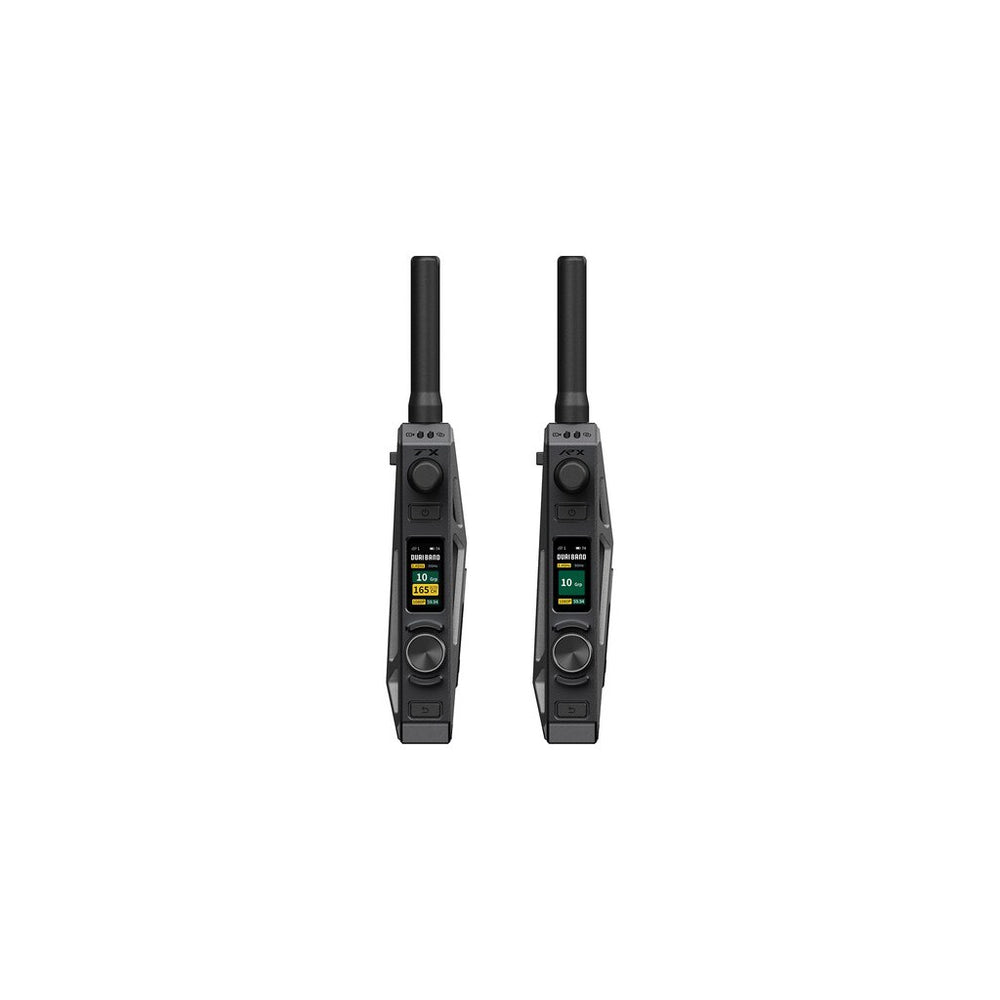

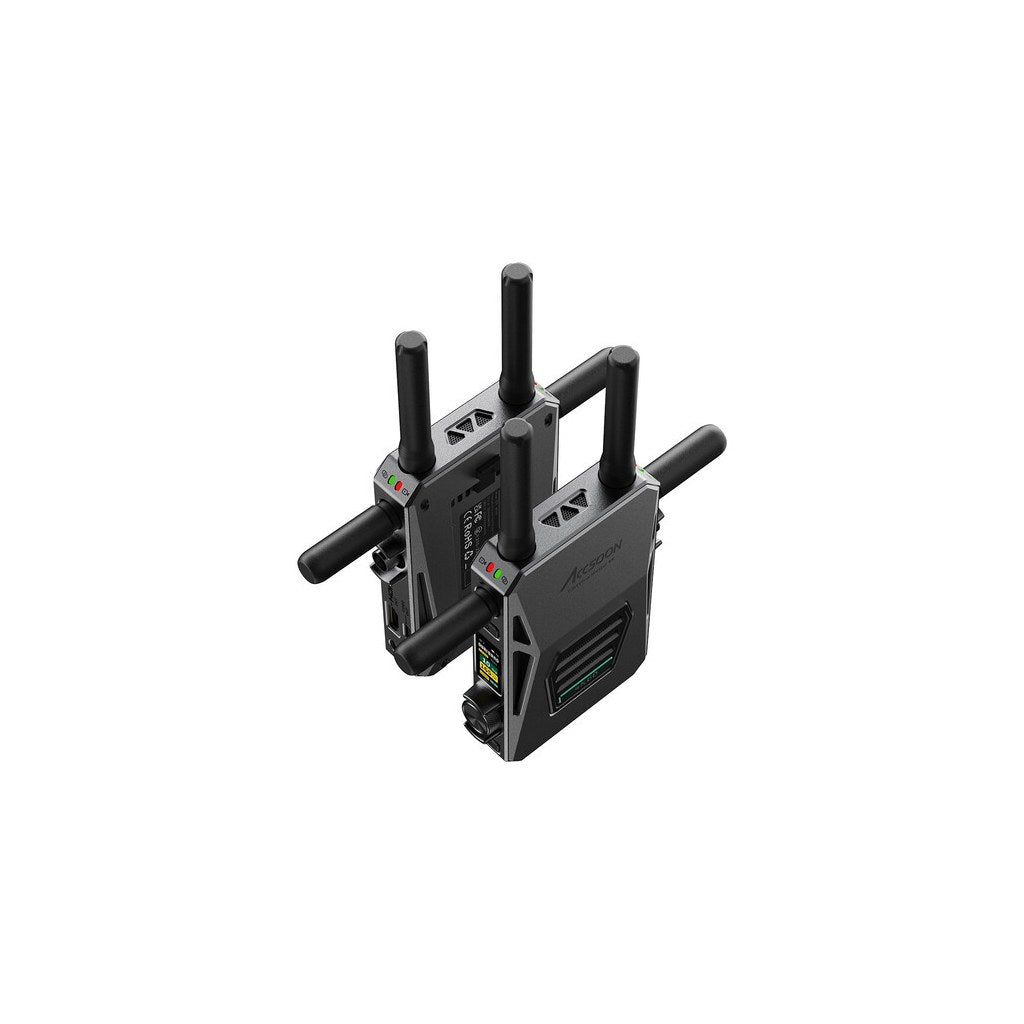

- Compact Field Design: Uses a lightweight body with swappable antennas, status display, and 1/4"-20 mounting support.
Technical Specifications
- Brand: Accsoon
- Model: CineView Master 4K Lite
- Manufacturer Part Number: CVM4KLRX
- Product Type: Wireless video receiver
- Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon

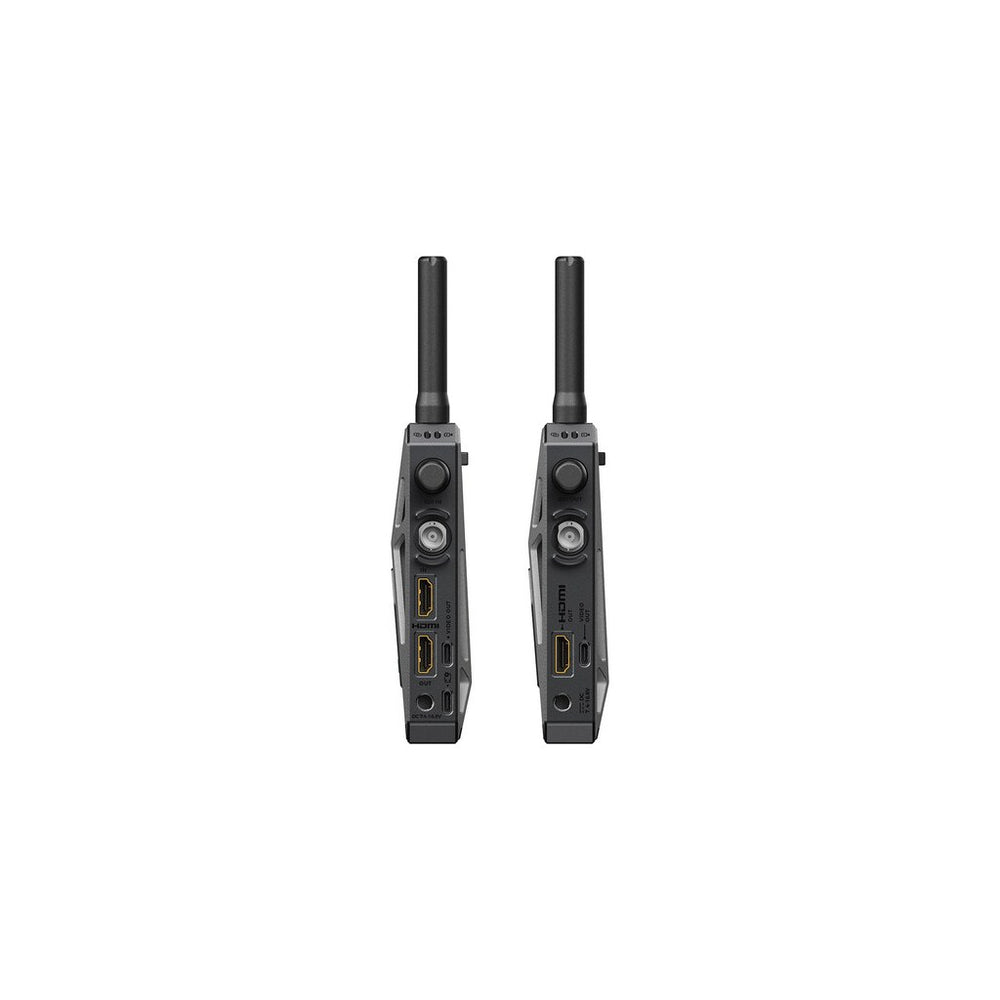

- Video Output: HDMI, 3G-SDI, and USB video output
- SDI Output Format: 1080p 23.98/24/25/29.97/30/50/59.94/60p, Level A
- HDMI Output Format: DCI 4K 23.98/24/25/29.97/30/50/59.94/60p; UHD 23.98/24/25/29.97/30/50/59.94/60p; 1080p 23.98/24/25/29.97/30/50/59.94/60p
- Wireless Frequency: Dual-band 2.4 GHz and 5 GHz with DFS transmission
- Wireless Range: Up to 1200' / 350 m with no obstacles or interference
- Video Encoding: H.265
- Maximum Bitrate: Up to 32 Mbps
- Latency: TX to RX 1080p60 less than 35 ms; 4K60 less than 65 ms
- Embedded Audio: HDMI and SDI embedded audio
- Timecode Support: No
- DC Port: 5.5mm x 2.1mm, center positive
- DC Voltage: 7.4 to 16.8 VDC
- Battery Compatibility: NP-F550, NP-F750, and NP-F970 battery
- Power Consumption: 4.6W average, without powering other devices
- Mobile App Compatibility: Android and iOS
- Mounting: 1/4"-20 female thread
- Status Display: Yes
- Operating Temperature: 14°F to 104°F
- Dimensions: 5.1" x 3.7" x 1.3", antennas not included
- Weight: 0.71 lbs, antennas not included
What's In the Box
- Accsoon CineView Master 4K Lite Wireless Video Receiver
- Shoe Mount Adapter
- 2 x 5 GHz Antenna
- 2 x 2 GHz Antenna
- Allen Key
- Limited 1-Year Manufacturer Warranty
