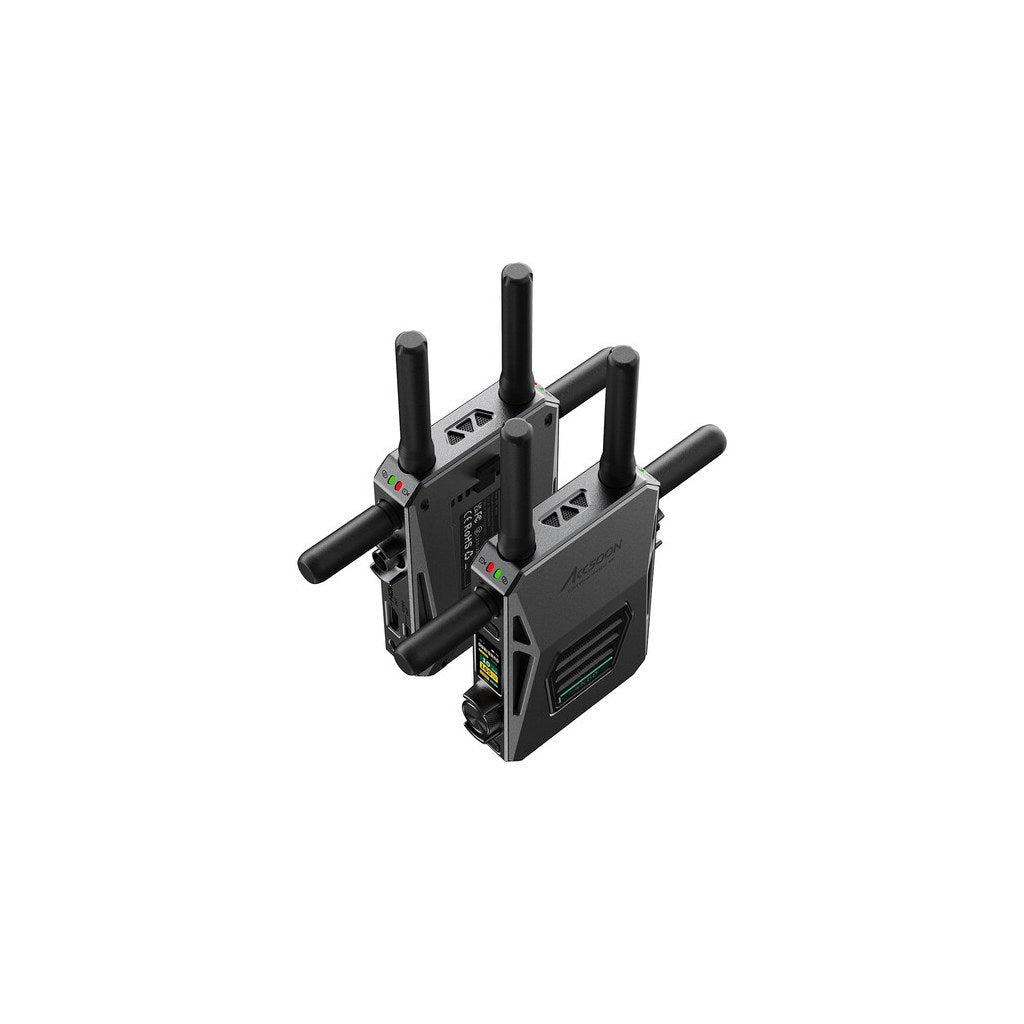

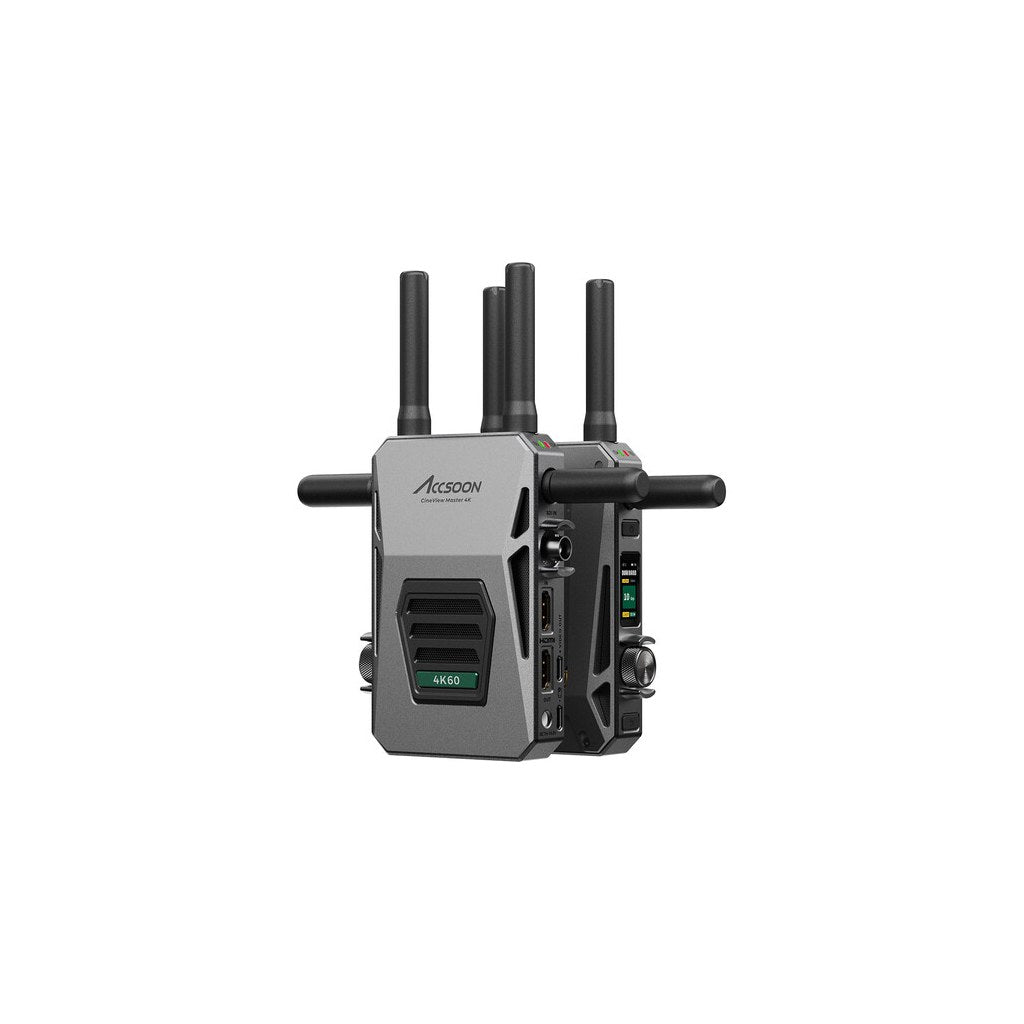

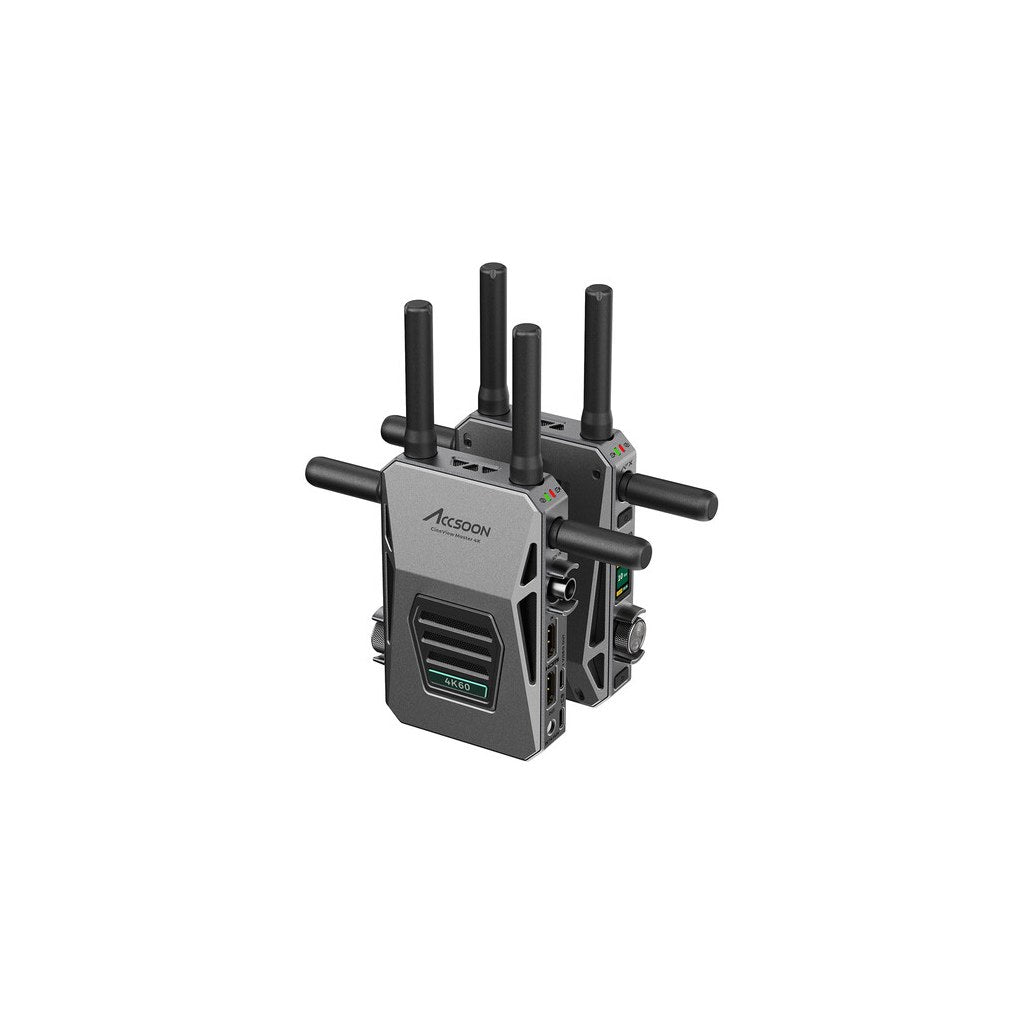

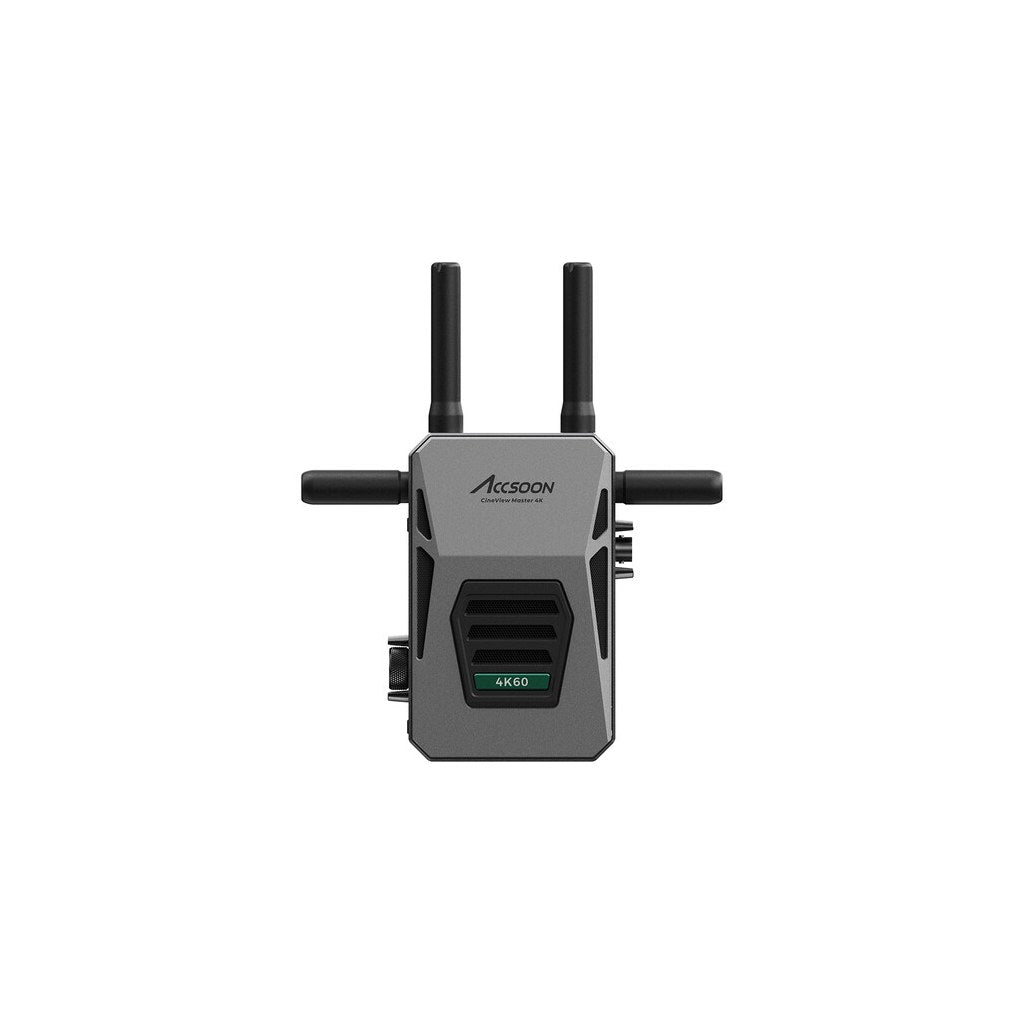

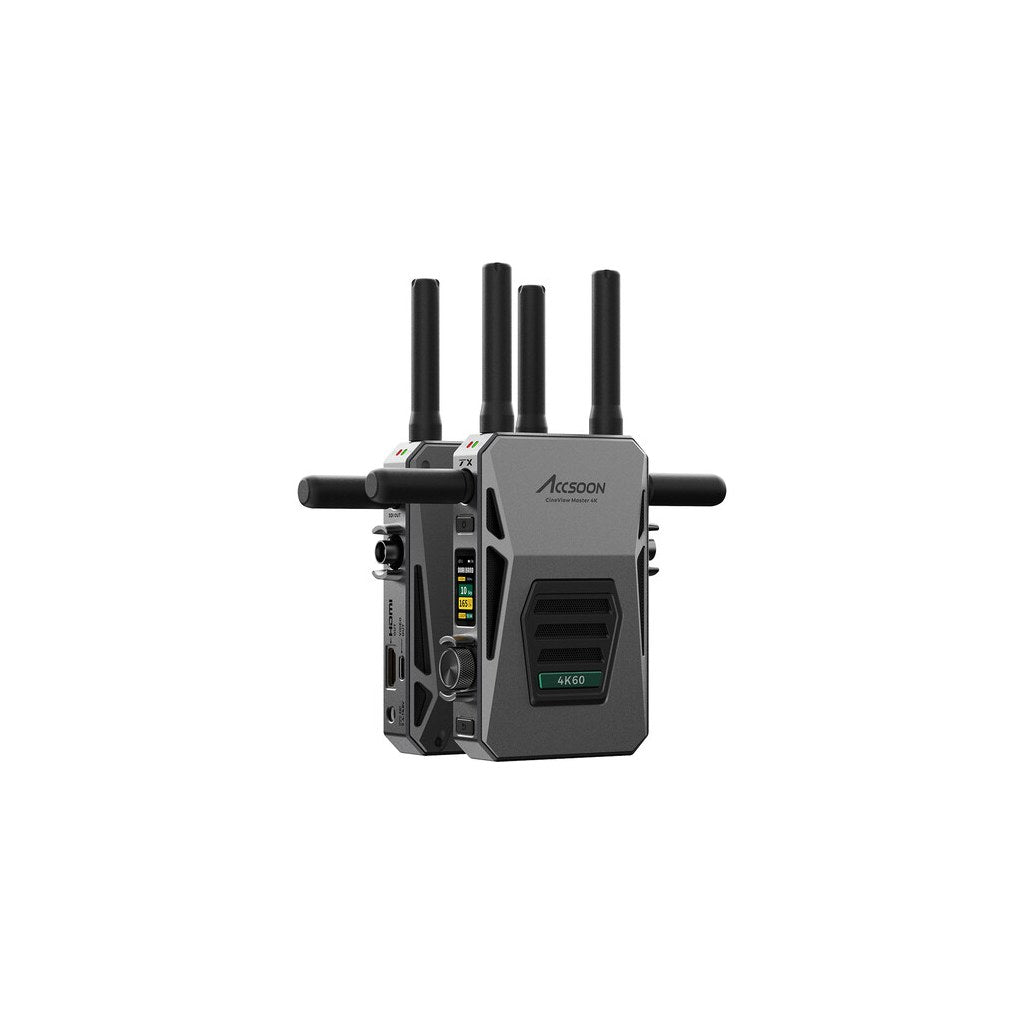

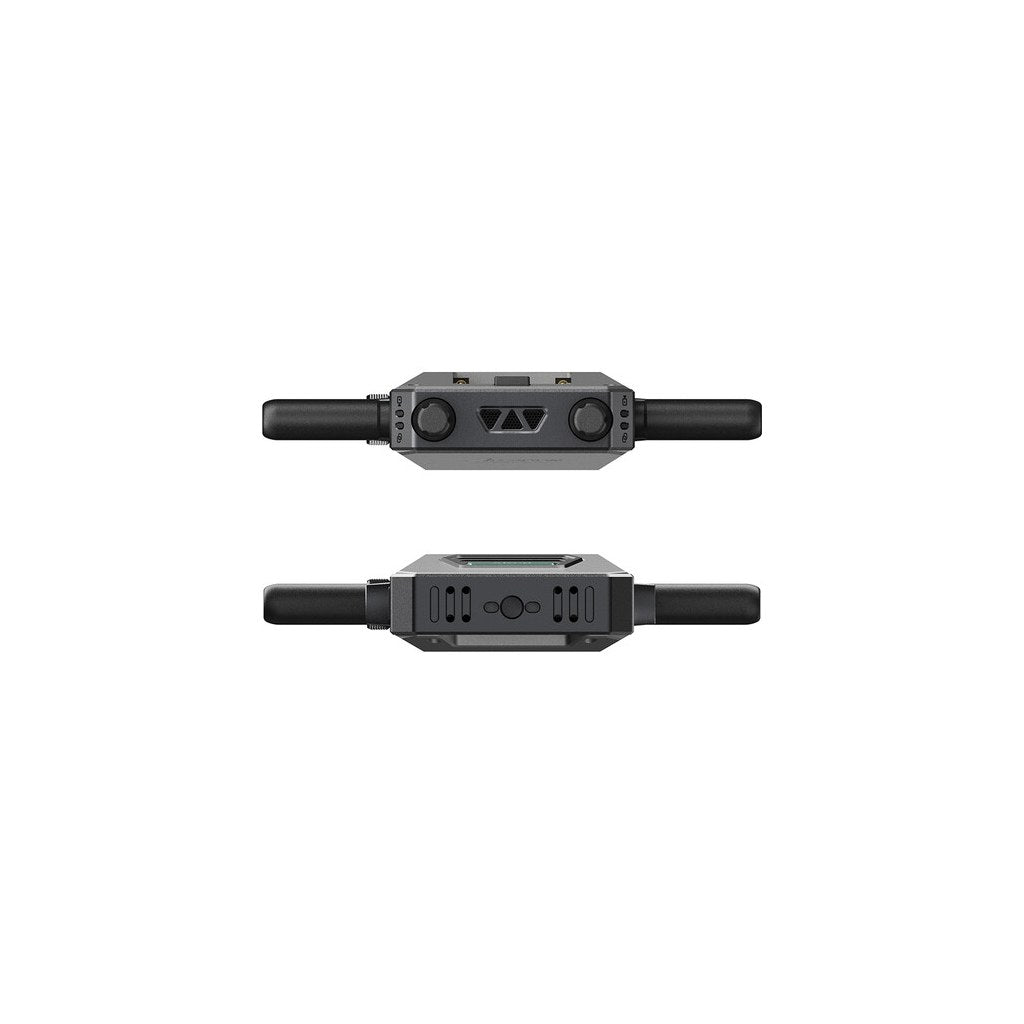

Accsoon CineView Master 4K Lite Wireless Video Transmitter

Accsoon CineView Master 4K Lite Wireless Video Transmitter

The Accsoon CineView Master 4K Lite Wireless Video Transmitter sends professional camera video over dual-band 2.4 GHz and 5 GHz transmission. It supports up to DCI 4K60 and UHD 4K60 over HDMI, 1080p60 over 3G-SDI, H.265 encoding, USB-C wired monitoring, and up to 1200' wireless range.

This 4K wireless video transmitter is built for camera operators, directors, focus pullers, and compact production crews that need reliable on-set monitoring. Use it for handheld camera builds, director monitors, live production, branded content shoots, and mobile video workflows that demand low-latency wireless video transmission.

Accsoon’s proprietary RTMS 4.0 protocol, DFS transmission, and H.265 video engine support stable performance in demanding RF environments. USB-C camera control works with select Sony and Canon cameras, while NP-F battery support, DC power input, a status display, and 1/4"-20 mounting fit professional field production.

Dual-Band 4K60 Wireless Video Transmission

• 4K60 HDMI Input: Supports DCI 4K, UHD 4K, 1080p, 1080i, and 720p HDMI input formats for flexible camera compatibility.
• 3G-SDI Input: Accepts professional SDI camera feeds up to 1080p60, with support for 1080i, 1080PsF, and 720p formats.
• HDMI Loop Output: Passes video through to a local monitor with a loop-out format identical to the HDMI input.
• USB-C Wired Monitoring: Sends video directly to a compatible mobile device for wired monitoring through the Accsoon SEE app.
• RTMS 4.0 Protocol: Integrates 2.4 GHz and 5 GHz transmission for improved stability, faster connection, and lower latency.
• Low-Latency Performance: Delivers less than 35 ms latency at 1080p60 and less than 65 ms latency at 4K60.
• Up to Five Devices: Supports one wired USB-C connection plus up to four wireless receivers or mobile devices.
• Camera Control Support: Enables touch focus, record trigger, ISO, aperture, white balance, and shutter speed control with select cameras.

Technical Specifications

• Brand: Accsoon
• Model: CineView Master 4K Lite
• Manufacturer Part Number: CVM4KLTX
• Product Type: Wireless video transmitter
• Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon

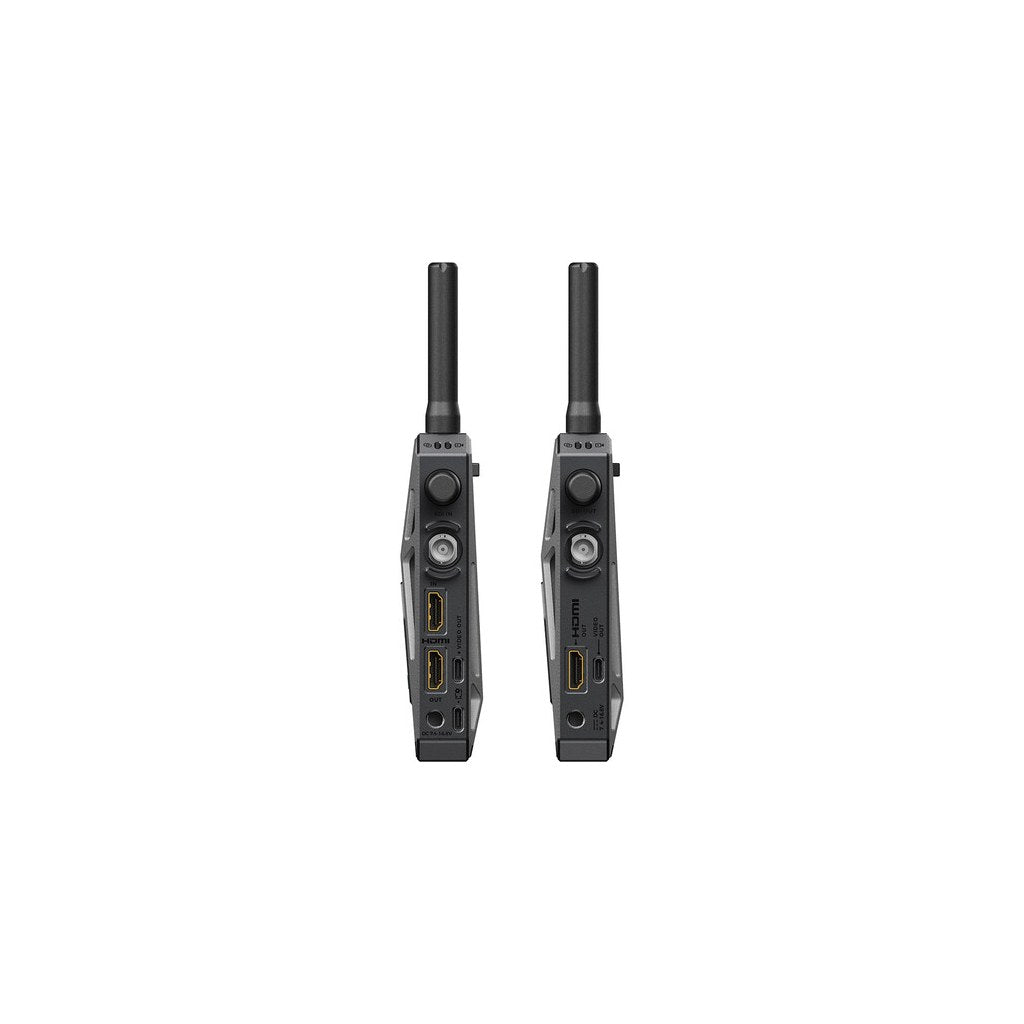

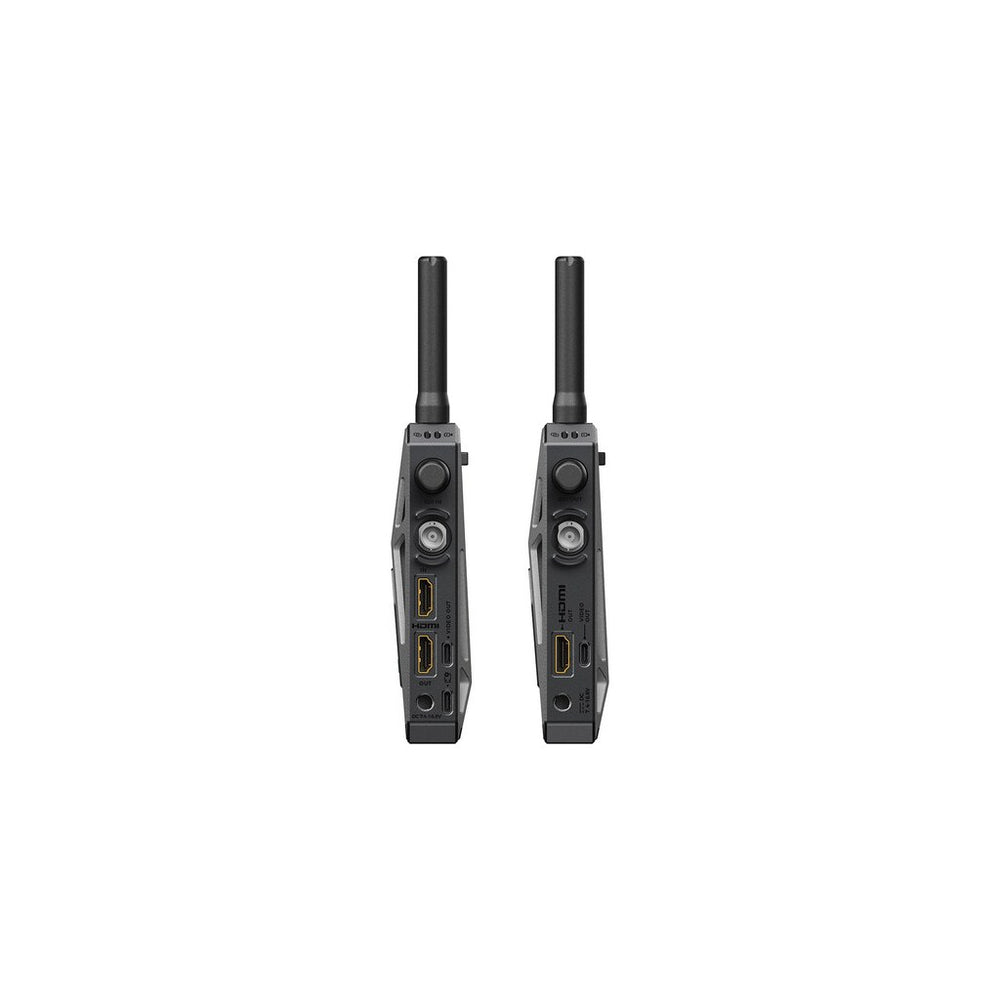

• Video Input: HDMI and 3G-SDI
• Video Output: HDMI loop-out and USB video output
• Camera Control: USB-C
• SDI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B; 1080i 50/59.94/60i; 1080PsF 23.98/24/25/29.97/30PsF; 720p 50/59.94/60
• HDMI Input Format: DCI 4K 23.98/24/25/29.97/30/50/59.94/60p; UHD 23.98/24/25/29.97/30/50/59.94/60p; 1080p 23.98/24/25/29.97/30/50/59.94/60p; 1080i 50/59.94/60i; 720p 50/59.94/60
• HDMI Loop-Out Format: Identical to HDMI video input
• Wireless Frequency: Dual-band 2.4 GHz and 5 GHz with DFS transmission
• Wireless Range: Up to 1200' / 350 m with no obstacles or interference
• Video Encoding: H.265
• Maximum Bitrate: Up to 32 Mbps
• Latency: TX to RX 1080p60 less than 35 ms; 4K60 less than 65 ms
• TX to iOS Latency: 1080p60 less than 35 ms; 4K60 less than 65 ms
• Embedded Audio: HDMI and SDI embedded audio
• DC Port: 5.5mm x 2.1mm, center positive
• DC Voltage: 7.4 to 16.8 VDC

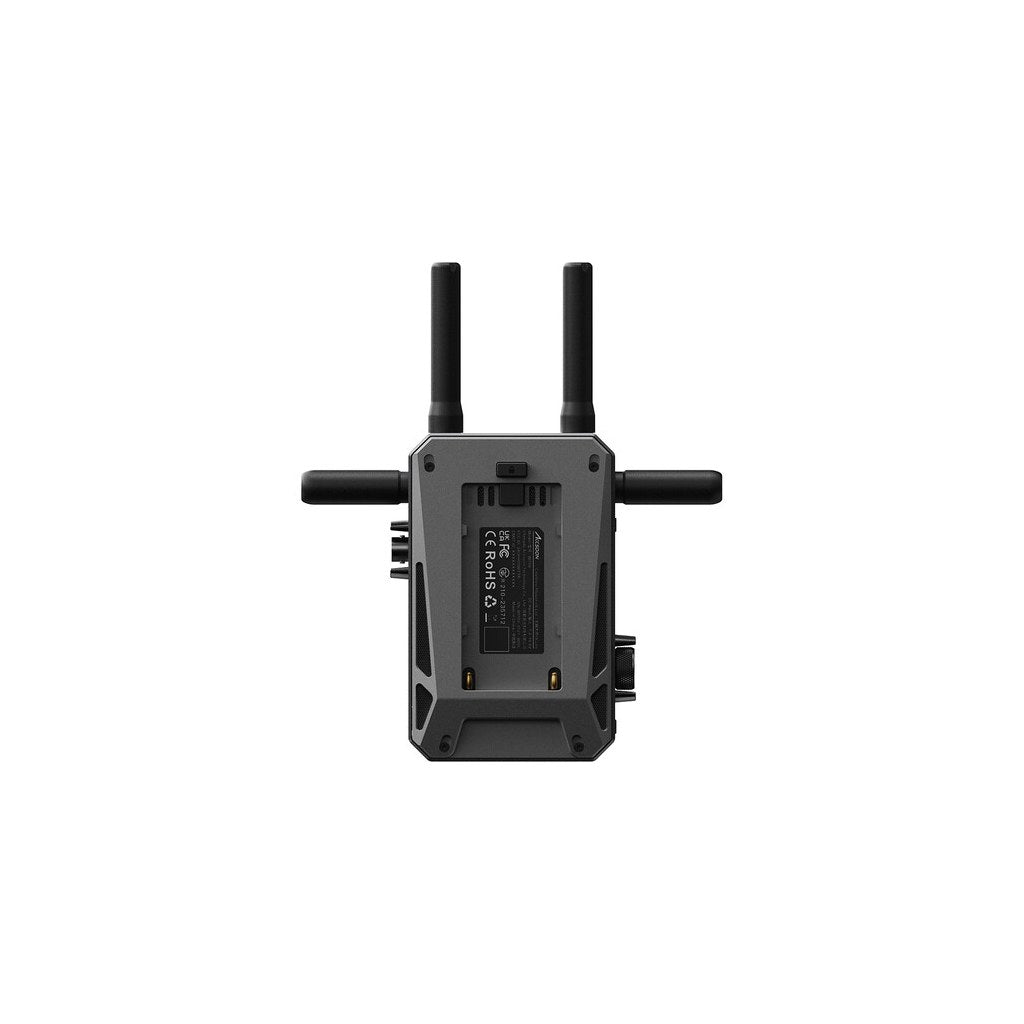

• Battery Compatibility: NP-F550, NP-F750, and NP-F970 battery
• Battery Mount: L-Series mount on fixed plate
• Power Consumption: 4.6W average, without powering other devices
• Mobile App Compatibility: Android and iOS
• Compatible Camera Control Models: Sony FX3, FX30, a7C II, a7S III, a7 IV, a9 III; Canon R5, R6, R5 Mark II, R6 Mark II, R7, R8
• Mounting: 1/4"-20 female thread on bottom

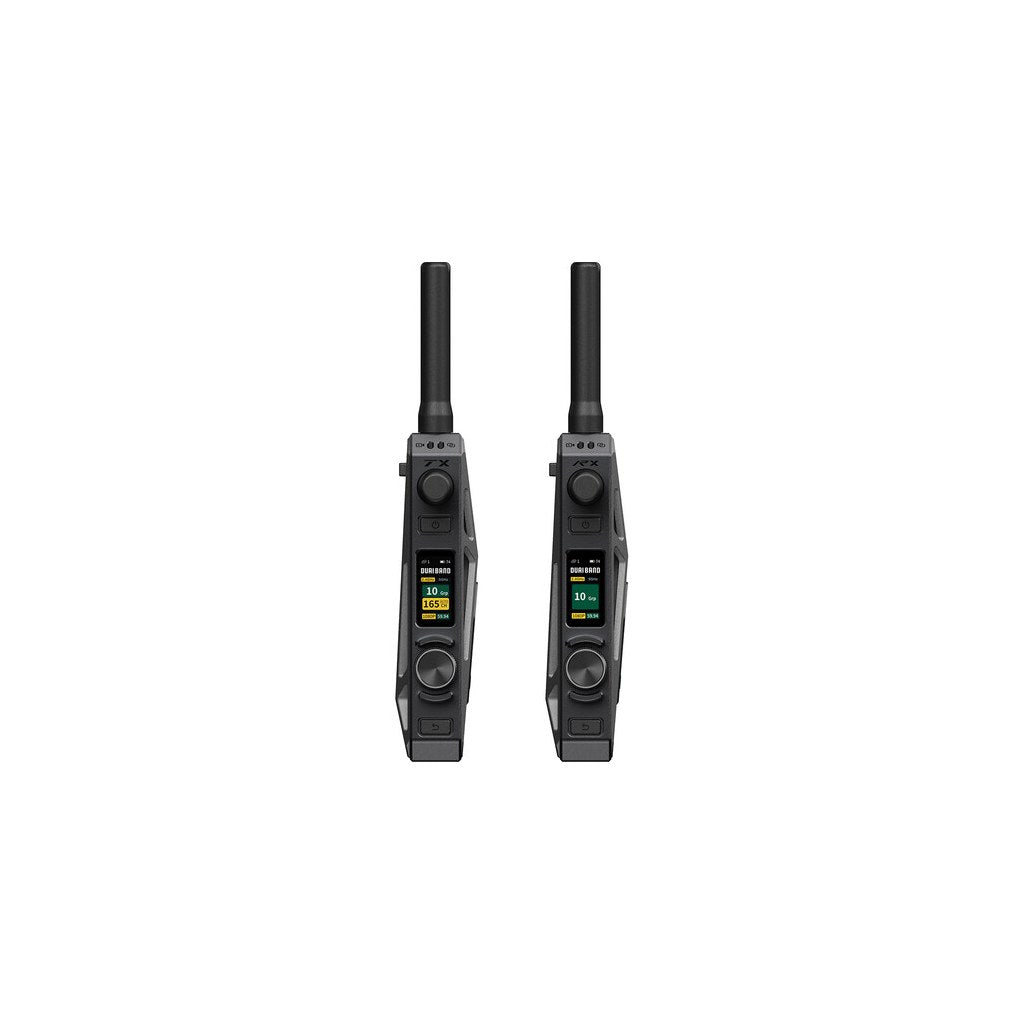

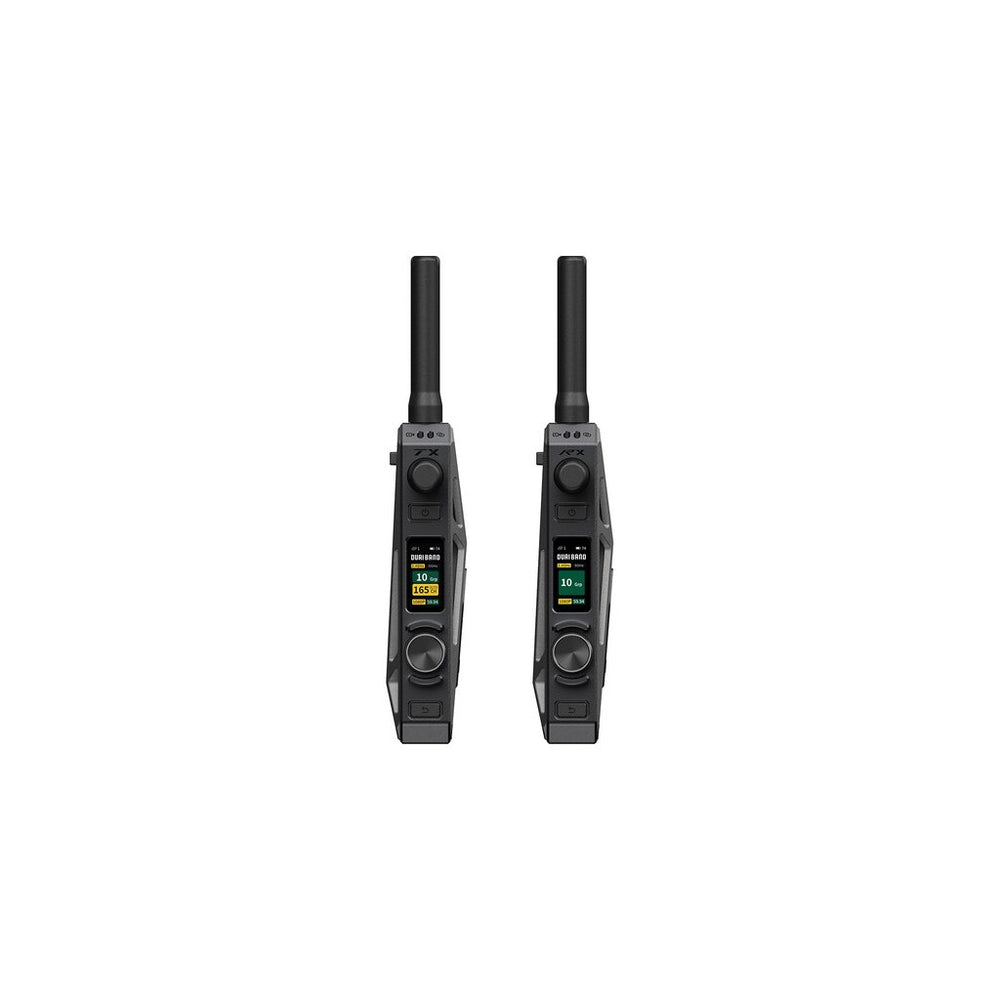

• Status Display: Yes
• Operating Temperature: 14°F to 104°F
• Dimensions: 5.1" x 3.7" x 1.3", antennas not included
• Weight: 0.71 lbs, antennas not included

What's In the Box

• Accsoon CineView Master 4K Lite SDI/HDMI Wireless Video Transmitter
• Shoe Mount Adapter
• 2 x 5 GHz Antenna
• 2 x 2 GHz Antenna
• Allen Key
• Limited 1-Year Manufacturer Warranty
