Ace Backstage Co. 1028BBX Extended Depth Back Box for Full Pocket
Ace Backstage Co. 1028BBX Extended Depth Back Box for Full Pocket
Free Shipping
Ace Backstage Co. 1028BBX Extended Depth Back Box for Full Pocket

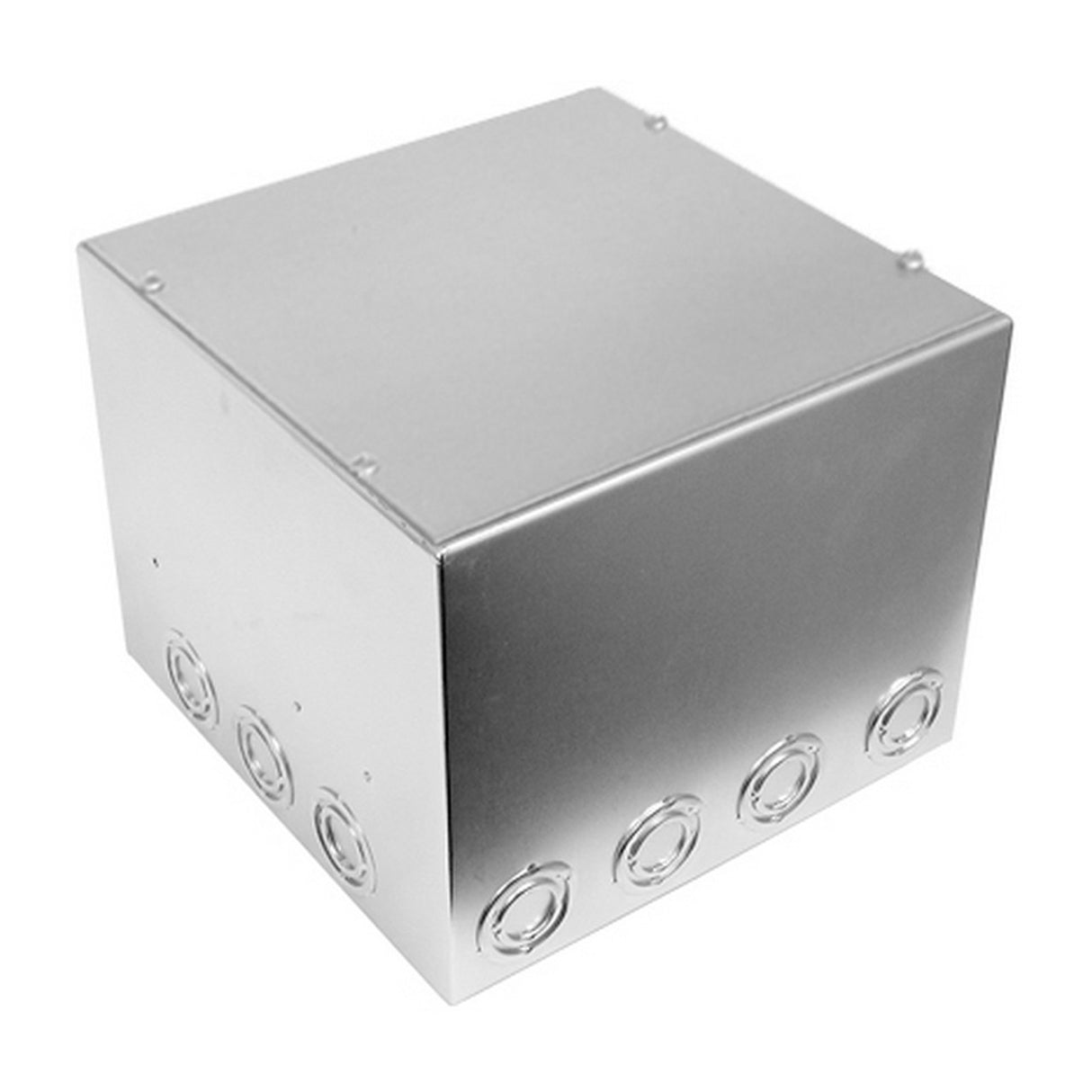

ACE Extra Deep Back Boxes (#1028BBX and #1048BBX) are slightly deeper (8”) as compared with Standard #BBX Series Back Boxes (6”) and may be used exclusively with ACE Full and Double Wide Stage Pockets. The #1028BBX and #1048BBX Extra Deep Back Boxes are welded 14 gauge steel with a protective cover that is discarded when the pocket body is finally installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2” mounting flange is predrilled to mate with the pocket body flange. The pocket body assembly is 4.5” deep and the extra deep back box is 8” deep providing a 3.5” work clearance in the bottom of the back box (ideal for feed thru or distribution junction).
Key Features
- Back Box with Full Pocket Clearance volume: 338 Cubic Inches
- DURABLE CONSTRUCTION: ACE Standard Extra Deep Back Boxes (#8BBX) are made from tough, welded 14 gauge steel (.071" thick).
- (1) #8BBX Series Back Box
- (1) Disposable Protective Cover
- (4) Self Tapping Screws
Technical Specifications
1028BBX Series Back Box Capacity
1 Full Stage Pocket
8BBX Series Back Box Size
10.000” W x 8.000” H x 10.000" L
