Description

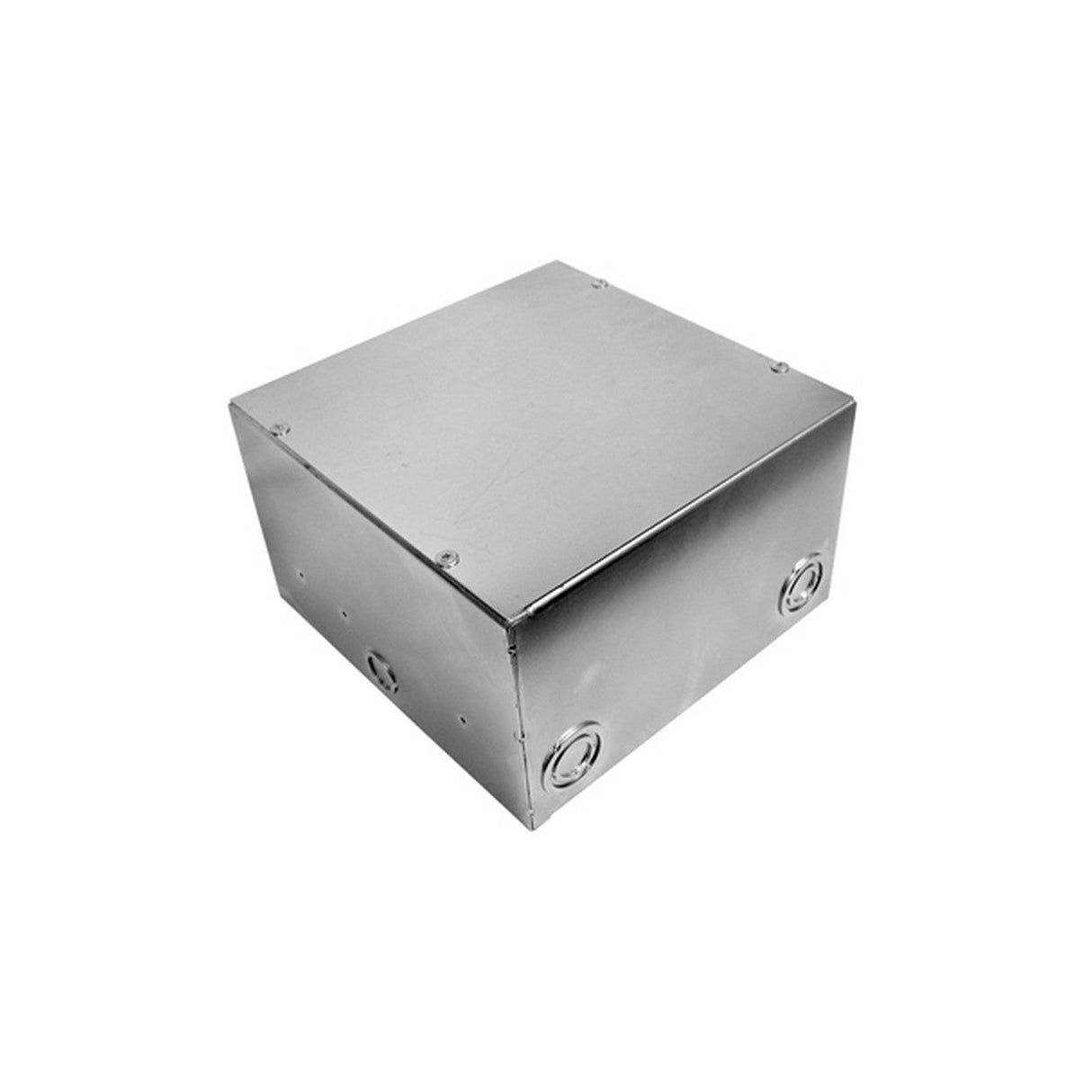

Ace Backstage Co. 102BBX Back Box for Full Pocket
The #025BBX, #102BBX, #103BBX and #104BBX Back Boxes are welded 14 gauge steel with a protective cover that is discarded when the pocket body is finally installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2” mounting flange is predrilled to mate with the pocket body flange (#025BBX Back Box has a 7/16" mounting flange also predrilled to mate with Mini pocket body flange). The pocket body assembly is 4.5” deep and the back box is 6” deep providing a 1.5” work clearance in the bottom of the back box (ideal for feed thru or distribution junction). The Mini pocket body assembly is 2.25" deep and the Mini back box is 3.5" deep providing a 1.25" work clearance in the bottom of the back box.
Key Features
- Back Box with Full Pocket Clearance volume: 144 Cubic Inches
- DURABLE CONSTRUCTION: ACE Standard Back Boxes (#BBX) are made from tough, welded 14 gauge steel (.071" thick).
- (1) #BBX Series Back Box
- (1) Disposable Protective Cover
- (4) Self Tapping Screws
Technical Specifications
102BBX Series Back Box Capacity
1 Full Stage Pocket
102BBX Series Back Box Size
10.000” W x 6.000” H x 10.000" L
