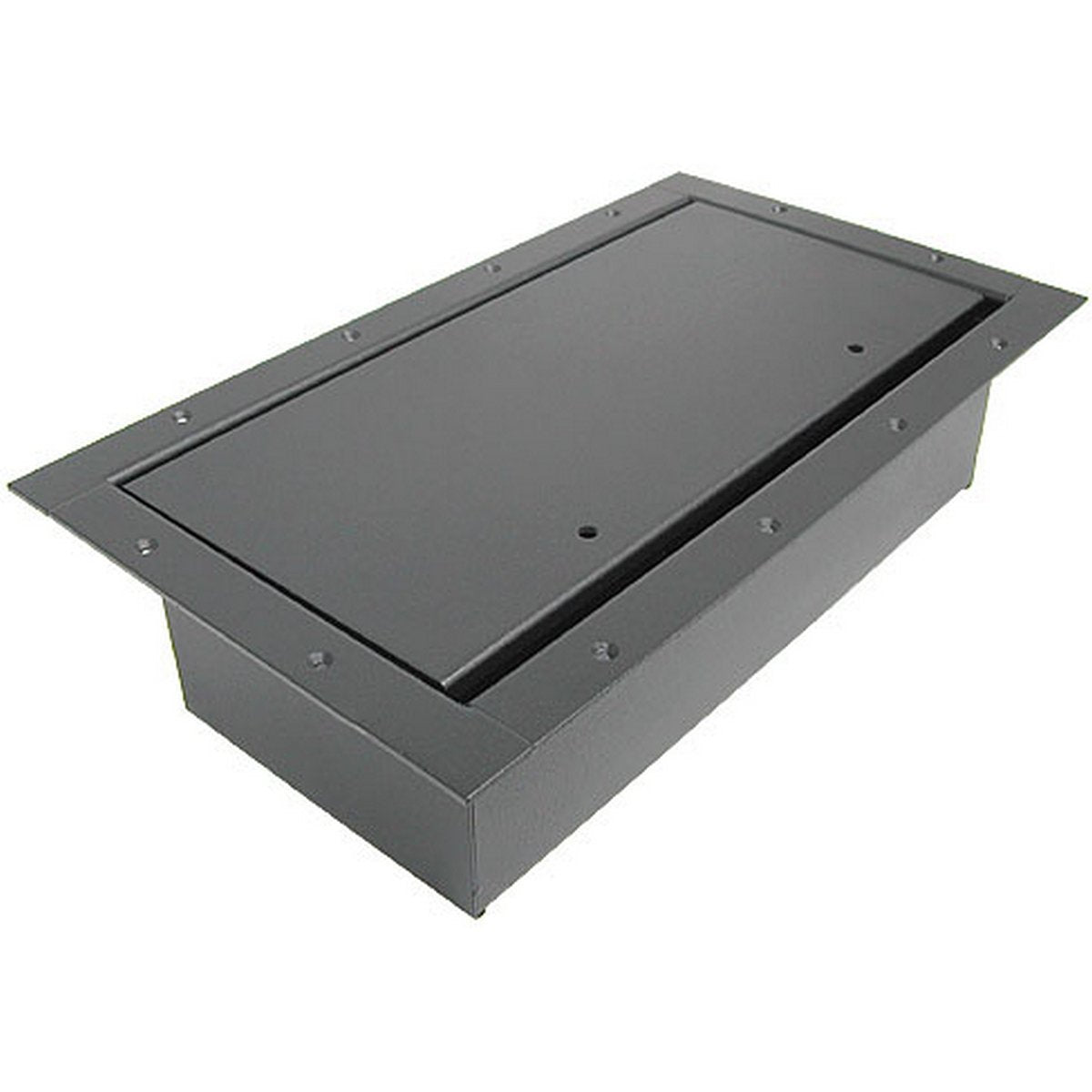

Ace Backstage Co. 124SLBK Double Wide Stage Pocket Standard Lid Textured Black Finish
ACE BACKSTAGE CO., INC. extra large-sized Stage Pocket, the Double Wide Stage Pocket, is a standard general use vertical slant panel flush stage pocket. The Double Wide Stage Pocket is made of heavy duty steel and may be used to conceal audio, communications, control, data, electric AC power, switches, video, and voice connections etc. below the floor surface for easy access and to prevent connector damage. The Double Wide Stage Pocket has an extra large capacity inter-changeable panel system which permits easy custom connector/panel configurations.
The Double Wide Stage Pocket has the panel capacity for either:
(4) #PNL-100 Series CONNECTRIX Panels or (2) #PNL-120 Series CONNECTRIX Panels or (4) #PSW-100 Series SwitchcraftĀ® Panels or (4) #PE Series Single Gang Electric Duplex Switch Box Panels or (2) #FP3E Series Triple Gang Electric Duplex Switch Box Panels
The Double Wide Stage Pocket has the connector capacity for either:
(24) CONNECTRIX Connectors or (24) NeutrikĀ® Connectors or (24) SwitchcraftĀ® Connectors or (12) CONNECTRIX, NeutrikĀ®, or SwitchcraftĀ® Connectors and (2) #PE Electric Duplex Switch Box Panels
Utilizing ACE's CONNECTRIX System will allow mounting of up to 24 CONNECTRIX, NeutrikĀ®, SwitchcraftĀ®, and/or Custom Connectors in the Double Wide Stage Pocket. All ACE Double Wide Stage Pockets are welded steel construction, with a 1/8" (nominally 10 ga. (.135")) thick CRS steel Lid, a 1/8" (nominally 11 ga. (.120")) thick CRS steel Mounting Flange, and a 16 ga. (.062") thick Pocket Body. The Double Wide Stage Pocket resists bending under even the most severe stage loads.
Key Features
- EXTRA LARGE CAPACITY: The Double Wide Stage Pocket accomodates #PNL-100 Series Panels, #PSW-100 Series Panels, #PNL-120 Series Panels, #PE Series Panels, and #FP3E Series Panels in an interchangeable multi-panel system making for easy custom configurations. Four (4) optional #PNL-100 Series Panels or two (2) optional #PNL-120 Series Panel will mount up to 24 CONNECTRIX, NeutirkĀ®, and/or SwitchcraftĀ® type connectors*. Four (4) optional #PSW-100 Series Panels will mount up to 24 SwitchcraftĀ® type connectors.
- DURABLE CONSTRUCTION: Welded steel construction of Double Wide Stage Pocket Lid, Mounting Flange, and Pocket Body resist bending under even the most severe stage loads. The Lid is made from 10 gauge (nominally (.135")) thick CRS steel, the Mounting Flange is made from 1/8" (nominally 11 ga. (.120")) CRS thick steel, and the Pocket Body is made from 16 ga. (.062") thick CRS steel.
- spring-loaded HINGE PINS: Removable spring-loaded hinge pins permit easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL) and custom application lids.
- CABLE WAY SLOTS: Generous 3/8" x 16" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. Two Cable Way Slot Channel Closures closes slot when not in use.
- EASY INSTALLATION: Easy installation into 16.8" x 8.5" rectangular cutout in stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.
- DECORATOR FINISHES: Scratch/wear resistant finish, oven cured powder coat electro-static applied inside and outside entire Double Wide Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange as well as Solid Stainless Steel Lid and Mounting Flange with brushed finishes are also available by special order.
- RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.
- INCLUDES: (1) Stage Pocket Body with Trim Bezel Mounting Flange, (1) Lid, (2) Hinge Pins, (2) Springs, (16) #8 Self Tapping Sheet Metal/Wood Screws, (2) Slot Closures
Technical Specifications
Double Wide Stage Pocket Body Size = 16.000ā W x 4.500ā H x 7.187ā D
Double Wide Stage Pocket Lid & Mounting Flange Size = 18.500ā W x 0.937ā H x 10.500ā D
Double Wide Stage Pocket Connector Capacity = Up to 24 CONNECTRIX, NeutrikĀ®, or SwitchcraftĀ®
Double Wide Stage Pocket Cutout Dimensions = 16.800" W x 8.500" H
Double Wide Stage Pocket Material = CRS Steel and/or Solid Half Hard Brass
