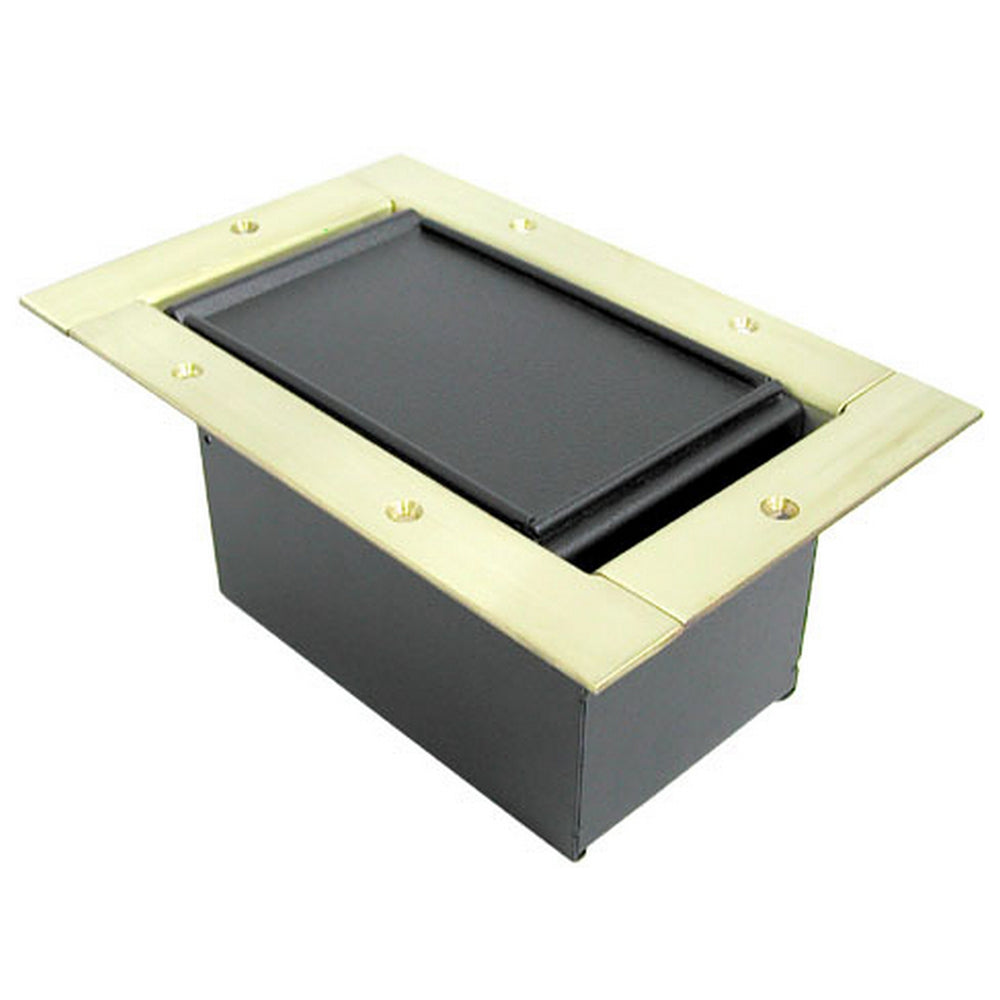

Ace Backstage Co. 223CLBR Half Stage Pocket Carpet Lid Solid Brass Trim Bezel with Brushed Finish

Ace Backstage Co. 223CLBR Half Stage Pocket Carpet Lid Solid Brass Trim Bezel with Brushed Finish

ACE BACKSTAGE CO., INC. medium-sized Stage Pocket, the Half Stage Pocket, is a standard general use vertical slant panel flush stage pocket. The Half Stage Pocket is made of heavy duty steel and may be used to conceal audio, communications, control, data, electric AC power, switches, video, and voice connections etc. below the floor surface for easy access and to prevent connector damage. The Half Stage Pocket has a medium capacity inter-changeable panel system which permits easy custom connector/panel configurations.
The Half Stage Pocket has the panel capacity for either:
(1) #PNL-100 Series CONNECTRIX Panels or (1) #PSW-100 Series Switchcraft® Panels or (1) #PE Series Single Gang Electric Duplex Switch Box Panels
The Half Stage Pocket has the connector capacity for either:
(6) CONNECTRIX Connectors or (6) Neutrik® Connectors or (6) Switchcraft® Connectors or (1) #PE Single Gang Electric Duplex Switch Box Panel
Utilizing ACE's CONNECTRIX System will allow mounting of up to 6 CONNECTRIX, Neutrik®, Switchcraft®, and/or Custom Connectors in the Half Stage Pocket. All ACE Half Stage Pockets are welded steel construction, with a 1/8" (nominally 11 ga. (.120")) thick CRS steel Lid and Mounting Flange and a 16 ga. (.062") thick Pocket Body. The Half Stage Pocket resists bending under even the most severe stage loads.

Key Features

• MEDIUM CAPACITY: The Half Stage Pocket accomodates #PNL-100 Series Panels, #PSW-100 Series Panels, and #PE Series Panels in an interchangeable multi-panel system making for easy custom configurations. One (1) optional #PNL-100 Series Panels will mount up to 6 CONNECTRIX, Neutirk®, and/or Switchcraft® type connectors*. One (1) optional #PSW-100 Series Panels will mount up to 6 Switchcraft® type connectors.
• DURABLE CONSTRUCTION: Welded steel construction of Half Stage Pocket Lid, Mounting Flange, and Pocket Body resist bending under even the most severe stage loads. The Lid and Mounting Flange is made from 1/8" (nominally 11 ga. (.120") CRS) thick steel while the Pocket Body is made from 16 ga. (.062") thick CRS steel.
• spring-loaded HINGE PINS: Removable spring-loaded hinge pins permit easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL) and custom application lids.
• CABLE WAY SLOTS: Generous 3/8" x 4" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. A Cable Way Slot Closure channel closes the slot when not in use.
• EASY INSTALLATION: Easy installation into 4.75" x 8.5" rectangle cutout in stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.
• DECORATOR FINISHES: Scratch/wear resistant finish, oven cured powder coat electro-static applied inside and outside entire Full Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange with a brushed finish is also available by special order.
• RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.
• INCLUDES: (1) Stage Pocket Body with Trim Bezel Mounting Flange, (1) Lid, (2) Hinge Pins, (2) Springs, (8) #8 Self Tapping Sheet Metal/Wood Screws, (1) Slot Closure

Technical Specifications

Half Stage Pocket Body Size = 4.375” W x 4.500” H x 7.156” D
Half Stage Pocket Lid & Mounting Flange Size = 6.875” W x 0.937” H x 10.500” D
Half Stage Pocket Connector Capacity = Up to 6 CONNECTRIX, Neutrik®, or Switchcraft®
Half Stage Pocket Cutout Dimensions = 4.750" W x 8.500" H
Half Stage Pocket Material = CRS Steel and/or Solid Half Hard Brass
