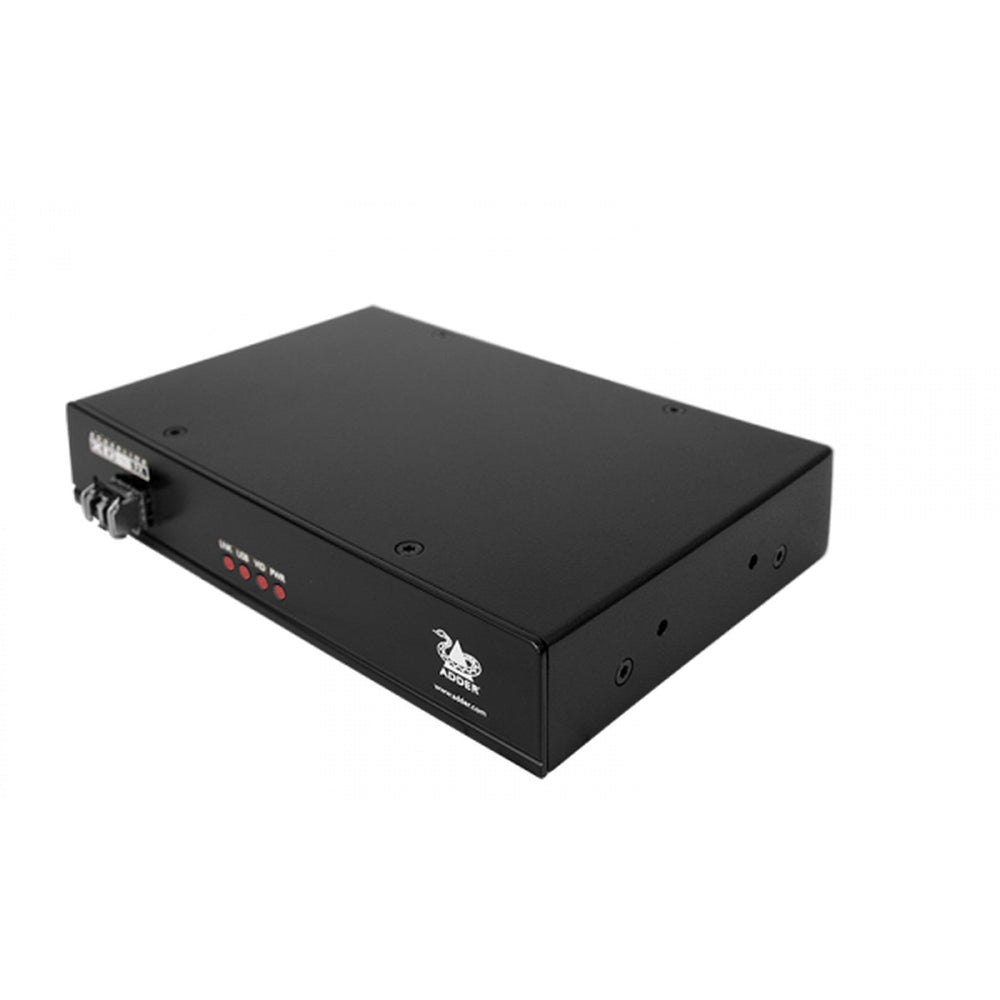

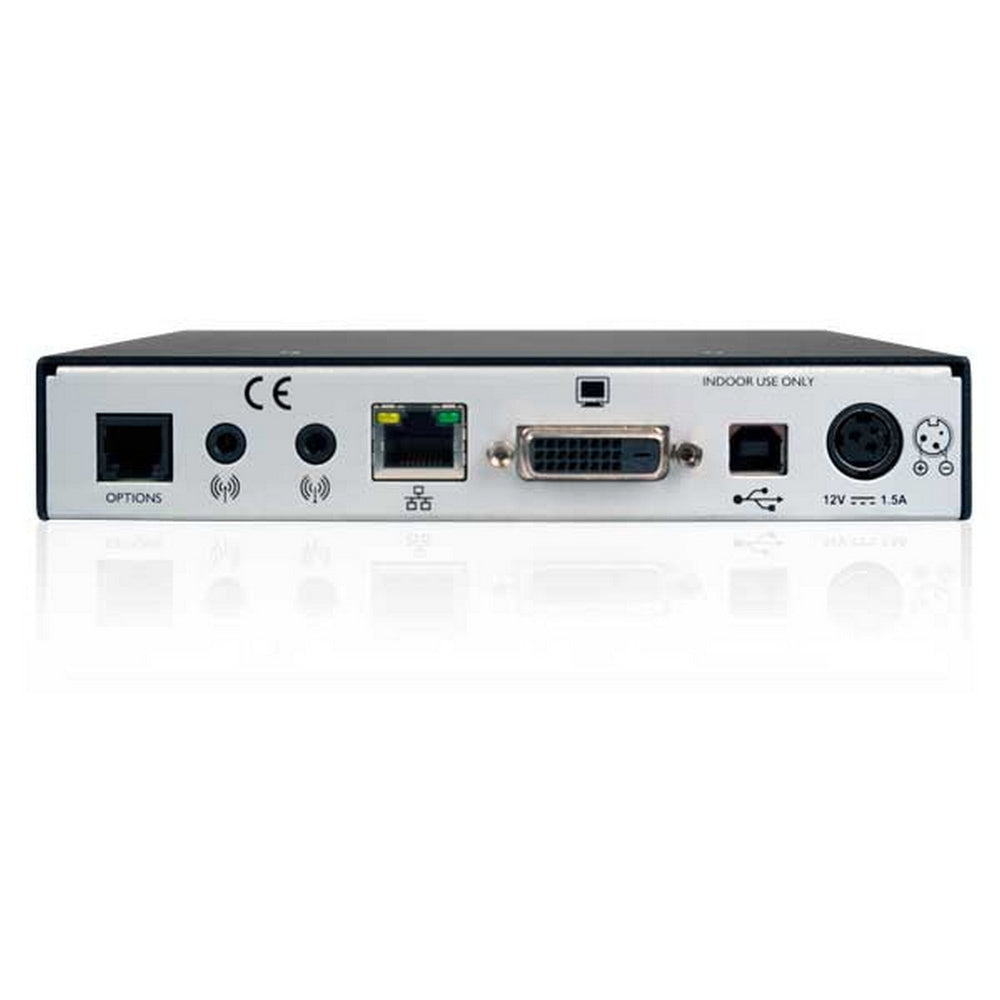

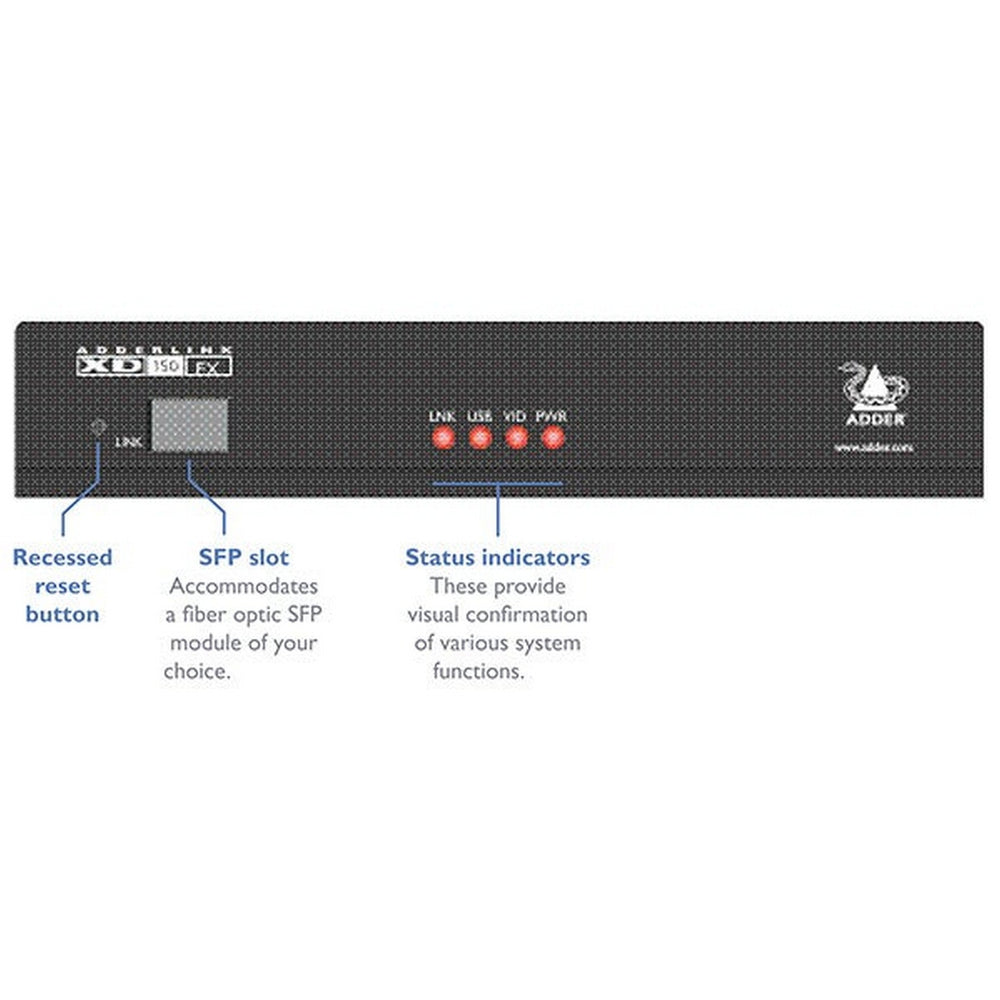

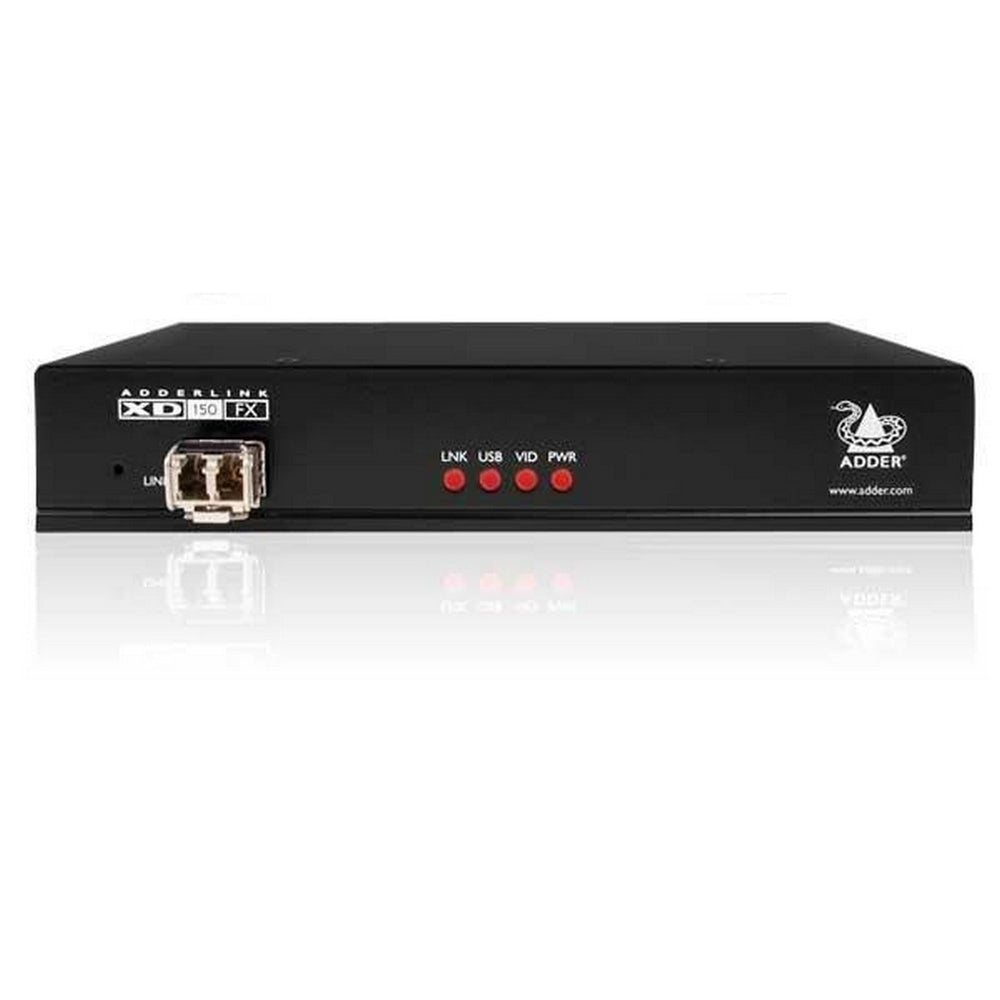

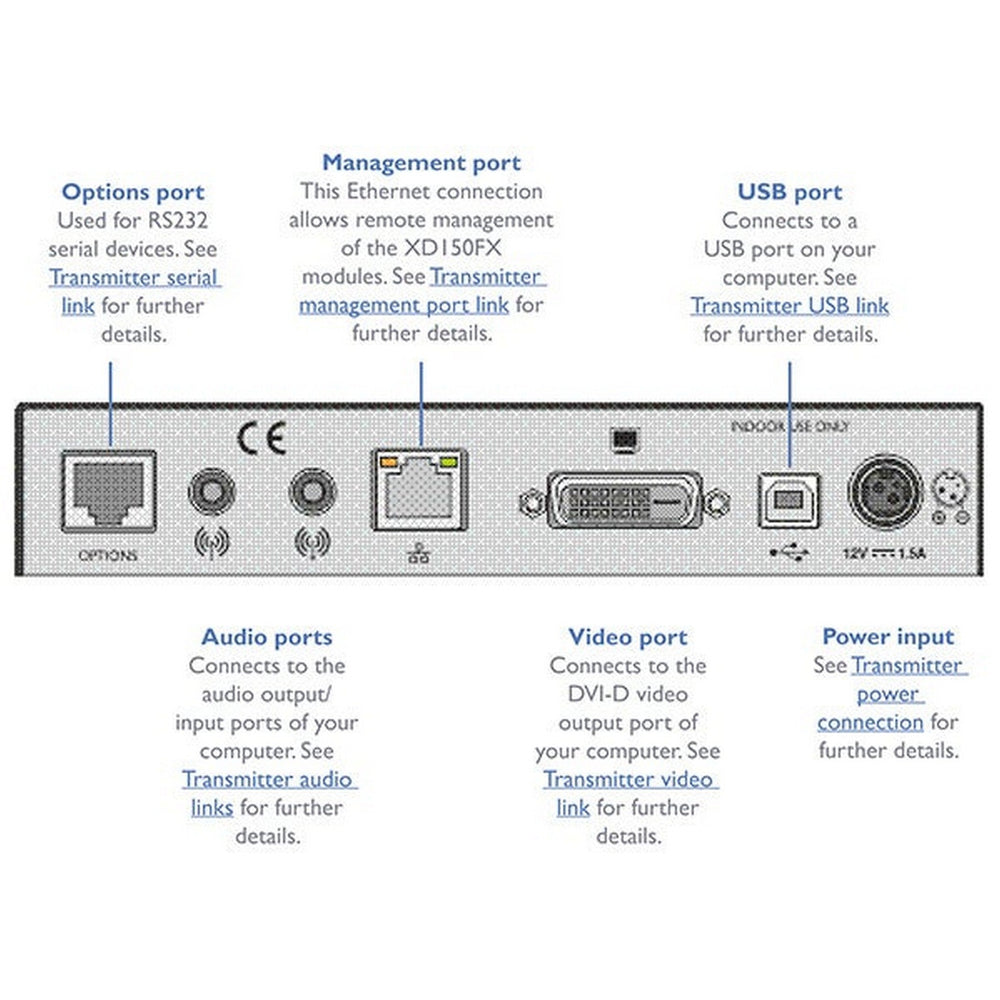

ADDERLink XD150FX - High-Performance KVM DVI Video Extender System

The ADDERLink XD150FX high-performance KVM (Keyboard, Video, Mouse) TX/RX pair transmits high resolution video, USB 2.0 and audio signals up to 4km (2.5 miles). Your critical computer hardware can be held in a secure, temperature-controlled environment and the XD150FX delivers the same desktop experience through real-time, lossless extension to the user workstation including support for a wide range of USB devices. This system is designed for flexibility and high performance, making it ideal for various applications where distance and quality are paramount.

Key Features:

• Extension Distances: Resolutions up to 2560 x 1600 @60Hz at extension distances of up to 150m (500ft) for OM2 multi-mode fiber, increasing to 4km (2.5 miles) with single-mode fiber.
• Transparent USB 2.0: Supports a wide range of USB devices including keyboards, mice, tablets, and mass storage devices via a built-in 4-port USB hub.
• Bidirectional Analog Audio: CD-quality stereo audio (24bit sampling at 96kHz) with line in/out and microphone support.
• RS232 Support: Maximum baud rate of 115K2 with RTS/CTS flow control, compatible with Adder's Remote Key Switch (RC4).
• Perfect Digital Video: Uncompressed video extension with zero loss in real-time.
• Plug and Play: Easy installation with no need for extra drivers or software.
• Locking Power Connectors: Includes locking 3 Pin DC jack with 2 power adaptors.
• Web Interface Control: View temperature and status, with security via HTTP digest authentication.

Technical Specifications

• Measuring System: Metric
• Dimensions: 6.65 x 1.22 x 4.8"" (169 x 31 x 120mm)
• Material: Robust Metal Construction
• Power: 100-240VAC 50/60Hz, 12VDC 18W output from power adapter
• Operating Temperature: 0° to 40°C / 32° to 104°F
• Approvals: CE, FCC
• Mean Time Between Failure (MTBF): 400,000 hours

What's in the Box

• 1x XD150FX Local TX and Remote RX pair with PSUs
• 2x SFP modules
• 2x 3m/6.5ft Audio cables
• 1x 1.8m/5.9ft DVI-D dual link cable
• 1x Quick start guide
