Adder XDIP-POE-US HDMI/USB Single Link KVM Extender over IP

Adder XDIP-POE-US HDMI/USB Single Link KVM Extender over IP

The ADDERLink XDIP-POE- is a Single Link HDMI & USB KVM over IP Extender with POE ONLY, no power supply is included. It's designed to improve IT scalability for small to medium businesses. Utilizing a standard 1Gb/s IP network, the XDIP enables users to extend and manage critical PCs with ultra-low latency and HD video. An intuitive API delivers remote control of the matrix and allows the XDIP to be integrated into larger systems, controlled by third party software.

Key Features

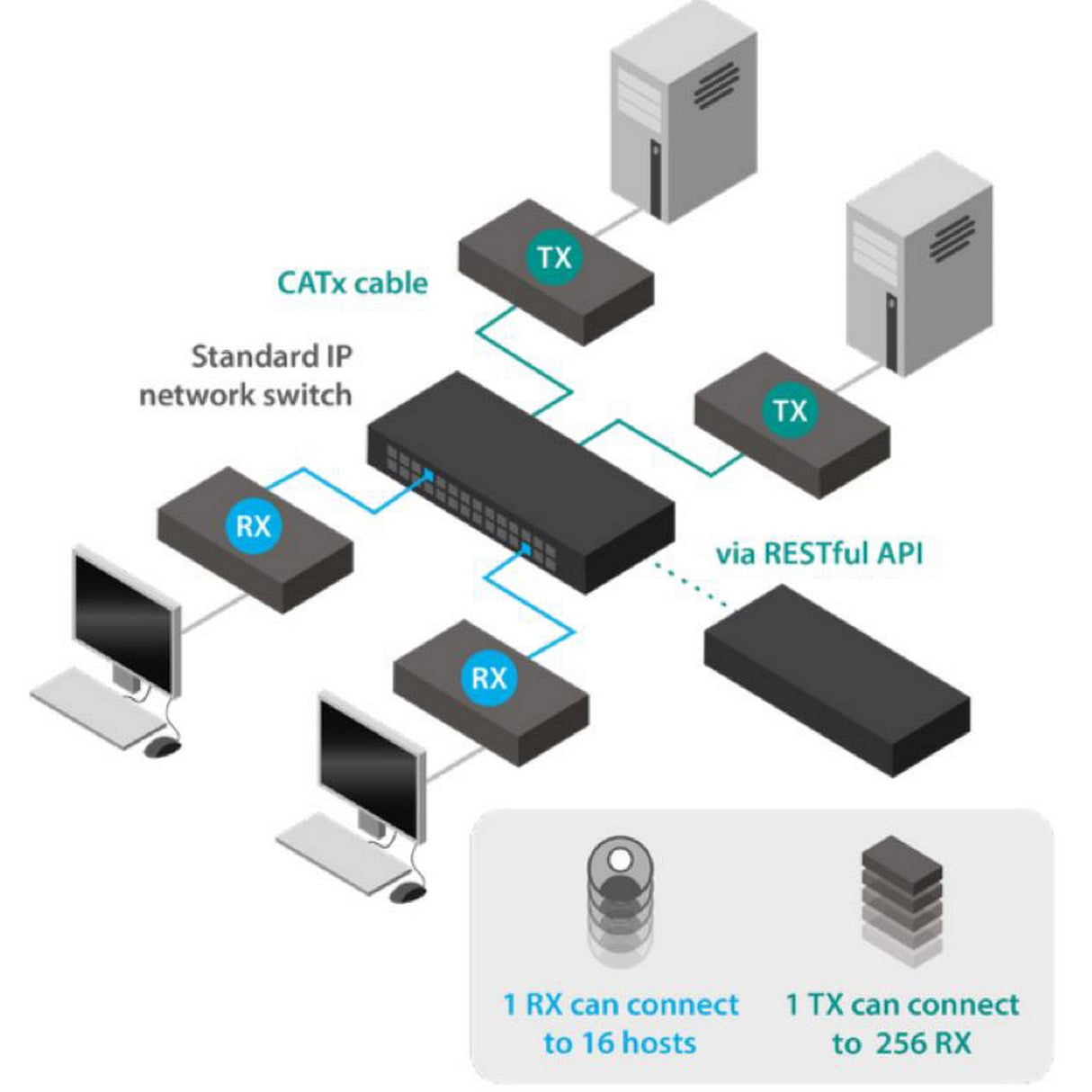

• Flexible and Scalable: Each XDIP unit can be configured as a simple extender, distributed KVM switch or for AV distribution. Each receiver can see up to 16 sources and each transmitter can connect to up to 256 receivers.
• Configurable Units: The XDIP user and computer units are identical and can be configured as a transmitter or receiver. This means the solution can be built to suit the application, and should the application change, units can be re-configured to suit.
• High Quality Video: The XDIP supports video resolutions of up to 1920 x 1200 @ 60Hz.
• Power over Ethernet (PoE): Compatible with most PoE switches, the XDIP can be easily installed without the need for additional power. Many PoE switches offer redundant power options which the XDIP can leverage for enhanced reliability.
• Remote control: Users can remotely control their XDIP network via a RESTful API or HTTPS web browser. By managing the receiver end points through an API, users can control the matrix. The XDIP is designed to work with any third-party controller via HTTPS.
• Extension Distance: Extension distance is linked to the IP standard of 100m with a 40% overhead for safety. Longer distances can be achieved by routing through IP infrastructure.
• Audio Capability: XDIP delivers bi-directional analog audio (16-bit sampling at 48kHz) passed between the local and remote units. Headphones are also supported (16 to 32 Ohms).
• Plug and Play: The XDIP is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected. A simple setup wizard guides the user through set up when the device is connected.

Technical Specifications

Hardware Compatibility
All computers with HDMI, USB and audio
HDMI Interface
The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz
USB 2.0
Supports USB2.0 HID devices (Keyboard, Mouse and Touch)
Software Compatibility
All known operating systems
Computer connections

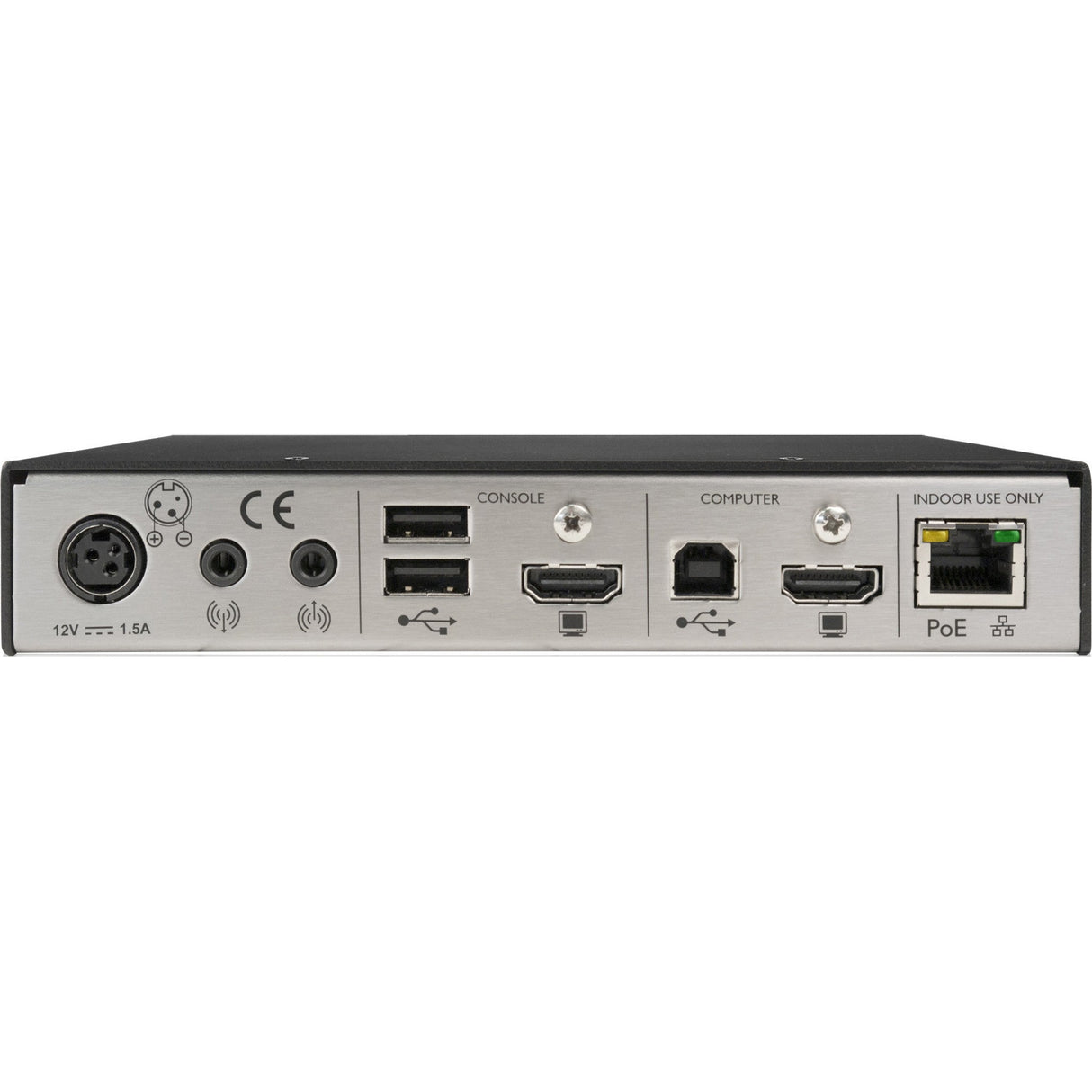

HDMI, 2x Audio 3.5mm, USB type B, 8p8c Ethernet port
Feed-Through Connections
HDMI, 3x USB type A
Power Connections
POE 802.3af via Ethernet port or 3 Pin Locking DC jack (Optional: 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter)
Physical Design
Compact case, robust metal construction.
Dimensions
169mm/6.65” (w) x 31mm/1.22” (h) x 120mm/4.8” (d)
Weight
0.6kg/1.3lbs
Operating Temperature
0 to 40 Degrees C / 32 to 104 Degrees F
Approvals
CE, FCC
Item Includes
1x Adder XDIP-POE Digital HDMI KVM Extender with USB & Audio Over IP via 1GbE Network - Single Node POE Powered Only
1x 1.5m HDMI cable
1x 2m USB-A to USB-B cable
1x 3m 3.5mm audio cable
1x Quick Setup Guide
1x Safety document
8x Self-adhesive rubber feet
Warranty
2 Year Limited
