ADJ Accu-Cable SPD Series IP65 5-Pin DMX & Power Combo Cable - 3 Feet

ADJ Accu-Cable SPD Series IP65 5-Pin DMX & Power Combo Cable

The ADJ Accu-Cable SPD Series IP65 5-Pin DMX and Power Combo Cable carries fixture power and DMX control together for streamlined lighting connections. Available in 3, 6, 12, and 25-foot lengths, each version combines locking Seetronic power connectors with professional 5-pin DMX connections for indoor and temporary outdoor applications.

Designed for touring productions, live events, outdoor festivals, stage lighting, and permanent installations, the SPD Series reduces separate cable runs when daisy-chaining compatible fixtures. Choose a short 3 or 6-foot lighting link cable for tightly spaced equipment, or select the 12 and 25-foot versions when additional reach is required between fixtures.

Every length uses 12 AWG power conductors alongside a 22 AWG two-pair DMX cable. Seetronic SCWF5-B and SCWM5-B DMX connectors feature gold contacts, while rubber gaskets help protect connections against dust and moisture. Four-inch clear heat-shrink sections provide labeling and strain-relief space, integrated tie straps simplify storage, and laser-etched connector markings identify cable length.

Key Features

• Four Length Options: Choose 3, 6, 12, or 25-foot versions while retaining the same power and DMX connection format.
• Combined Power and Control: Runs locking fixture power and 5-pin DMX together to reduce cable clutter during lighting setup.
• IP65-Rated Construction: Supports indoor and temporary outdoor applications when connections are properly mated with compatible IP65 connectors.
• Professional Power Connections: Seetronic SAC3FX and SAC3MX locking connectors provide secure power links between compatible fixtures.

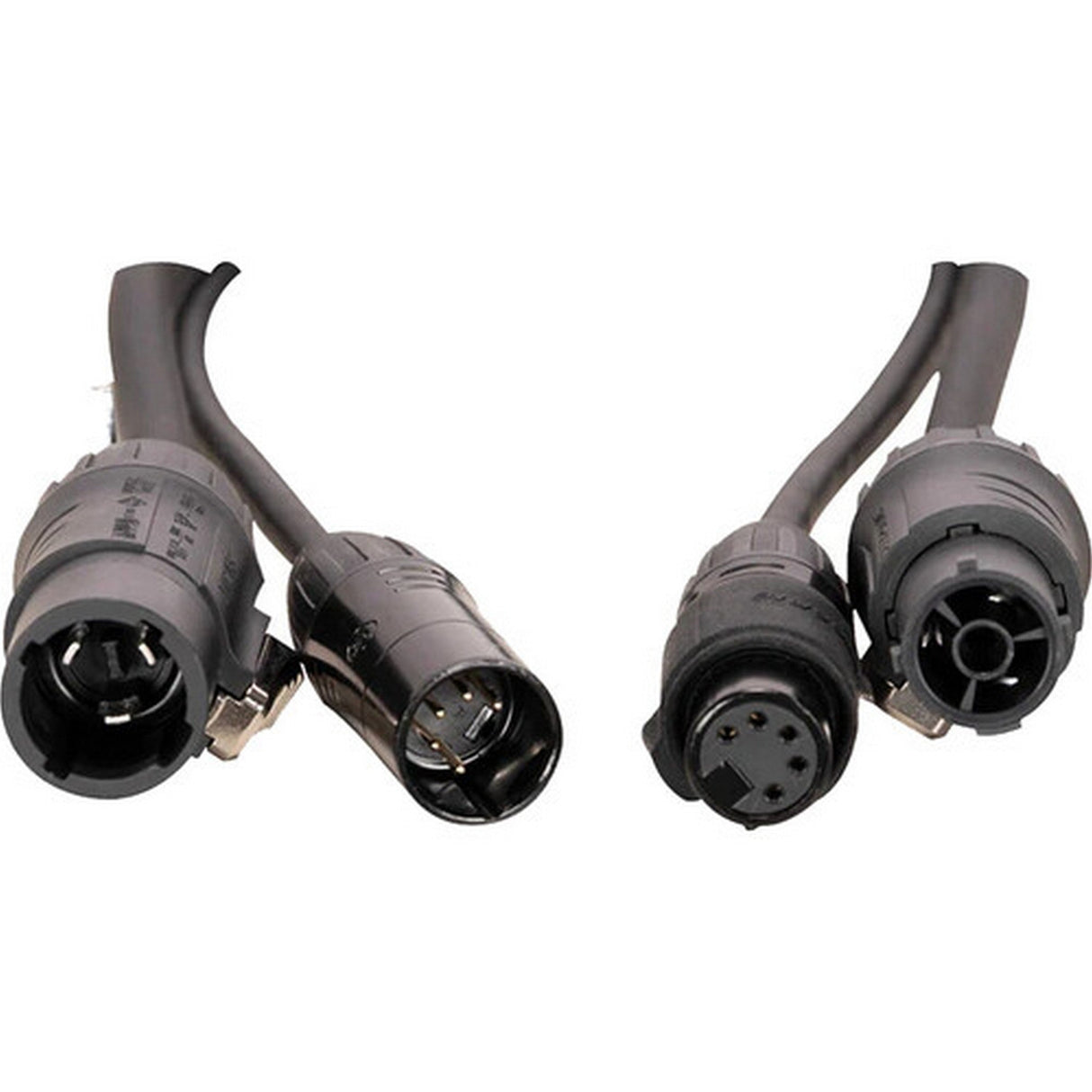

• 5-Pin DMX Connectivity: Seetronic SCWF5-B and SCWM5-B connectors with gold pins support professional DMX signal distribution.
• Durable Cable Build: Uses 12 AWG power conductors and a 22 AWG two-pair DMX cable for combined fixture connectivity.
• Production-Friendly Details: Clear heat shrink, integrated cable ties, and laser-etched length markings simplify identification, storage, and deployment.

Length Variants

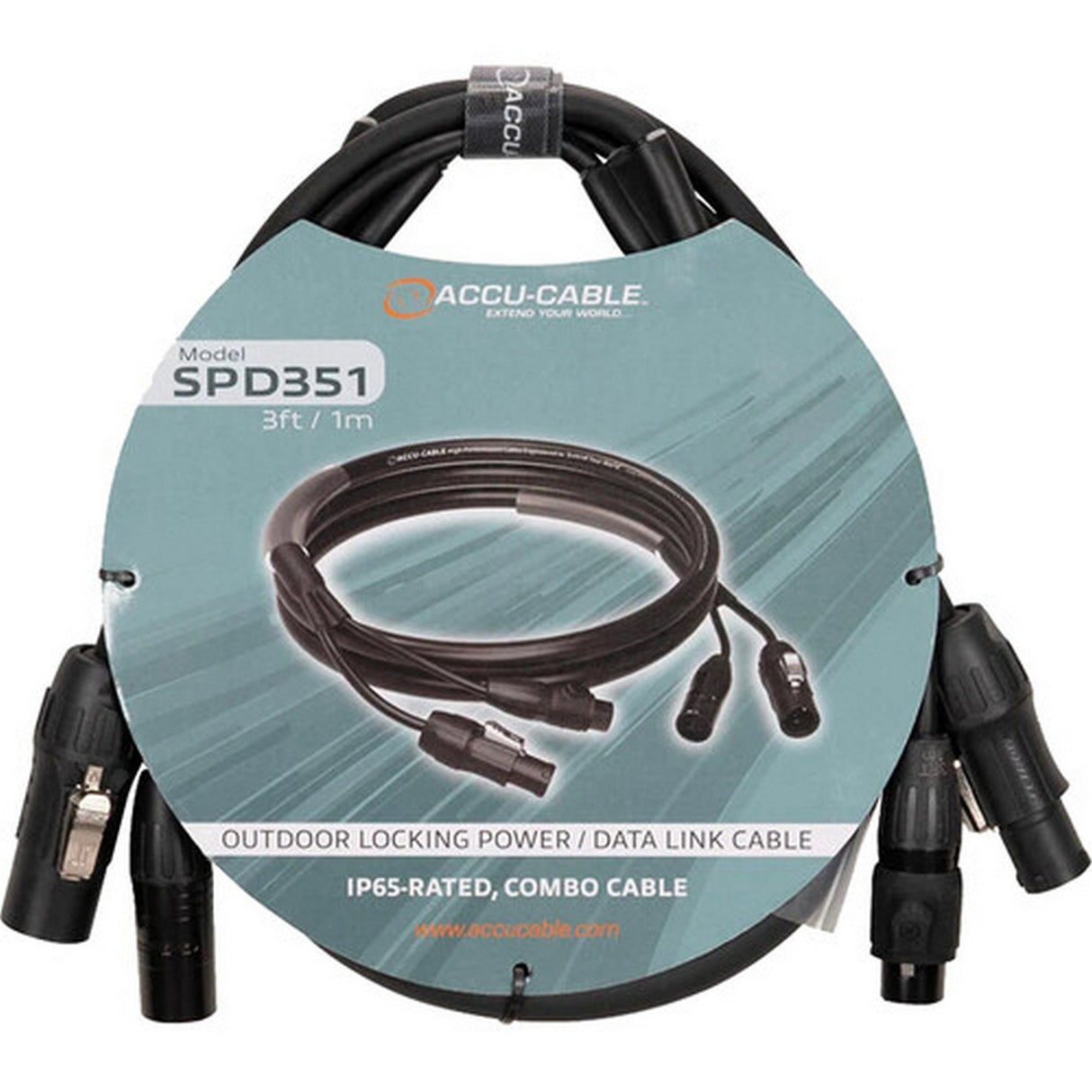

• SPD351: 3 ft
• SPD653: 6 ft
• SPD125: 12 ft

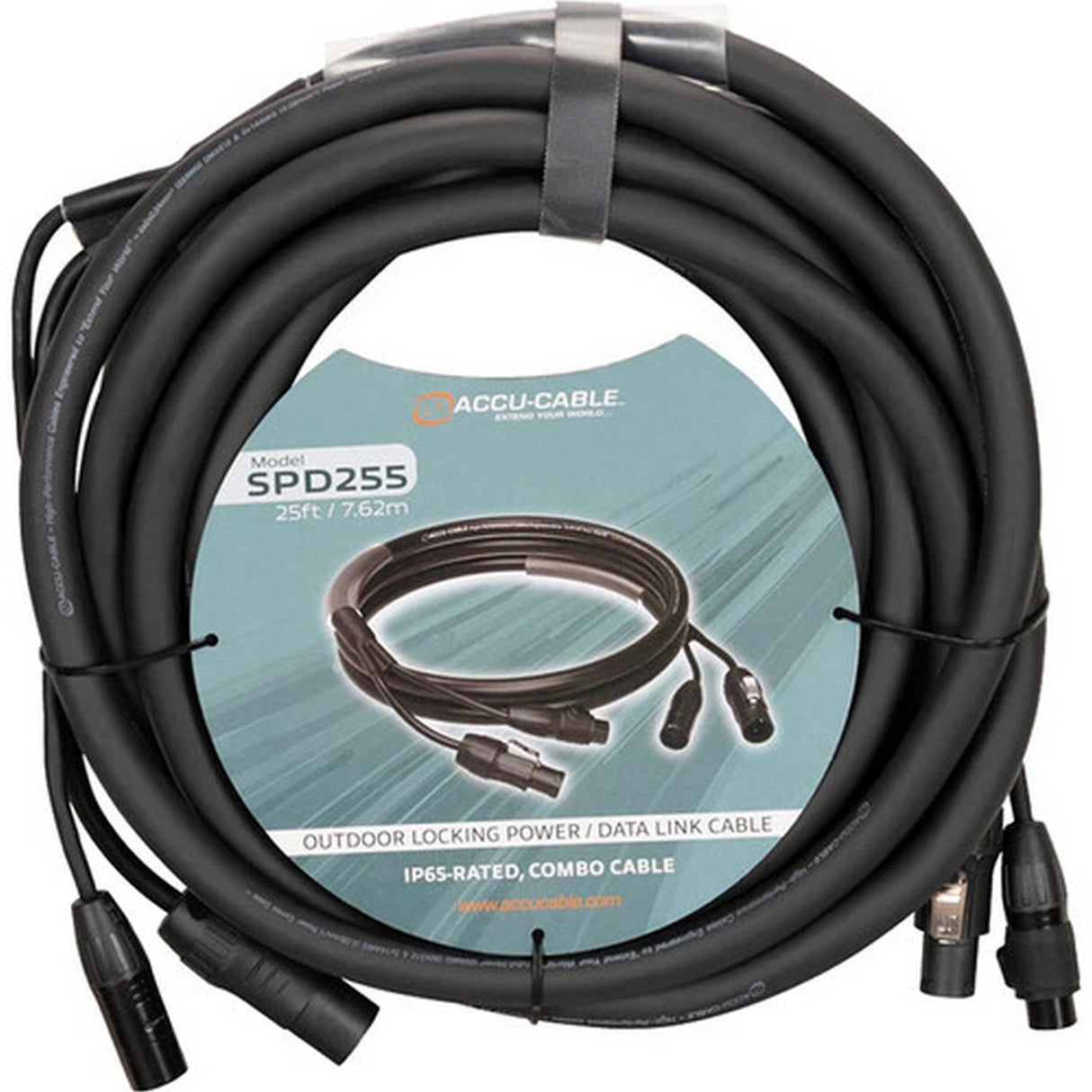

• SPD255: 25 ft

Technical Specifications

• Product Type: Power and 5-pin DMX combo link cable
• Application: Daisy-chaining power and DMX between compatible lighting fixtures
• Available Lengths: 3 ft, 6 ft, 12 ft, 25 ft
• Environmental Rating: IP65
• Recommended Environment: Indoor and temporary outdoor use
• Power Connector - Female: 1 x Seetronic SAC3FX
• Power Connector - Male: 1 x Seetronic SAC3MX
• Power Cable Gauge: 12 AWG
• DMX Connector - Female: 1 x Seetronic SCWF5-B 5-pin female
• DMX Connector - Male: 1 x Seetronic SCWM5-B 5-pin male
• DMX Connector Housing: Black
• DMX Contacts: Gold pins
• DMX Cable: 22 AWG, 2-pair
• Connector Sealing: Rubber gaskets for dust and moisture protection
• IP65 Connection Requirement: DMX connectors must mate with compatible IP65-rated DMX connectors to maintain an IP65 seal

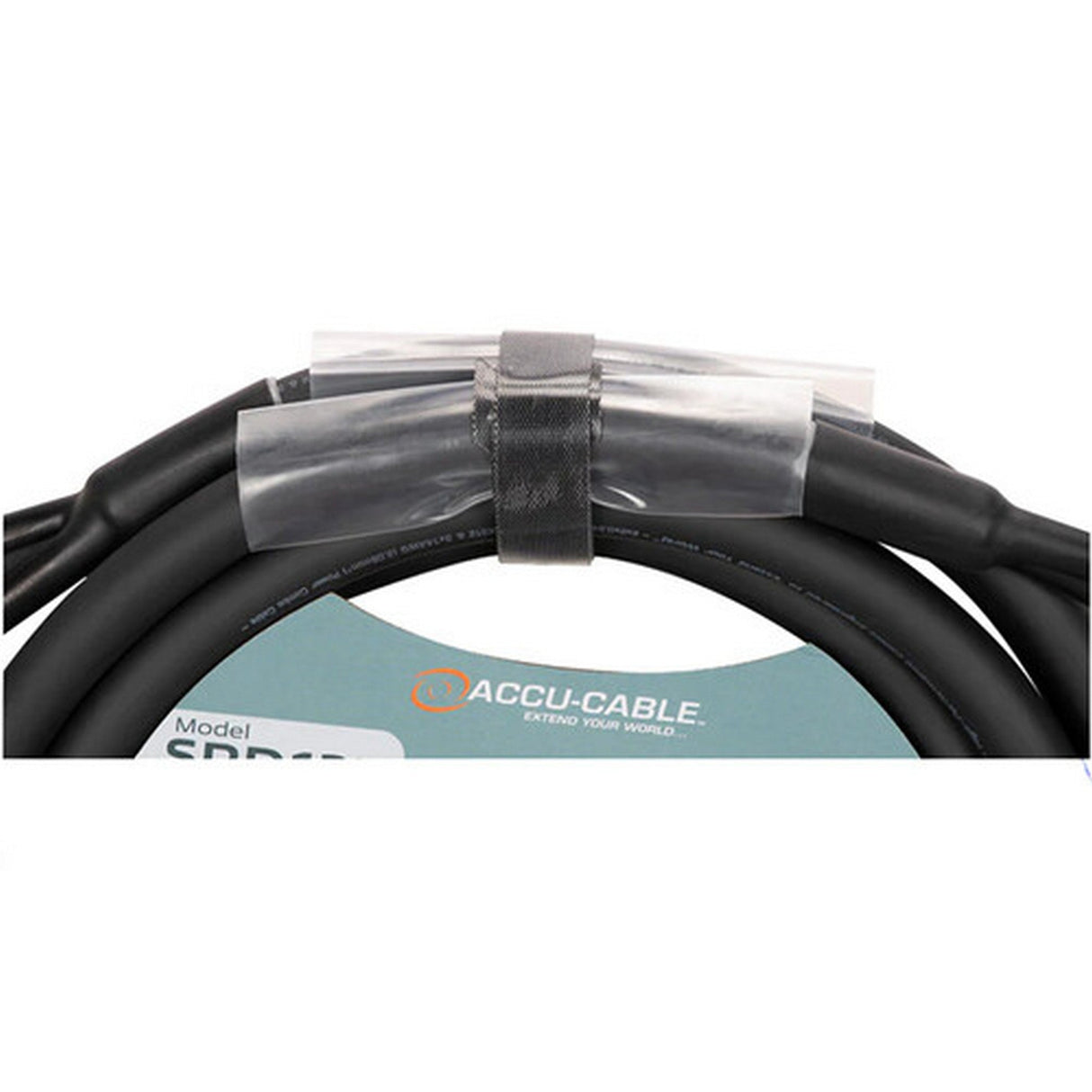

• Heat Shrink: 4-inch clear heat shrink at each end of the power and DMX cables

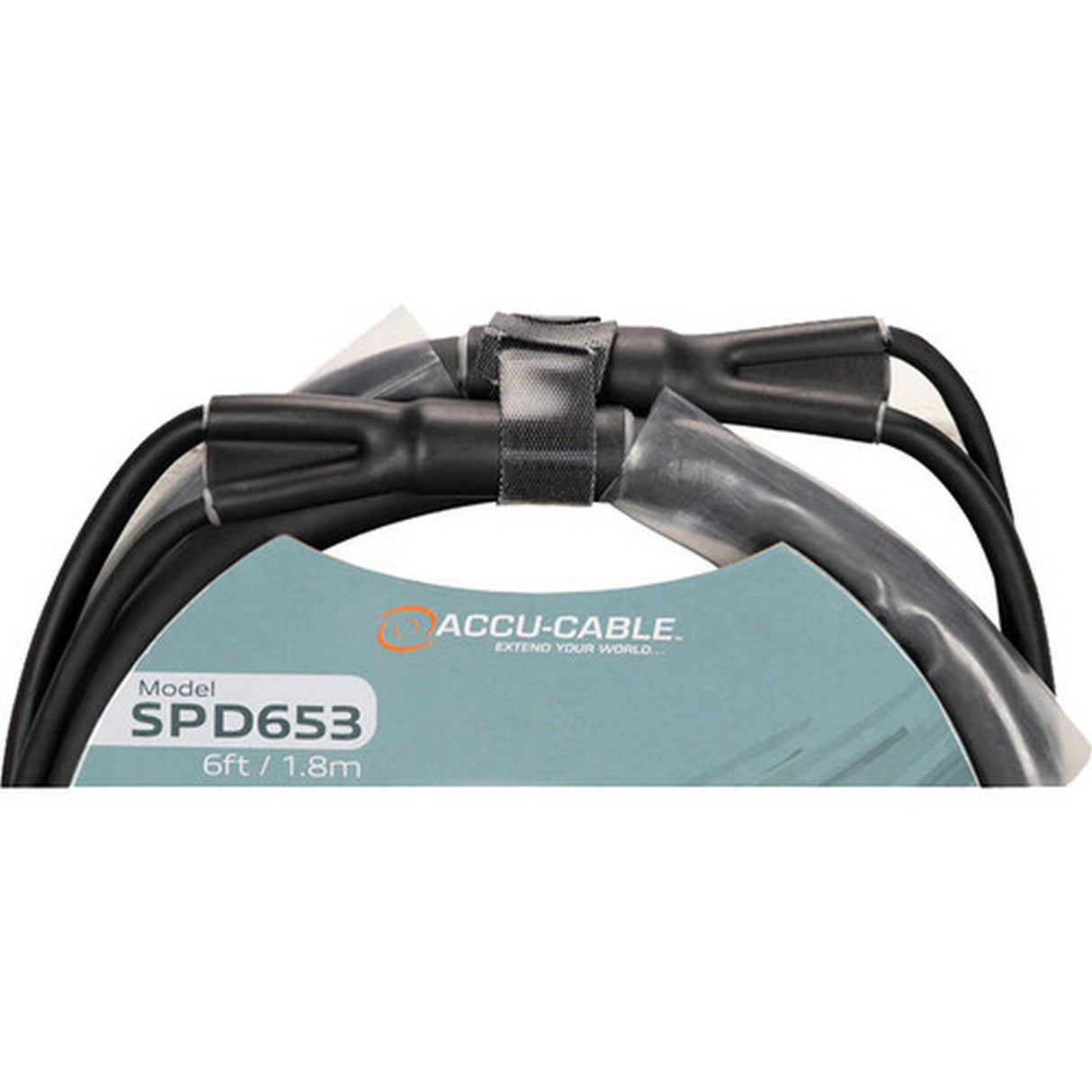

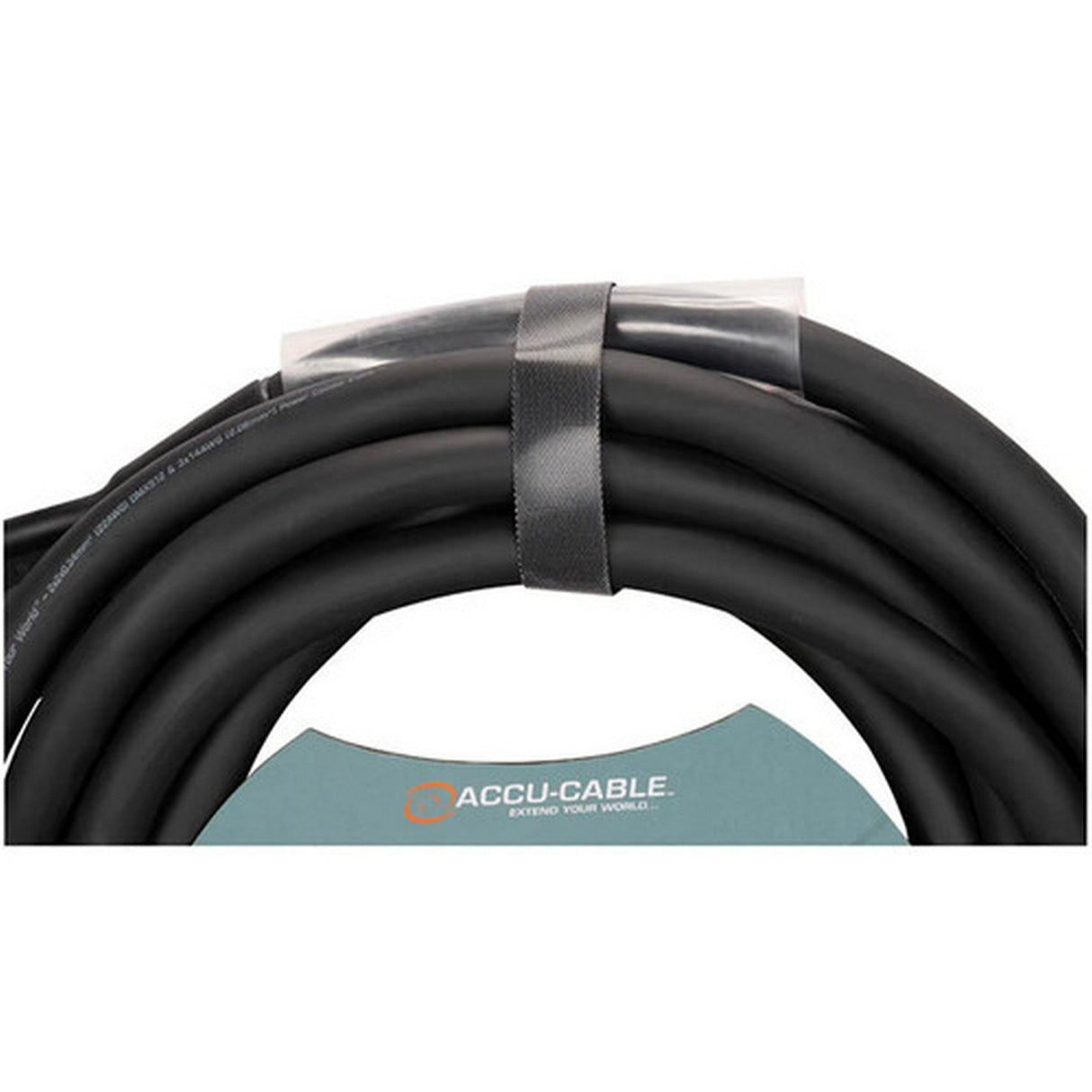

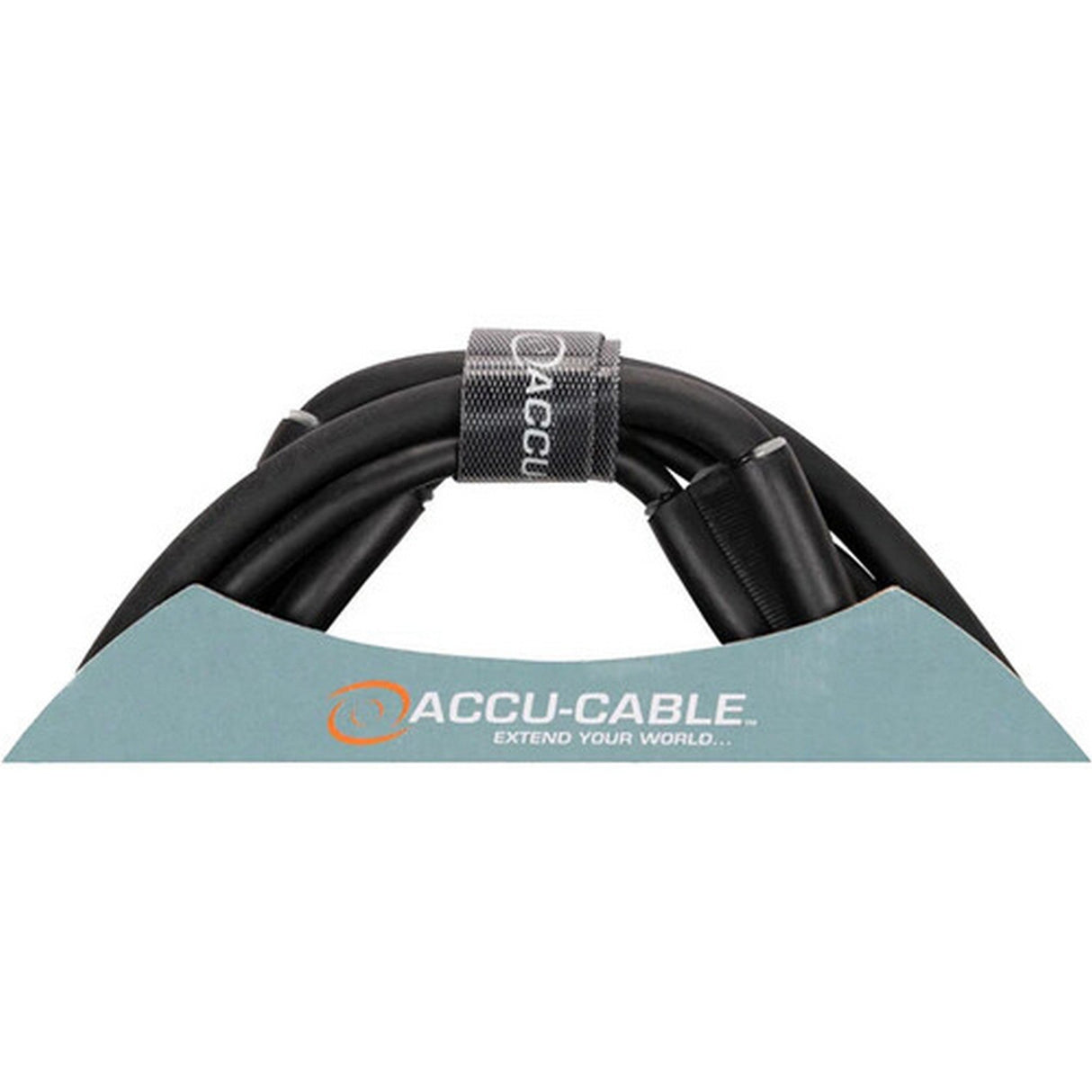

• Cable Management: Integrated tie strap

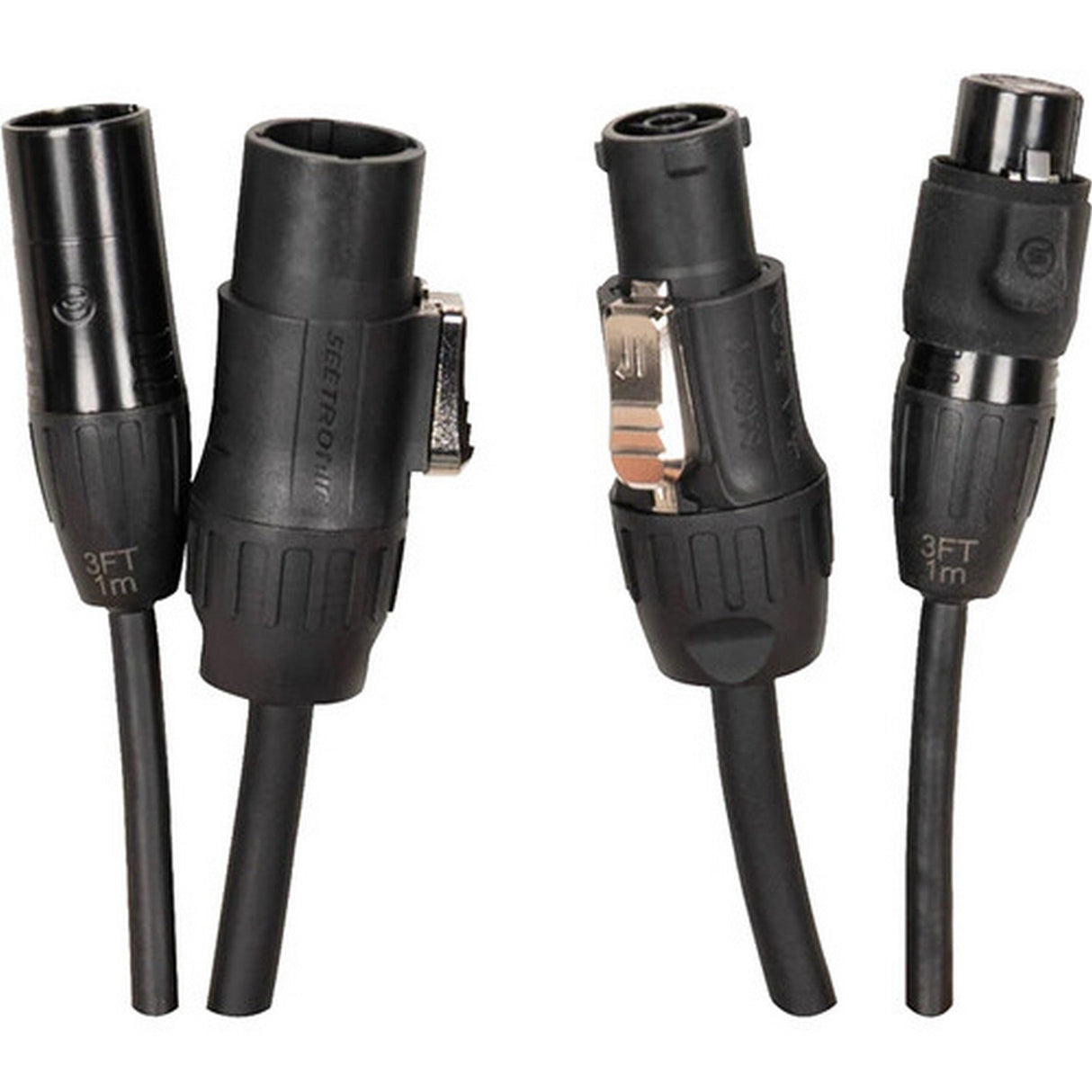

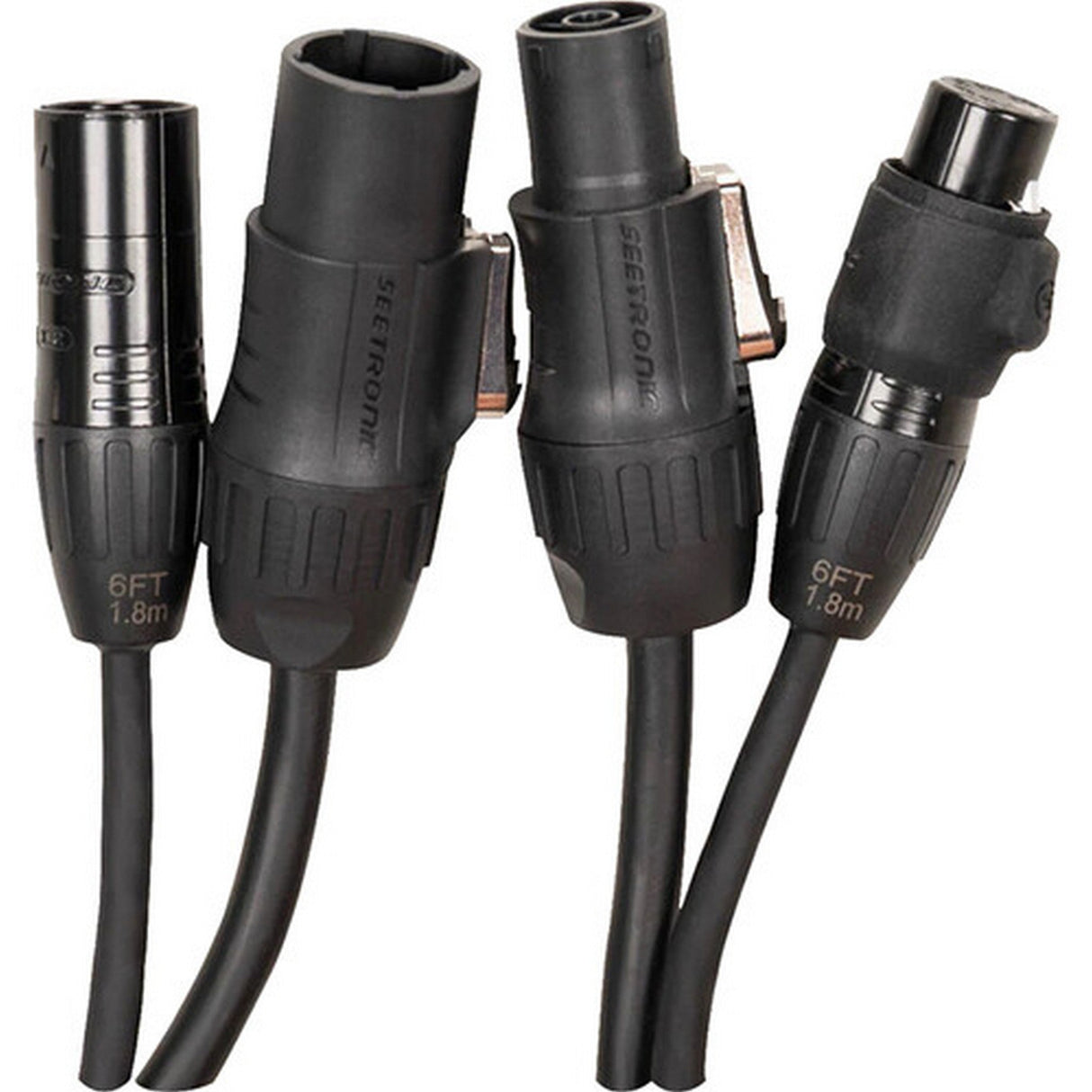

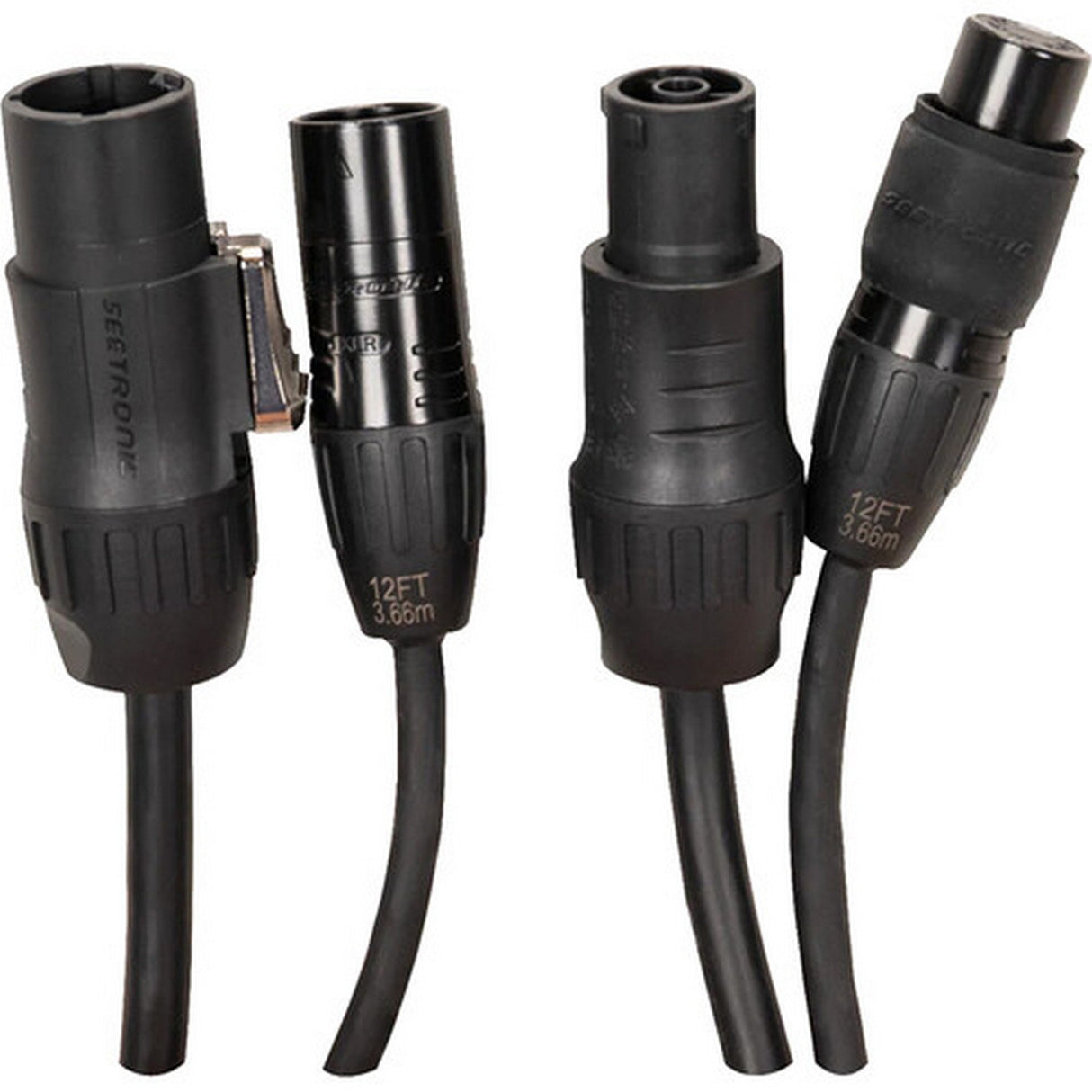

• Length Identification: Cable length laser etched on the connectors
• SPD351 Length: 3 ft
• SPD351 UPC: 810087374686

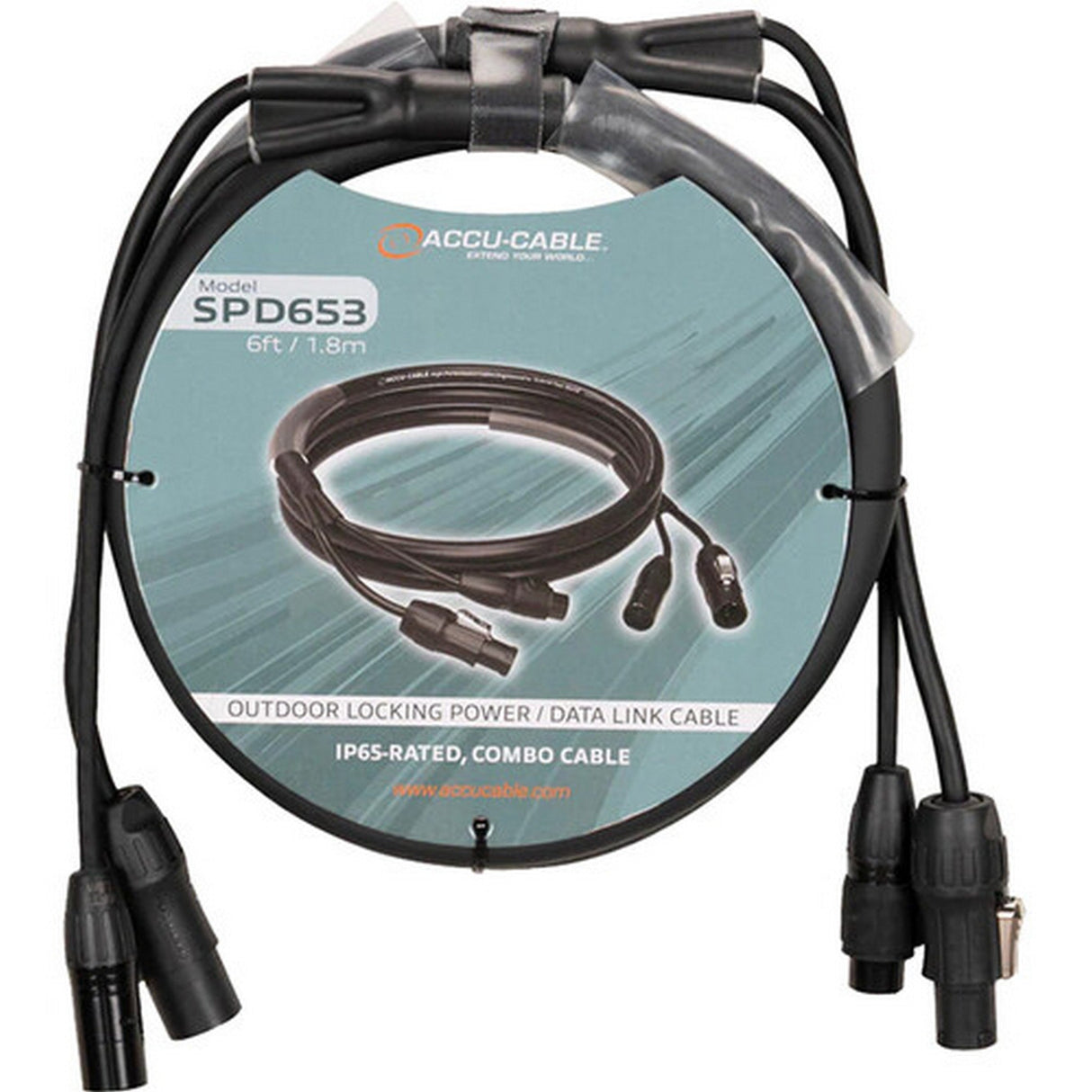

• SPD653 Length: 6 ft
• SPD653 UPC: 810087374693

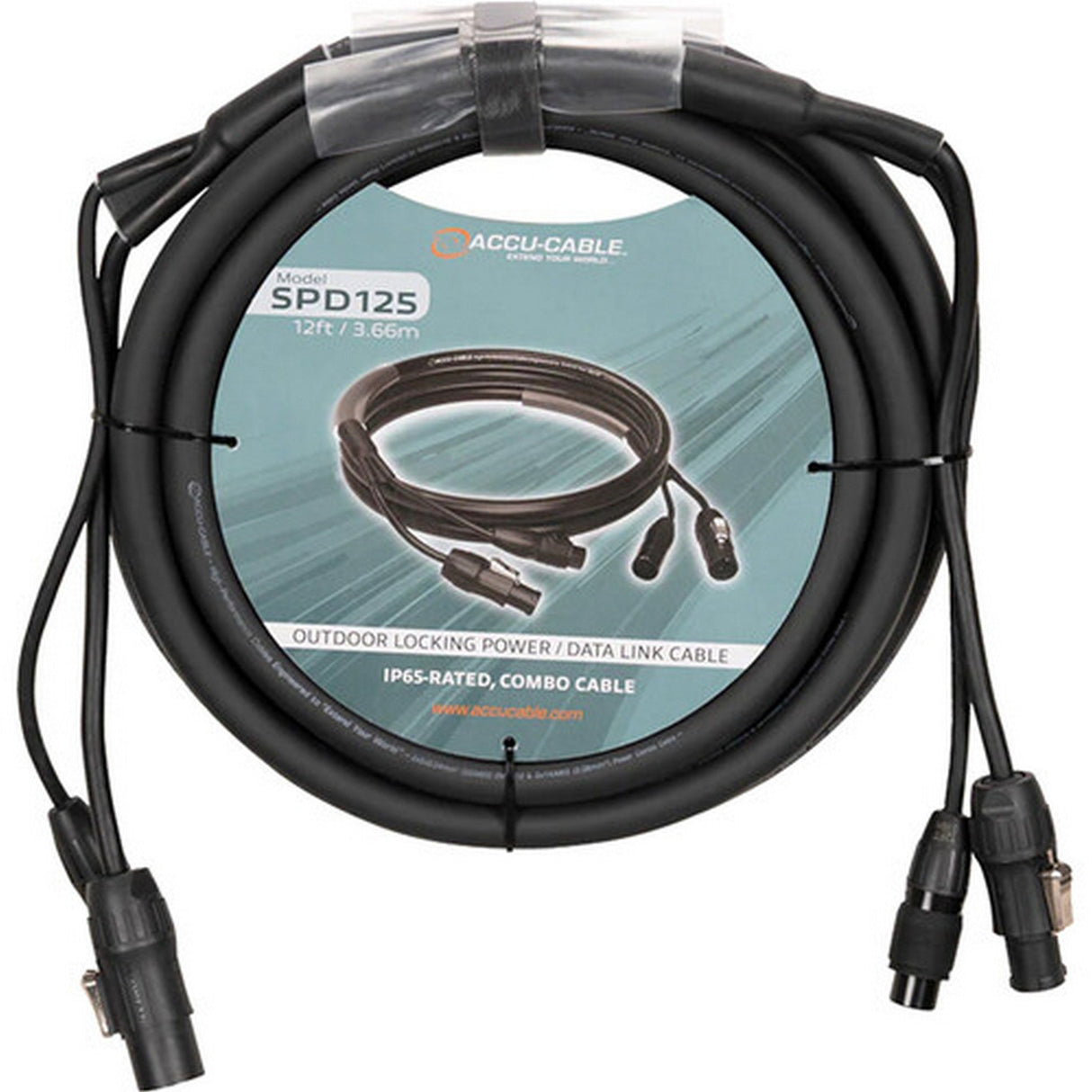

• SPD125 Length: 12 ft
• SPD125 UPC: 810087374709
• SPD255 Length: 25 ft
• SPD255 UPC: 810087374716

What's In the Box

• 1 x ADJ Accu-Cable SPD Series Power and 5-Pin DMX Combo Cable in selected length
• 1 x Cable Tie Strap
