Description

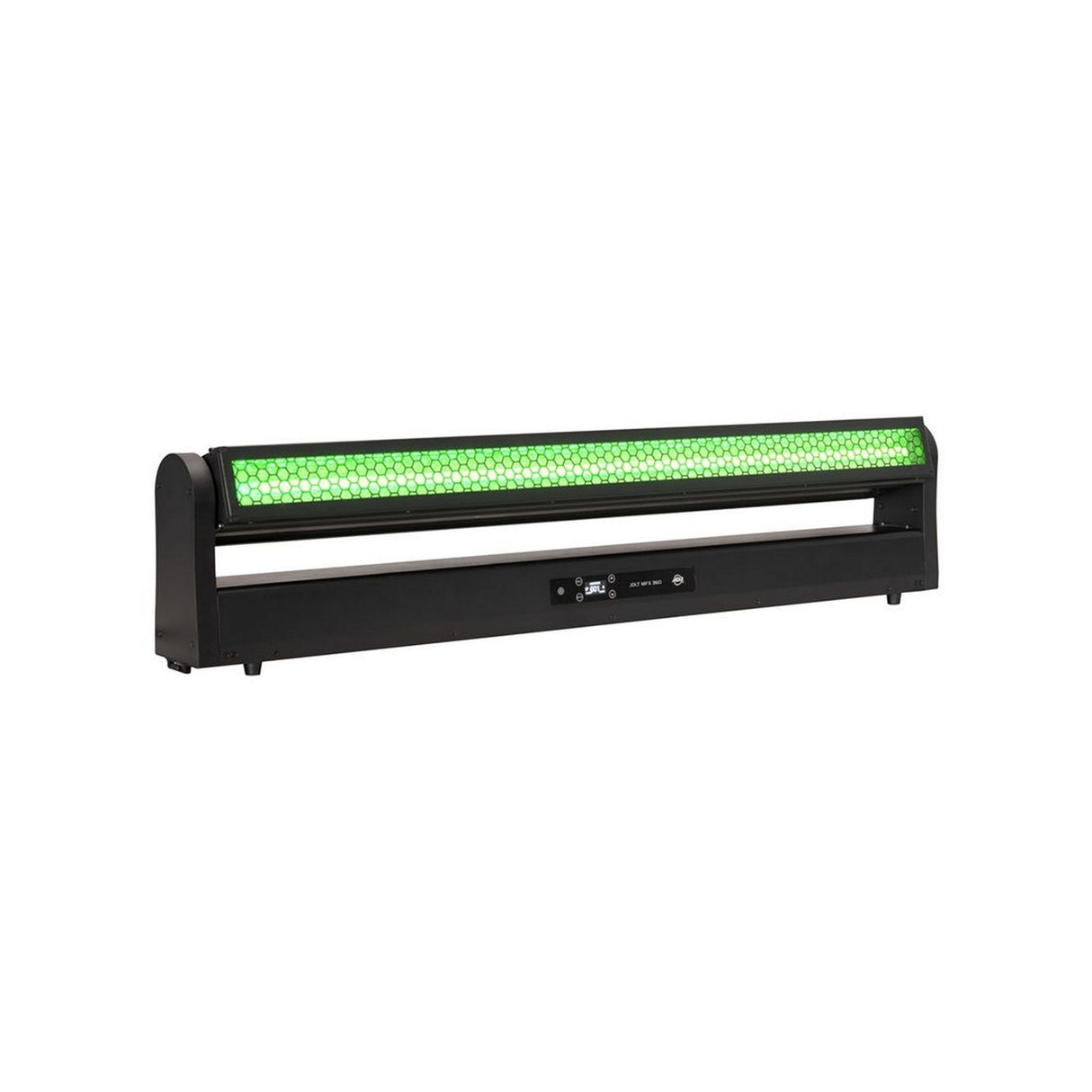

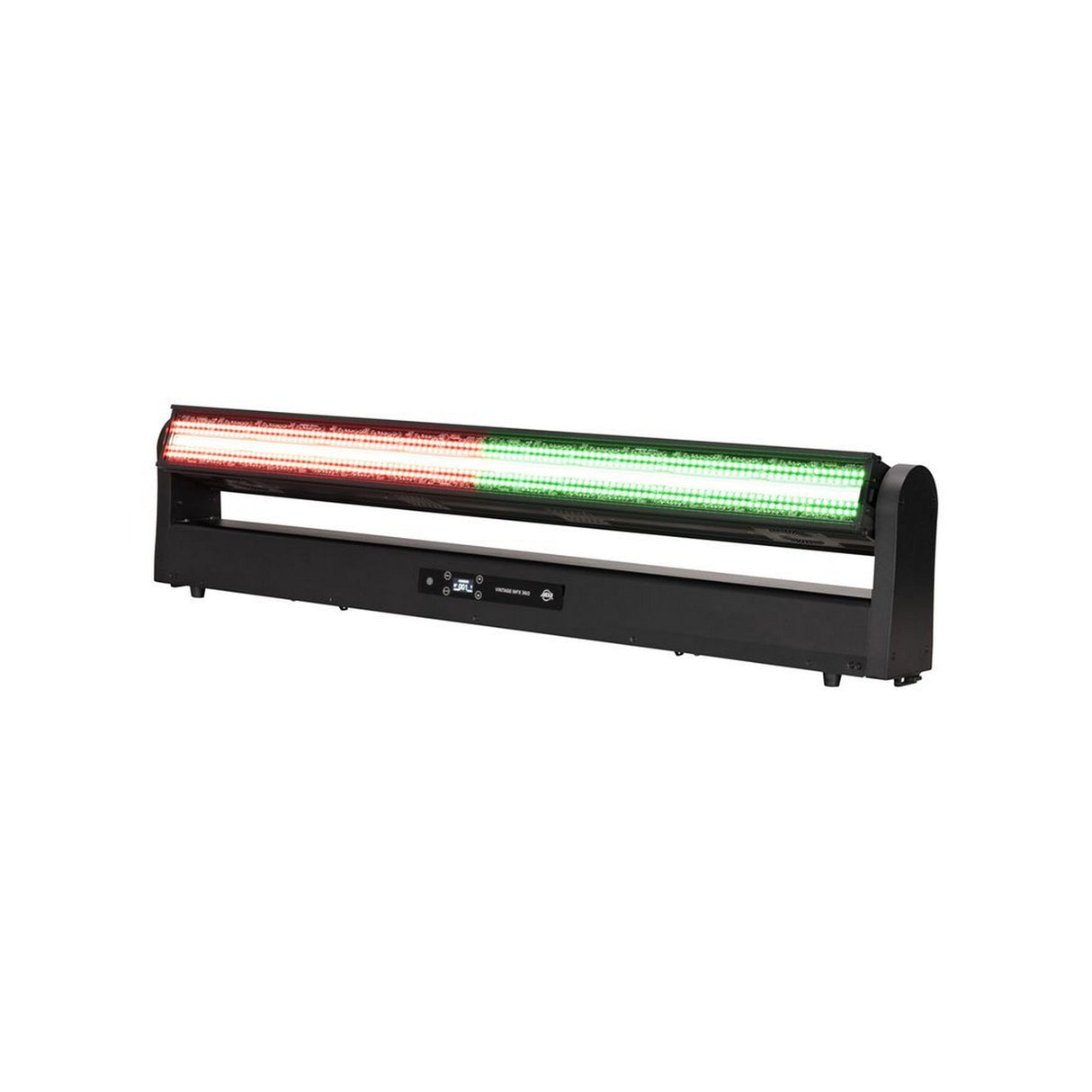

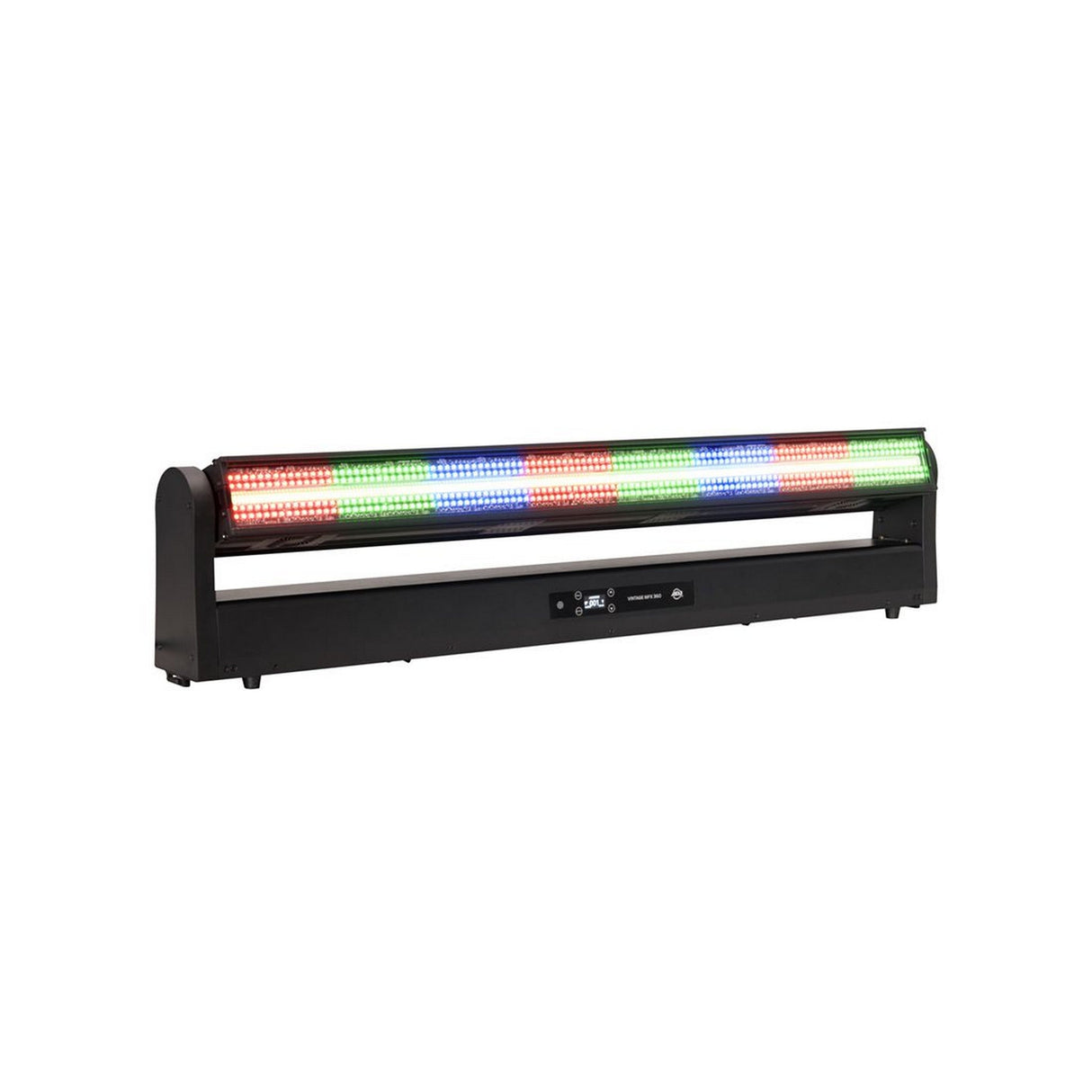

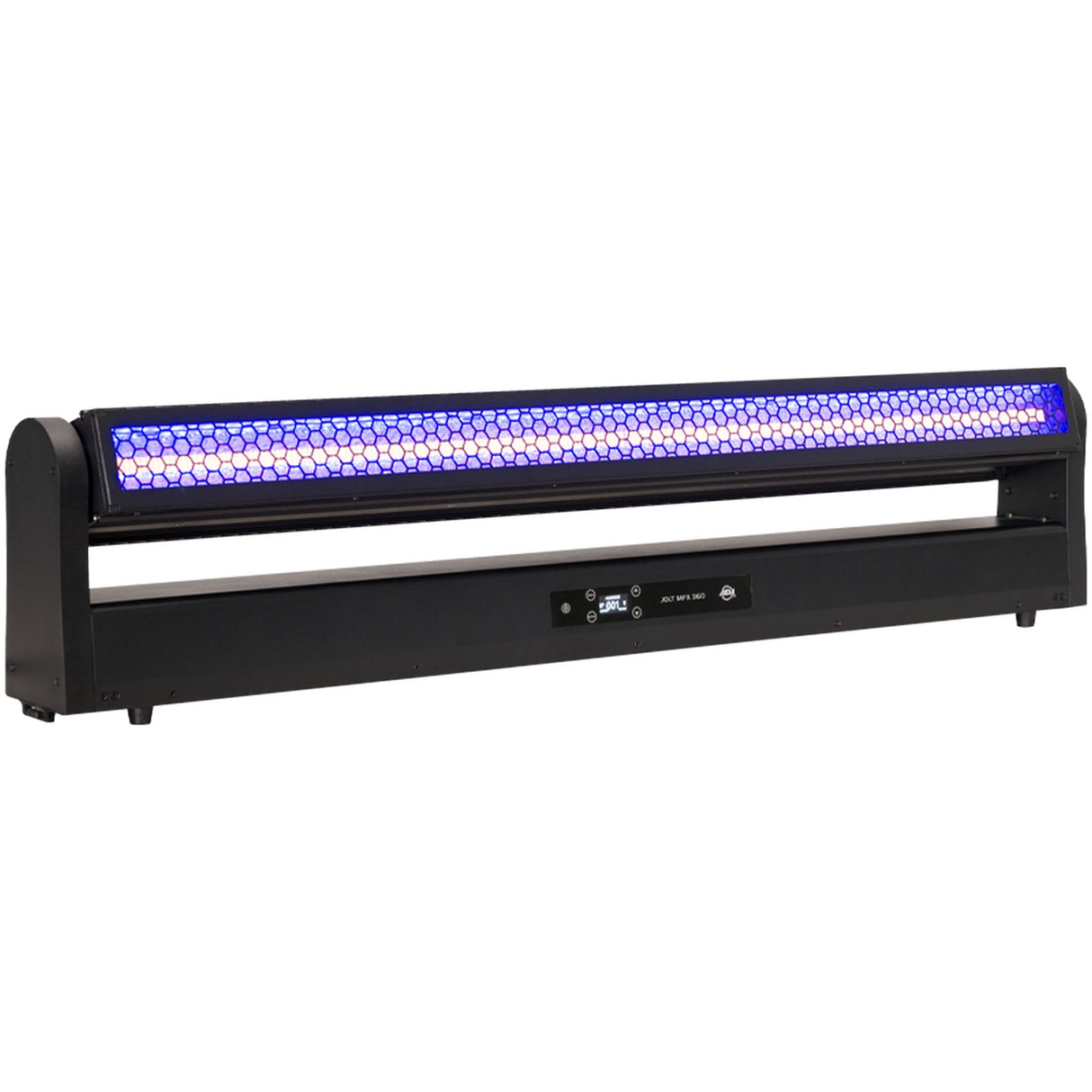

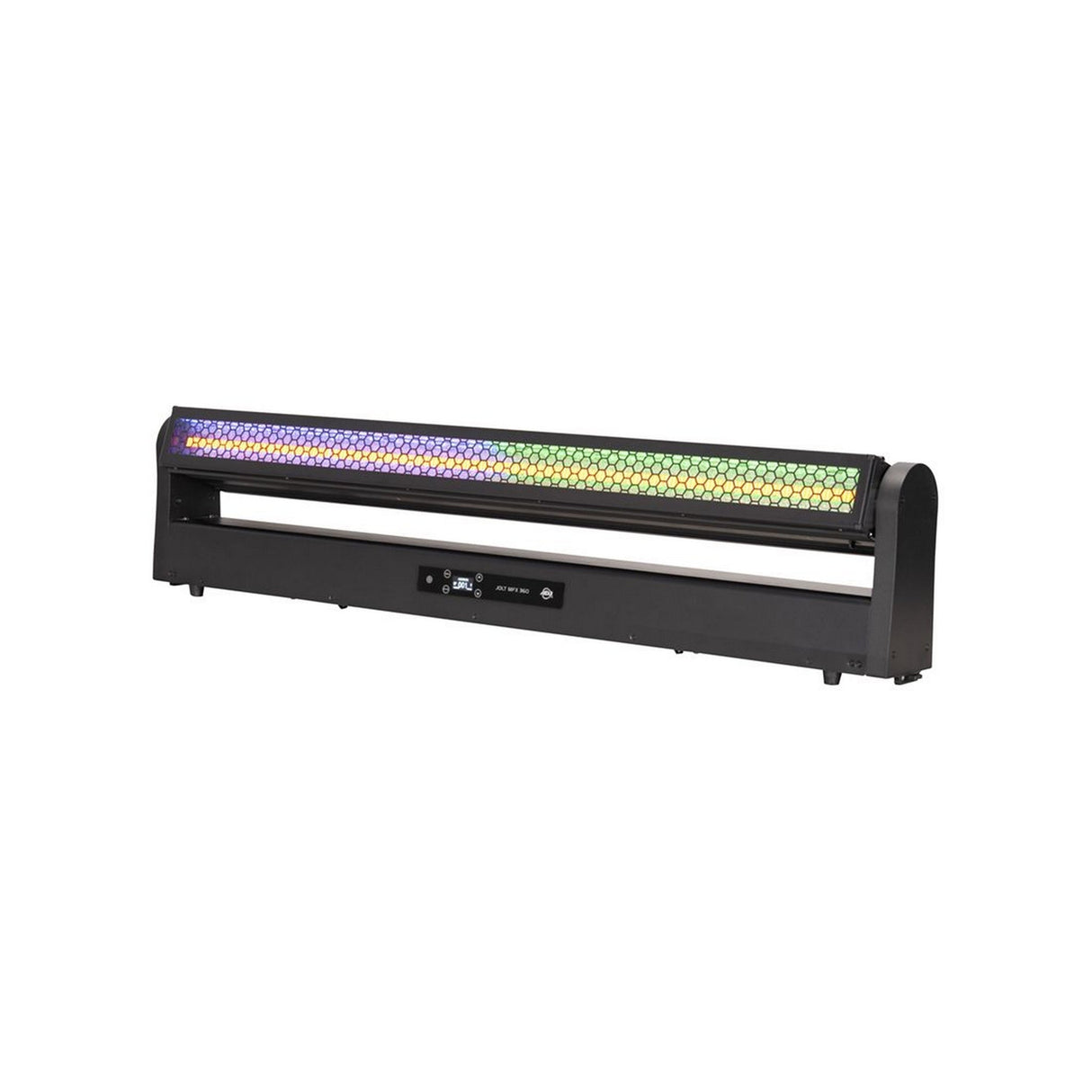

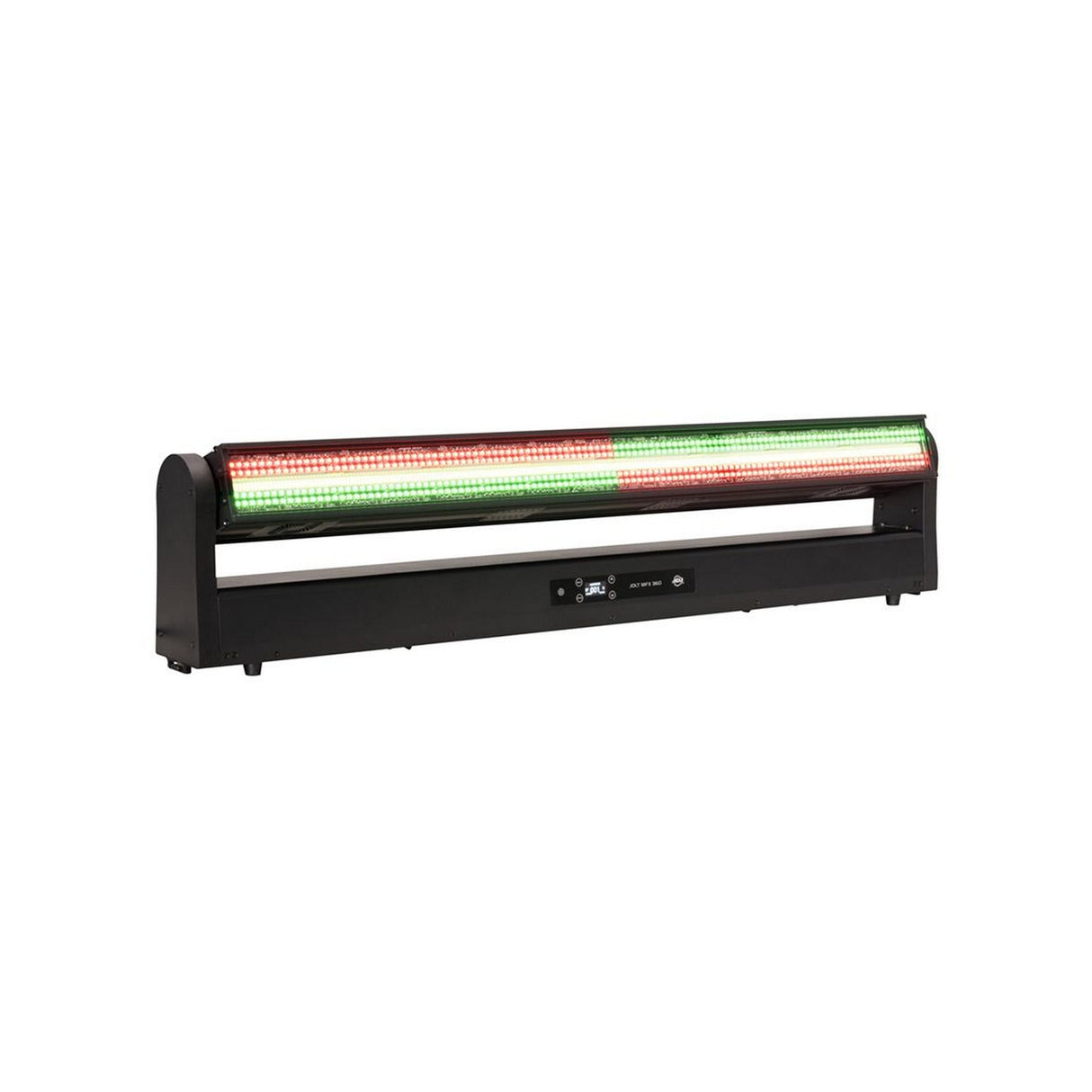

ADJ Jolt MFX 360 Hybrid Vintage Moving Bar
The ADJ Jolt MFX 360 is a professional hybrid LED lighting fixture designed to combine two signature ADJ effects into one powerful, versatile unit. Built with a dual-sided design, the Jolt MFX 360 delivers both the classic warmth of a Vintage Bar-style amber blinder effect and the high-energy impact of a Jolt Bar-style cool white strobe with RGB wash effects. This makes it an ideal lighting solution for concerts, touring productions, clubs, houses of worship, live events, rental companies, and permanent installations that need multiple dynamic looks from a single fixture.
On the Vintage Effect side, the fixture features four 100-watt amber COB LEDs with a warm 1800K color temperature, creating a nostalgic filament-style blinder look surrounded by RGBL background LEDs for colorful scenic ambience. On the Jolt Bar Effect side, it delivers an intense cool white strobe strip powered by 448 1-watt SMD LEDs, surrounded by 448 RGB SMD LEDs for bold color wash effects. This dual-effect configuration allows lighting designers to move smoothly from warm atmospheric looks to explosive strobe-driven energy without changing fixtures.
The Jolt MFX 360 is engineered for advanced creative control with 360° continuous tilt movement in both directions, zone-based LED control, built-in macros, smooth dimming, strobe effects, and multiple DMX channel modes. With control support for DMX, ArtNet, sACN, Aria X2, NFC, and RDM, it integrates easily into professional lighting rigs and networked control environments. The built-in Aria X2 Wireless Management System, NFC readiness, OLED display, tilt lock, optional frost lens slot, and alignment feature make the Jolt MFX 360 a strong choice for both fast-paced production use and precise end-to-end fixture setups.
Designed for professional performance, the ADJ Jolt MFX 360 offers extensive programming flexibility with RGB, RGBL, and cool white LED macros, multiple dimming curves, selectable refresh rates, and primary/secondary functionality. Its compact bar-style form factor, power linking capability, Seetronic locking data connections, and included mounting hardware make it ready for demanding stage, entertainment, and installation applications.
Key Features
- Hybrid dual-sided lighting fixture combining Vintage Bar-style amber blinder effects and Jolt Bar-style strobe/wash effects
- 4 x 100-watt amber COB LEDs on the Vintage Effect side for warm 1800K blinder output
- 140 x 0.8-watt RGBL SMD LEDs on the Vintage Effect side for colorful background ambience
- 448 x 1-watt cool white SMD LEDs on the Jolt Bar Effect side for high-impact 6500K strobe effects
- 448 x 0.5-watt RGB SMD LEDs on the Jolt Bar Effect side for vibrant color wash effects
- 360° continuous tilt movement in both directions for dynamic movement effects
- Built-in Aria X2 Wireless Management System and NFC readiness
- 12 DMX channel modes for flexible control options
- 128 built-in RGB and RGBL background LED macros
- Built-in RGBL, RGB, and cool white LED program macros with speed and fade control
- Zone-based LED control for advanced pixel-style programming
- 0–100% smooth dimming with selectable dim modes and dim curves
- Linear speed, pulse, and random strobe effects
- OLED display menu with 4 touch buttons
- Lens slot on Jolt Bar side for optional frost lens accessories
- Alignment feature for precise end-to-end unit setup
- IP20 rated for indoor professional lighting applications
Technical Specifications
Source
Vintage Effect Side: 4 x 100-Watt COB Amber (1800K) LEDs
Vintage Effect Side Wavelength: 588-592nm
Vintage Effect Side Lux: 473
Vintage Effect Side CRI: 60
Vintage Effect Side Beam Angle: 120°
Vintage Effect Side Field Angle: 140°
Vintage Effect Side LED Life: 50,000 Hours Average
Vintage Effect Side Background LEDs: 140 x 0.8-Watt RGBL SMD LEDs
Vintage Effect Side Background LED Wavelength: Red 620-625nm, Green 520-525nm, Blue 455-460nm, Lime 570nm
Vintage Effect Side Background LED Life: 50,000 Hours Average
Jolt Bar Effect Side: 448 x 1-Watt Cool White (6500K) SMD LEDs
Jolt Bar Effect Side Wavelength: 620nm
Jolt Bar Effect Side Lux: 585
Jolt Bar Effect Side CRI: 73
Jolt Bar Effect Side Beam Angle: 60°
Jolt Bar Effect Side Field Angle: 80°
Jolt Bar Effect Side LED Life: 50,000 Hours Average
Jolt Bar Effect Side Background LEDs: 448 x 0.5-Watt RGB SMD LEDs
Jolt Bar Effect Side Background LED Wavelength: Red 630nm, Green 520-525nm, Blue 470nm
Jolt Bar Effect Side Background LED Life: 50,000 Hours Average
Features
Amber LED Zones: 4 x Amber LEDs on Vintage Effect Side (203, 220, 223, and 229CH Modes)
RGBL LED Zones: 20 x RGBL LED Zones on Vintage Effect Side (203, 220, 223, and 229CH Modes)
Cool White LED Zones: 16 x Cool White LED Zones on Jolt FX Bar Side (203, 220, 223, and 229CH Modes)
RGB Background LED Zones: 32 x RGB Background LED Zones on Jolt FX Bar Side (203, 220, 223, and 229CH Modes)
Background LED Macros: 128 Built-in RGB (Jolt Bar) and RGBL (Vintage) Background LED Macros
Vintage Side Program Macros: 6 Built-in RGBL LED Program Macros with Speed and Fade Control
Jolt Bar RGB Program Macros: 6 Built-in RGB LED Program Macros with Speed and Fade Control
Jolt Bar Cool White Program Macros: 6 Built-in Cool White LED Program Macros with Speed and Fade Control
Tilt Movement: 360° Continuous Tilt Movement in Both Directions
Tilt Lock: Yes
Wireless Management: Built-in Aria X2 Wireless Management System
NFC Ready: Yes
Lens Slot: Lens Slot on Jolt Bar Side for Optional Frost Lens
Alignment Feature: Precise End-to-End Unit Setup
Control
Control Protocols: DMX, ArtNet, sACN, Aria X2, NFC, and RDM
Primary / Secondary Functionality: Yes
DMX Channel Modes: 12 Modes; 16, 31, 36, 42, 79, 96, 99, 105, 203, 220, 223, and 229
Dim Modes: 6 Presets; Standard, Stage, TV, Architectural, Theatre, Stage 2
Dim Curves: 4 Presets; Linear, Square Law, Inv Square Law, and S Curve
Dimming: 0–100% Smooth Dimming
Strobe Effects: Linear Speed, Pulse, and Random
Max Strobe Rate: 25Hz
Min Strobe Rate: 0.35Hz
Refresh Rate: 900Hz–25kHz
Display: OLED Display Menu with 4 Touch Buttons
Connections
DMX Data: Seetronic 5-pin XLR Locking DMX In/Thru
Network Data: Seetronic RJ45 Locking In/Thru
Power: IP65 Power Locking In/Thru
Electrical
Power Input: 100–240V, 50Hz/60Hz Auto Sensing
Max Power Consumption: 780W (7.09A @ 110V, 3.55A @ 220V)
Max Power Link: 2 Units @ 110V/120V, 4 Units @ 220V/240V
Fuse Protection: T6.3A/250V Glass Fuse (0.20" x 0.79")
Dimensions and Weight
Dimensions: 42.44" x 5.08" x 11.02"
Length: 42.44"
Width: 5.08"
Height: 11.02"
Weight: 40.4 lbs
Approvals and Ratings
Certifications: CE, cETLus Control #5028947
IP Rating: IP20
UPC: 810087375416
SKU: JOL360
