ADJ SDC24 DMX Controller with Wired Digital Communication Network

ADJ | SKU: ADJ-SDC24-SDC024
$11999

Free Shipping

Last 2




Estimated Shipping Widget will be displayed here!


Condition: New

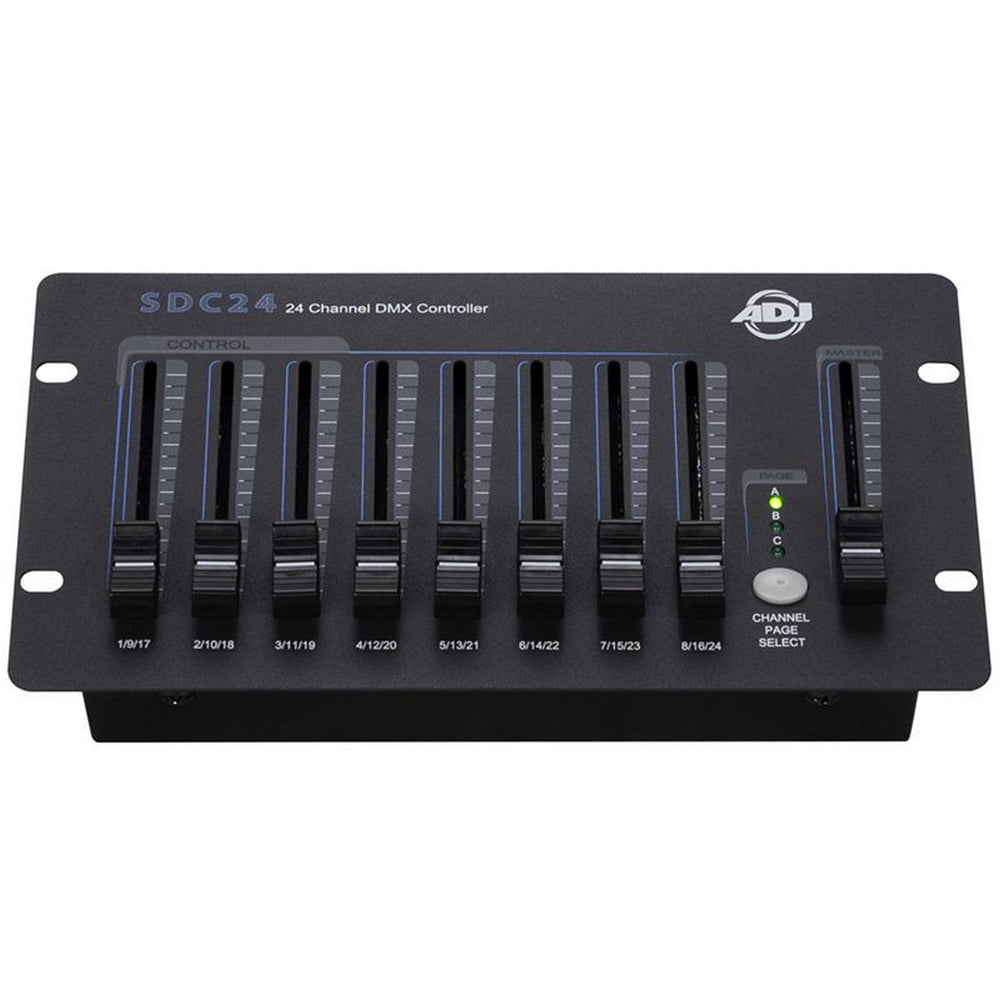

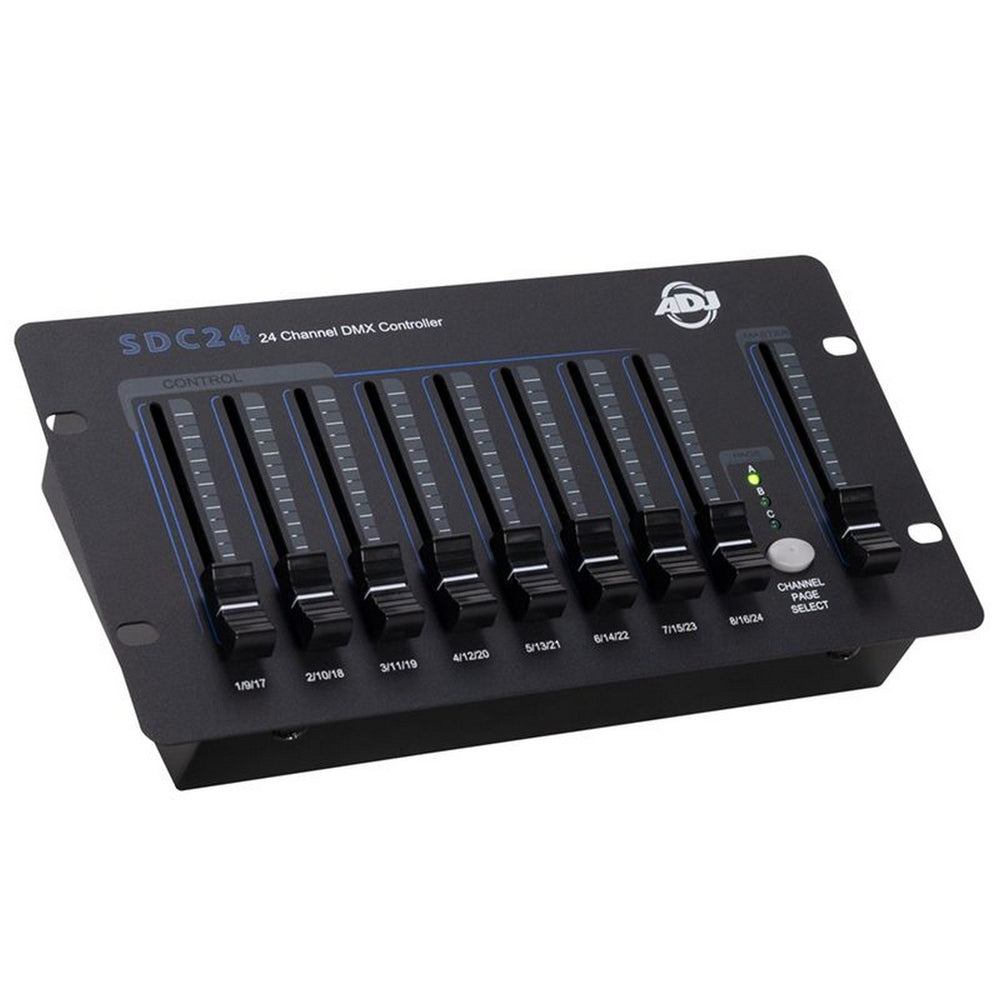

The ADJ SDC24 DMX Controller with Wired Digital Communication Network stands out as a fundamental 24-channel DMX Controller designed to function with either an external 12VDC power supply (provided) or a 9VDC battery (not included). Featuring both 5-pin and 3-pin DMX output sockets, DIP switches for configuring the initial DMX channel, a master dimmer fader, an on/off switch, and a Channel Page button complemented by Indicator LEDs, this compact controller proves ideal for product demonstrations or manual management of LED or traditional lighting fixtures.

Key Features

  • The device features 8 separate channel faders and a single master fader.
  • Supports a total of 24 DMX channels.
  • The design of the device is compact and portable, making it easy to transport.
  • Offers both 3-Pin and 5-Pin XLR output options.
  • The device requires a PP3 9V battery (not included) for operation

Technical Features

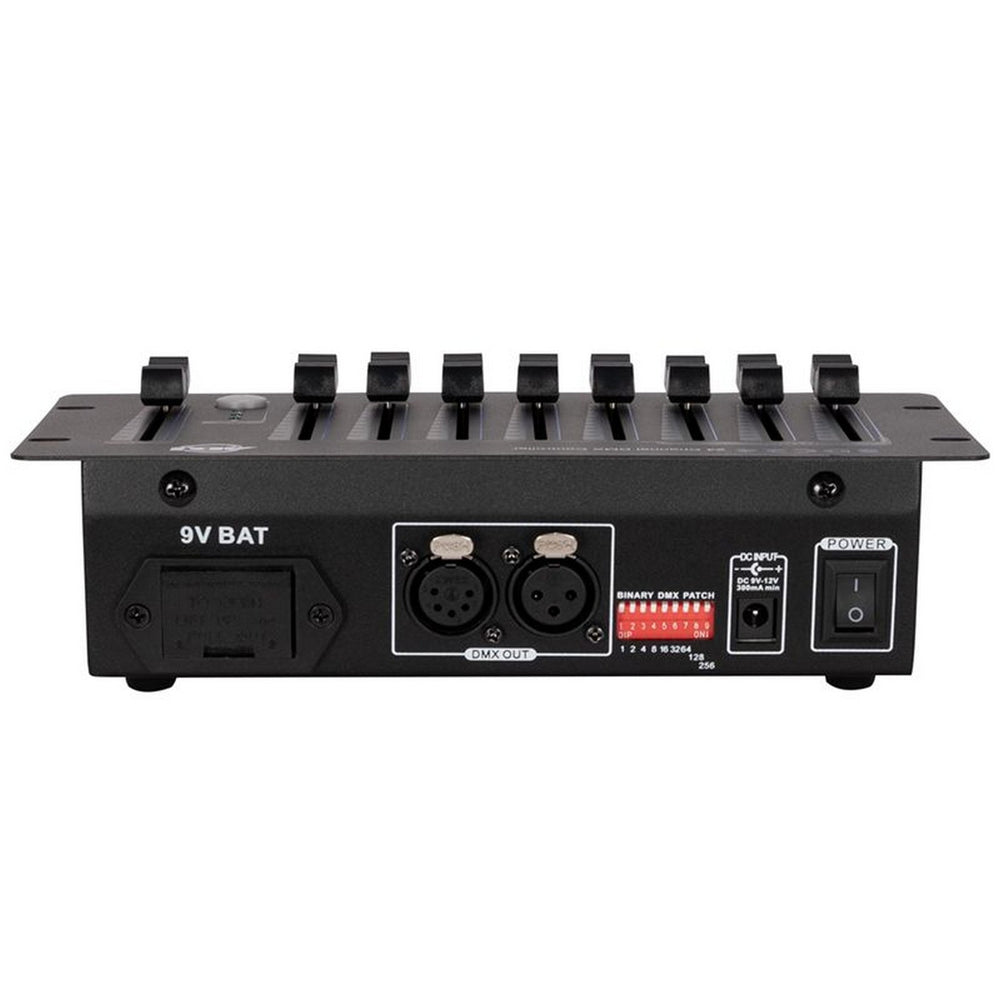

Control / Connection:
DIP Switches To Set Starting DMX Channel
3pin & 5pin DMX Outputs
On/Off Switch
Channel Page button with Indicator LED's
DC9V-12V Power Supply Input
9V Battery slot

Size / Weight:
Length: 4.73” (120mm)
Width: 9.06” (230mm)
Height: 2.23” (56.66mm)
Weight: 1.86 lbs. (0.84kg)

Electrical:
DC9V-12V 300mA min or 9V Battery (Not Included)
Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W

Approvals / Ratings:
CE Approved
cETLus
IP20
UKCA

Included Accessories:

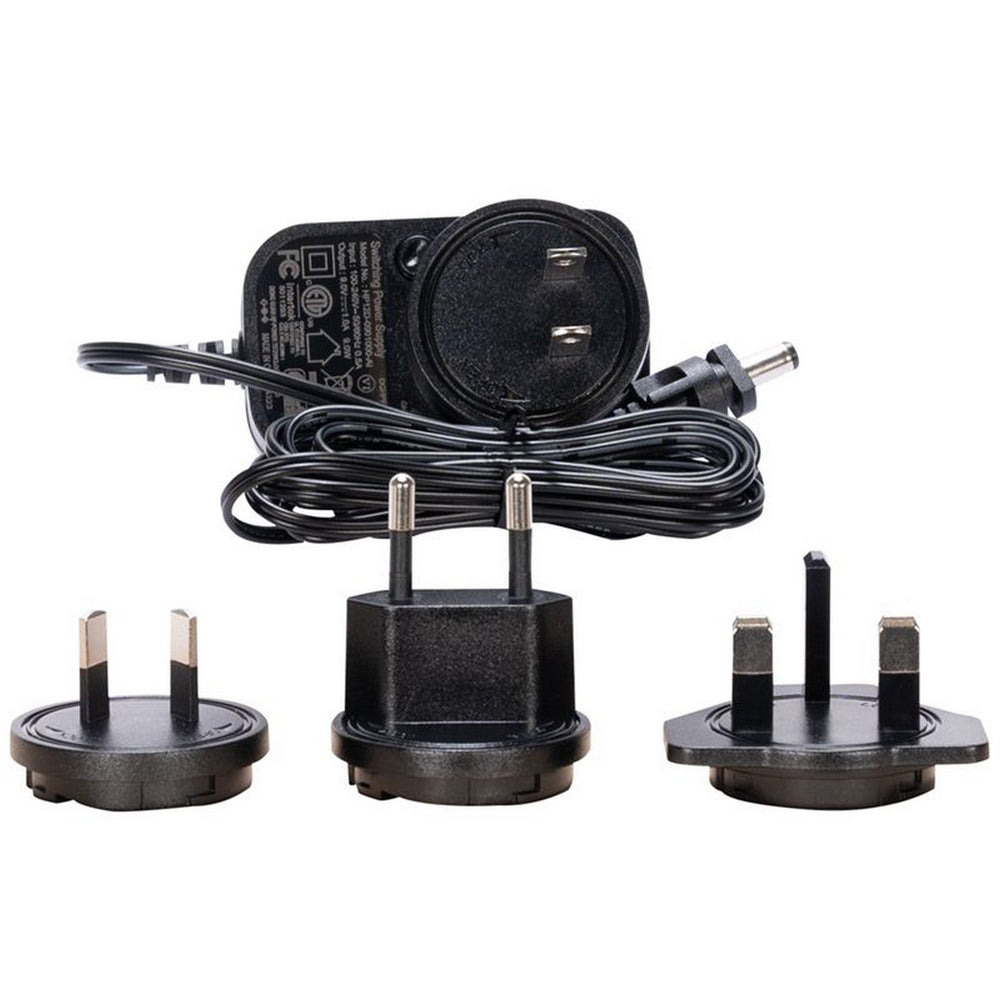

• 9V 1A Power Supply

Specifications subject to change without notice.
