ADJ WIFI NET 2 Wireless Node with Wired Digital Communication Network

Streamline your workflow with the ADJ WIFI NET 2 Wireless Node with Wired Digital Communication Network, a user-friendly DMX node. Configuration is a breeze thanks to any web browser on your Windows or macOS device. Simply connect via Ethernet for a smooth setup process.

Unparalleled Network Flexibility:
Enjoy seamless data transfer across your local area network with WiFi NET 2. It supports both Ethernet (LAN & WLAN) and DHCP or Static IP addressing, ensuring effortless communication. For unbreakable connectivity, WiFi NET 2 boasts built-in 2.4 GHz WiFi and the option for Power over Ethernet (PoE).

Powerful DMX Control:
WiFi NET 2 acts as your one-stop solution for Art-Net & sACN to DMX conversion. It effortlessly handles data decoding and node operations, making it compatible with various data sources.

This powerful DMX node features two DMX universe outputs. Housed in a rugged design with two DMX OUT ports, WiFi NET 2 is built to withstand the rigors of professional use, delivering exceptional performance and durability.

Key Features

• ArtNet / sACN / DMX, Dual Port Node

• 2.4G Wireless Connectivity

• Can be powered by Line Voltage or PoE

• Supports DHCP or Static IP Address configuration

• Easily configurable via web browser interface

Technical Specifications

Protocols:
DMX512
RDM
Artnet
sACN

Physical:

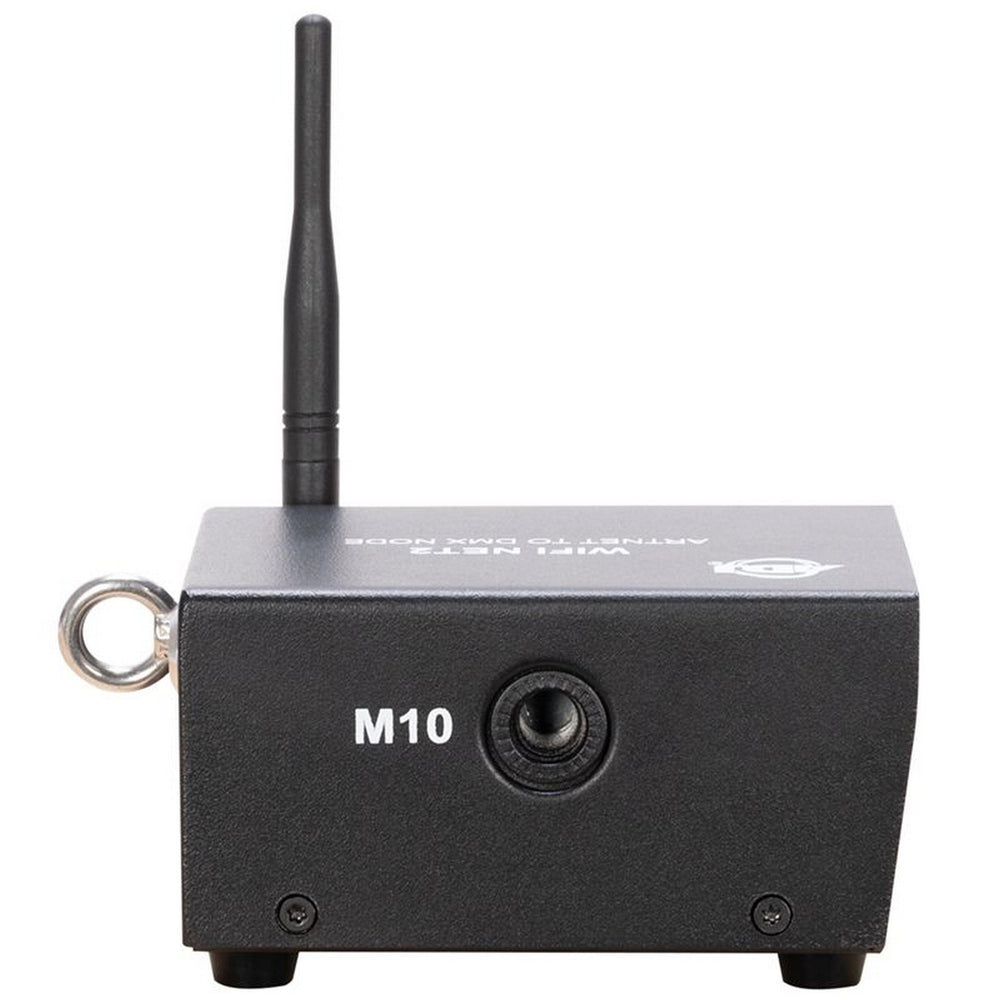

M10 Thread for clamp / rigging
Safety eyelet

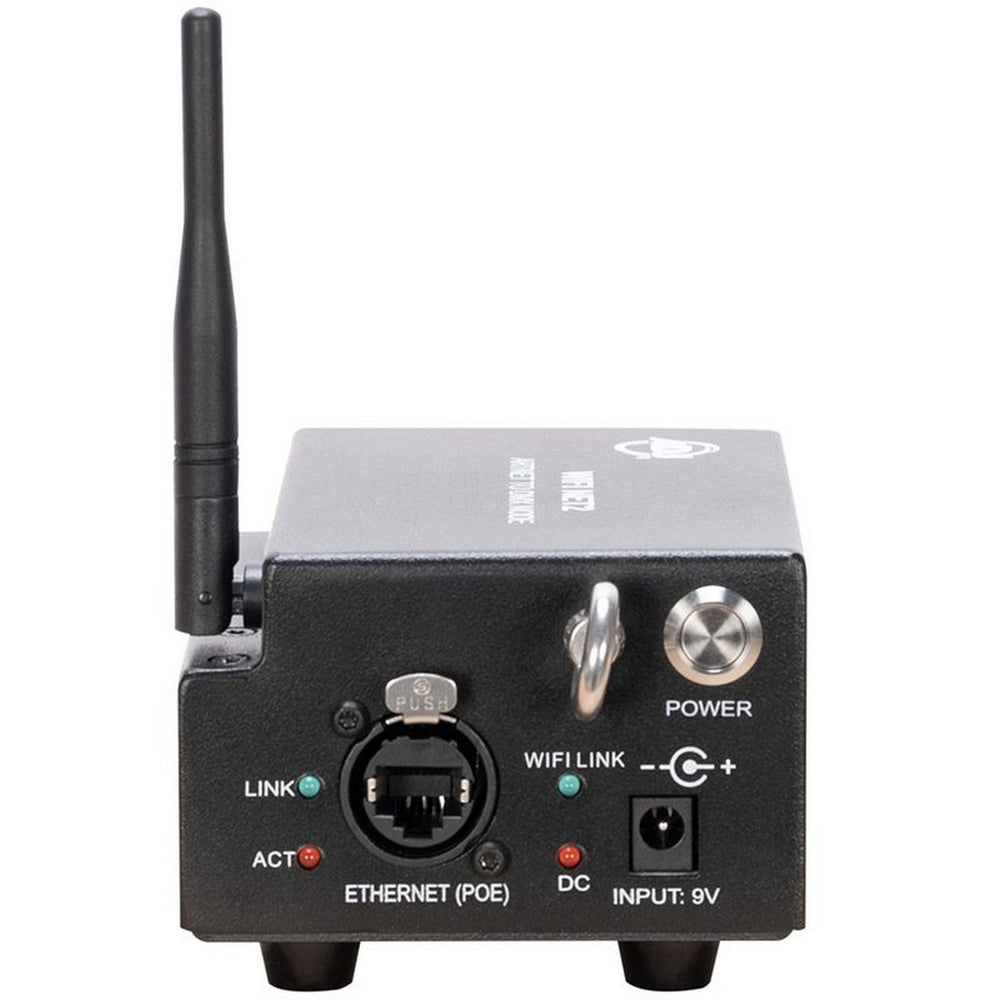

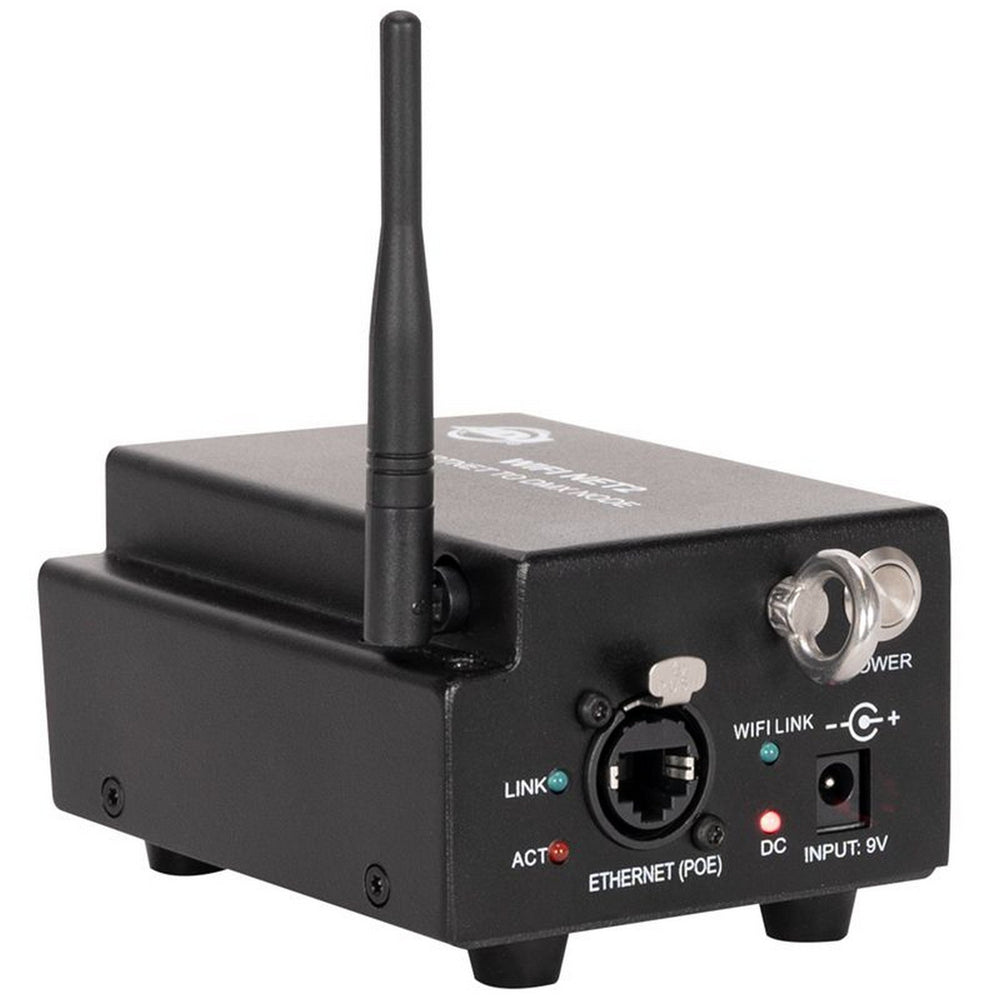

1x Indoor RJ45 Input

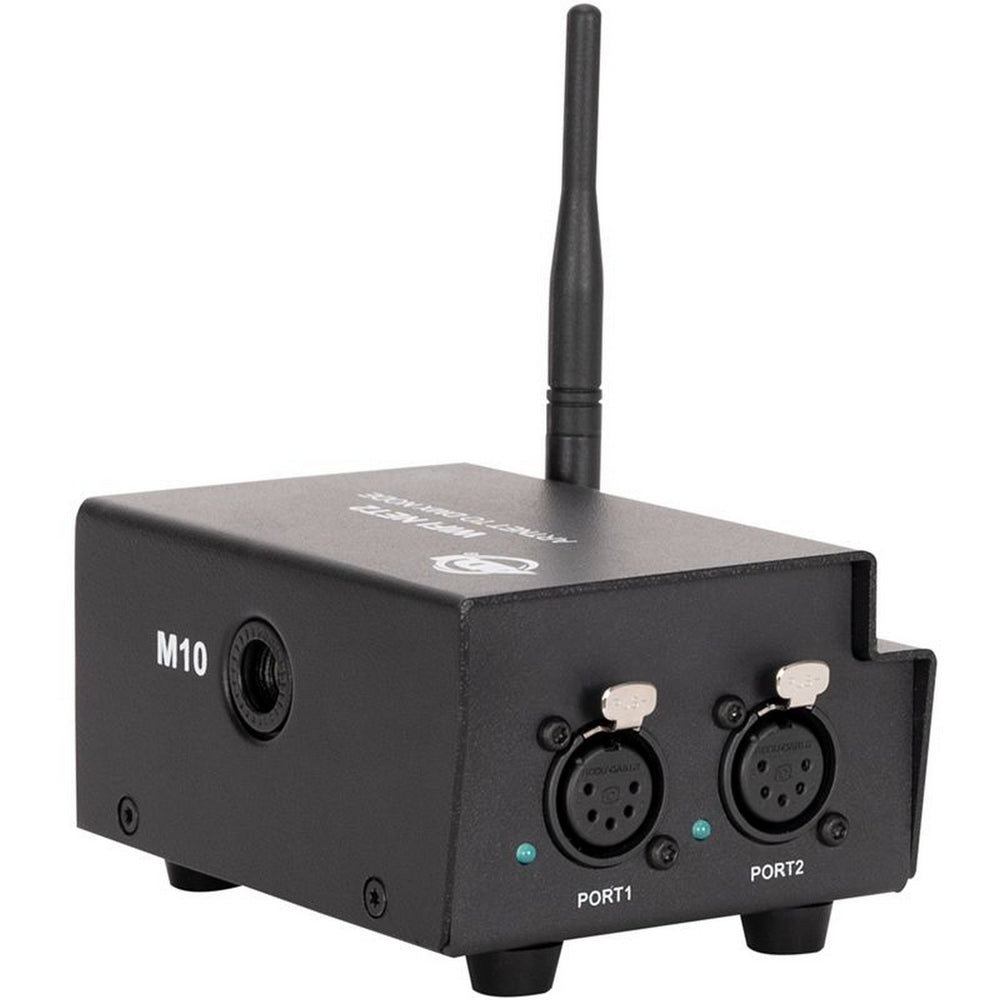

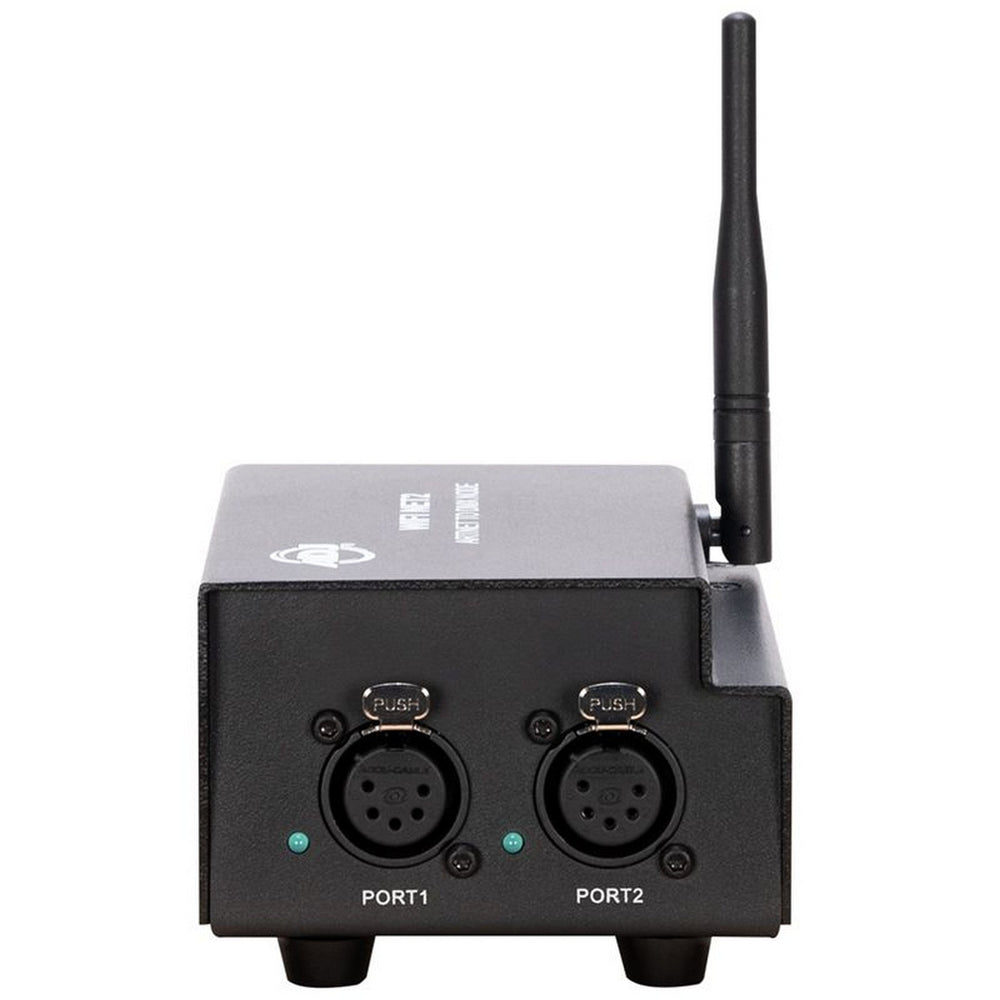

2x 5-pin XLR Input / Output

Dimensions & Weight:
Length: 3.48" (88.50mm)
Width: 5.06" (128.55mm)
Height: 2.46" (62.5mm)
Weight: 1.23lbs. (0.56kg)

Power:
9VDC and POE
POE 802.3af
AC Power: DC9V-12V 300mA min.
POE Power: 15W
Power Consumption: 2W @ 120V and 2W @ 230V

Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Humidity: <75%
Storage Temperature: 77°F (25°C)

Certifications & IP Rating:
CE
FCC
IP20

Included Accessories:

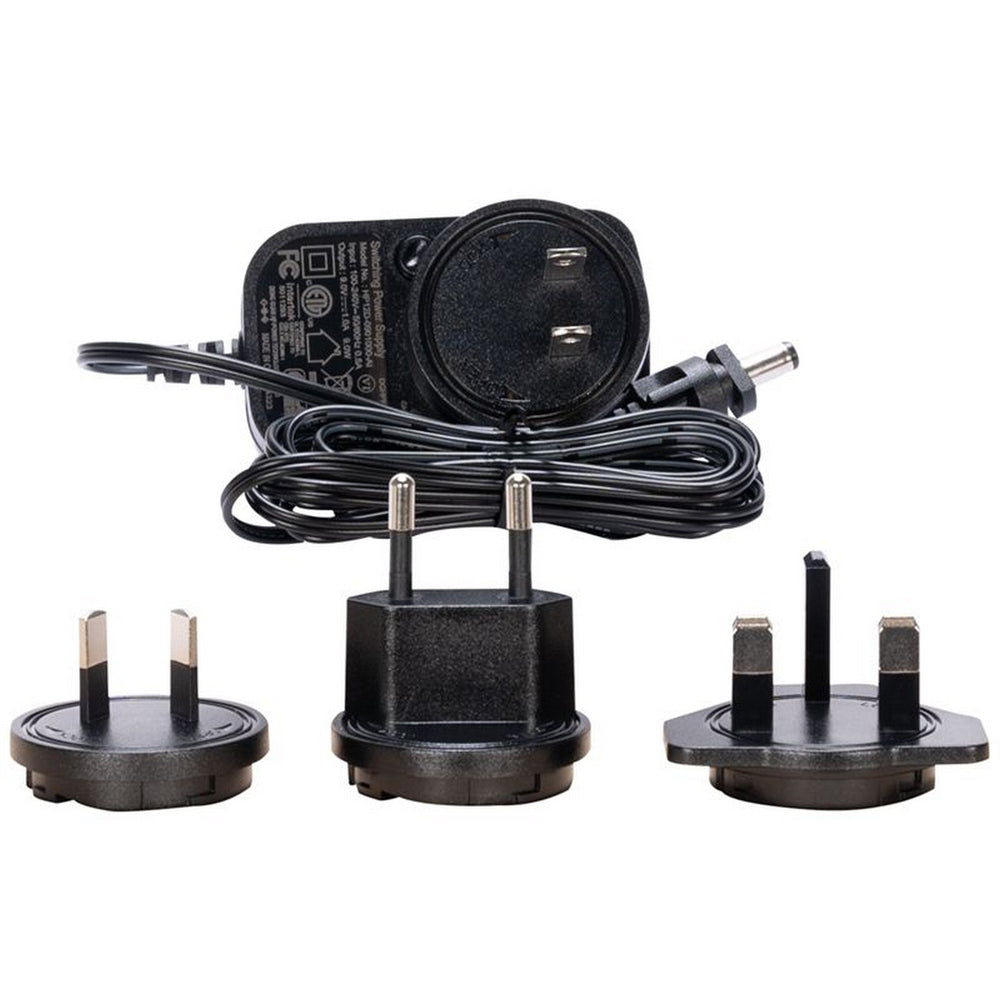

9V Power Supply (cETLus Approved)

Specifications subject to change without notice.
