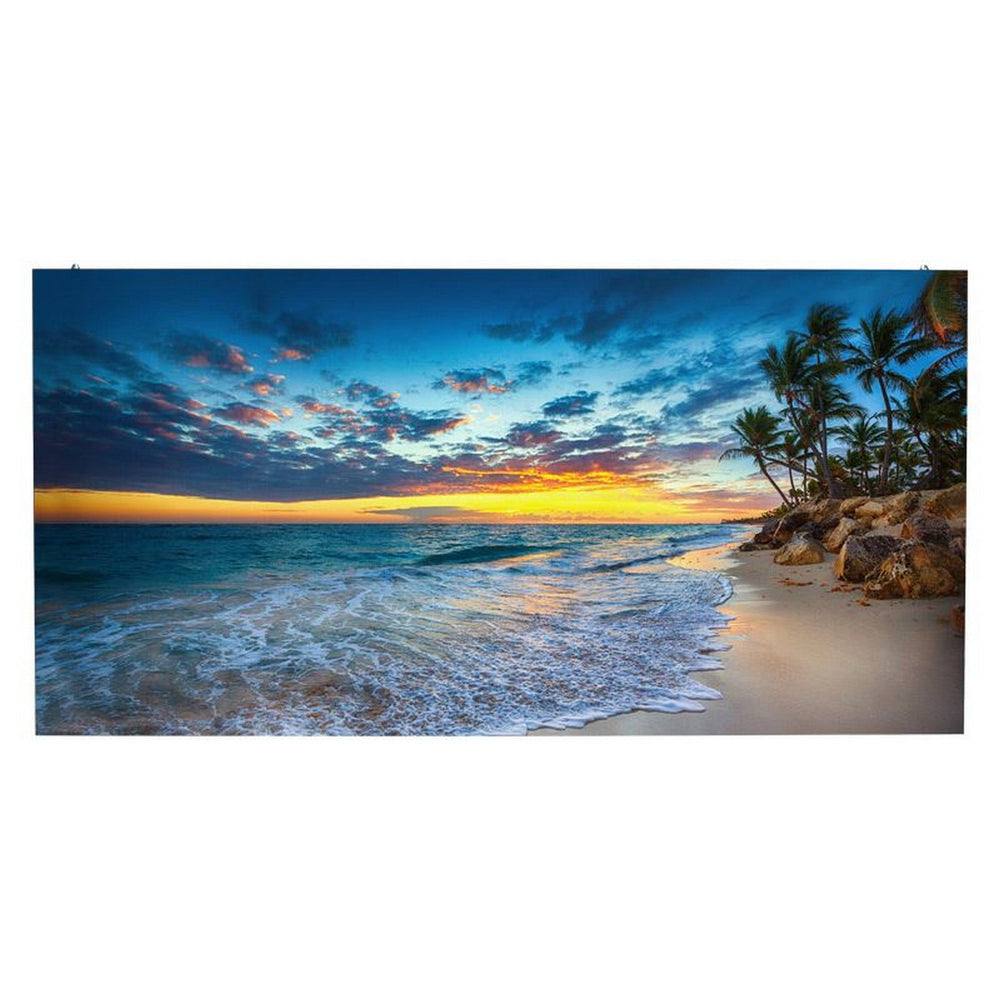

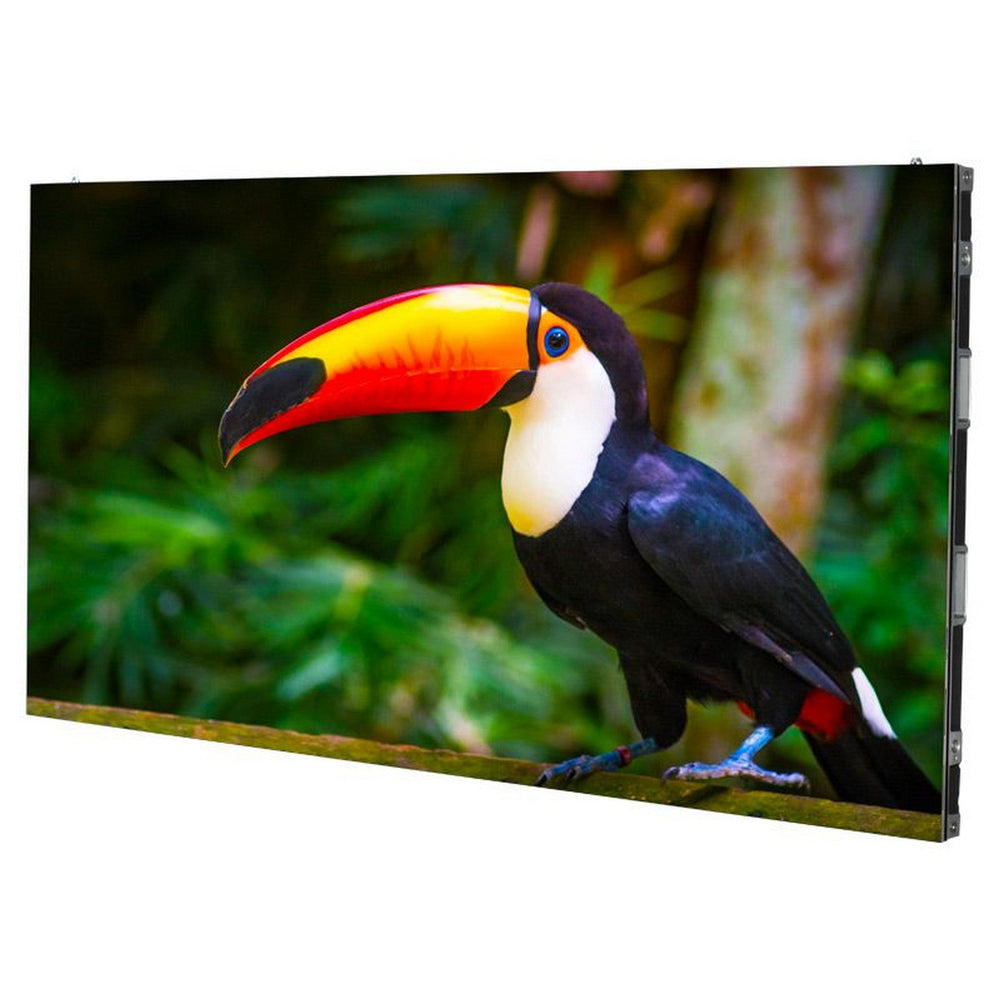

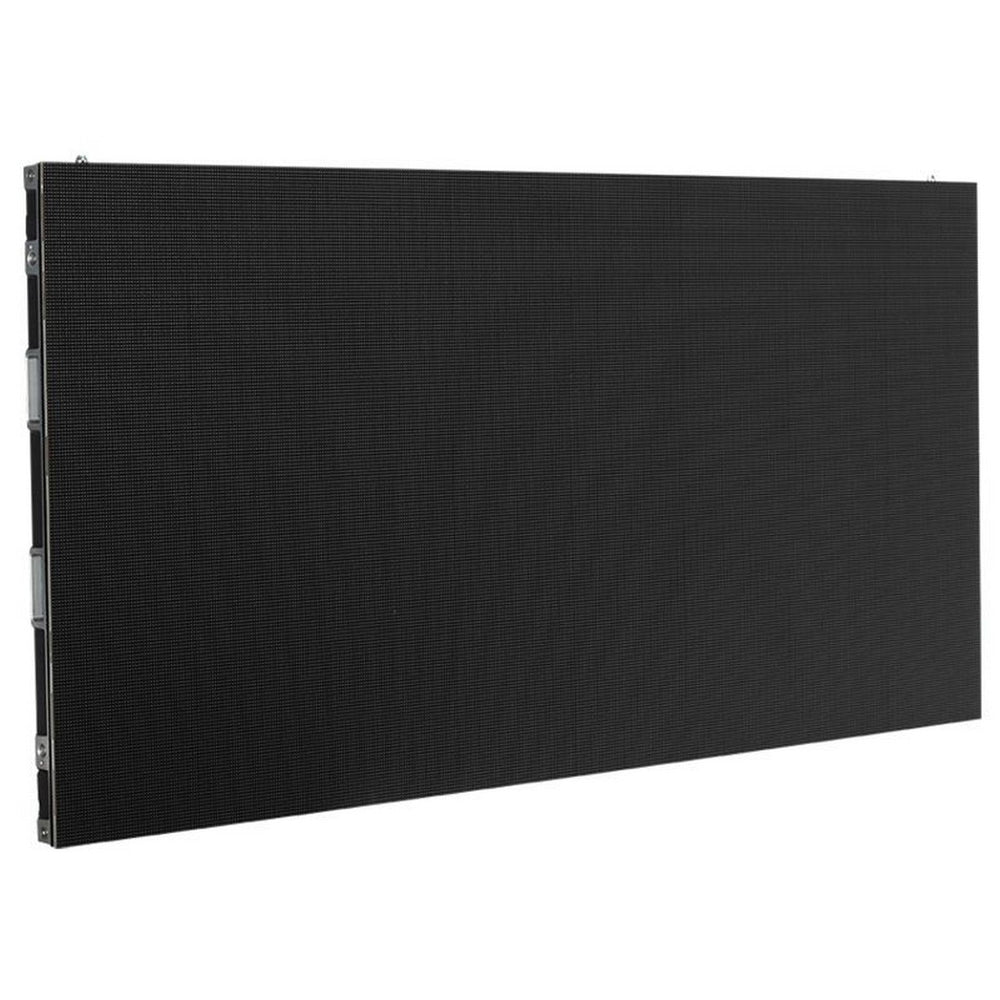

WMS1 High Resolution Video Panel

The WMS1 High Resolution Video Panel by ADJ is engineered to deliver superior visual performance with its high-definition capabilities and cutting-edge technology. This advanced video panel is ideal for a wide range of applications, from large-scale events and concerts to sophisticated installations. Its modular design and high-resolution display ensure that your content is shown with remarkable clarity and impact, making it an excellent choice for professional use.

Equipped with versatile connectivity options, the WMS1 allows seamless integration with various video sources and control systems. Its robust build and sleek design make it both durable and visually appealing, suitable for both temporary setups and permanent installations. The panel’s ease of installation and maintenance, combined with its high performance, ensures reliable operation in any setting. Whether you are creating a video wall or a dynamic display, the WMS1 provides the performance and flexibility needed to achieve outstanding results.

Featuring a modular and slim design, the WMS1 High Resolution Video Panel not only delivers exceptional video quality but also offers ease of use and installation. Its high brightness and wide viewing angles ensure that your content is visible and vibrant from various perspectives, while its durable construction promises longevity and reliable performance even in demanding environments.

Key Features

• Ultra-high resolution for clear and detailed visuals
• Versatile connectivity options for various video sources

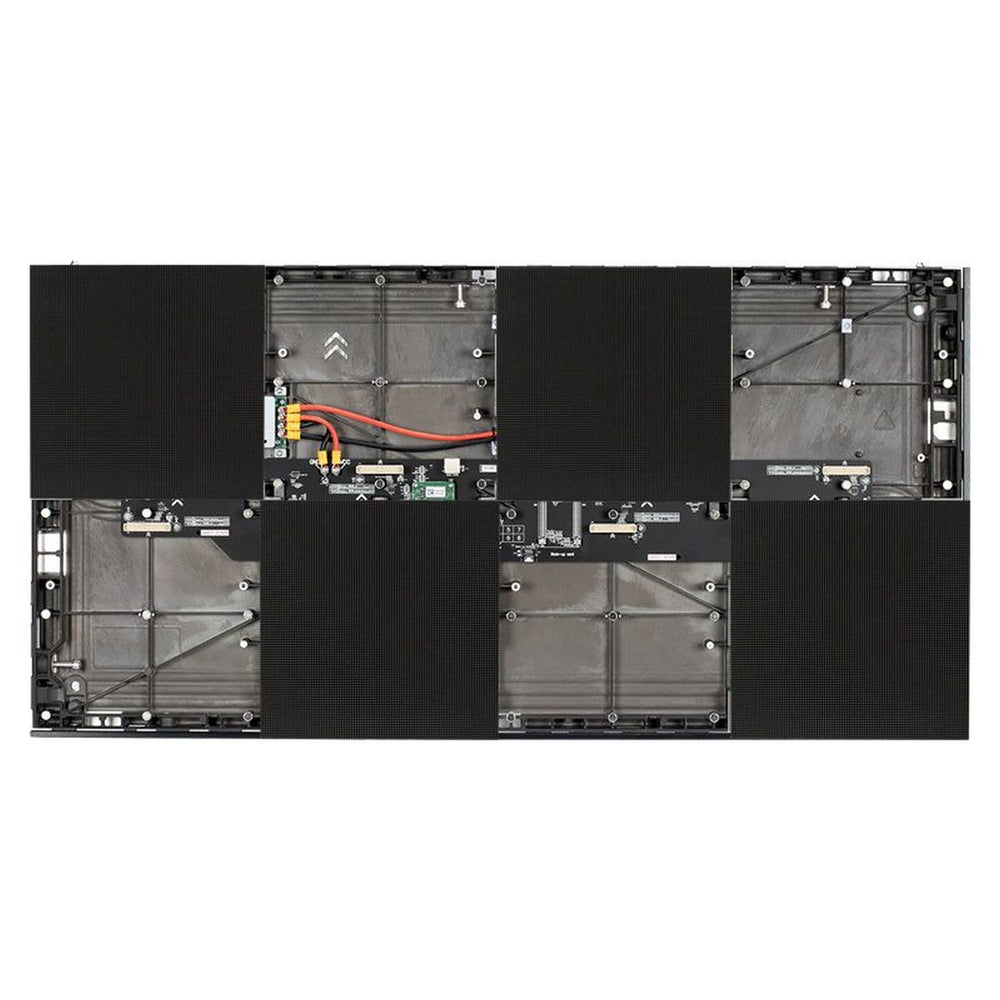

• Modular design for easy setup and customization
• Durable construction for reliable performance
• Sleek and modern design enhances visual appeal

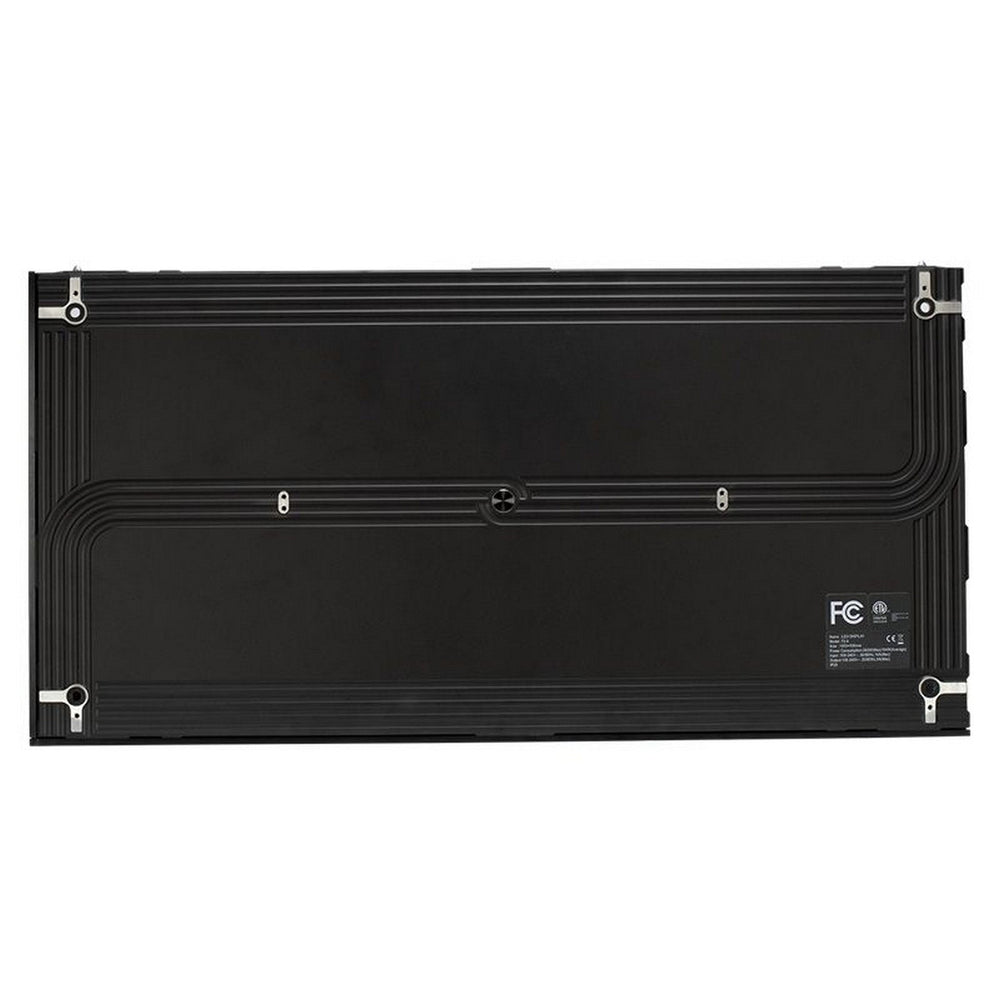

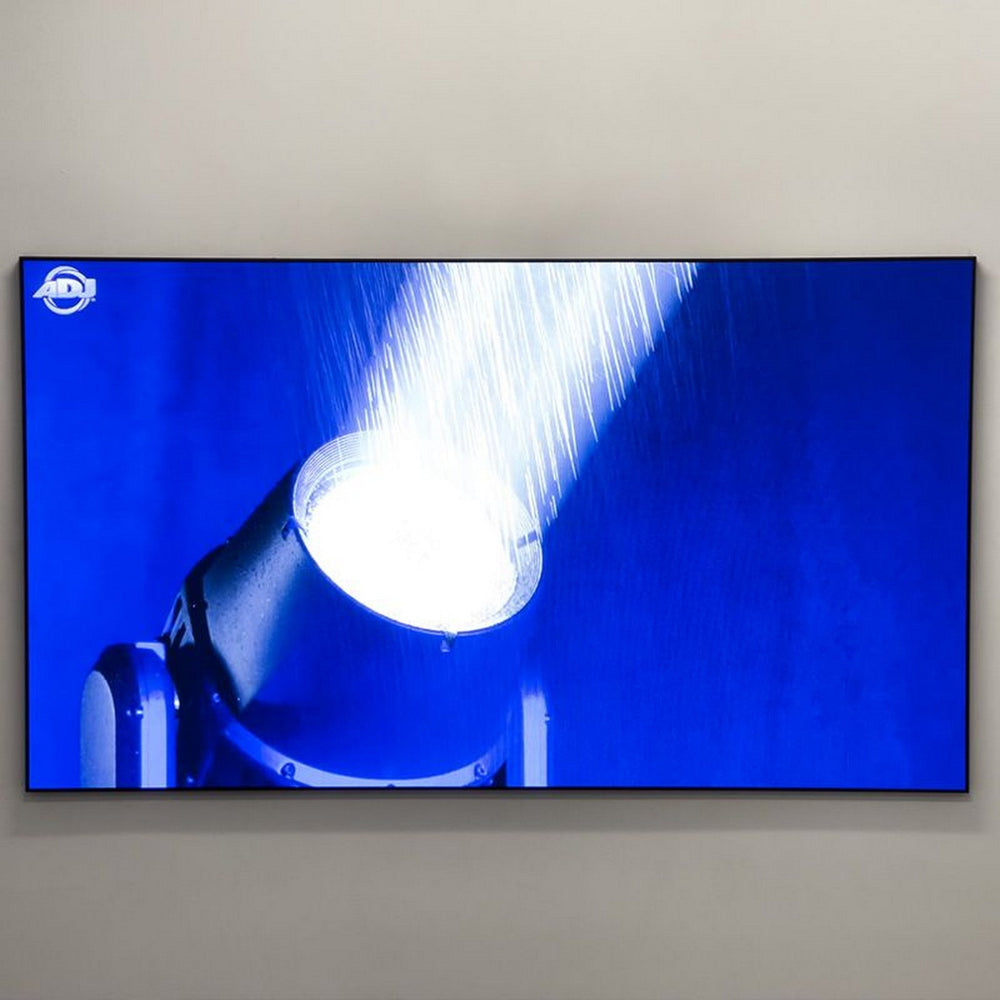

• Installation options: Hang or Wall Mount

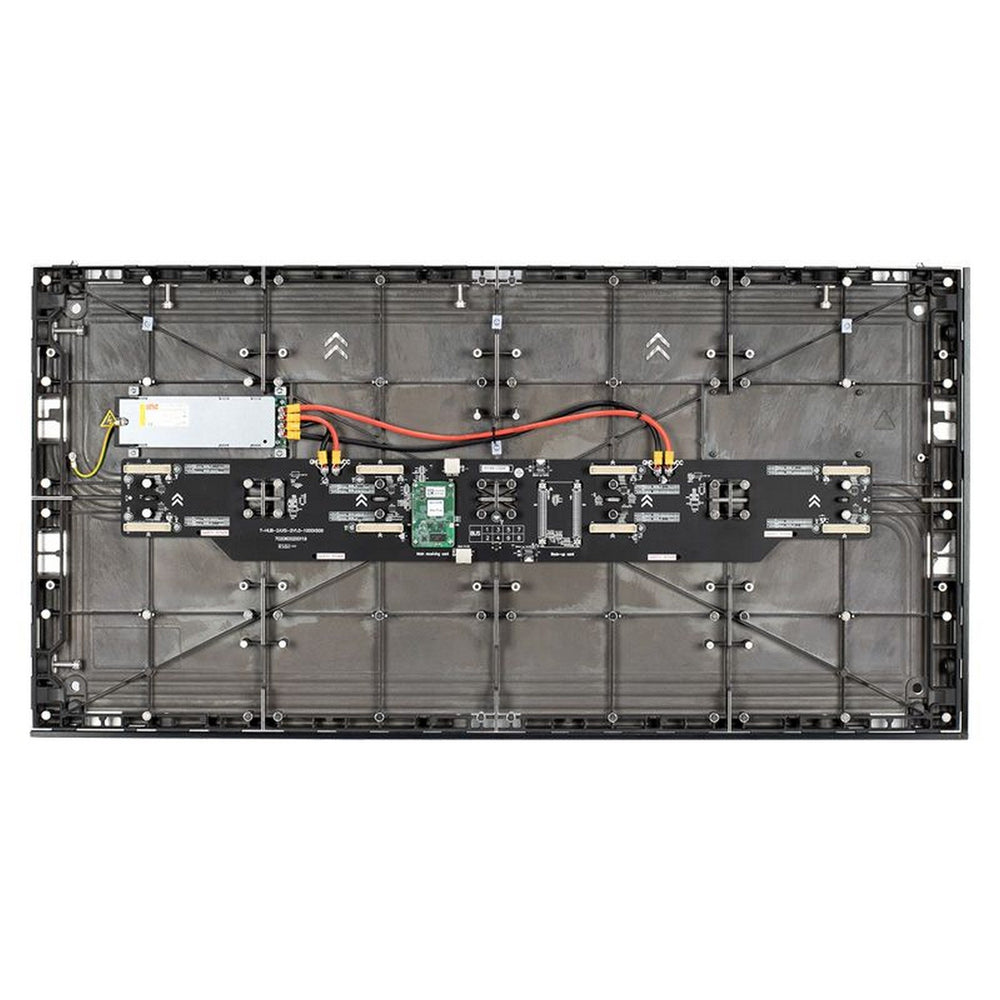

• Front service maintenance

Technical Specifications

Dimensions
39.3" x 19.6" x 1.3" (1000 x 500 x 33 mm)
Weight
21 lbs (9.5 kg)
Pixel Pitch
1.95 mm
Pixel Density
262,144 dots/m²
LED Sealing Type
SMD1212 Kinglight Copper

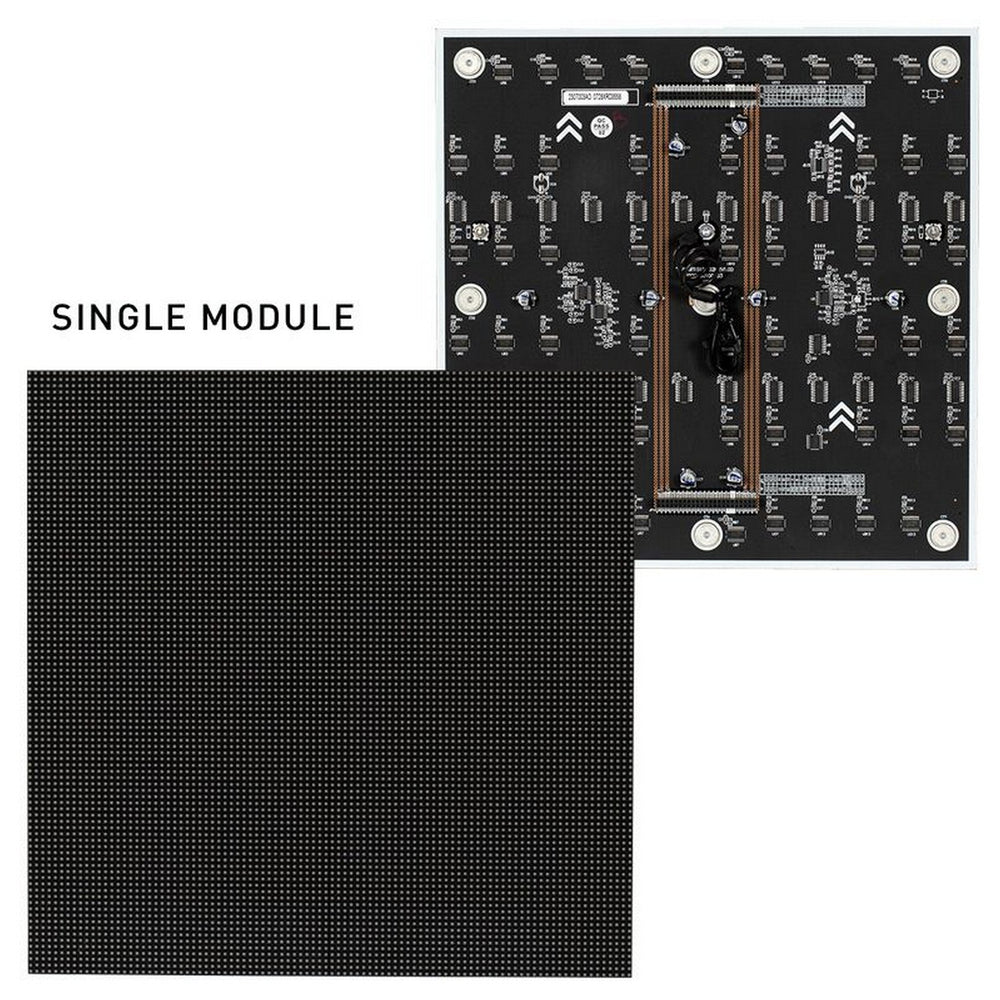

Module Size
9.8" x 9.8" (250 x 250 mm)
Module Resolution
128 x 128 pixels
Panel Resolution
512 x 256 pixels (horizontal) or 256 x 512 pixels (vertical)
Average Life
50,000 hours
Brightness
700 nits
Horizontal Viewing Angle
160°
Vertical Viewing Angle
140°
Grey Scale
≥14 bit, DP32655
Refresh Rate
3840 Hz
Input Voltage
100-240 VAC
Max Power Dissipation
370 W/m²
Average Power Consumption
140 W/m²
Receiving Card
Novastar A8s-N
Working Environment
Indoor
Waterproof Level
IP20
Working Temperature
-20 ~ +40°C (-4 ~ 104°F)
Work Humidity
10% ~ 90%
Storage Temperature Range
-40 ~ +80°C (-40 ~ 176°F)
Operation Humidity
10% ~ 90%

Approvals

Certificates
cETLus

Accessories (NOT included)

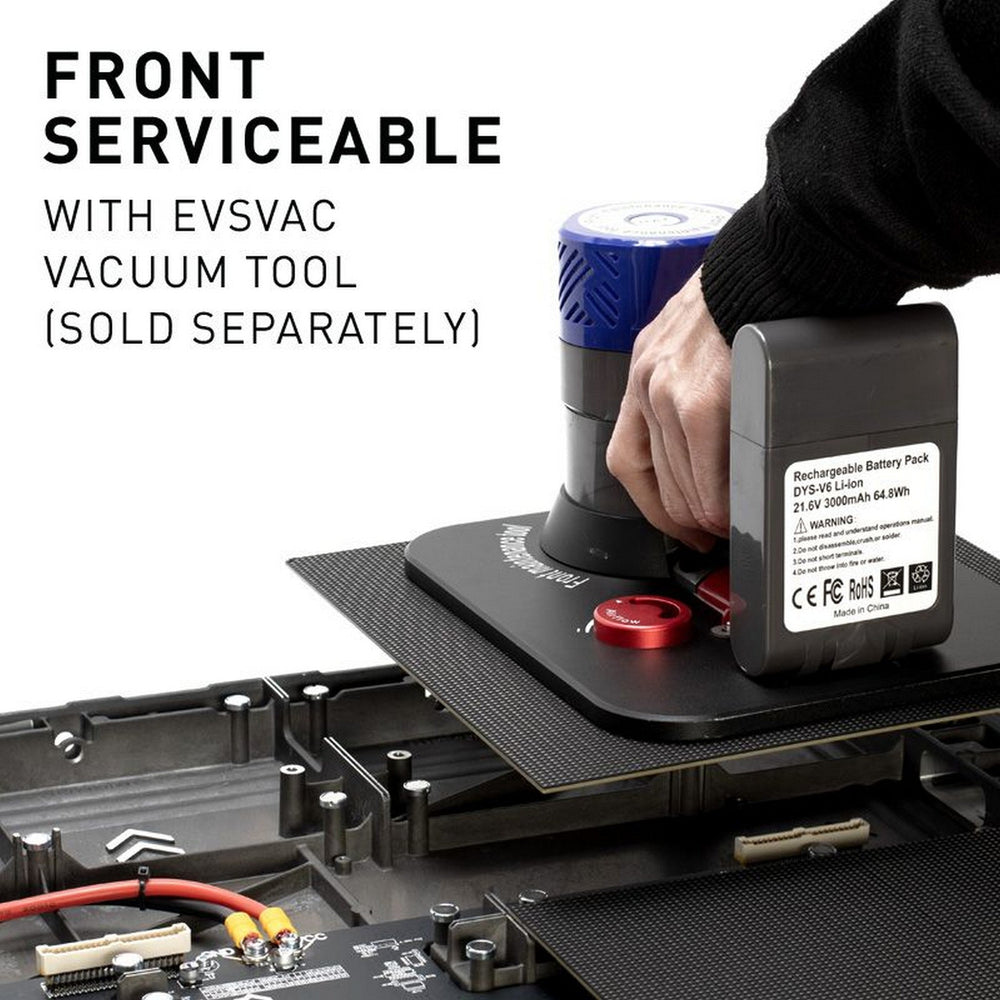

• EVSVAC (EVSVAC) - Vacuum Tool to Remove Modules
• WMSHDC (WMS132) - Horizontal Data Cable for WMS Panel Series
• WMSHPC (WMS106) - Horizontal Power Cable for WMS Panel Series
• WMSMAT (WMS080) - WMS1 & WMS2 Magnet Adjustment Tool
• WMSMDC32 (WMS158) - 32-foot, Main Data Cable for WMS Panel Series
• WMSMPC16 (WMS145) - 16.4-foot, Main Power Input Cable for WMS Panel Series
• WMSRB1 (WMS015) - Free Hang, 1-Meter Rigging Bar (Max hang: 15 WMS Series panels)
• WMST2X2 (WMS041) - Frame Trim for 2x2 WMS Video Wall
• WMST3X3 (WMS054) - Frame Trim for 3x3 WMS Video Wall
• WMST4X4 (WMS067) - Frame Trim for 4x4 WMS Video Wall
• WMSVDC (WMS119) - Vertical Data Cable for WMS Panel Series
• WMSVPC (WMS093) - Vertical Power Cable for WMS Panel Series
• WMSWB1 (WMS028) - 1-Meter, Wall Mount Bracket
