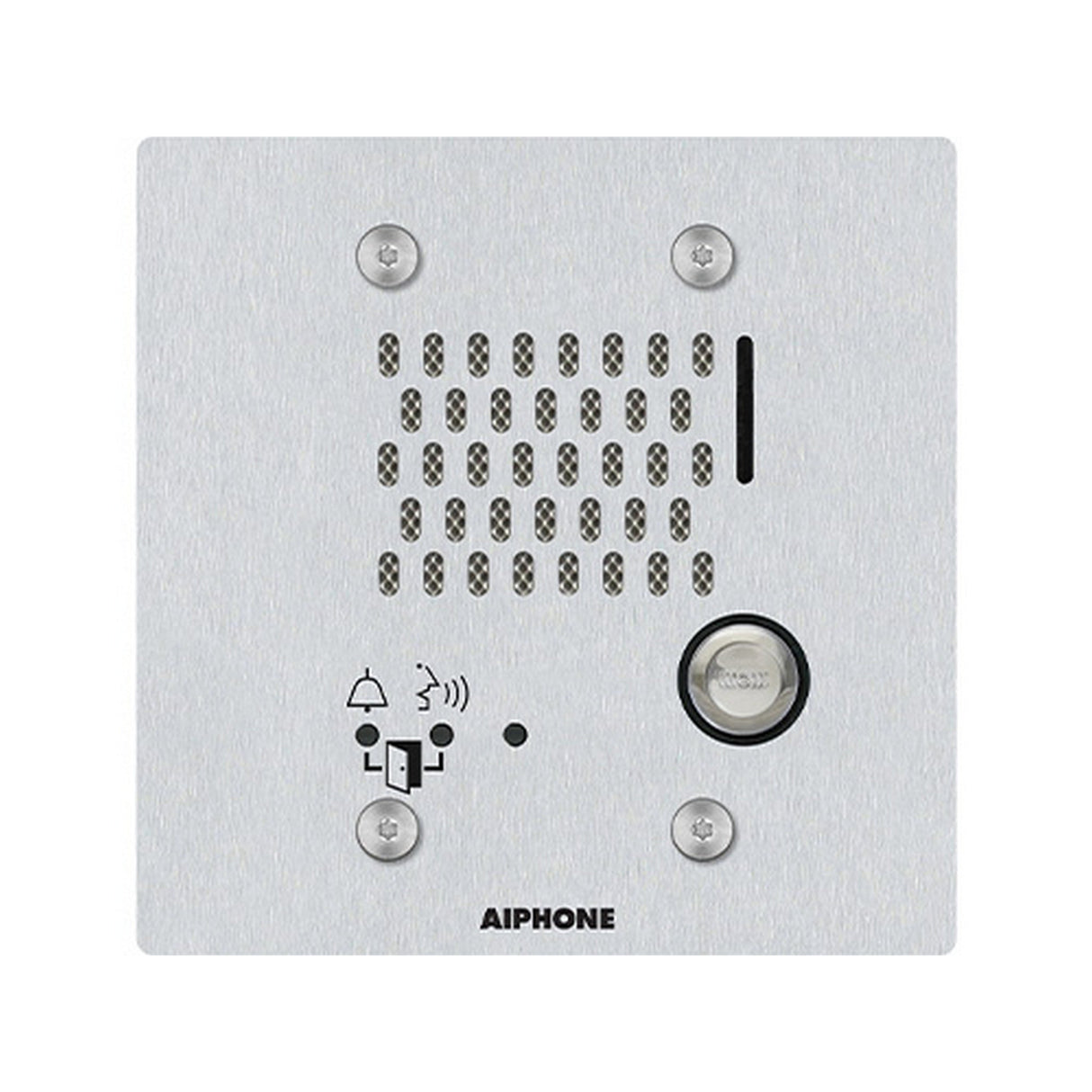

Aiphone IX-SS-2G Flush Mount IP Audio Door Station
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Aiphone IX-SS-2G Flush Mount IP Audio Door Station
The Aiphone IX-SS-2G is a flush mountable IP audio door station built for durability and security. Crafted from stainless steel, it offers vandal and weather resistance while supporting SIP communication and compatibility with all IX and IXG series devices.
Powered via Power over Ethernet, this unit features an illuminated call button indicator, IP65 weather resistance, and robust ingress protection. It includes one contact output and one trigger input, making it suitable for access control integration and reliable outdoor installations.
With wide operating temperature range and high impact protection, the IX-SS-2G is ideal for both commercial and outdoor residential environments. Whether used at entry gates, security checkpoints, or building access points, this door station delivers performance with reliability in demanding conditions.
Key Features
- SIP Compliant: Integrates with standard SIP systems for audio intercom.
- PoE Powered: Power over Ethernet (IEEE 802.3af class 0) for clean installation.
- Illuminated Call Button: Visibility under low-light conditions.
- Weather & Vandal Resistance: IP65 rated and stainless steel construction with IK08 impact protection.
- Contact Output and Trigger Input: Enables integration with door locks, alarms, or other access systems.
Technical Specifications
- Power Source: PoE (IEEE 802.3af class 0)
- Power Draw: 3.36 Watts
- Audio Codec: G.711 (Ī¼-law, A law), G.722
- Volume: 73 dB-96 dB
- Port Security: IEEE 802.1X
- Operating Temperature: -40Ā° to 140Ā°F (-40Ā° to 60Ā°C)
- Ingress Protection: IP65
- Impact Protection: IK08
- Dimensions (H Ć W): 4-Ā¾ in Ć 4-Ā¾ in
- Mounting: Flush mount with 2-gang box (2-1/2 in deep or greater), or surface mount with a stainless steel surface mount box
