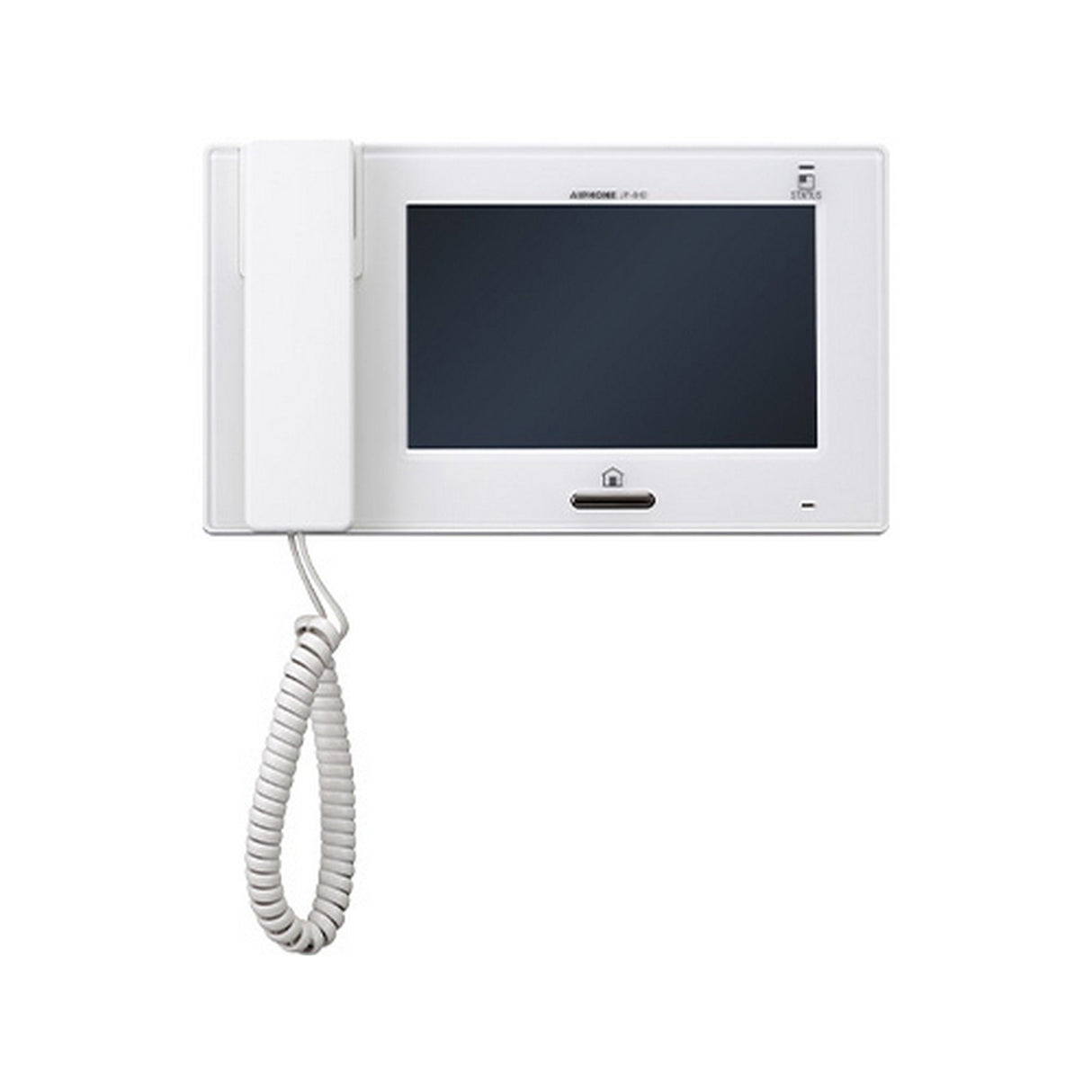

Aiphone JP-4HD Video Sub Station with 7-Inch Touchscreen LCD

The Aiphone JP-4HD is a video sub-station designed for JP series intercom systems. It attaches to a JP-4MED answering station and handles incoming calls from JP door stations connected to the JP-4MED. It also supports communication with other JP-4HD sub-stations, enabling internal room-to-room calling.

This unit features a 7-inch touchscreen LCD and provides both hands-free (VOX) and handset (duplex) communication modes. It includes selective door release controls, room-to-room calling, door station monitoring, hearing aid-compatible T-mode, digital pan/tilt/zoom, and brightness control. Connections are made via a single Cat-5e cable to the master or distribution adapter.

Built for flexible installation, this sub-station can be surface-wall mounted or desk mounted (using optional mounting accessories). It is ideal for multi-room or multi-unit applications where internal communication and visitor management are needed, such as homes, offices, or apartments.

Key Features

• 7-inch touchscreen LCD display
• Supports both hands-free (VOX) and handset (duplex) communication
• Selective door release control
• Room-to-room calling and door station monitoring
• Hearing aid compatible (T-mode)
• Digital pan, tilt, and zoom
• Brightness control for display
• Single Cat-5e cable connection to master station or adapter

Technical Specifications

• Power Consumption: 200 mA (max)
• Display: 7-inch TFT color touchscreen LCD
• Communication Modes: Handset (simultaneous), Hands-free (automatic voice actuation)
• Mounting: Surface wall mount or desk mount (with optional MCW-S/A accessory)
• Wiring: Cat-5e or Cat-6 between master / adapter to sub-master
• Wire Distance: Master/Adapter to Sub-Master with power supply ~650 ft; without power supply ~98 ft; between adapter (JP-8Z) to sub-master ~165 ft
• Operating Temperature Range: 32 to 104 °F (0 to 40 °C)
• Dimensions: 5-11/16 in H × 10-1/16 in W × 1-7/8 in D
