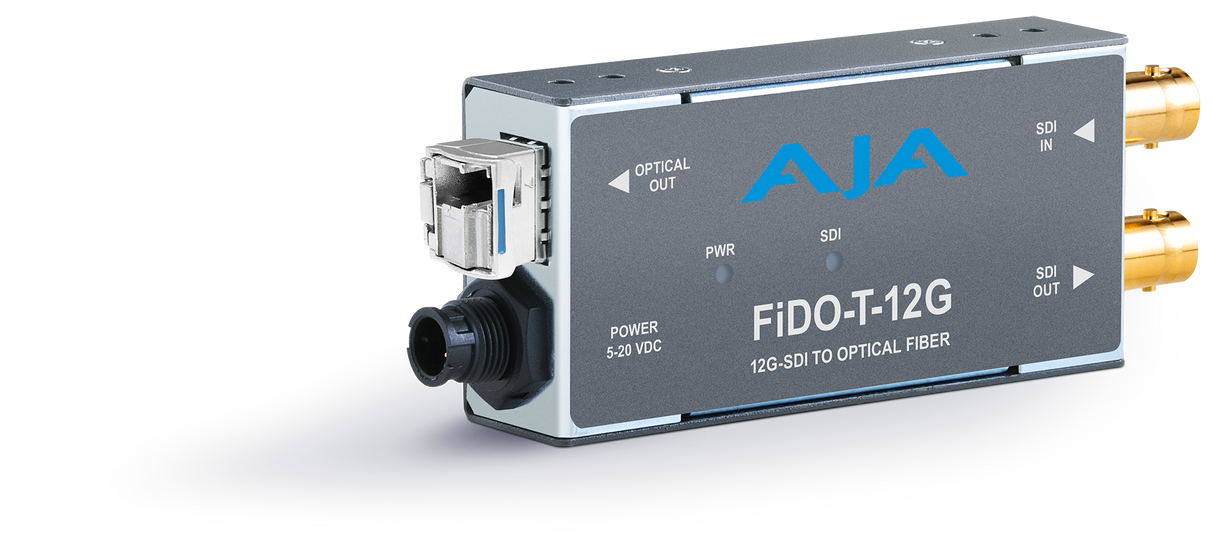

AJA 1-Channel 12G-SDI to Single Mode LC Fiber Transmitter
AJA's FiDO 1-channel 12G-SDI to single mode LC fiber transmitter carries SDI signals up to 10 km (32,808 ft) over standard single-mode fiber optic cable, offering flexible and cost-efficient 12G/6G/3G/HD/SD-SDI fiber conversion. Its compact, low-profile Mini-Converter enclosure suits tight spots behind equipment racks, in trucks, and on camera rigs where space is limited.
The unit is format agnostic from 270 Mbps to 12 Gbps, with a 12G-SDI BNC input and a reclocked SDI loop out alongside the simplex LC fiber output. SDI metadata, including HDR, passes through intact, and reclocking auto-selects standard rates from 270 Mbps to 11.880 Gbps. A locking connector secures the included universal power supply, draw is 2 watts maximum, and the converter is covered by a five year warranty.
Key Features
- Single-channel 12G-SDI to single mode LC fiber transmission up to 10 km
- Accepts 12G/6G/3G/HD/SD-SDI; format agnostic from 270 Mbps to 12 Gbps
- Reclocked SDI loop through with pass through of SDI metadata, including HDR
- Simplex LC fiber connection with 1260-1360 nm transmit wavelength
- Compact 4.6 x 1.71 x 0.85 inch enclosure fits behind racks or on camera
- 5-20 VDC power, 2 watts max; universal supply included; five year warranty
Specifications
- 270 Mbps - 12 Gbps, format agnostic
- 1-channel 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
- 1-channel 12G-SDI reclocked, loop out, BNC connector, SMPTE 259/292/424/2081/2082
- 1-channel 12G-SDI Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
- Optical Power: -5 dBm (Min), 0.5 dBm (Max)
- Extinction Ratio: 3.5 (Min)
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps,
- 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- All other rates are passed through and not reclocked
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
- Video Formats
- Video Input Digital
- Video Output Digital
- Reclocking
- Size (w x d x h) 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)
- Weight 0.4 lb (0.2 kg)
- Power 2 watts, max Uses 5-20VDC power, universal power supply included
- Environment
What's Included
- 1-Channel 12G-SDI to Single Mode LC Fiber Transmitter
