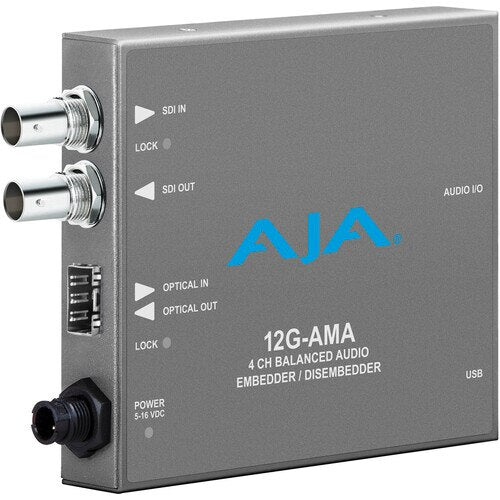

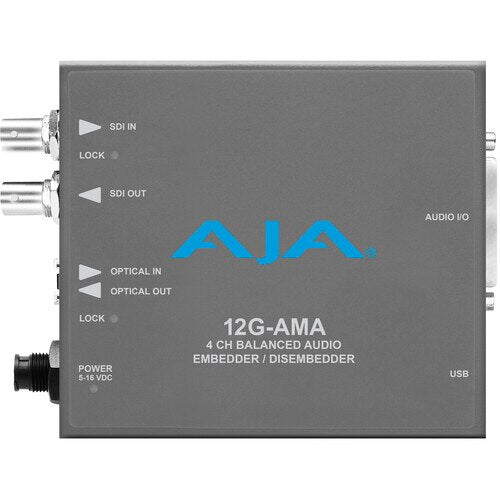

AJA 12G-AMA 12G-SDI 4-Channel Balanced Audio Embedder with Fiber Options
The AJA 12G-AMA is a four-channel balanced analog audio embedder and disembedder built around 12G-SDI input and output up to 4K/UltraHD. It belongs anywhere analog audio has to enter or leave an SDI stream, such as feeding a mixer from embedded program audio and returning the mix into the signal path for recording, with fiber I/O models offered in LC and ST options.
Disembedding stays active at all times across four analog outputs, while embedding is selectable per channel pair to either pass the incoming SDI audio or insert analog audio from the supplied XLR breakout cable, which carries four inputs and four outputs over eight connectors. Analog levels are selectable, the input video standard is detected and configured automatically, and an internal 1.5G-SDI signal generator lets the embed path run without a connected SDI source.
Key Features
- 12G-SDI input and output supporting up to 4K/UltraHD single link
- Four channels of balanced analog audio embedding and disembedding
- Disembed path always active with four analog outputs
- Embedding selectable per channel pair: pass SDI audio or insert analog audio
- Internal 1.5G-SDI signal generator runs the embed path without an SDI source
- Supplied XLR breakout cable with four inputs and four outputs over eight connectors

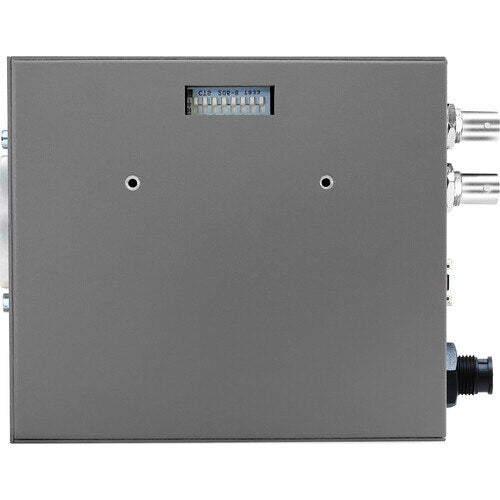

- Configure via DIP switches or USB with AJA Mini-Config software
Specifications
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- RGB and YCbCr, 4:4:4/4:2:2, 10-bit
- Note: Raster and frame rate dependent. Please see 12G-AMA Video Formats in Documents and Manual.
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD/HD/2K/UltraHD/4K
- Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD/HD/2K/UltraHD/4K
- Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425
- (Belden 1694A coax)
- 12 Gbps, 65m
- 6 Gbps, 125m
- 3 Gbps, 190m
- 1.5 Gbps, 200m
- 270 Mbps, 405m
- Video Out is a delayed, reclocked version of Video In, at the same frame rate, etc. Video Out is undefined when no input.
- Video Latency, time measured between video input and video output connector:
- 12G = 3.2 µsec
- 6G = 3.2 µsec
- 3G level B (Dual Stream HD mode) = 6.3 µsec
- 3G level A = 3.2 µsec
- HD (1.5 Gb) = 6.3 µsec
- SD (270 Mb) = 17.2 µsec
- Balanced Analog Audio, 1x 25 pin D female connector on the converter, 4-channels in, 4-channels out
- Breakout cable provided with 1x 25 pin D male connector:
- 4x XLR female input breakout connectors
- 4x XLR male output breakout connectors
- 24-bit
- SMPTE 272M (SD): 20-bit, 48 kHz synchronous
- SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- Up to 16-channels supported
- Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
- Embed Path 1100 µsec
- Disembed Path 1200 µsec
- Configured via Mini-Config software:
- Pro 1: 0 dBfs = +24 dBu
- Pro 2: 0 dBfs = +18 dBu
- Pro 3: 0 dBfs = +15 dBu
- Consumer 1: 0 dBfs = +12 dBu
- External DIP switch
- USB port used with Mini-Config software application to configure the device via PC/Mac
- 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
- 0.6 lb (0.3 kg)
- +5-16VDC, 10 watts. power supply required, included with purchase
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
- Video Formats
- Video Input Digital
- Video Output Digital
- Cable Equalization
- Video Path Delay
- Audio Inputs and Outputs
- Digital Audio Converters
- Embedded Audio
- Path Audio Latency
- Analog Audio Levels
- User nterface
- Size (w x d x h)
- Weight
- Power
- Environment
What's Included
- 12G-AMA 12G-SDI 4-Channel Balanced Audio Embedder with Fiber Options
- Universal input +5V power supply AJA model DWP-U-R1
