AJA 3GDA 1x6 3G-SDI Reclocking Distribution Amplifier

Overview

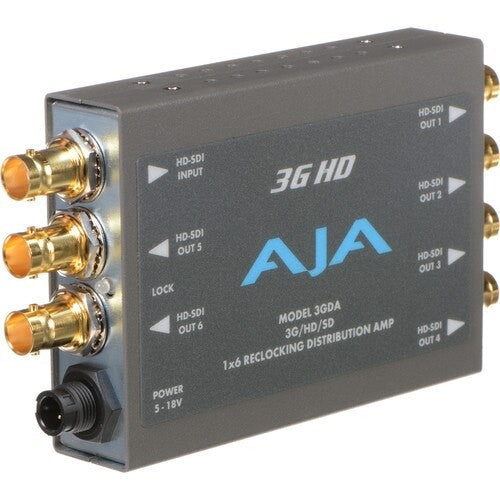

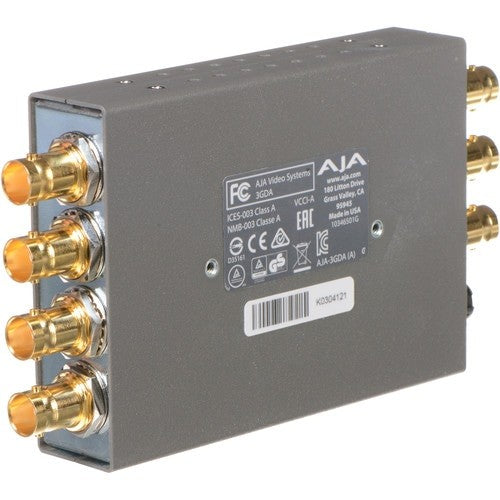

The AJA 3GDA 3G-SDI 1x6 Distribution Amplifier is a miniature, low-cost 1x6 3G HD-SDI/HD-SDI/SDI reclocking distribution amplifier. Featuring six separately buffered SDI outputs, the 3GDA provides automatic input detection, reclocking, and cable equalization.

AJA 3GDA 3G-SDI 1x6 Distribution Amplifier Features

• Compact SD/HD distribution
• Six separately buffered outputs
• 3G/HD/SD-SDI input, auto-sensing
• 3G cable equalization (1694 coax)
• SD: 270mb, 350m, HD: 1.5Gb, 200m
• Passes all ancillary data tests

Universal Power Supply
Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Technical Specifications

Video Formats

• 100 Mbps - 3 Gbps, format agnostic

Video Input Digital

• 1 x 3G-SDI BNC, SMPTE-259/292/296/424

Video Output Digital

• 6 x 3G-SDI BNC, SMPTE-259/292/296/424

Cable Equalization

• (Belden 1694A coax)
• 3 Gbps, 120m
• 1.5 Gbps, 200m
• 270 Mbps, 350m

Input / Output Return Loss

• >15db, 270 Mb - 3 Gb

Reclocking

• 2.970 Gbps, 2.967 Gbps, 1.485 Gbps, 1.483 Gbps, 270 Mbps - Auto Select
• All other rates are passed through and not reclocked

Size (w x d x h)

• 5.8" x 3.1 x 1" (147mm x 79mm x 25mm)

Weight

• 0.7 lb (0.3 kg)

Power

• +5-18VDC, regulated, 3 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

What's Included

• 3GDA 3G-SDI 1x6 Distribution Amplifier Universal input +5V power supply AJA model DWP-U-R1 Warranty: 5 Years AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running. Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
