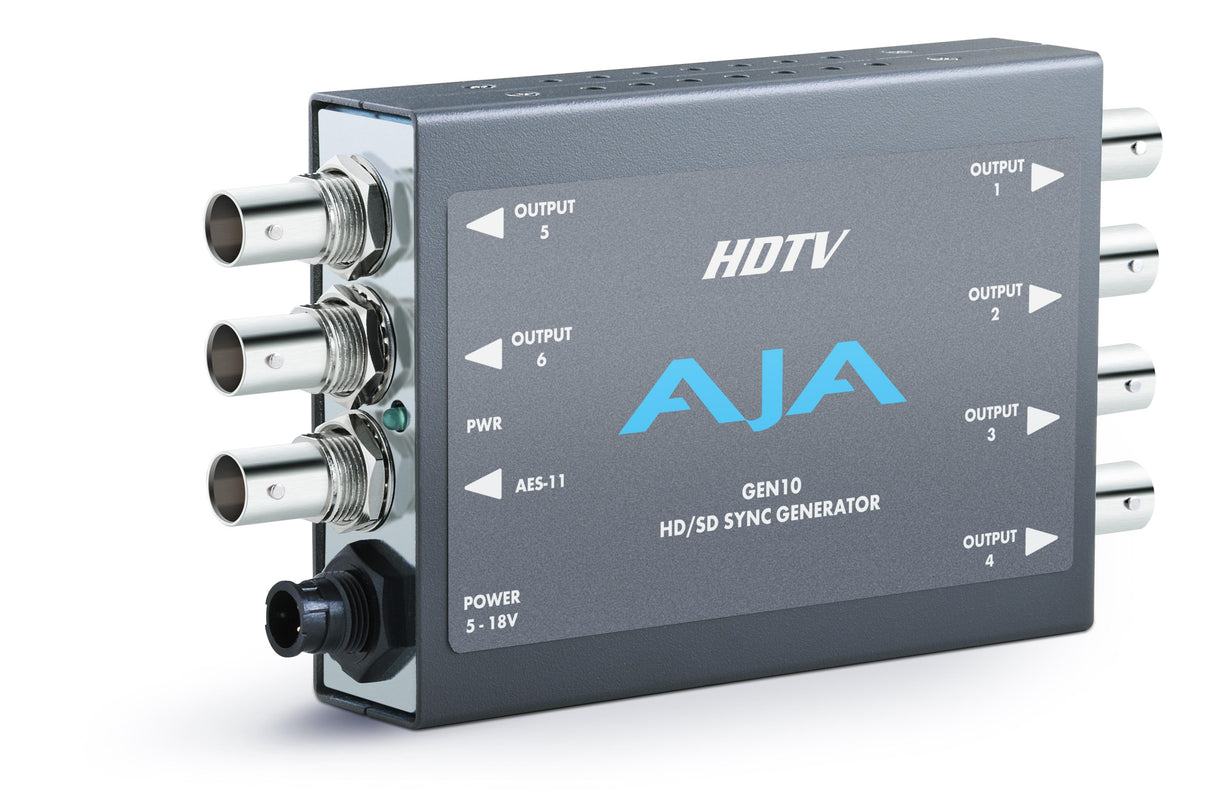

AJA HD/SD Sync Generator

AJA HD/SD Sync Generator

This AJA HD/SD Sync Generator is a compact reference source from the Mini-Converter infrastructure line, producing the timing signals that keep video systems locked together. It suits facilities, production trucks, and equipment racks that need dependable sync generation in a small footprint, covering HD tri-level and SD color black reference duties at the point of use.

Supported rates include 1080i at 50, 59.94, and 60, 1080PsF and 1080p at 23.98 through 30, 720p from 23.98 to 60, plus 625i and 525i. The unit also generates an AES-11 digital audio reference at 48 kHz, as silence or a 1 kHz tone at -20 or -18 dBFS, all with 3 ppm accuracy. Configuration is handled by an external dipswitch, and the 2 watt unit ships with its power supply.

Key Features

• Generates HD tri-level sync plus SD color black and 75 percent color bars
• AES-11 audio reference at 48 kHz, silent or 1 kHz tone at -20 or -18 dBFS
• 3 ppm timing accuracy
• Covers 1080i, 1080PsF, 1080p, and 720p rates plus 625i and 525i
• Simple external dipswitch control
• Compact 5.8 x 3.1 x 1.0 inch chassis with included power supply

Specifications

• 1080i 50, 59.94, 60
• 1080PsF 23.98, 24, 25, 29.97, 30
• 1080p 23.98, 24, 25, 29.97, 30
• 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 625i, 525i
• Tri-level
• Color Black, 75% Color Bars
• AES-11, 48 kHz, silent or 1 KHz tone (-20 or -18 dBFS)
• 3 ppm
• External dipswitch
• 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
• Formats
• HD Sync
• SD Sync
• AES
• Accuracy
• User Controls
• Size (w x d x h)
• Power: +5-18VDC, 2 watts, power supply required, included with purchase
• Environment

What's Included

• AJA HD/SD Sync Generator
