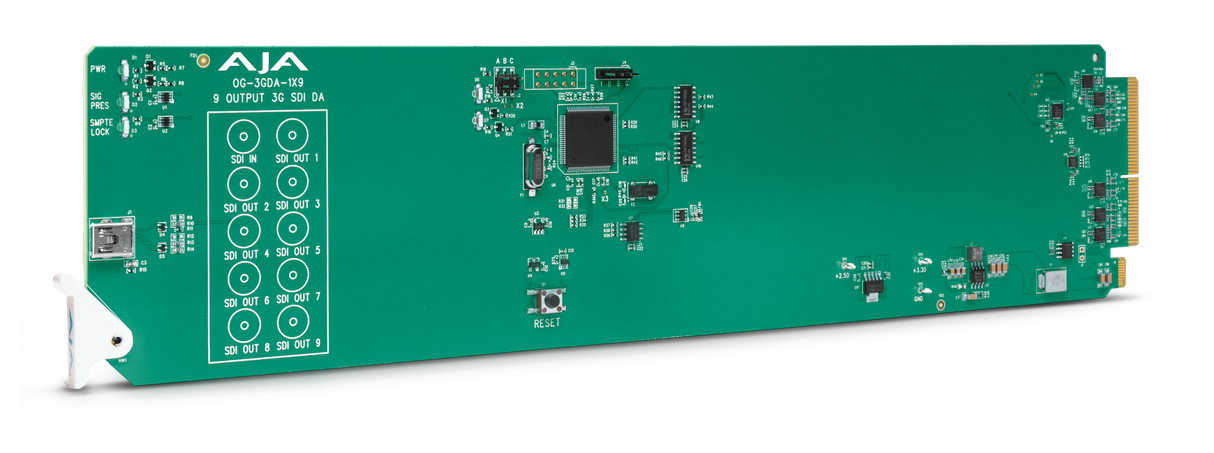

AJA openGear 1x9 3G-SDI Reclocking DA
The AJA openGear 1x9 3G-SDI Reclocking DA takes a single 3G-SDI input, equalizes it automatically, and distributes the reclocked signal to nine outputs so the same feed can reach multiple destinations simultaneously. Built to the openGear card standard, it slots into high-density 2RU frames such as AJA's OG-X-FR for facility-wide SDI distribution.
SDI rates of 270Mb, 1.5Gb, and 3Gb are supported with auto-select reclocking; other rates pass through unprocessed. Cable equalization on Belden 1694A coax spans 350 m at 270 Mbps, 200 m at 1.5 Gbps, and 120 m at 3 Gbps. A 10x BNC rear connector module is included, DashBoard software provides network control from Windows, macOS, or Linux, and power draw is 2.5 watts maximum per card.
Key Features
- Distributes one 3G-SDI input to nine reclocked outputs
- Automatic input equalization with best in class input jitter tolerance
- Supports 270Mb, 1.5Gb, and 3Gb SDI rates; format agnostic 150 Mbps to 3 Gbps
- 10x BNC rear openGear connector module included
- DashBoard network control on Windows, macOS, and Linux
- 2.5 watts max per card in openGear 2RU frames
Specifications
- 150 Mbps - 3 Gbps, format agnostic
- 1x 3G-SDI BNC, SMPTE-259/292/424
- 9x 3G-SDI BNC, SMPTE-259/292/424
- 5x outputs noninverting
- (Belden 1694A coax)
- 270 Mbps, 350m
- 1.5 Gbps, 200m
- 3 Gbps, 120m
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked
- User Controls
- openGear DashBoard network control software via Windows, macOS or Linux
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- 0.5 lb (0.3 kg)
- openGear frame compatible, 2.5 watts max per card
- Safe Operating Temperature Range: 0C to 40C (32F to 104F)
- Safe Storage Temperature Range (power OFF):-40C to 60C (-40F to 140F)
- Operating Relative Humidity :10-90% noncondensing
- Operating Altitude: <3,000m (<10,000ft)
- Video Formats
- Video Input Digital
- Video Output Digital
- Cable Equalization
- Reclocking
- Size (w x d x h)
- Weight
- Power
- Environment
What's Included
- AJA openGear 1x9 3G-SDI Reclocking DA
