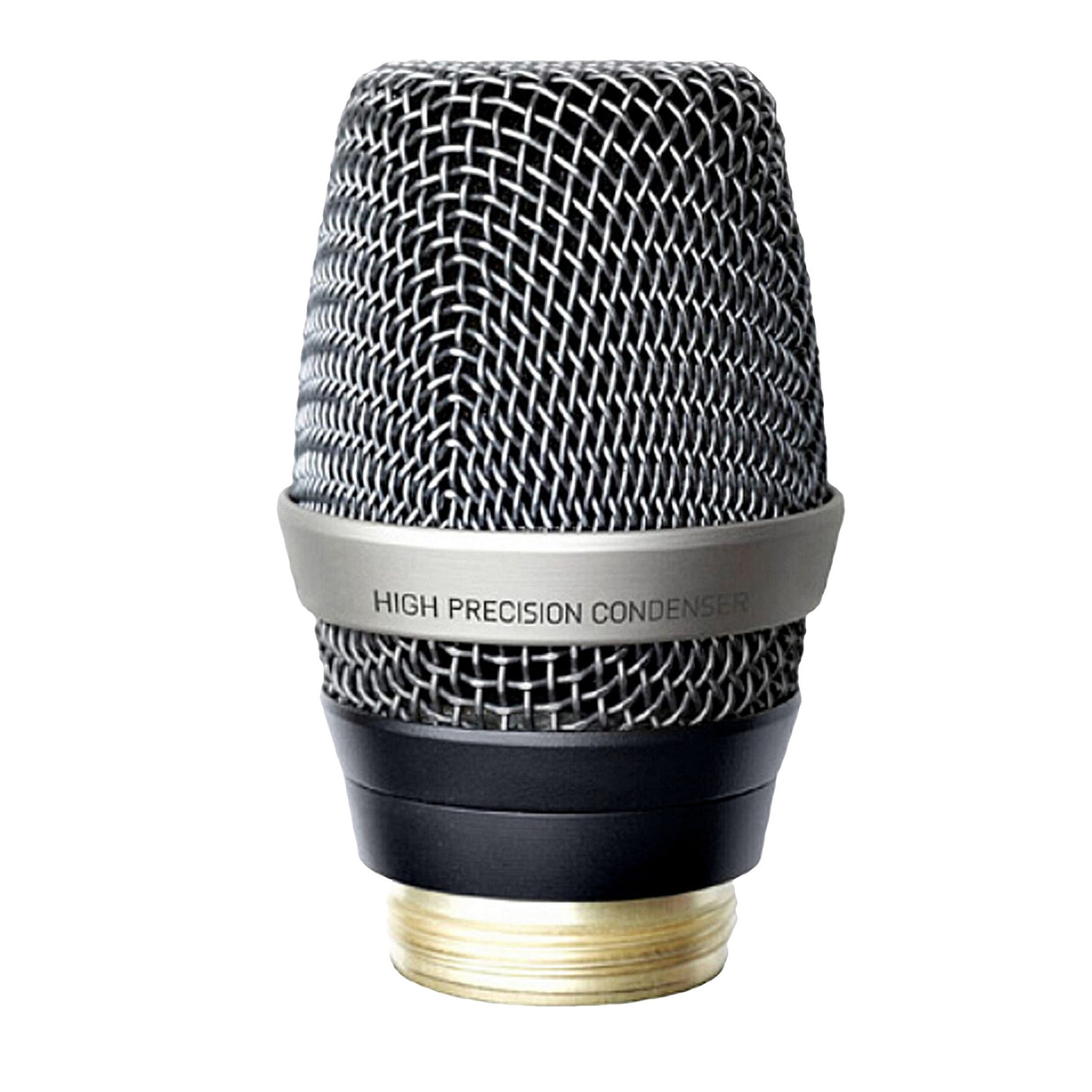

AKG C7 WL1 Reference Condenser Vocal Microphone Head

The AKG C7 WL1 reference condenser microphone head delivers premium studio-quality condenser sound and hassle-free operation on any stage. With pristine clarity and sparkling high end, the C7 allows lead and background vocals to shine through. And thanks to specially engineered circuitry and custom-designed components, C7 prevents feedback and pop noise from interfering with your performance. The C7 WL1 microphone features a custom-tuned supercardioid condenser capsule with hand-selected components, so your voice is reproduced with pristine clarity and sparkling highs. And the C7 handles incredibly high sound pressure levels, for maximum fidelity during your loudest performances. The C7 WL1 innovative open-space capsule uses a specially designed inner-capsule holder and three window ports to reduce air turbulence and inner reflections at the backside of the capsule. This creates an extremely consistent supercardioid polar pattern throughout the entire frequency spectrum, for extraordinary feedback and spill rejection. It is designed to fit the HT4500 and DHT800 handheld transmitters.

Key Features

• Custom-tuned supercardioid condenser capsule
• Open-space capsule design
• Mechano-pneumatic shock absorber suspension
• Multi-layer pop noise protection
• Patented ultralight 24-karat gold Capsule

Technical Specifications

AKG Wireless System Compatibility
DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)
Type
Custom-tuned 3/4" back electret condenser
Polar Pattern
Supercardioid
Capsule
24-carat gold-plated capsule
Isolation
Mechano-pneumatic shock absorber suspension and integrated pop noise filter
Grille
Spring-steel wire-mesh
Frequency Response
20 Hz - 20 kHz
Sensitivity
4 mV/Pa
Maximum SPL
150 dB (A) @ 1%
Equivalent noise level
21 dB (A) to IEC 60286-4
